Products Description

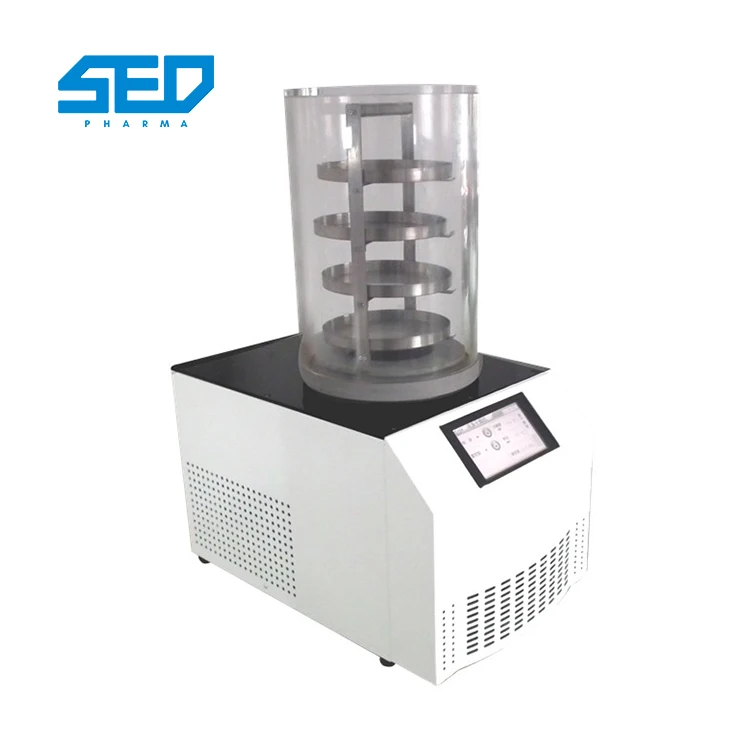

Vacuum freeze dryer is widely used in medicine,pharmacy,biology research,chemical industry and food production etc. Goods are easier for long-term preservation after freezing-drying processing.They can be restored to the original state and maintain its chemical and biological characteristics after being watered.

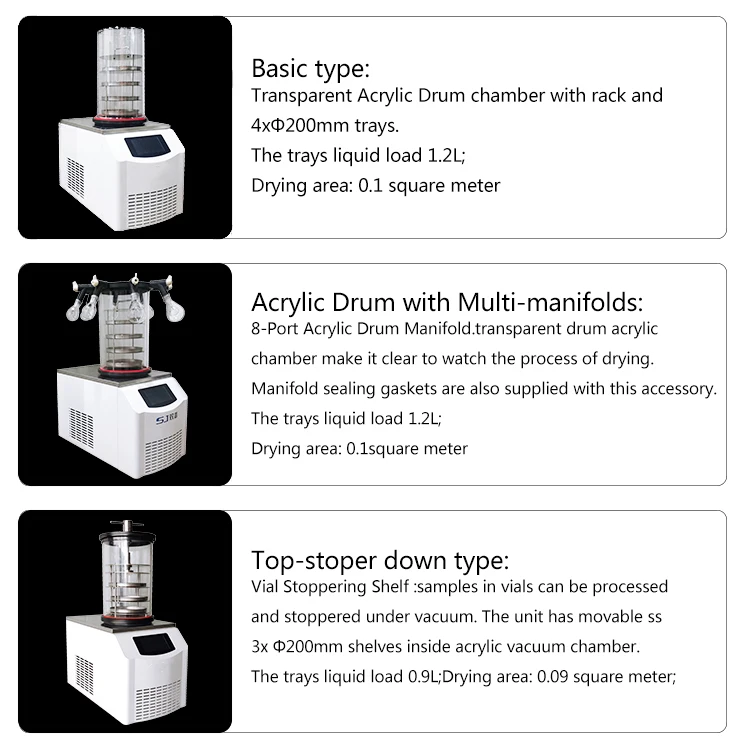

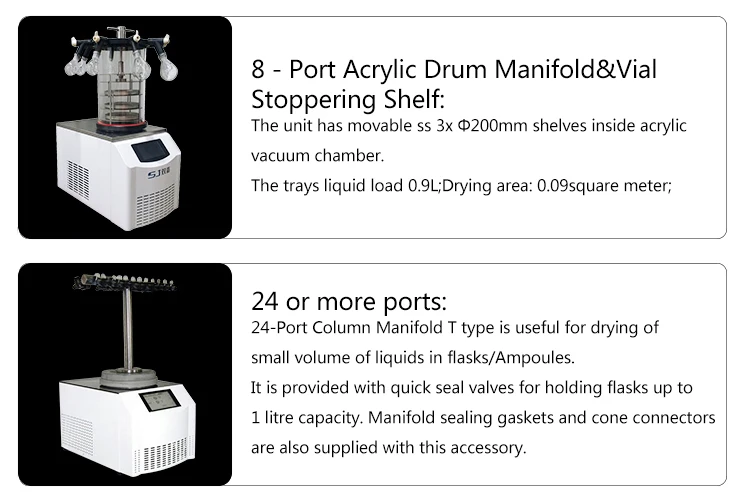

This series freeze dryer has five types: ordinary, top-press, multi-pipeline ordinary,multi-pipeline top-press and T-type shelf.
Model | SED-10N |
Ability to capture water | 3-4 kg/24 h |
Condensor No-load temperature | <-55℃/-60℃(-80℃ optional) |
Drying area | 0.12㎡ |
Main host size (W x H x D) | 680*395*450+390mm |
Tray capacity | 1.2L |
Main host net weight | 40kg |
Trays size | φ200mm*4 |
Power | 850W |
Cold trap size | φ230 x 160 mm |
Vacuum degree | <10Pa |
Accessory
Parameter | ||||||||||
Specification | Basic | Manifold | Top-down | Top-down&Manifold | T type | |||||
Model | SED-10N-60A | SED-10N-60B | SED-10N-60C | SED-10N-60D | SED-10N-60E | |||||
Drying area(㎡) | 0.12 | 0.12 | 0.92 | 0.92 | / | |||||
Tray size(mm) | 200*4 | 200*4 | 200*3 | 200*3 | / | |||||
Tray capacity(L) | 1.2 | 1.2 | 1 | 1 | / | |||||
Condensor no-load temperature(℃) | <-55 /-60(-80 optional) | |||||||||
Vacuum degree(Pa) | <10Pa | |||||||||
Layer spacing(mm) | 70 | / | ||||||||
Ability to capture water(kg) | 3 | |||||||||
Power supply(V/Hz) | 220V/50Hz or 110V/60Hz | |||||||||
Power(W) | 850 | |||||||||
Main host size(mm) | 680*395*450+390 | |||||||||
Feature
1. Refrigeration uses Linde-hampson, the world's leading technology, with a refrigeratory (secondary cooling by refrigeration), high refrigeration efficiency;
2. The use of environmentally friendly refrigerants (absolutely does not contain the refrigerants banned by the state, some manufacturers still use the mixed refrigerant scheme with the ratio of R12 and R22 banned by the state);
3. Refrigeration temperature:
3.1 Temperature of cold trap up to standard (no load): <60 (DegC) and room temperature <28 (DegC)
3.2 Limit cold trap temperature (no load): <65 C, room temperature <25 C;
4. Using a 7-inch touch screen, the display is intuitive and easy to operate, without defining the inexplicable button selection.
5. Support freeze-drying data curve recording function.
6. The requirement of cold trap temperature can be set when the vacuum pump starts, so as to avoid starting the vacuum pump when the cold trap temperature does not reach the effective low-temperature water catching performance, resulting in water entering the vacuum pump.
7. With an additional set of sensors, it can be used to measure sample temperature and record data.
8. Temperature and vacuum have correction function.
9. Switching unit with vacuum pressure display, supporting Mbar (millibar), Pa (Pascal), Torr (Toll).
10. Free upgrade of electric defrosting function
2. The use of environmentally friendly refrigerants (absolutely does not contain the refrigerants banned by the state, some manufacturers still use the mixed refrigerant scheme with the ratio of R12 and R22 banned by the state);
3. Refrigeration temperature:
3.1 Temperature of cold trap up to standard (no load): <60 (DegC) and room temperature <28 (DegC)
3.2 Limit cold trap temperature (no load): <65 C, room temperature <25 C;
4. Using a 7-inch touch screen, the display is intuitive and easy to operate, without defining the inexplicable button selection.
5. Support freeze-drying data curve recording function.
6. The requirement of cold trap temperature can be set when the vacuum pump starts, so as to avoid starting the vacuum pump when the cold trap temperature does not reach the effective low-temperature water catching performance, resulting in water entering the vacuum pump.
7. With an additional set of sensors, it can be used to measure sample temperature and record data.
8. Temperature and vacuum have correction function.
9. Switching unit with vacuum pressure display, supporting Mbar (millibar), Pa (Pascal), Torr (Toll).
10. Free upgrade of electric defrosting function
