Доступная машина для прокладки труб из ПП, ПЭ, ПВХ
US $7800-$9000
Greenlandplast автоматический расширитель концевой трубы из
- Категории: Pipe Belling Machines >>>
- Поставщик: Zhangjiagang,Greenlandplast,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

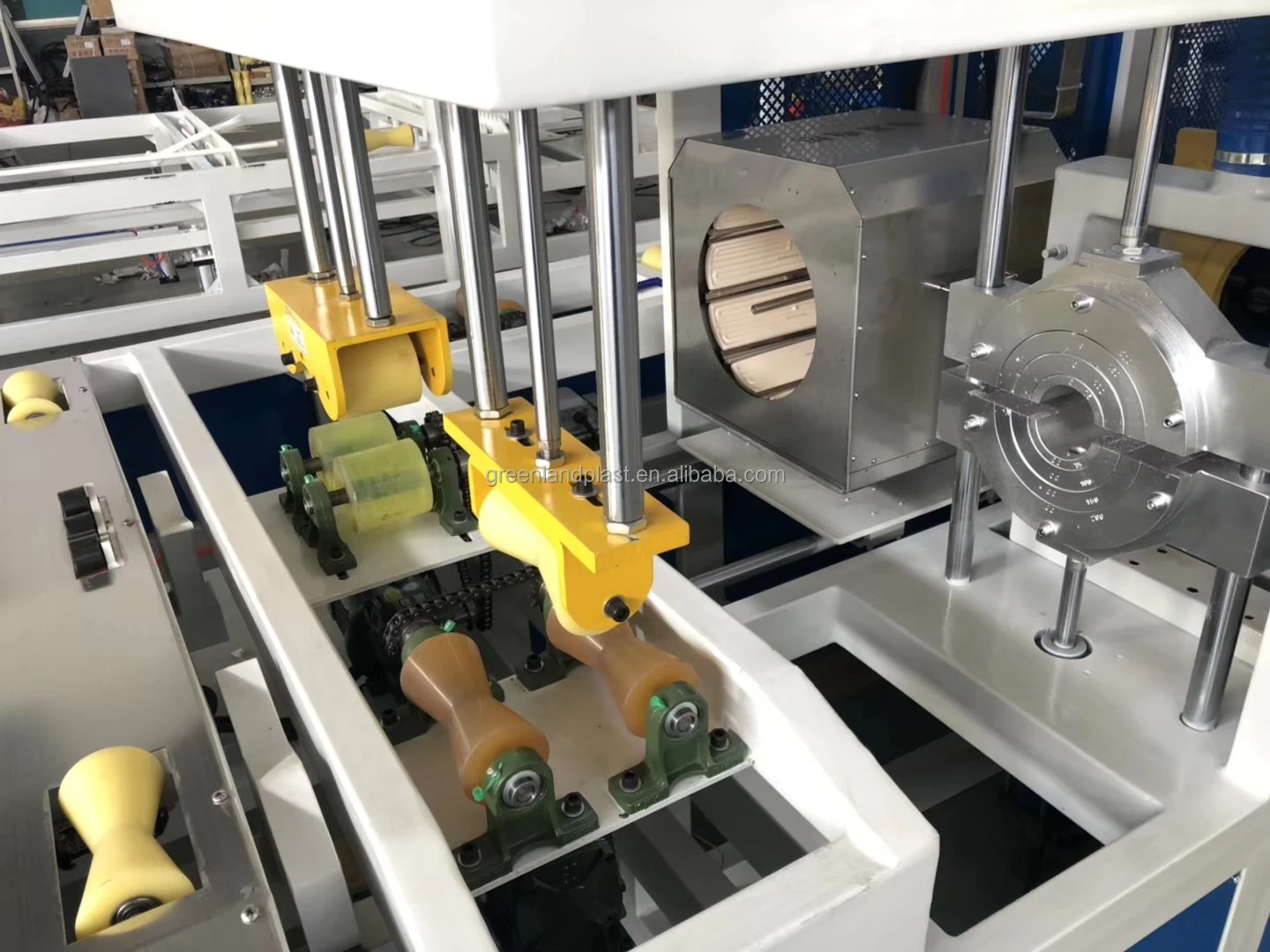

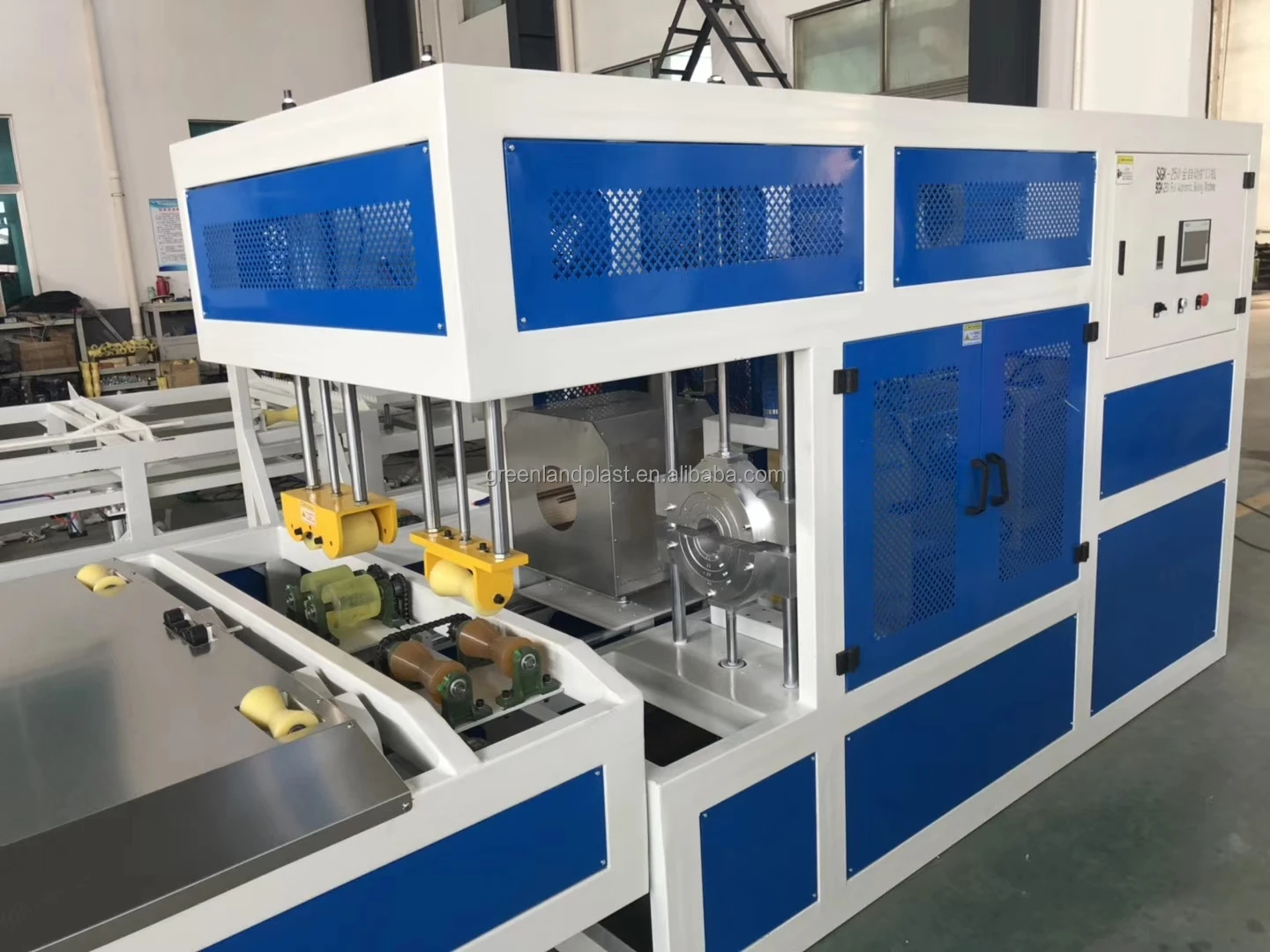

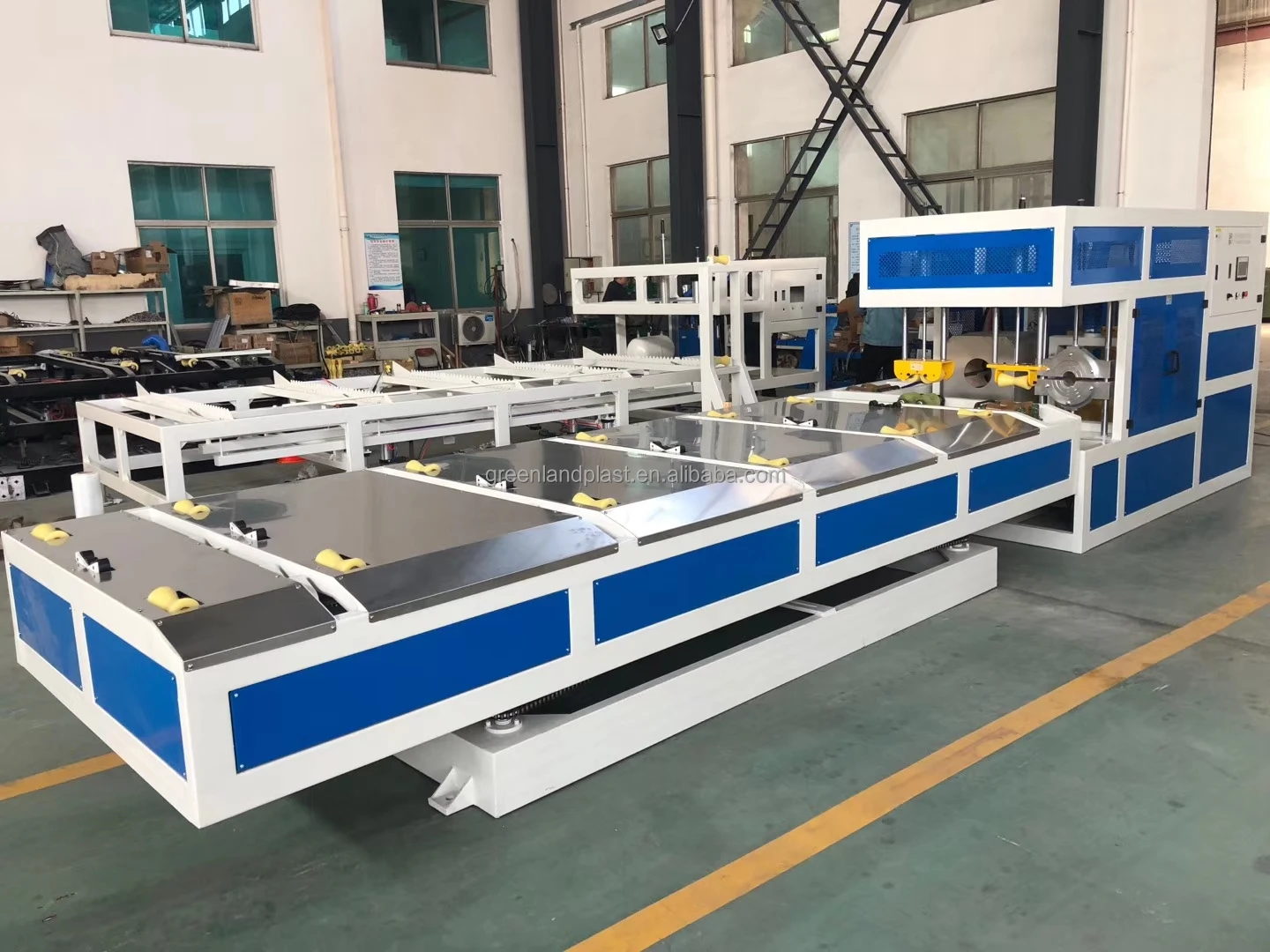

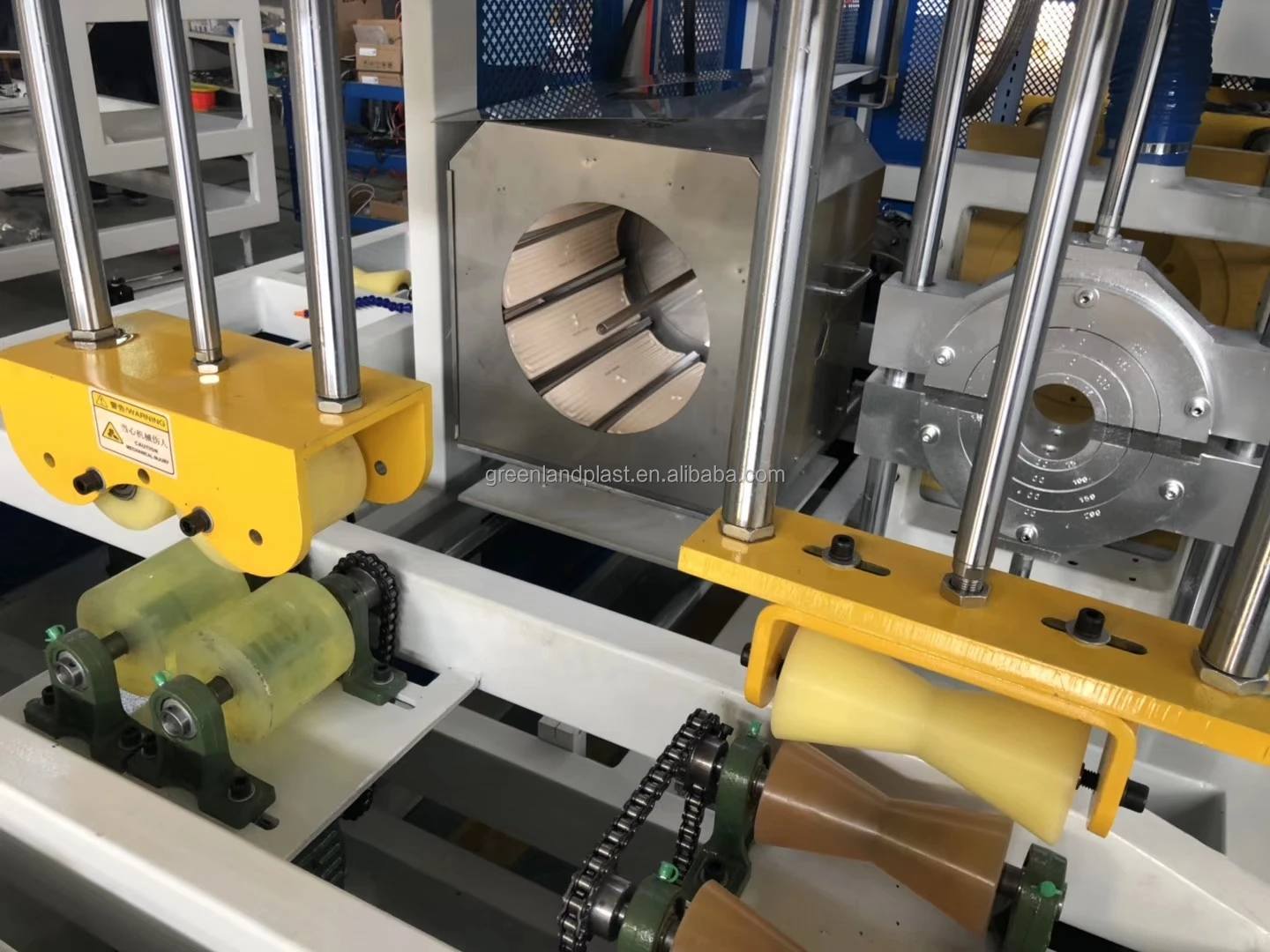

Greenlandplast Automatical PVC pipe end expander machine

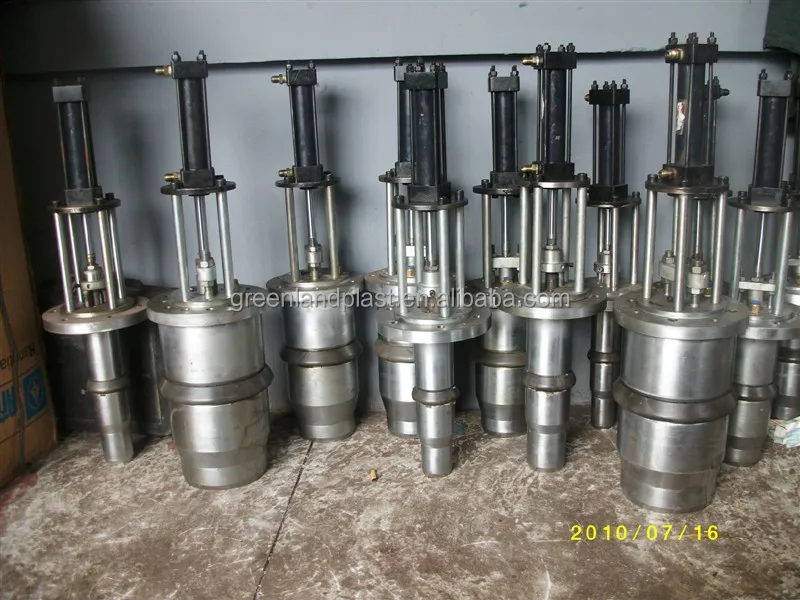

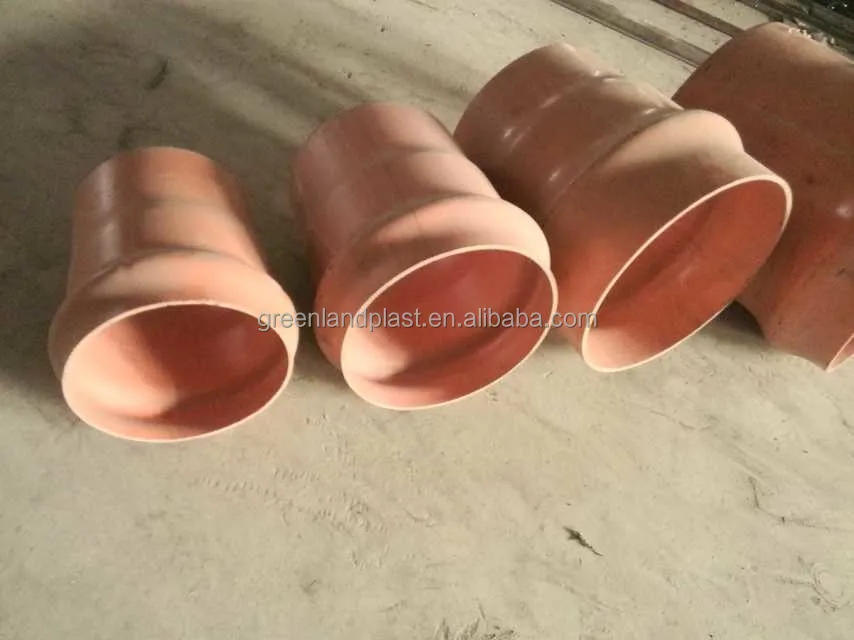

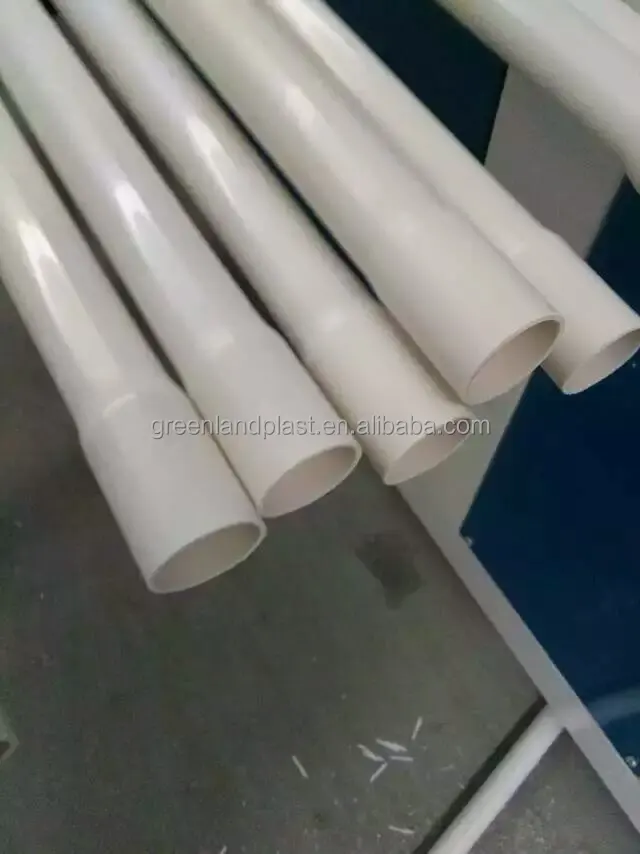

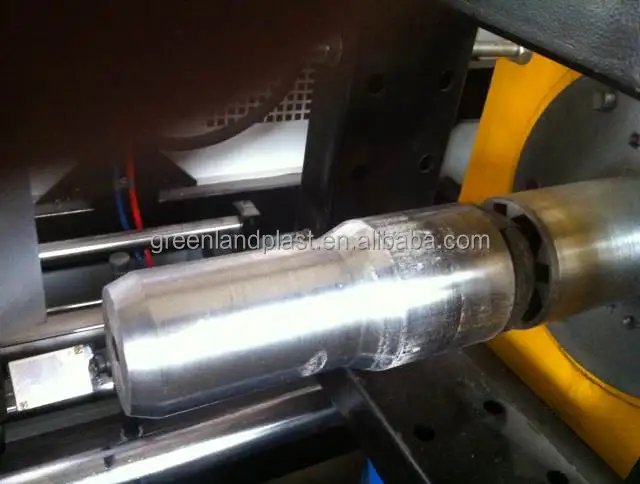

Fully Automatical PVC pipe end expander machine, mainly for online use or stand-alone use. When the single machine expands the pipe, the pipe is manually transported to the flaring machine. The flaring machine automatically operates its operation smoothly and accurately without damaging the pipe. The model adopts hot air circulation heating method. Air-cooled or. The forming method adopts the tube expanding head setting method, and the forming size of the nozzle is accurate. This model is equipped with a switch for expanding solvent socket (straight mouth) and expanding elastic sealing ring socket (R port) on the control panel. The choice of pipe expansion method is very convenient and the process adaptability is strong. The main electrical control components are imported components, and the system performance is stable and reliable.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
PRODUCT SPECIFICATIONS
Model | GLPB-160 | GLPB-250 | GLPB-400 | GLPB-630 | GLPB-800 | GLPB-1000 |
Pipe Diameter | 40-160mm | 50-250mm | 160-400mm | 315-630mm | 500-800mm | 630-1000mm |
Pipe Length | 3-6m | 3-6m | 3-8m | 4-8m | 6-8m | 6-8m |
Hydraulic Pressure | 5.0Mpa | 6.3Mpa | 6.3Mpa | 8.0Mpa | 8.0Mpa | 8.0Mpa |
Compressed Air Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Water Pressure | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa | 0.4Mpa |
Total Power | 12kw | 15kw | 28kw | 48kw | 50kw | 73kw |
Weight | 2700kg | 3000kg | 5000kg | 8600kg | 10000kg | 15000kg |
Diemension | 7350*1450*1850mm | 7500*1660*1950mm | 7900*2140*2125mm | 8600*2970*2250mm | 10000*4600*2570mm | 11500*5850*3500mm |
Production Speed | 45-500s | 50-600s | 60-900s | 150-1200s | 300-1800s | 500-2500s |
PRODUCT CONFIGURATION
