Kaowool керамического волокна блок для пара туннели и печь
US $1.00-$10.00
Теплоизоляционный блок из керамического волокна для
- Категории: Ceramic Fiber Module >>>
- Поставщик: Zibo,Double,Egret,Thermal,Insulation,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

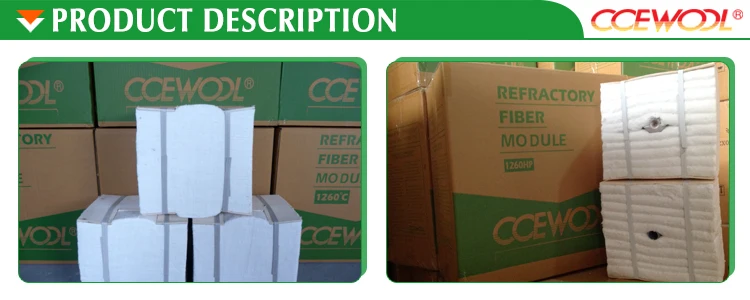

Product Description
Heat insulation Ceramic Fiber Block for stove is the popular standard ceramic fiber blcok, the working temperature is 950℃, Alumina contont is 44%, usally with SS304 anchoring. It is a new kind of heat resistant material and widly used in all kinds of furnace, kiln. It has been exported to EU, USA, South africa, turkey, and more than 30 countries.
Ceramic Fiber Block is made by ceramic fiber blanket. In the process, We keep a certain proportion of compression in order to ensure modules expand to the different direction after completion of ceramic fiber block wall lining.Ceramic fiber folded modules is directly fixed in industry furnace shell plate by anchorage. we can provide different shape of ceremic fiber block, such as ceramic fiber folded block, cermaic fiber cutting block.
ceramic fiber blcok characteristics & application | |
Characteristics | Excellent chemical stability and thermal stability; |
Low thermal conductivity, low thermal capacity; | |
Supporting both soldiers-march-based arrangement and | |
assembly-based arrangement with the help of anchor in various forms in the back of the module | |
Module will squeeze with each another in different directions after unbinding, to produce no gap | |
Elastic fiber blanket resists to external mechanical forces; | |
Light weight, and absorbing less heat as insulation materials; | |
Fiber blanket’s elasticity can compensate for the deformation of furnace shell, so that no gap is generated between modules; | |
Low thermal conductivity brings strong energy-saving effects; | |
Able to withstand any thermal shock; | |
Lining need no drying or curing, ready to use immediately after installation; | |
Anchoring system is far away from hot surface of component, to allow metal anchor member to be in a relatively low temperature | |
All kinds of industrial furnace and heating device linings for metallurgy, machinery, construction | |
materials, petrochemicals, non-ferrous metal industries. | |
Application | Furnace lining and insulation of heat treatment furnace in heat treatment circle |
All kinds of industry frunace and heating device linings for metallurgy, machinery, | |
construction materials, petrochemicals, non-ferrous metal industrie | |
Technical Data
physical charactoristic | |||||||
Ceramic Fiber Module | 1050 Common
| 1260 STD
| 1260 HP
| 1400 HA | 1450 HZ
| ||
Operation Temp(℃)
| 950℃ (1742℉) | 1050℃ (1922℉) | 1100℃ (2012℉) | 1200℃ (2192℉) | 1350℃ (2462℉) | ||
Density:(kg/m3) | 64-160 | ||||||
Permanent Change on Heating (%) | 950℃x24h ≤-3 | 1050℃x24h ≤-3 | 1100℃x24h ≤-3 | 1200℃x24h ≤-3 | 1350℃x24h ≤-3 | ||
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3)
| 0.15 (600℃) 0.22 (800℃) | 0.12 (600℃) 0.20( 800℃) | 0.12 (600℃) 0.20 (800℃) | 0.12 (600℃) 0.20 (800℃) | 0.16 (800℃) 0.20 (1000℃) | ||
Tensile Strength(Mpa) (Thickness 25mm) | ≥0.04 | ≥0.05 | ≥0.05 | ≥0.04 | ≥0.06 | ||
chemical composition | |||||||
Al2O3(%) | 44 | 45-46 | 47-49 | 52-55 | 39-40 | ||
Al2O3+SiO2(%) | ≥96 | ≥98 | ≥99 | ≥99 | - | ||
ZrO2(%) | - | - | - | - | 15-17 | ||
Al2O3+SiO2 + ZrO2(%) | - | - | - | - | ≥99 | ||
Fe2O3(%) | ≤1.0 | ≤0.8 | ≤0.2 | ≤0.2 | ≤0.2 | ||
Na2O+K2O(%) | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ||
CaO+MgO | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||

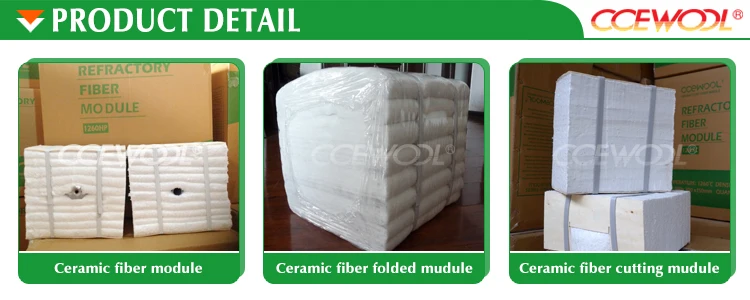

Product Detail
CCEWOOL ceramic fiber block 's color is pure white, and size is exact. The four sides also can be cut as your require. And we can also produce anchoring as your design.
Certifications
Our products have got CE certificate, and we can also accept the third part inspection such as SGS, BV, TUV.

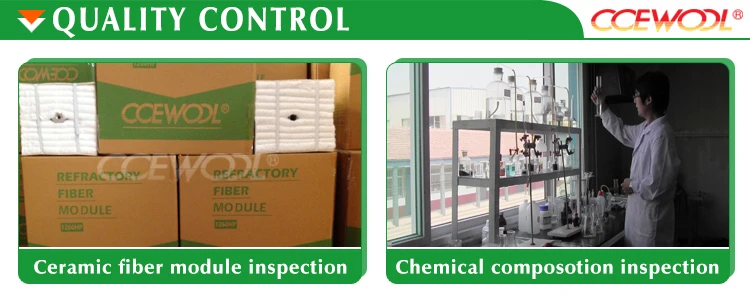

Quality control
We weigh strictly each CCEWOOL ceramic fiber block before packing,and make sure actual weight is no less than theoretical weight. We guarantee to measure the size of products according with customers' need. We also do chemical composition test before shipment

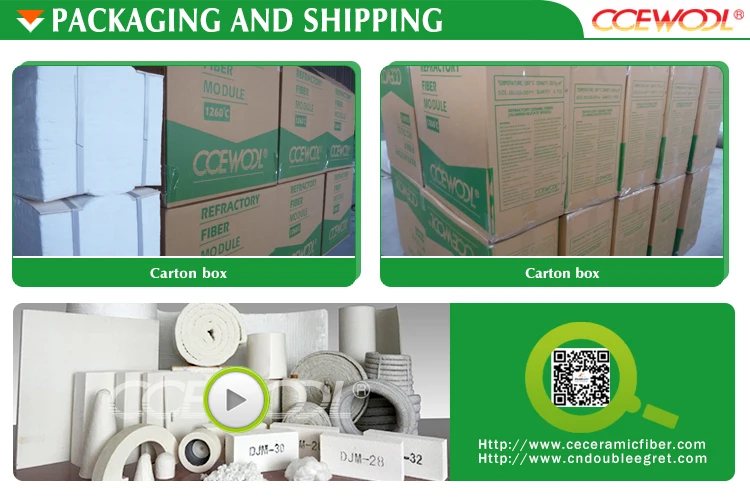

Swift Delivery
We have professional inspectors for each container's delivery. we can offer photos and records for packing details to customers.we can make sure ceramic fiber block according with customer's need.
Welcome to our official website to realize on-line factory inspection.Website:www.ceceramicfiber.com
http://www.ceceramicfiber.com/VideoGallery.shtml
Company Information
1.Company.
Double Egret established more than a decade ago.we have the rich experience and excellent product,we also have the belief and strength to be the best ceramic fiber supplier.We insist on quality and provide the product that customer most want.We mutually benefit and share profits with customer.
2.International exhibition
Double egret participated in international exhibition since 2009.We communicate and cooperate the technology and the ceramic fiber trend with the famous company.We derive the experience from others.So we can improve technology and provide the best CCEWOOL ceramic fiber products to our customers.
3.Our customers
We take photos with our customer in past 10 year.they are also our friends.We will seize the oppturnity to service our customer for satisfaction.
4.Company culture
Product range
We can provide a large range of CCEWOOL, such as ceramic fiber blanket, cermaic fiber board, ceramic fiber paper, cermaic fiber module, ceramic fiber textile(cloth, tape, rope, yarn)
More CCEWOOL® ceramic fiber product information, pls check:
http://www.ceceramicfiber.com/CCEWOOLCeramicFiber.shtml/?
