Product Overview
2.13 inch e-ink display 4 grayscale partial refesh GDEW0213T5D
2.13 inch small e-ink display with 212x104 resolution, SPI interface, black and white. Support partial refresh, support 4 Grayscale. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper display GDEW0213T5D is perfect for low power devices powered by solar or batteries.
We could provide Front light and other accessories for you.
Related datasheet and documents will be offered after you getting your products.
♦212x104 resolution
♦Support partial refresh, partial refresh time: 0.3S
♦Support 4 Grayscale
♦Front light is available
♦SPI interface
♦Support partial refresh, partial refresh time: 0.3S
♦Support 4 Grayscale
♦Front light is available
♦SPI interface
♦I2C Signal Master Interface to read external temperature sensor.

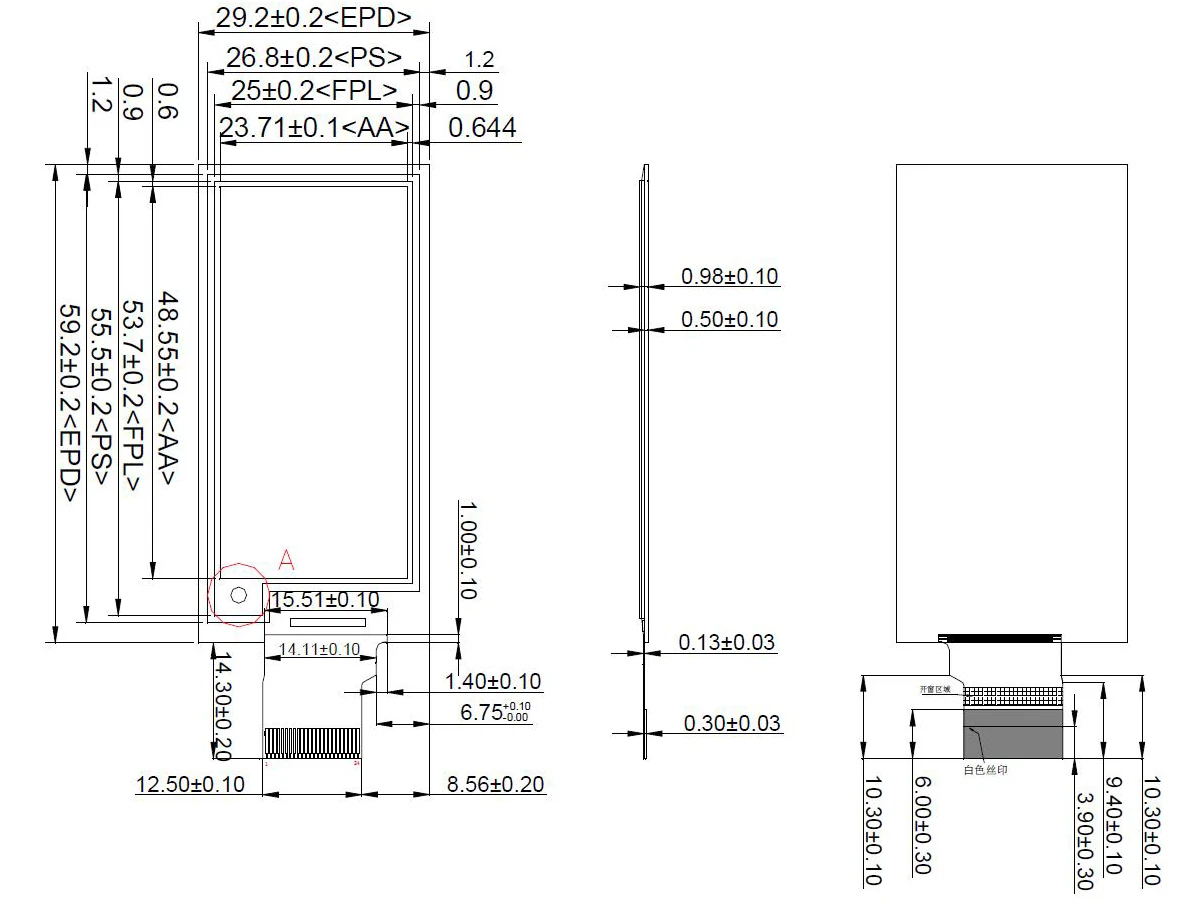

Front elevation
Side elevation
Back elevation
PRODUCT SPECIFICATIONS
PART NUMBER | GDEW0213T5D |
TYPE | Dot Matrix |
IC | UC8151D |
RESOLUTION | 212x104 |
OUTLINE SIZE(mm) | 59.2x29.2x1.8 |
ACTIVE SIZE(mm) | 48.55x23.71 |
PIXEL PITCH(mm) | 0.229x0.228 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH(s) | 3 |
PARTIAL REFRESH TIME(s) | 0.3 |
POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
STANDBY POWER CONSUMPTION (mW) | 0.0165 |
FRONT LIGHT | Optional |
Drawing / Structure
PRODUCT CONFIGURATION
2.13 inch e-paper display GDEW0213T5D * 1
24 Pin FPC * 1
