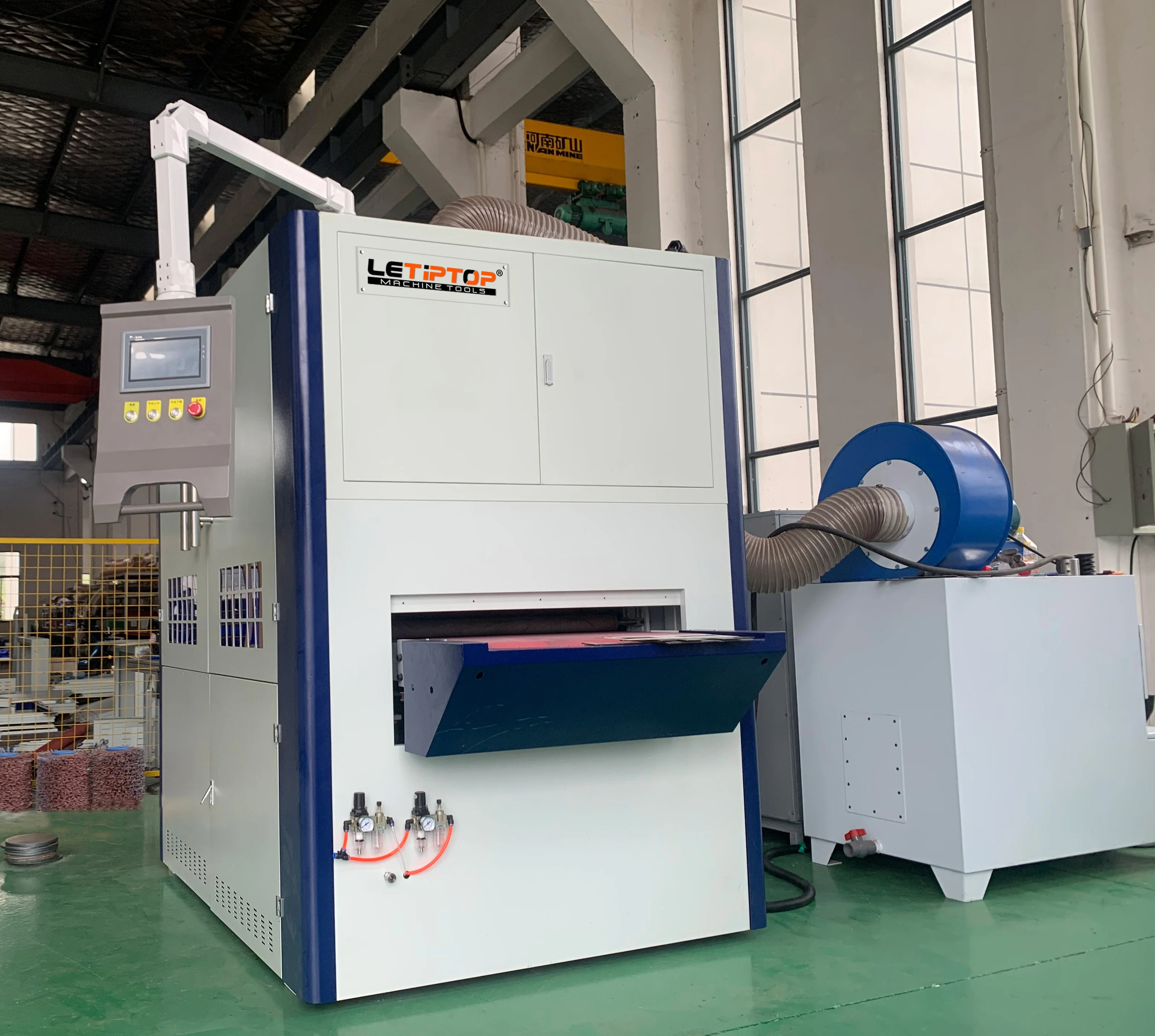

Доступная китайская машина для удаления заусенцев LETIPTOP CNC идеальной готовой

Доступная китайская машина для удаления заусенцев LETIPTOP CNC идеальной готовой

Категории: Chamfering Machines >>>
Поставщик: Jiangsu,Tiptop,Machine,Tools,Co.,Ltd.

Цена:15 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

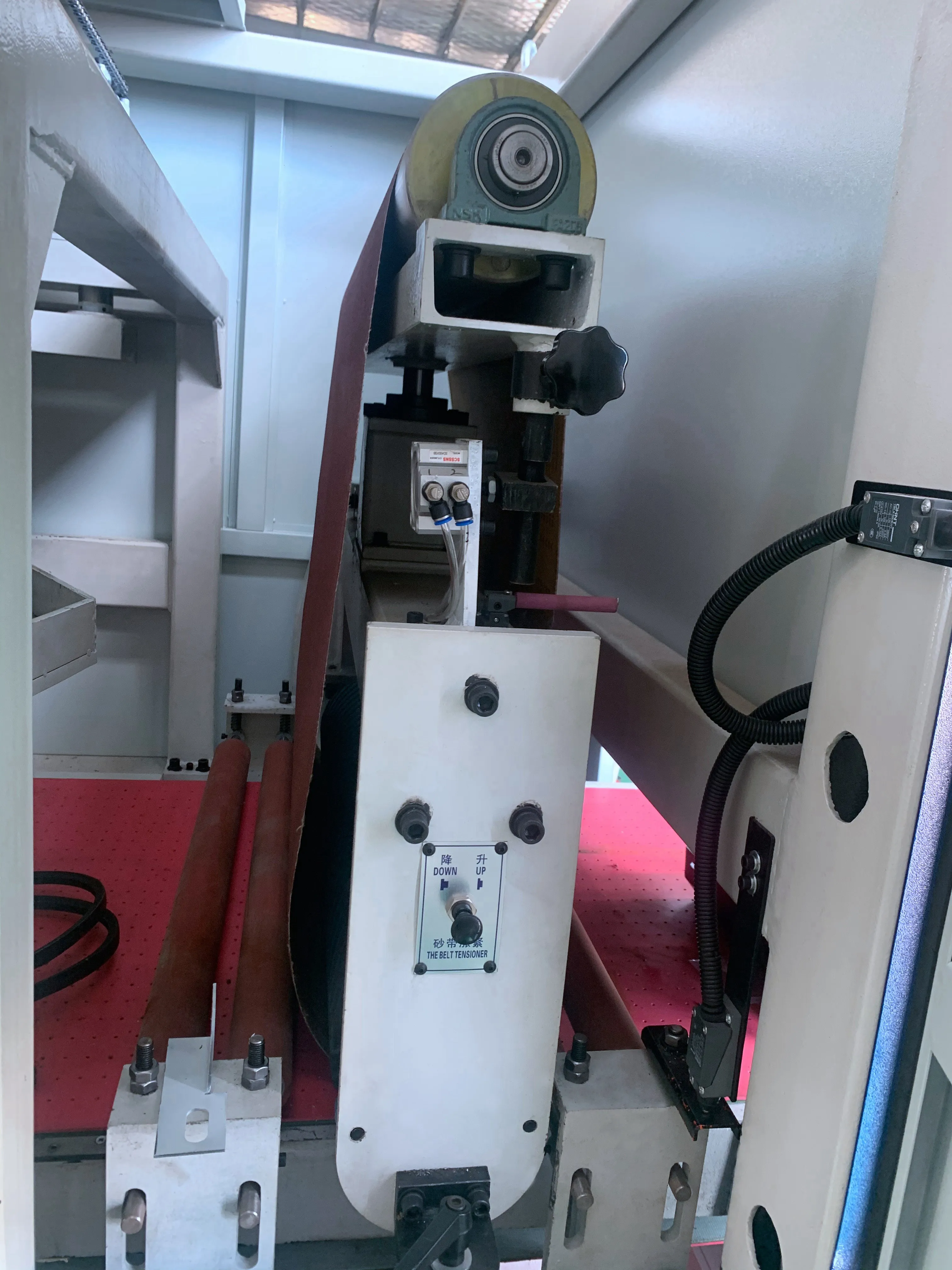

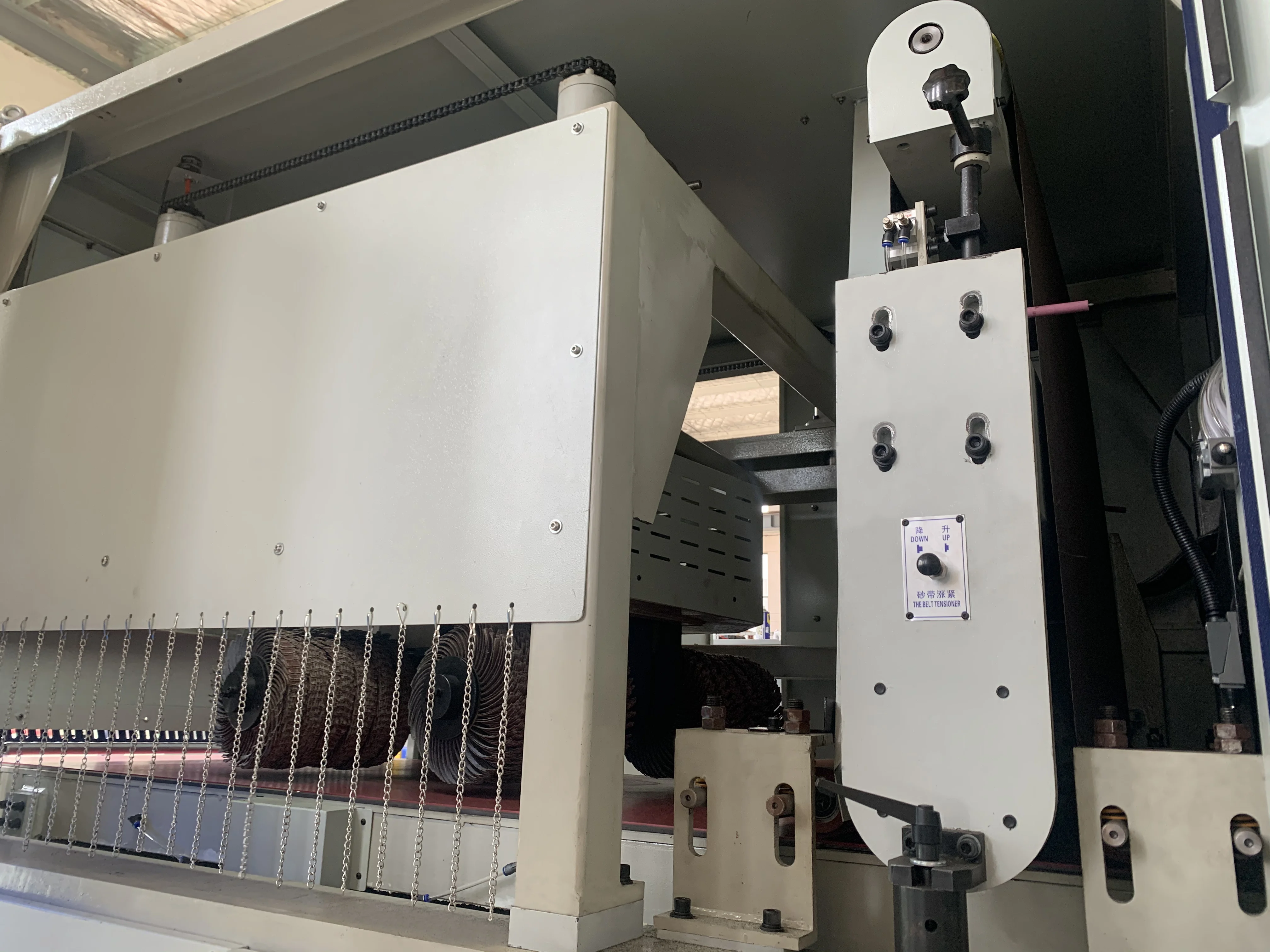

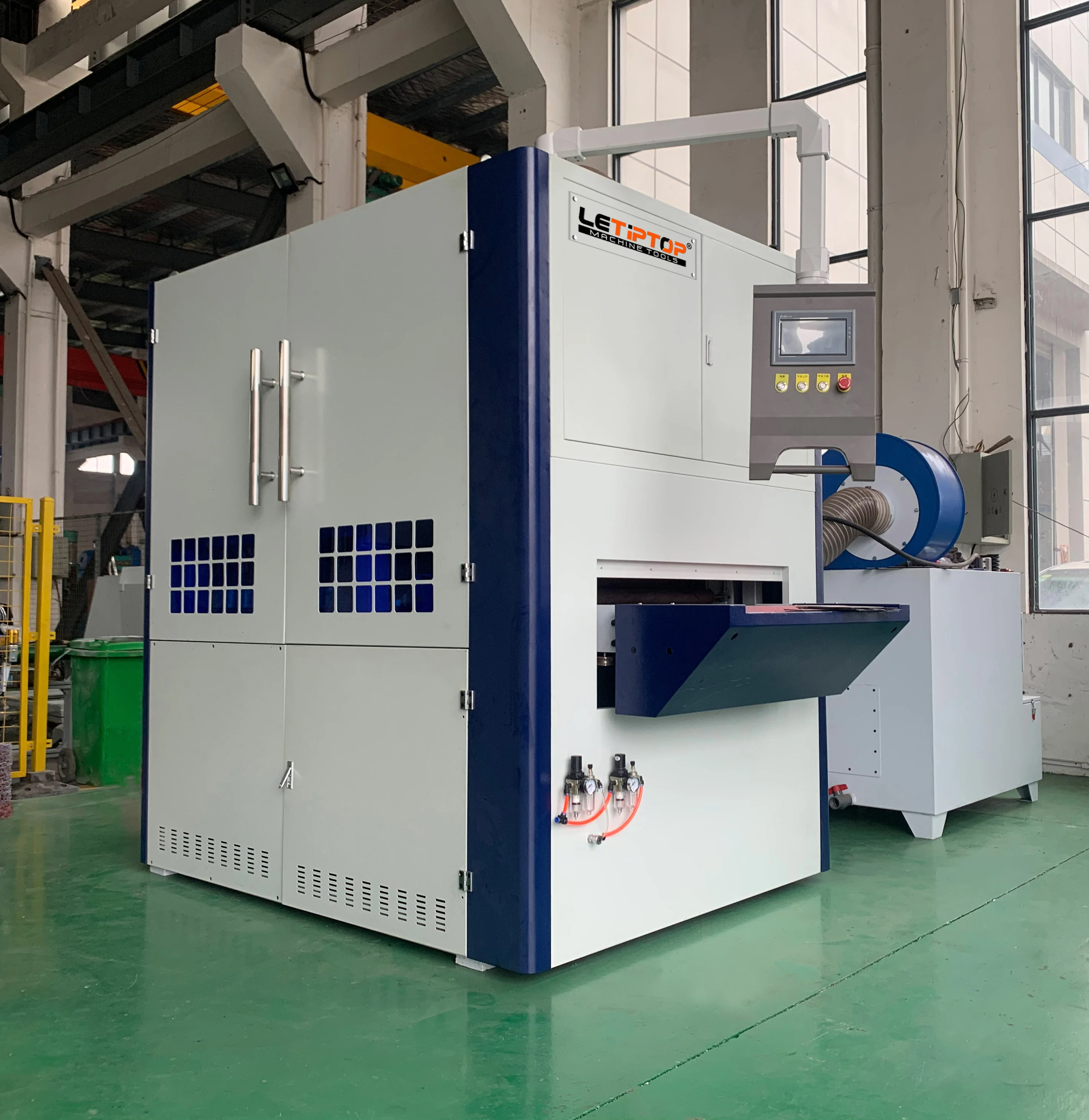

Deburring Machine

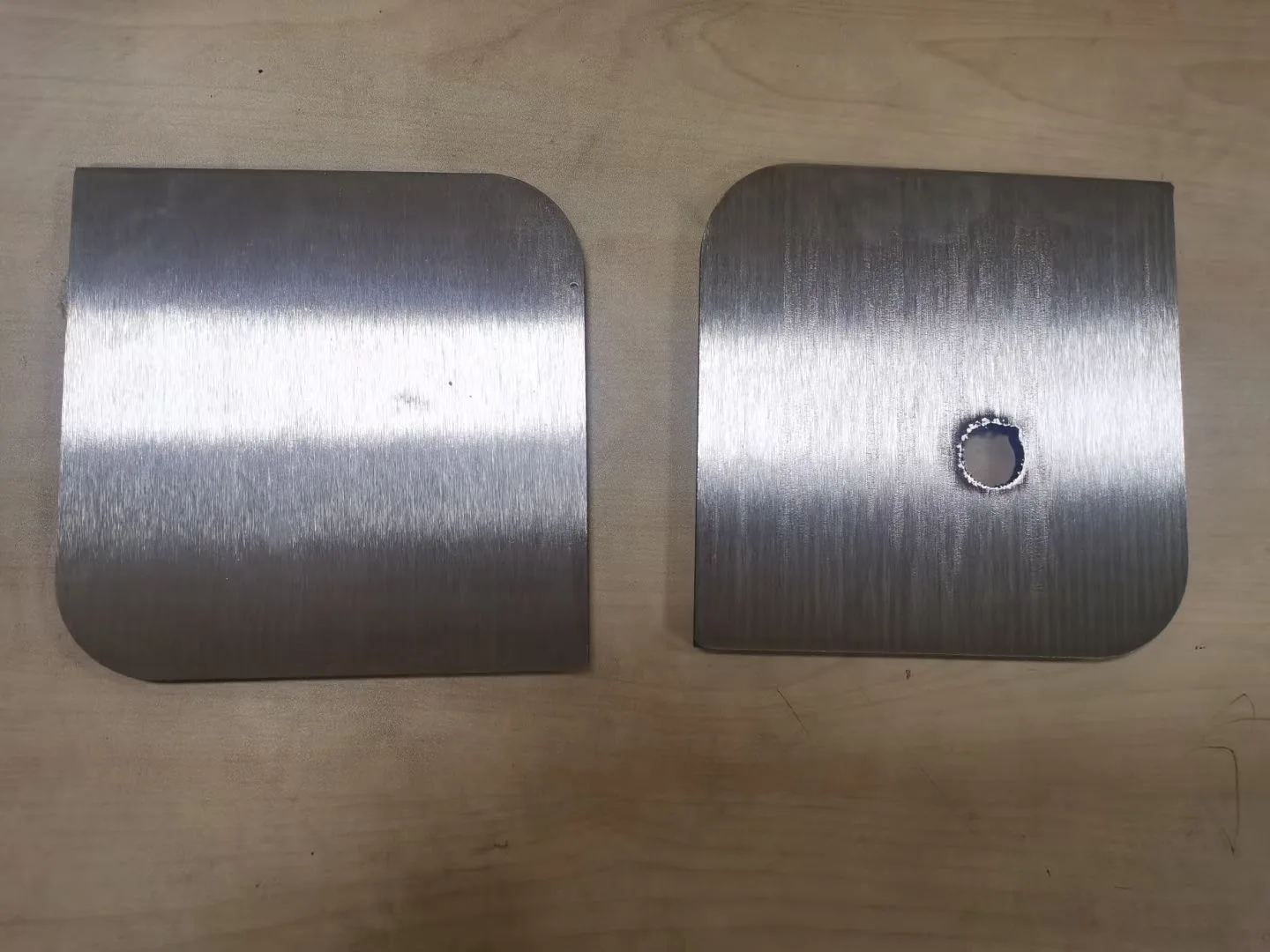

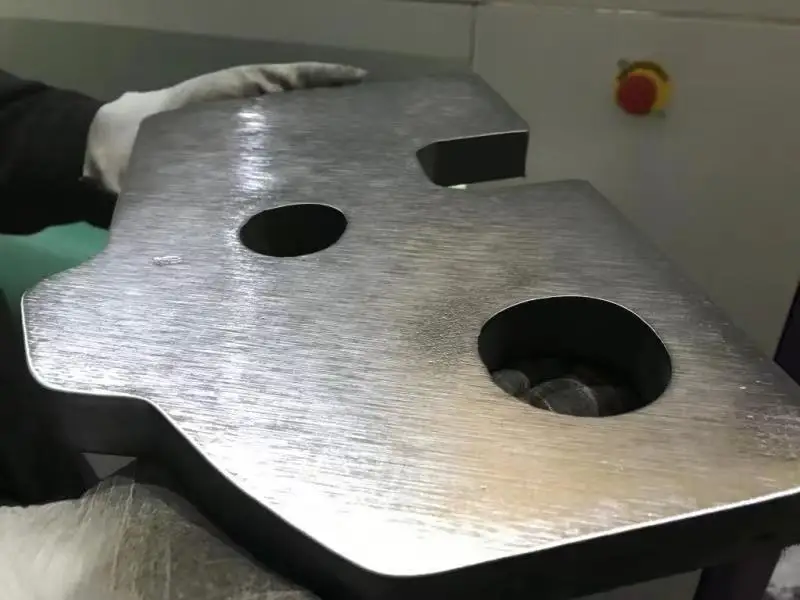

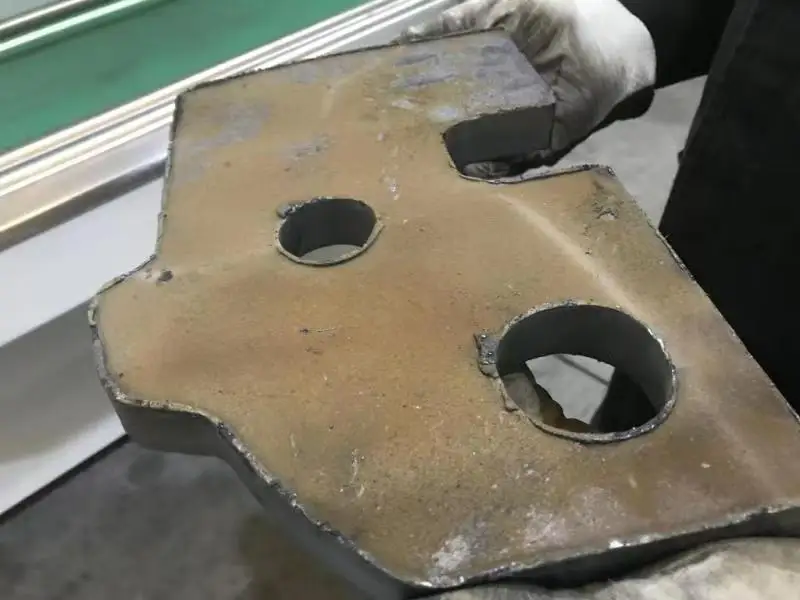

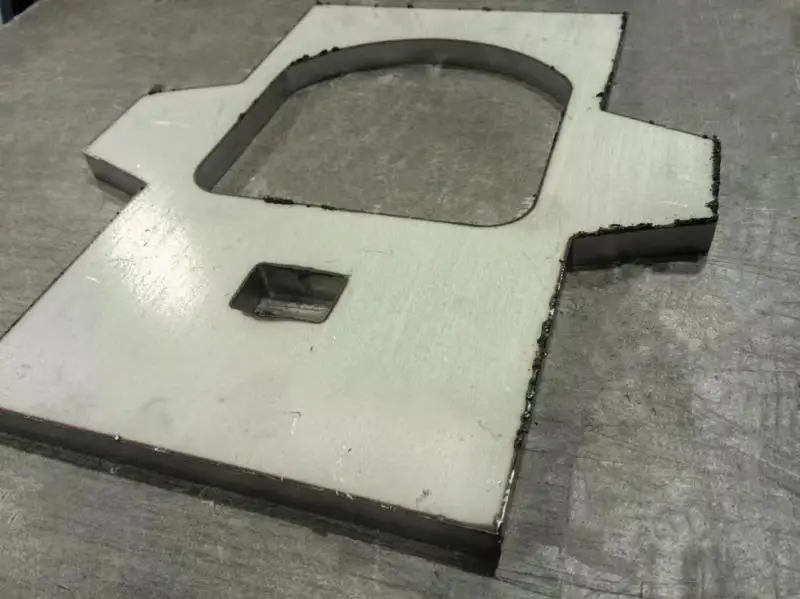

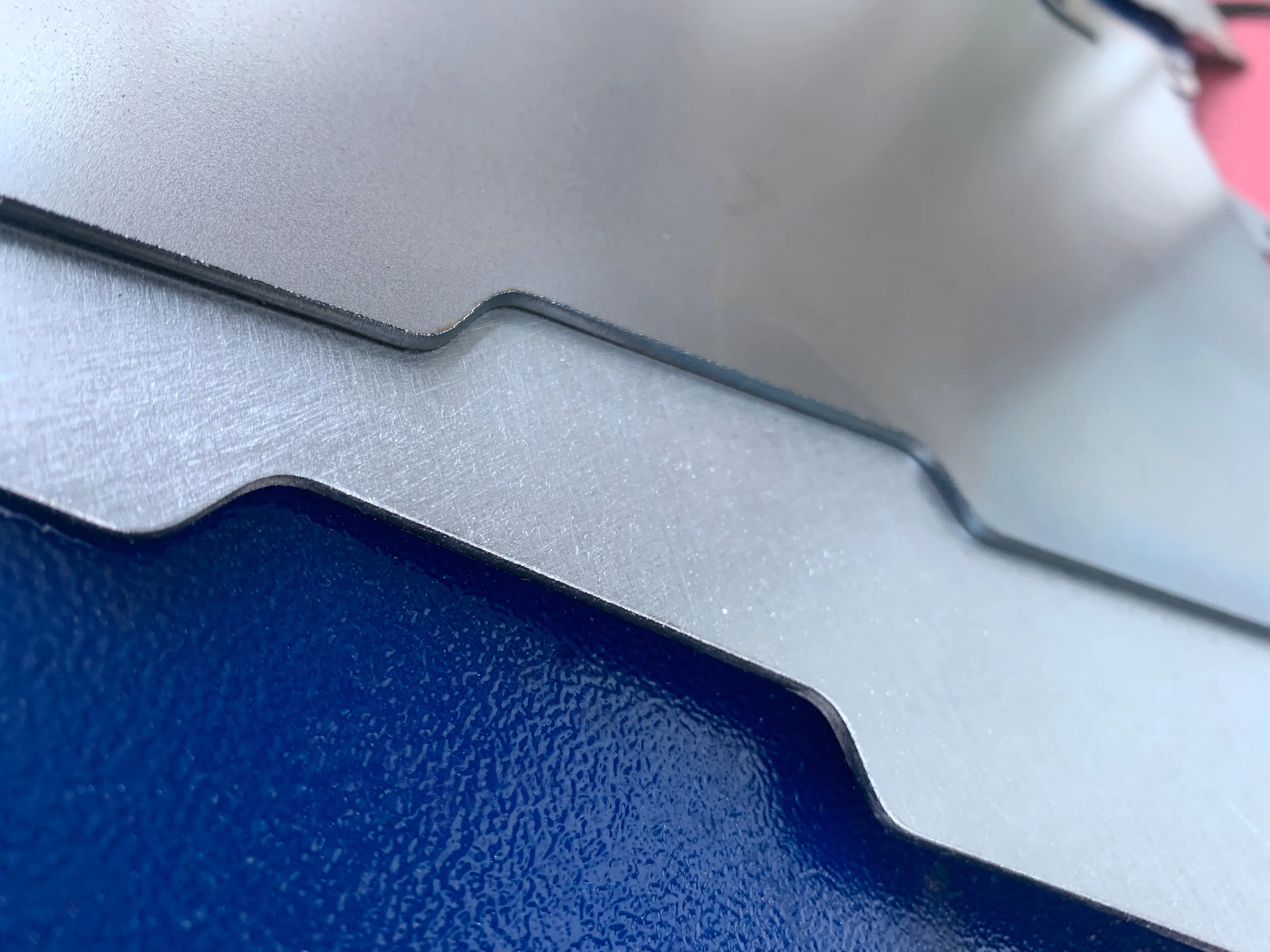

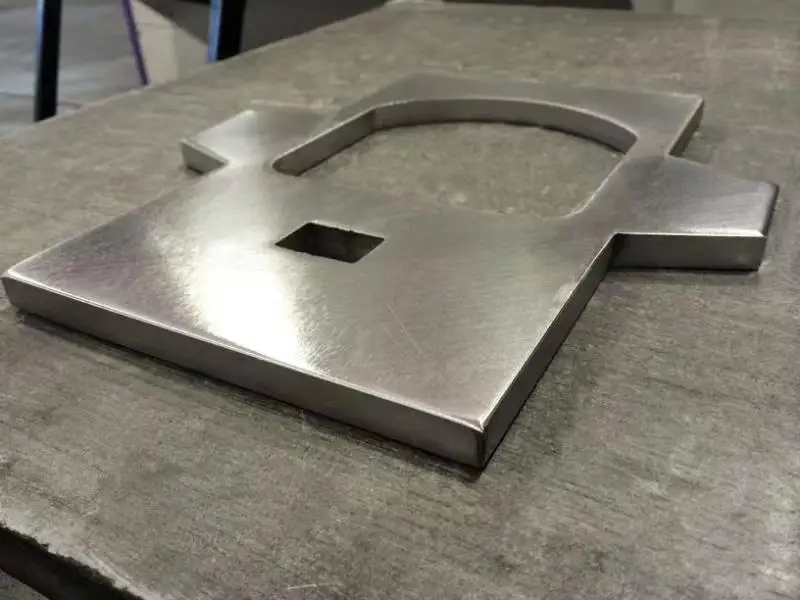

Deburring machine is a valuable investment for nearly any manufacturer because so many processes, especially steel machining processes, leave behind sharp edges, bumps, raised edges, burrs or seams that need to be removed. A failure to deburr could lead to operational damage, ineffectiveness and accidents or injury, as well as poor aesthetics and quality. In addition, the smooth surface finish achieved by deburring prevents areas of stress and weakness from going unnoticed and allows for accurate mathematical and/or scientific performance analysis.

Model			DBR-600, DBR-800, DBR-1000
Max. Working Width			600, 800, 1000mm
Max. Working Thickness			0.5-60mm
Min. Processing Size			50x50mm
Chamfering			R0.1-R0.5mm
Feeding Speed			0.5-6m/min
Rotary Brush Revolution Speed			8-20r/s
Rotary Brush Rotation Speed			8-12r/s
Size of Abrasive Belt (1 pc)			1900×820 mm

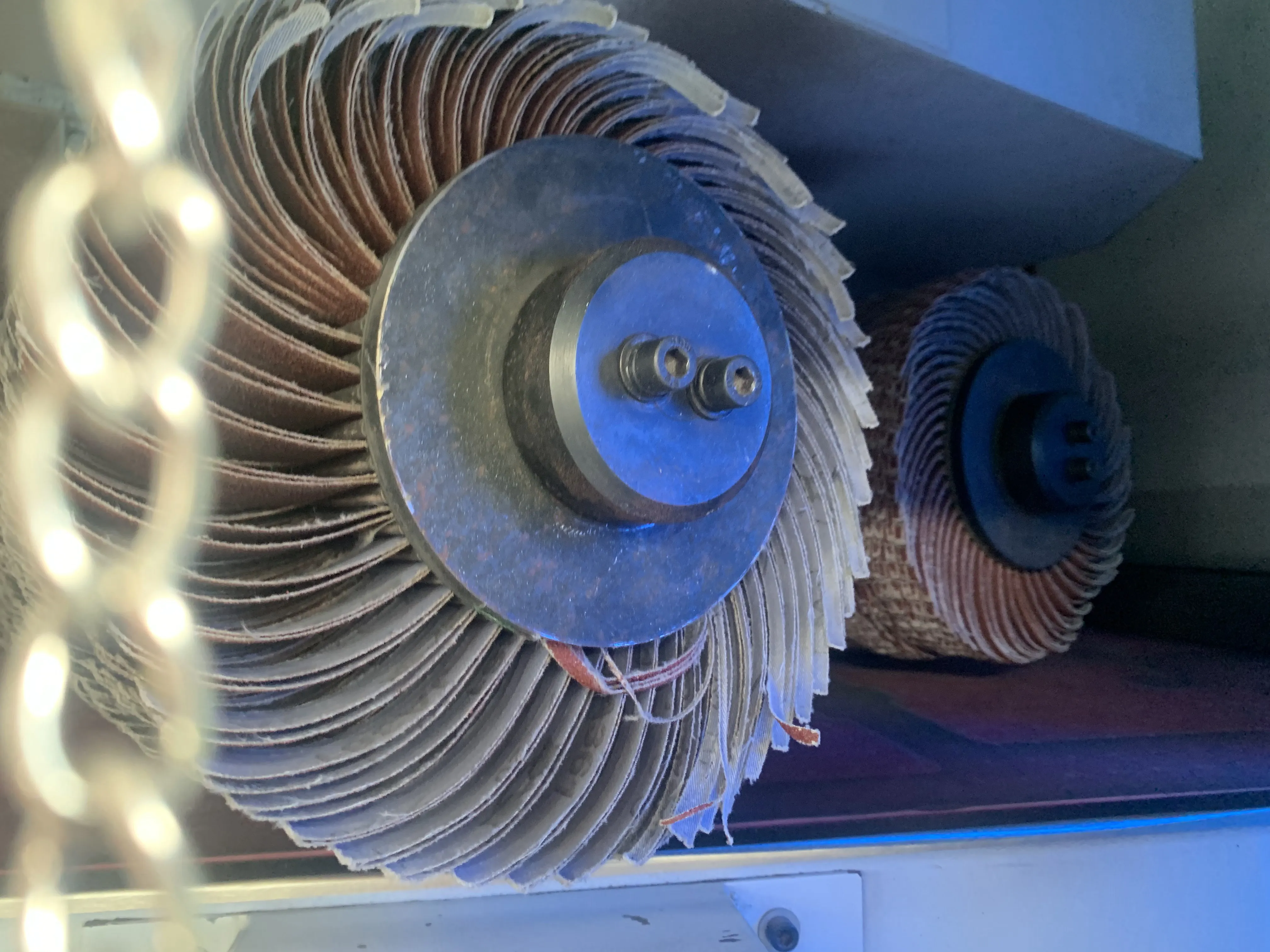

Size of Rotary Brush (4 pcs)			Φ300×300mm
Height of Working Table			860-980mm
Machine Noise			≤85dB
Motor Power	Rotary Brush Revolution Motor	1.5Kw
		Rotary Brush Rotation Motor	2.2Kw
		Abrasive Belt Motor	7.5Kw(11Kw for DBR-1000)
		Feeding Conveyor Belt Motor	1.5Kw
		Rotary Brush Lifting Motor	0.37Kw
		Working Table Lifting Motor	0.37Kw
Vacuum Adsorption Motor Power			15Kw
Dust Collection			3Kw
Dust Collection Capacity			2300m³/h
Working Pressure			0.6Mpa
Overall Dimension (LxWxH)			2900x1600x2250mm
Machine Weight			3000kg
