DONGBAO высокотемпературная вертикальная машина для окрашивания ткани с воздушным
- Категории: Textile Dyeing Machines >>>
- Поставщик: Dongbao,International,Limited
Поделиться:
Описание и отзывы
Характеристики
Specification
Product Name: | High Temperature Airflow Dyeing Machine |
Machine capacity: | 250kg-1500kg |
Liquor ratio starts at: | 1:3 |
Max temperature: | 140℃ |
Material: | Stainless Steel |
Heating mode | Steam |
Product Description
High Temperature Airflow Dyeing Machine
Product Description
High Temperature Airflow Dyeing Machine adopts the aerodynamic theory, it injects the mixed air which is made from blower into the Nozzle of the dyeing machine to run the fabric. The main difference between airflow dyeing machine and traditional overflow dyeing machine is that the former needs neither dyeing liquor nor water to run the fabric. During dyeing process, the air come from blower go into the Nozzles and meet with the dyeing liquor transported by the main pump Nozzle. So that the dyeing liquor is atomized and sprayed to the fabric which is going through the Nozzles, and then it carries the fabric running. Consequently, the fabric will get best dyed. There is no unwelcome crease mark.
This dyeing machine is suitable for all kinds of fabric which can be dyed in traditional dyeing machine, especially for the fabric of high quality and particular demand. Such as follows:
- Single- side reinforced Spandex stretch fabric.
- Fine and high gsm. Plain cloth.
- Fine density pure cotton terry knitted fabric.
- Tight double gossamer mesh fabric.
Special Features
- It’s no need to change the equipment. Any kind of knitted fabric, woven fabric and blended fabric can be bleached and dyed.
- Extremely low liquor ratio: 1:3. Compared to traditional dyeing machine, it saves more than 50% water, and also it saves chemicals, dyestuffs and additives.
-Excellent dyeing effect. The atomized air blows the fabric to keep the fabric running state being changed constantly to decrease creases.
- The unique rinsing way by spraying fresh water allows short processing time with best rinsing effect.
-The fabric is running by air dynamic without hydraulic pressure and dyeing in saturated air accordingly.
- High efficient heating system saves process time and ensures uniform water and steam pressure.
Technical Details
- Main tank & liquor carrying parts are manufactured using stainless steels 316L
- Touch screen controller
- Teflon tube chamber for smooth and secure fabric transport
- Frequency- controlled lifting, plaiter and main pump system.
- 360°Rotary spray rinsing device
- Automatic and programmable touch screen computer
- Automatic temperature control system
- Ration dosing system
- Dyeing liquor atomization nozzle
- Air filter
- Independent control of fabric circulating
- Seam detector is equipped in each chamber.
- Infrared monitoring fabric anti-tangle device
- High efficient heat exchanger
- Glass fiber reinforced plastics working platform
Optional
- Second preparation tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function
Product Description
High Temperature Airflow Dyeing Machine adopts the aerodynamic theory, it injects the mixed air which is made from blower into the Nozzle of the dyeing machine to run the fabric. The main difference between airflow dyeing machine and traditional overflow dyeing machine is that the former needs neither dyeing liquor nor water to run the fabric. During dyeing process, the air come from blower go into the Nozzles and meet with the dyeing liquor transported by the main pump Nozzle. So that the dyeing liquor is atomized and sprayed to the fabric which is going through the Nozzles, and then it carries the fabric running. Consequently, the fabric will get best dyed. There is no unwelcome crease mark.
This dyeing machine is suitable for all kinds of fabric which can be dyed in traditional dyeing machine, especially for the fabric of high quality and particular demand. Such as follows:
- Single- side reinforced Spandex stretch fabric.
- Fine and high gsm. Plain cloth.
- Fine density pure cotton terry knitted fabric.
- Tight double gossamer mesh fabric.
Special Features
- It’s no need to change the equipment. Any kind of knitted fabric, woven fabric and blended fabric can be bleached and dyed.
- Extremely low liquor ratio: 1:3. Compared to traditional dyeing machine, it saves more than 50% water, and also it saves chemicals, dyestuffs and additives.
-Excellent dyeing effect. The atomized air blows the fabric to keep the fabric running state being changed constantly to decrease creases.
- The unique rinsing way by spraying fresh water allows short processing time with best rinsing effect.
-The fabric is running by air dynamic without hydraulic pressure and dyeing in saturated air accordingly.
- High efficient heating system saves process time and ensures uniform water and steam pressure.
Technical Details
- Main tank & liquor carrying parts are manufactured using stainless steels 316L
- Touch screen controller
- Teflon tube chamber for smooth and secure fabric transport
- Frequency- controlled lifting, plaiter and main pump system.
- 360°Rotary spray rinsing device
- Automatic and programmable touch screen computer
- Automatic temperature control system
- Ration dosing system
- Dyeing liquor atomization nozzle
- Air filter
- Independent control of fabric circulating
- Seam detector is equipped in each chamber.
- Infrared monitoring fabric anti-tangle device
- High efficient heat exchanger
- Glass fiber reinforced plastics working platform
Optional
- Second preparation tank
- 100% Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function
Company Profile
DONGBAO INTERNATIONAL LIMITED was established in 2019. It is a company integrating industry and foreign trade. We have rich experience in foreign trade, and dedicated to provide customers with high-quality dyeing and finishing machinery and supporting facilities with professional services.

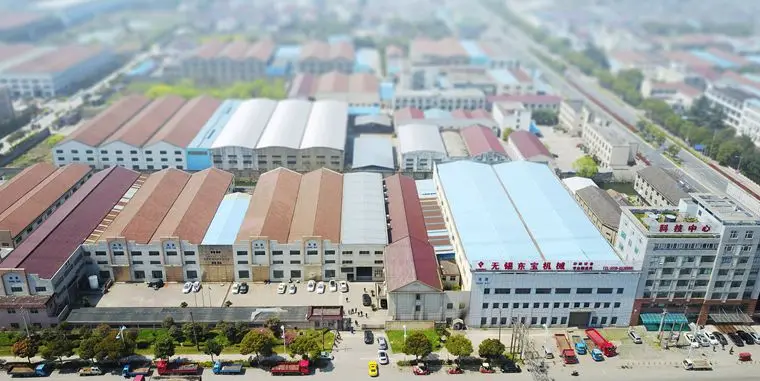

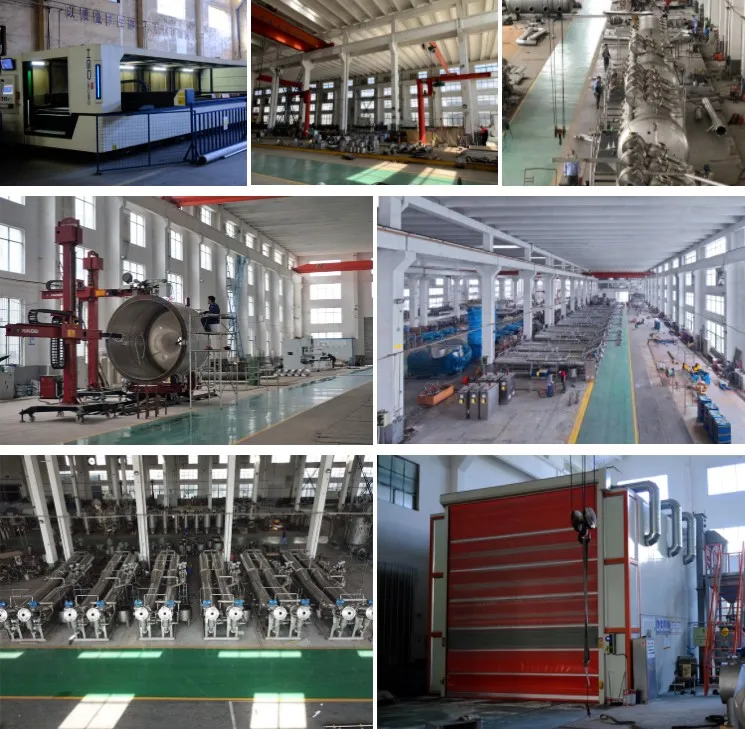

We trade globally. At present, we have exported to more than 100 countries, such as Bangladesh, Uzbekistan, Russia, Vietnam, Colombia, Egypt and so on. Meanwhile, our manufacturing workshop is also one of the leading leaders in the global industry. It has been deeply engaged in the dyeing machine manufacturing industry for more than 20 years and has rich manufacturing experience.
While paying attention to product quality, we also focus on after-sales service. We have established the strong after-sales network, and our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly.
Select Dongbao means choose higher quality, advanced technology and better service.
We trade globally. At present, we have exported to more than 100 countries, such as Bangladesh, Uzbekistan, Russia, Vietnam, Colombia, Egypt and so on. Meanwhile, our manufacturing workshop is also one of the leading leaders in the global industry. It has been deeply engaged in the dyeing machine manufacturing industry for more than 20 years and has rich manufacturing experience.
While paying attention to product quality, we also focus on after-sales service. We have established the strong after-sales network, and our professional after-sales service team is able to help customers deal with all kinds of problems and emergencies promptly.
Select Dongbao means choose higher quality, advanced technology and better service.
Why Choose Us
1.Professional team and professional production line
2.High quality products & Factory price
3.Advanced technology
4.Professional after-sales service team
EXHIBITION
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
