Product Description

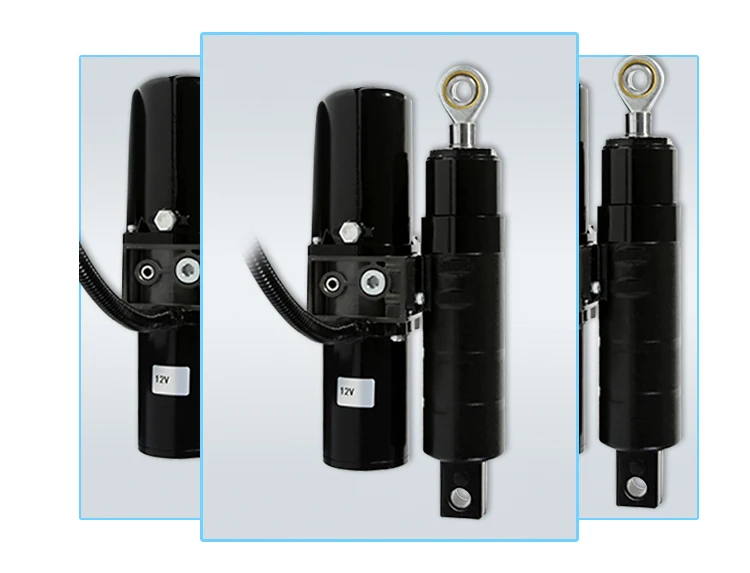

8000n Heavy Duty Solar Electric Hydraulic 24v 12v Ip67 Outdoor 350mm Industrial Electrohydraulic Linear Actuator

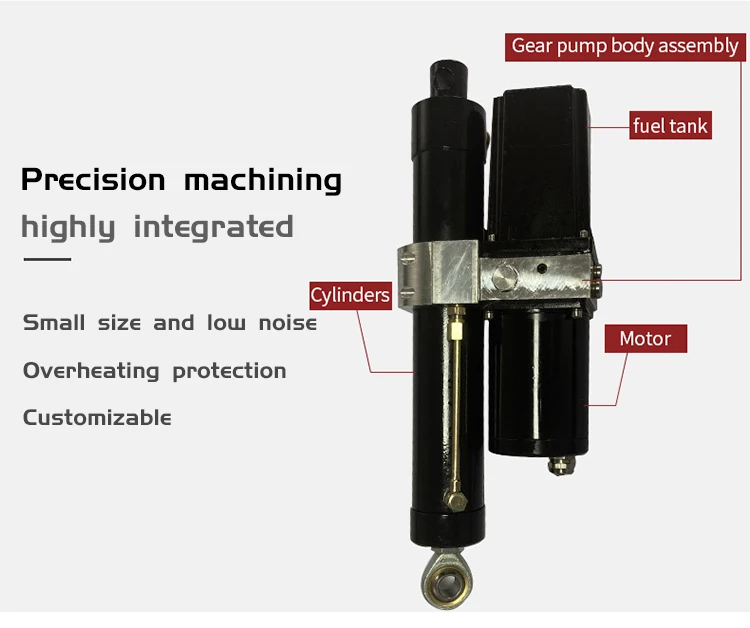

LY023 industrial miniature electro-hydraulic push rod is an ultra-miniature transmission mechanism integrating mechanical, electrical and hydraulic. The maximum load is 8000N, the stroke is 150~350mm, and the IP67 dust-proof and waterproof design is adopted. It can better adapt to the field environment and is suitable for reciprocating push-pull linear (or reciprocating rotation of a certain angle) movement. It uses a DC12V or DC24V micro DC motor to drive a two-way micro gear pump for oil supply. All hydraulic valves adopt a threaded plug-in structure and can be designed according to user requirements. The combination of oil circuits with different functions can meet their working requirements. The push rod is self-locking, can be stopped at any position within the stroke range, and can be remotely controlled. It has the advantages of compact structure, small size, low failure rate, and convenient operation.
Product Features
Wide range of applications: suitable for any working environment
Cost-effective: economical and good value for money
Small size: small footprint, saving construction space
Easy to move: stable performance and high integration
Function Description:
1. The piston rod rises and retracts when the motor is rotating forward.
2. When the power supply is disconnected, the hydraulic lock shape starts to lock the piston rod and cannot rise or shrink.
3. The built-in relief valve effectively protects the motor from misoperation to adjust the pressure
4. The fully enclosed oil sac can be rotated 360° without oil leakage
Cost-effective: economical and good value for money
Small size: small footprint, saving construction space
Easy to move: stable performance and high integration
Function Description:
1. The piston rod rises and retracts when the motor is rotating forward.
2. When the power supply is disconnected, the hydraulic lock shape starts to lock the piston rod and cannot rise or shrink.
3. The built-in relief valve effectively protects the motor from misoperation to adjust the pressure
4. The fully enclosed oil sac can be rotated 360° without oil leakage
Specification
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | Lunyee |
Model Number | LY023 |
Usage | BOAT, Car, Home Appliance, Cosmetic instrument |
Certification | ce, RoHS |
Type | Linear actuator |
Commutation | Brush |
Protect Feature | IP67 |
Speed(RPM) | 2800 |
Continuous Current(A) | 2.6~15A(24V) |
Efficiency | Ie 3 |
Shopping guide
1. Determine the voltage: There are multiple choices of DC 12V 24 36V 48V 72V.
2. Determine the stroke of the push rod, that is, the range of motion of the push rod, which can be customized according to your requirements.
3. Determine the pushing speed of the putter. Different speeds correspond to different strengths. The details are introduced. You can also consult online or leave a message to me.

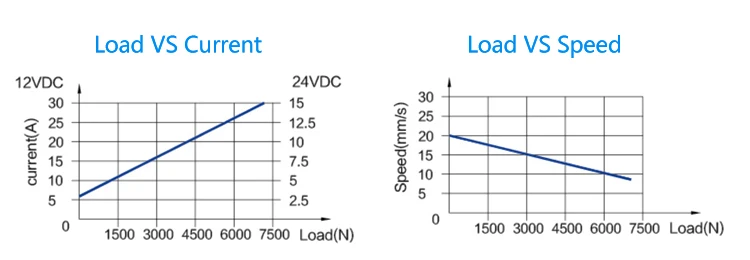

The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table:
2. Determine the stroke of the push rod, that is, the range of motion of the push rod, which can be customized according to your requirements.
3. Determine the pushing speed of the putter. Different speeds correspond to different strengths. The details are introduced. You can also consult online or leave a message to me.
The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table:
Company Profile
Lunyee Group focuses on the design, development, production and sales of industrial factory automation system solutions. Our main products are AC motors, DC motors and linear actuators. Among them, AC motors mainly include small AC geared motors and micro AC geared motors; DC motors mainly include brushed DC motors and brushless DC motors; linear actuator series mainly include medical electric actuators, industrial actuators, furniture actuators, and controllers System, manual controller, etc.
Related Products
Application and service
Wide application of electric linear actuators
As an innovative product of emerging technology, electric actuators have a huge impact on the progress of human science and technology. Now electric push rods have been widely used by humans, and electric push rods can be used wherever body position adjustment is required. At present, the world's mature application areas are:
1. Furniture field: sofas, chairs for the elderly, lazy chairs, foot bath chairs, home beds, beauty beds, massage chairs, massage beds, TV racks, electric beds, theater sofas, etc.
2. Office furniture field: desks, smart desks, cabinets, office chairs, projection instruments, laboratory tables, work tables, laboratory tables, etc.
3. Industrial technology field: door opener, window opener, sweeper, agricultural harvester, yacht, automobile, stage, etc.
1. Furniture field: sofas, chairs for the elderly, lazy chairs, foot bath chairs, home beds, beauty beds, massage chairs, massage beds, TV racks, electric beds, theater sofas, etc.
2. Office furniture field: desks, smart desks, cabinets, office chairs, projection instruments, laboratory tables, work tables, laboratory tables, etc.
3. Industrial technology field: door opener, window opener, sweeper, agricultural harvester, yacht, automobile, stage, etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are motor manufacturer for 15 years in China.
Q: How to order?
A: send us inquiry→receive our quotation→negotiate details→confirm the sample→sign contract/deposit→mass production→cargo ready→balance/delivery→further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order
Q: How long is the deliver Producing and Shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days
Q: My package has missing products. What can Ido?
A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30 50% deposit is available, the balance money should be paid before shipping. If you have another question, pls feel free to contact us.
A: We are motor manufacturer for 15 years in China.
Q: How to order?
A: send us inquiry→receive our quotation→negotiate details→confirm the sample→sign contract/deposit→mass production→cargo ready→balance/delivery→further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order
Q: How long is the deliver Producing and Shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days
Q: My package has missing products. What can Ido?
A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30 50% deposit is available, the balance money should be paid before shipping. If you have another question, pls feel free to contact us.
