SUNSUN HJB Series Various Good Quality Electric Small Aquarium Portable Oxygen Air Pump Aerator Sunsun Air Pump
Working prinple
The principle of reciprocating motor is adopted to directly drive the reciprocating movement of the diaphragm to generate compressed air.
User manual
1. Connect the connecting tube and shunt head that comes with the body, and then connect them to the body's air outlet
2. Connect the leather tube to the air stone, and install a check valve in the middle.
3. Connect the aerator tube with air bubble stone to the shunt tube to block the holding stomata.
Model | HJB-50 | HJB-80 | HJB-100 | HJB-120 | HJB-200 | HJB-280 | HJB-400 | HJB-550 |
Power | 30W | 48W | 65W | 80W | 150W | 230W | 300W | 420W |
Rate Press | 12kPa | 15kPa | 15kPa | 15kPa | 20kPa | 20kPa | 20kPa | 20kPa |
Max Press | 32kPa | 38kPa | 42kPa | 45kPa | 48kPa | 50kPa | 48kPa | 50kPa |
Max Flow | 60L/min | 80L/min | 100L/min | 120L/min | 200L/min | 280L/min | 400L/min | 500L/min |
Weight | 4.4kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 12.8kg | 21kg | 24kg |
Size | 217x166x181mm | 226x174x179mm | 238x186x200mm | 238x186x200mm | 276x205x238mm | 297x232x249mm | 420x277x270mm | 420x277x270mm |
1.This air pump is electromagnetic, no need to refuel.
2.High air pressure, large amount of gas.
3.The use of aluminum alloy cooling is designed to have fast heat and long-lasting features.
4.Using isolation-free pads and shock absorbers that is more mute.
Packaging:
Individual Packing: Color Box (Support OEM)
Outer Packing: Standard Export Carton
Shipping:
Port: Shenzhen/Guangzhou/Shanghai/Ningbo
Support to ship by Express, Sea Feight Air Frieght.
Lead Time: Generally, for small order quantites, we can send immediatley, bigger orders subject to our production plan.

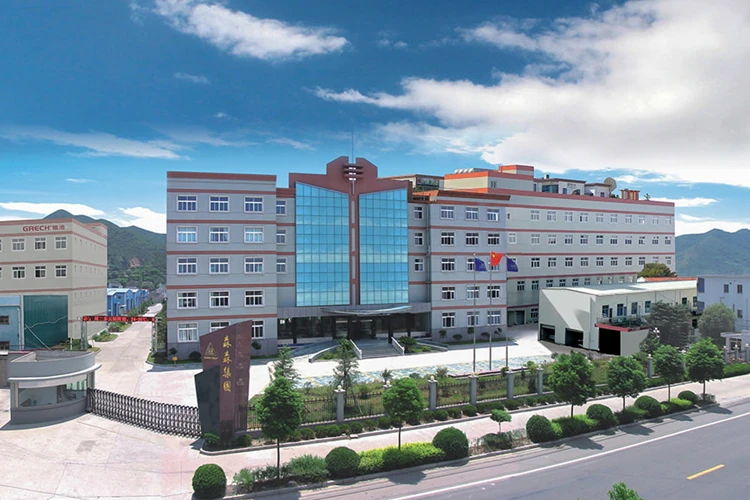

SUNSUN was established in November 1985. And through more than 30 years’ endless efforts, nowadays sunsun has been continuously innovating in the following industries: aquarium pets, aqua cultural machinery, industrial equipment etc .Sunsun'products have been exported to more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc. Sunsun has innovated the marketing mode, adhered to the development direction of "industrial technicalization, marketing globalization and brand internationalization" for the past years, and constructed a perfect sales network system. We believe that it's profession ensures our product quality, innovation gaining market, our sincerity keeping customers, success lying in the capable. Sunsun will continue contributing itself to pushing domestic and international leisure industry development, aqua cultural machinery industry development in the future.
Workshop
Events
Certifications
