Активная 1575 42 МГц Gps-патч-антенна с разъемом

Цена:2,19 $ - 2,99 $*

Стоимость в USD (на сегодня):Узнать

Количество:

FEATURE

1.Various Applications: GPS+GLONASS,GPS+COMPASS and Multimode;

2. Various sizes: 9X9mm to 78 x 78mm;

3.Matching Study for special application is available

4.Dielectric antenna for RFID tag UHF RFID

5.Tag that can be tailor-made

ELECTRICAL SPECIFICATIONS

Electrical Characteristics

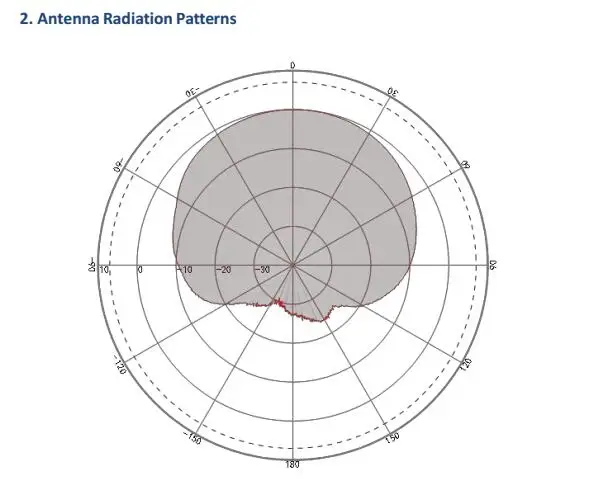

Antenna
1	Antenna model	15154mm
2	Frequency Range	1575.42MHz±1.023MHz		1598.06MHz~1605.38MHz
3	V.S.W.R	2.0 max		2.0 max
4	Band With@-10dB	GPS>5MHz		GLONASS>5MHz
5	Gain	1.0dBi@15*15mm Ground		1.0dBi@15*15mm Ground
6	Impedance	50Ω
7	Polarization	RHCP

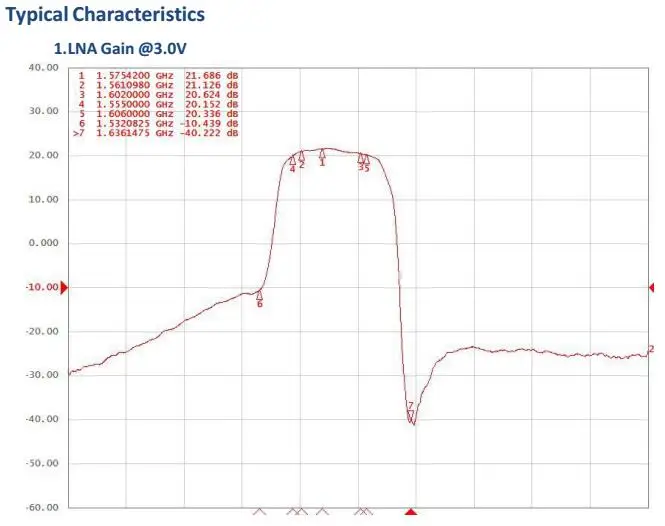

LNA
1	Frequency Range	1556MHz~1608MHz
2	DC Voltage	1.5V(min)	3.0V(typ)		3.6V(max)
3	DC current	7.3mA	8.5mA		10.0mA
4	Noise Figure	1.0
5	LNA Gain	33dB@25℃,1575.42MHz 33dB@25℃,1602MHz
6	VSWR	2.0 max
Material
No	Part Name	Spec
1	Antenna	Dielectric Ceramics
2	Ground	FR-4,
3	Cable	105mm RF-1.13
4	Connector	IPEX II
Environment Condition
1	Working Temp	-40℃~+85℃, 10%~95% RH
2	Storage Temp	-45℃~+85℃, 10%~95% RH
