Products Description
Introduction of Self Propelled River Sand Transport Barge
Our sand transport barge is self-propelled and pumping equipment. Pontoon can be divided as integrated or split type structure: equipment configuration is fixed with propulsion system, storage system, conveying landing gear device, anchor device and conveying device operating room.
The production process is as follows: dredging—conveying—transporting—unloading, positioning winch and conveying landing gear winch of the equipment configuration will be driven by the electric motor.
Main process: dredging equipment acquire raw materials, convey them to the storage silo of the transport ship, then through the transport ship to shore, with the conveyor belt to the land, and then finished to sand and stone separating, stone breaking, cleaning and classification.
The production process is as follows: dredging—conveying—transporting—unloading, positioning winch and conveying landing gear winch of the equipment configuration will be driven by the electric motor.
Main process: dredging equipment acquire raw materials, convey them to the storage silo of the transport ship, then through the transport ship to shore, with the conveyor belt to the land, and then finished to sand and stone separating, stone breaking, cleaning and classification.
Function of Self Propelled River Sand Transport Boat
Sand Transportation Ship is used for delivery sand, stone, iron& gold mining to the land, conveyed to the land by belt, then
switch into the next step of gravel sorting, crushing, washing grading.
switch into the next step of gravel sorting, crushing, washing grading.
Main feature
1. Famous brand Cummins engine or China Weichai engine
2. Simple and reliable structure, easy to dismantle and assemble
3. High efficiency
4. Easy operation
5. Operating cabin with good all around visibility
6. Full tested before delivery
7. Short production time
8. Economic price
9. Low running costs and low energy consumption
2. Simple and reliable structure, easy to dismantle and assemble
3. High efficiency
4. Easy operation
5. Operating cabin with good all around visibility
6. Full tested before delivery
7. Short production time
8. Economic price
9. Low running costs and low energy consumption
PRODUCT SPECIFICATIONS
Technical Specifications of sand transportation ship | ||||
Serial No. | Model | BSTSTS100 | ||
1 | Manufacturer | Best | ||
2 | Total length | 35m | ||
3 | Hull length | 25m | ||
4 | Hull width | 5.1m | ||
5 | Moulded depth | 2.2m | ||
6 | Draft | 1.4m | ||
7 | Displacement | 190T | ||
8 | Loading | 100T | ||
9 | Propulsion power | 110KW | ||
10 | Conveyor power | 33KW | ||
11 | Can be customized according to client's requirements | |||
PRODUCT CONFIGURATION
Pontoon
Material: marine steel plate (CCSB certificate)
Structure: can be dismantle and assemble at working site
Painting: marine epoxy zinc-rich primer and marine chlorinated rubber surface painting.
Structure: can be dismantle and assemble at working site
Painting: marine epoxy zinc-rich primer and marine chlorinated rubber surface painting.
Bunker
holding sand and stones and other materials
Material
Transport sand, stones etc. material
Diesel Engine
Brand: World famous brand CUMMINS, Weichai or as required
Guarantee: worldwide after-sales service
Guarantee: worldwide after-sales service
Operation system
Engine romote operation in the working cabin
Working cabin with controlling system
Control desk: Integrated control
Working cabin with controlling system
Control desk: Integrated control
Operation room
In operation room can control engine and other electric or hydraulic equipments.
Company Profile
Qingzhou Best Environmental Protection Machinery Co., Ltd. is a professional manufacturer, over 20 years development, company covers the products are of a great variety including 500-20000m³/h large scale dredging and sand mining equipments, gold panning ship，sand transport ship, multifunctional service work boat, tug boat, iron extraction equipment, sand screening machine, crusher, magnetic separator, sand washing machine and so on, more than 80 specifications for customer choice. We can also design and produce special types of machinery according to customer’s requirement. Widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, blow fields stretched, port construction, etc., It formed the complete ship machinery industry chain.
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according with the standards and regulations of CCS.
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according with the standards and regulations of CCS.
Why to choose us? Where is our advantage？
Our company advantage:
1.Our company specializes in the production of sand transport ship for 30 years.
2. All products have been through ISO 9001 Quality System Certification.
3. The design, construction, quality inspection is according to the standards and regulations of CCS.
4. Our company has a complete ship technical R & D center.
5.Each ship will be tested quality before delivery.
6. Complete after-sales service, engineers guide the whole process of installation, operation, maintenance and repair.
7. Can be customized according to customer special requirements.
2. All products have been through ISO 9001 Quality System Certification.
3. The design, construction, quality inspection is according to the standards and regulations of CCS.
4. Our company has a complete ship technical R & D center.
5.Each ship will be tested quality before delivery.
6. Complete after-sales service, engineers guide the whole process of installation, operation, maintenance and repair.
7. Can be customized according to customer special requirements.
Workshop photo

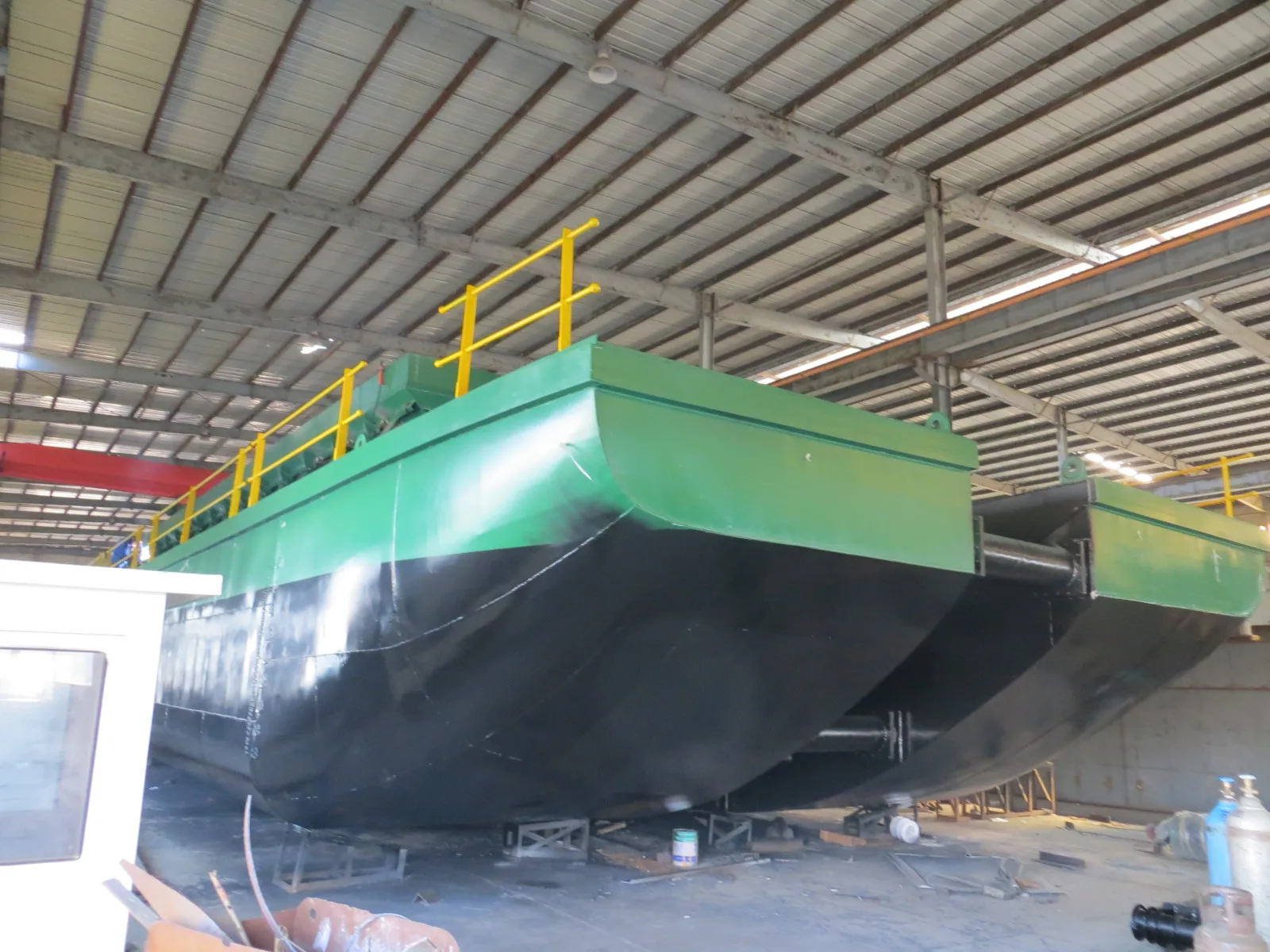

Hull laying in production
Hull laying in production
Hull forming
Hull completion
Installation

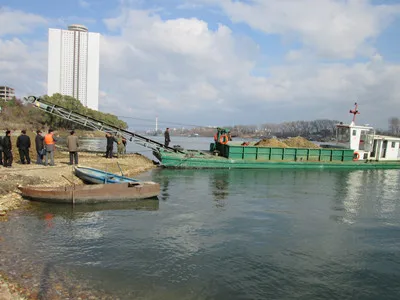

Working
Our service
Pre-Sales Service
Receive client’s inquiry
Introduce dredging machine to clients
Visit and study clients mining conditions
Propose the most suitable solution
Recommend and design reasonable dredger type to clients
Receive client’s inquiry
Introduce dredging machine to clients
Visit and study clients mining conditions
Propose the most suitable solution
Recommend and design reasonable dredger type to clients
After-Sales Service
Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories
Core equipments have office all over the world
Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories
Core equipments have office all over the world
Customer Photos
FAQ
Q1: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.
Q2: What about the delivery time?
We have various sand transport barge and spare parts in stock, can finish manufacture in short time.
Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.
Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of sand transport barge.
Free repair if have any quality problems during working.
Lifetime service for equipments.
Q5: How will the sand transport ship be transported to the customer's country?
Our sand transport boat are all separable. According to different models, they can be transported by sea in containers or in bulk.
We can accept T/T, L/C, WESTERN UNION and so on.
Q2: What about the delivery time?
We have various sand transport barge and spare parts in stock, can finish manufacture in short time.
Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.
Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of sand transport barge.
Free repair if have any quality problems during working.
Lifetime service for equipments.
Q5: How will the sand transport ship be transported to the customer's country?
Our sand transport boat are all separable. According to different models, they can be transported by sea in containers or in bulk.
