Movable Flat Pack Prefab Containers Modular Houses Steel Structure Container House Frame Prefabricated
Advantage
* Easy assembly: Two skilled workers can finish assembling one standard unit within 2 hours;
* Doesn't need a crane for installation as the 3m X 5.95m container house is totally disassembled to easy handled sections and all that is required is re assembly.
* Light steel structure (reliable frame);
* Galvanized frame with powder coating for extra anti rust quality.
* Strong = main frame thickness is 2-3mm
* Extensive and flexible application.
* our this kind container house is with bigger size W3M*L5.95M*H2.8M
* they can be combined to make a bigger units or stacked 2-3 levels
* Wide applications: Can be used as warehouse, home, villa, toilet, shower, shop, hotel, camp, workshop, office, hospital etc;
* High mobility: Completed lifting and easy to move from one site to another site.
* Easy assembly: Two skilled workers can finish assembling one standard unit within 2 hours;
* Doesn't need a crane for installation as the 3m X 5.95m container house is totally disassembled to easy handled sections and all that is required is re assembly.
* Light steel structure (reliable frame);
* Galvanized frame with powder coating for extra anti rust quality.
* Strong = main frame thickness is 2-3mm
* Extensive and flexible application.
* our this kind container house is with bigger size W3M*L5.95M*H2.8M
* they can be combined to make a bigger units or stacked 2-3 levels
* Wide applications: Can be used as warehouse, home, villa, toilet, shower, shop, hotel, camp, workshop, office, hospital etc;
* High mobility: Completed lifting and easy to move from one site to another site.
Product Description
Size | L5950mm*W3000mm*H2800mm |
Color | White or customized |
Frame | Galvanized steel（80g/㎡）+power coating（thickness：0.2mm） |
Floor | Cement fire prevention board，Thickness：18mm |
Roof（Thickness can be customized.） | Double steel sheet EPS sandwich panel(0.4mm+50mmthickness12kg/m³EPS+0.4mm) |
Floor Purlin | Square Tube 40mm*80mm*1.2mm*14 |

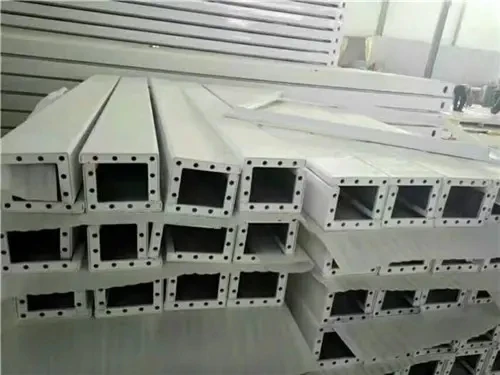

Column/Beam | Steel plate Bending；Thickness：2.3mm or customized |
Corner fitting | Steel plate bending;Thickness:4mm;Color:white or customized. |

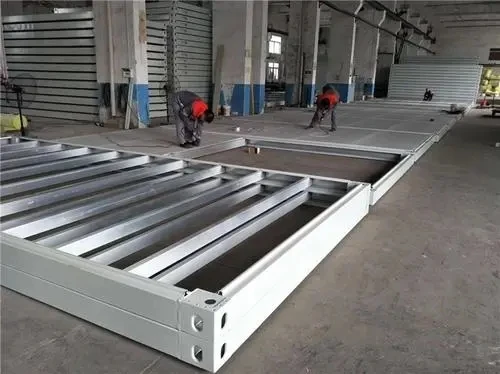

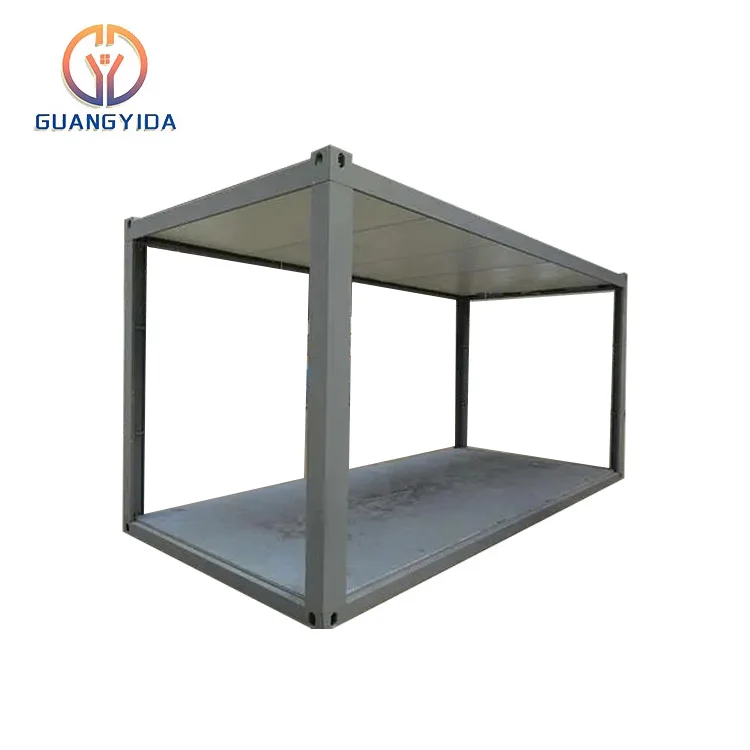

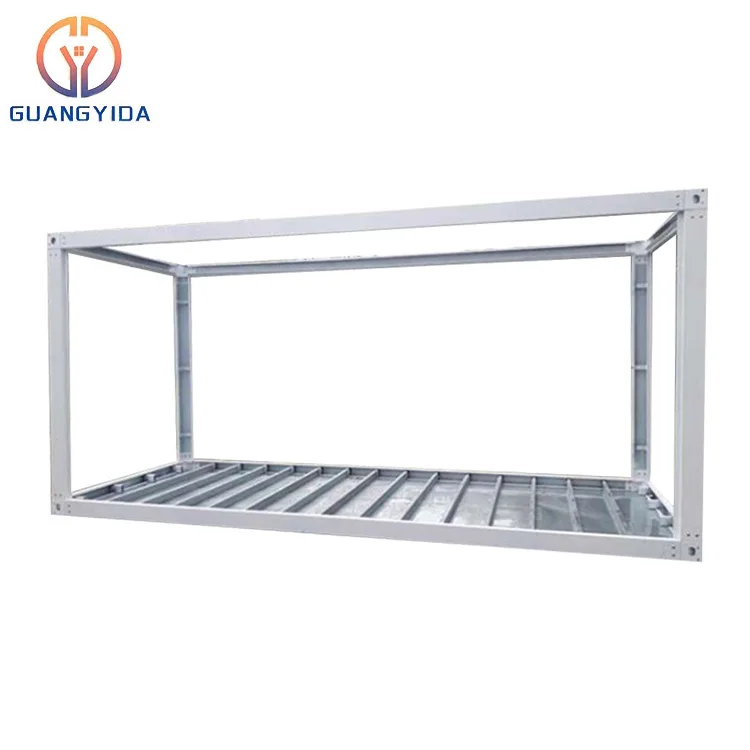

Container House Frame
1.Column QTY :4 .
2.Longer beam QTY :4 .
Shorter beam QTY :4 .
3. Corner fitting QTY : 8 .
4.Floor Purlin QTY : 14 .
2.Longer beam QTY :4 .
Shorter beam QTY :4 .
3. Corner fitting QTY : 8 .
4.Floor Purlin QTY : 14 .
Overview
item | Combine container house | |||
Warranty | 1 Year | |||
After-sale Service | Online technical support | |||
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation | |||
Application | Apartment | |||
Place of Origin | Shandong China | |||
Brand Name | GYD | |||
Model Number | GYD-cf | |||
Use | Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant | |||
Product Type | Container Houses | |||
Design Style | Modern |
Production Advantages
1.All bolt connection,dont need crane for installation. | ||||||||
2.Easy for installation:two workers will install one house in 8 hours. | ||||||||
3.Take less space in container:for only the frame,one 20ft container can load 25 units,one 40HC container can load 50 units;for full house with one door,two windows,wall,roof,floor,one 20ft container can load 5 units,one 40HC container can load 12 units. | ||||||||
4.Two or more container houses can be combined to make a big room. | ||||||||
5.It can be stacked 2-3 levels as a high-rise apartments. | ||||||||
Why Choose Us
1.Fast production:parts of house are automaticly made by machine,production is fast,one day can produce 100 units. | ||||||||
2.Galvanized frame+powder coating:container house frame is hard to get rusted. | ||||||||
3.We each production line equipped with an inspector.We have strict quality control system, ensure that don't appear unqualified products, to achieve zero error. | ||||||||
4.Roof panel with high density of EPS materials, people can walk on it. | ||||||||
5.Wall panel with high density of EPS materials, hammer won't damage it. | ||||||||
6.Our product installation easier than other factory. | ||||||||
7.If you want to the roof insulation, or prevent roof leaks, also can install a single layer corrugated plate above the roof. | ||||||||
8.Special packaging to ensure no damage to the product during the transit. | ||||||||

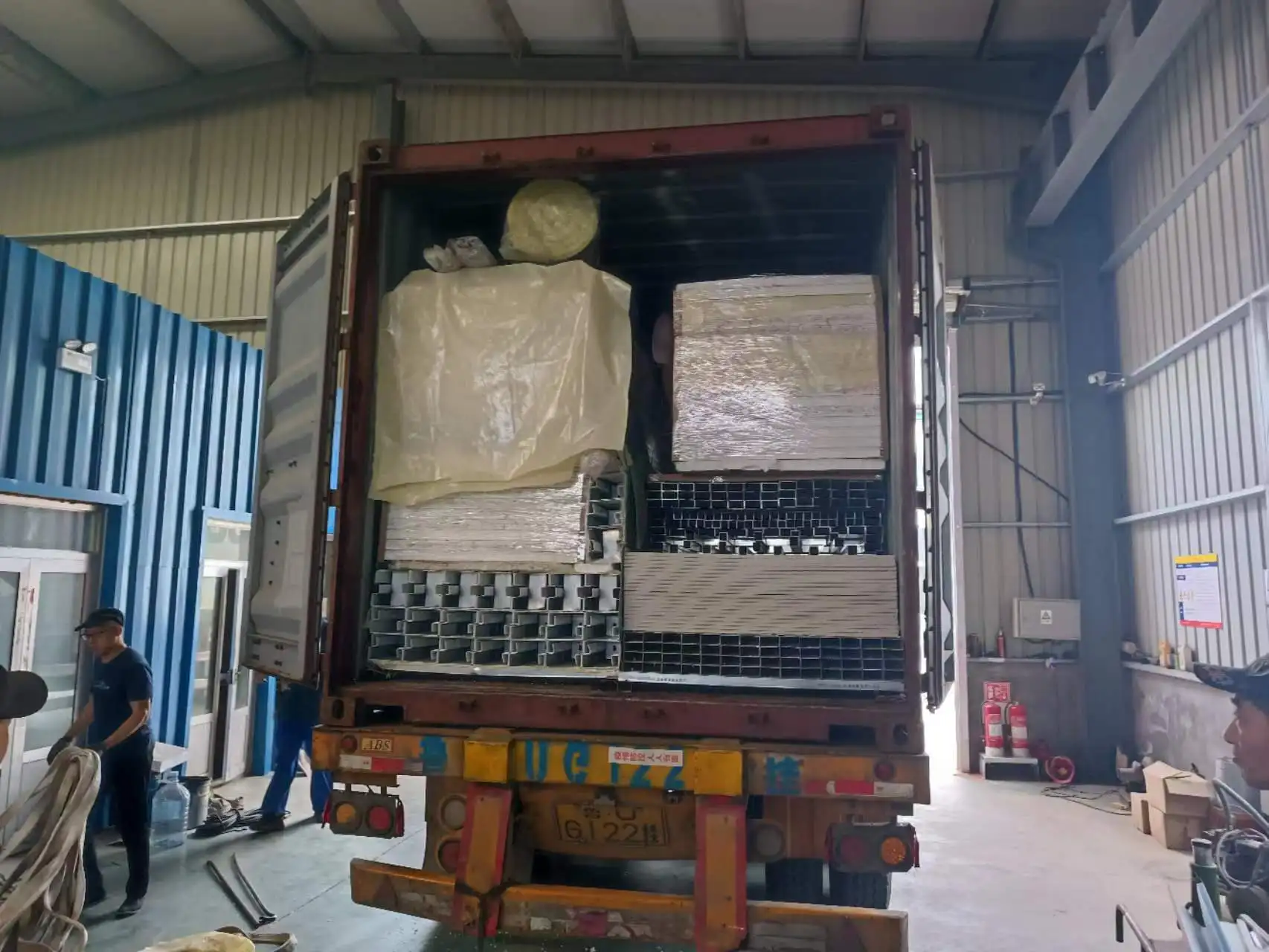

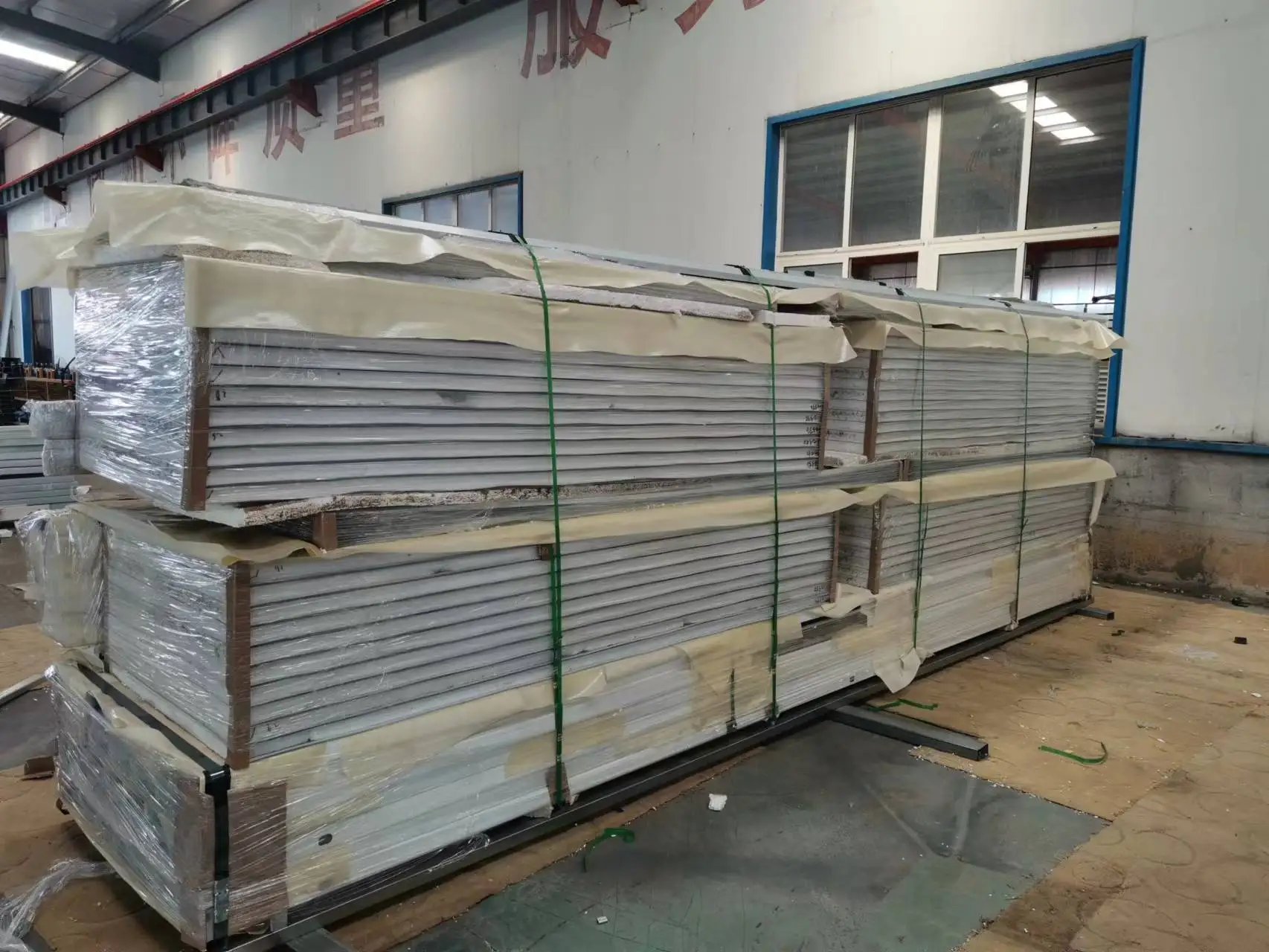

Packing & Delivery
The welding tray is used as the chassis, the product is bound with the packing belt, and the product is completely wrapped with the wrapping film.
Company Profile
Shandong Guangyida Steel Structure Engineering Co., LTD is located in Laizhou Shandong province,GuangYiDa steel structure Ltd specializes in designing ,producing and selling container house,steel structure factory building、 extension-type container house as well as foldable container house . Owing the professional design team and production team, the company can equip the house with the appropriate kitchen ,bedroom ,washing room and so on. We provide our customers full production technology service on the principles of human oriented and honesty. Combined high quality with low price,our productions are well sold all over the world. Considering the users’ experience, we always provide the online installment instructions.
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory who have more than 15 years experience on container houses' production. And you are welcomed to visit us for inspection. The quality control flow will show you our professional. Also you will enjoy the best quality and competitive price.
3. Q: What's your supply capacity?
A:Annual Production: container house 72000 sets, prefab house 564000 square meters;portable toilet 24000 sets;steel structure 360000 square meters .
4. Q: How to install ?
A:We will provide installation instruction and video for you, technicians will be sent to help you if it is necessary. However, the visa fee,air tickets, accommodation,wages will be provided by buyers.
5. Q:How long is your delivery time?
A:Generally it is with in 30 days ,definitely according to quantity and color.
6. Q: How do you guarantee the quality of the products?
A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials,. We could deal with you by Trade Assurance via Alibaba.
7. Q: How can I get the quotation of the project ?
A:If you have drawing ,we can offer you our quotation according to your drawing
8. Q: What's the MOQ?
A: 1 set..
A:We are a factory who have more than 15 years experience on container houses' production. And you are welcomed to visit us for inspection. The quality control flow will show you our professional. Also you will enjoy the best quality and competitive price.
2. Q: What's the payment way?
A: T/T ,LC.
A: T/T ,LC.
3. Q: What's your supply capacity?
A:Annual Production: container house 72000 sets, prefab house 564000 square meters;portable toilet 24000 sets;steel structure 360000 square meters .
4. Q: How to install ?
A:We will provide installation instruction and video for you, technicians will be sent to help you if it is necessary. However, the visa fee,air tickets, accommodation,wages will be provided by buyers.
5. Q:How long is your delivery time?
A:Generally it is with in 30 days ,definitely according to quantity and color.
6. Q: How do you guarantee the quality of the products?
A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials,. We could deal with you by Trade Assurance via Alibaba.
7. Q: How can I get the quotation of the project ?
A:If you have drawing ,we can offer you our quotation according to your drawing
8. Q: What's the MOQ?
A: 1 set..
