Пользовательская матричная матрица 1x5 5 клавиш мембранный переключатель клавиатура меню авто для Arduino со
- Категории: Keypads & Keyboards >>>
- Поставщик: Dongguan,Top-Peaks,Industrial,Limited
Поделиться:
Описание и отзывы
Характеристики

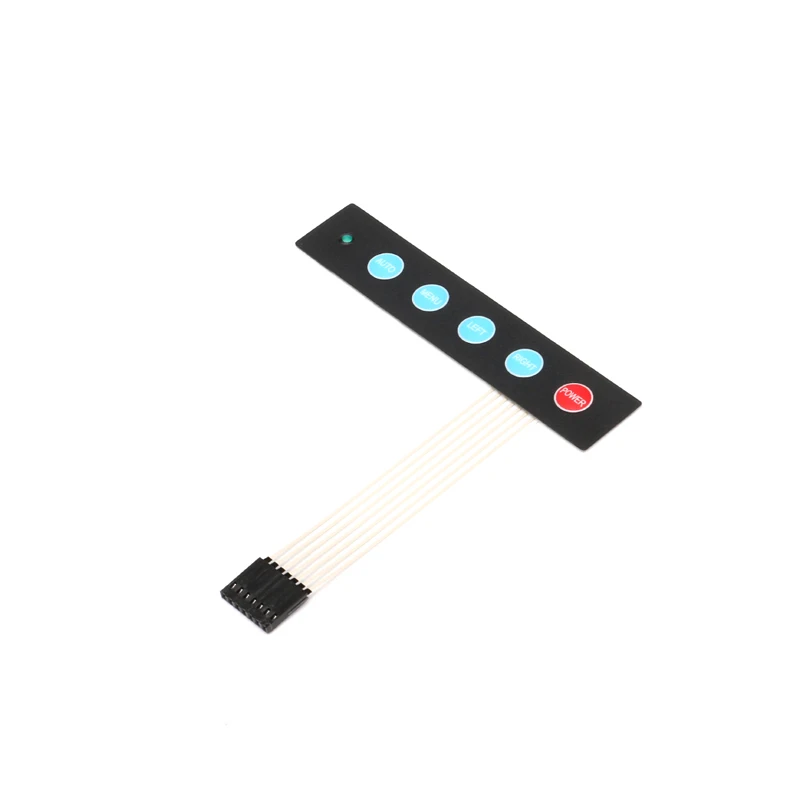

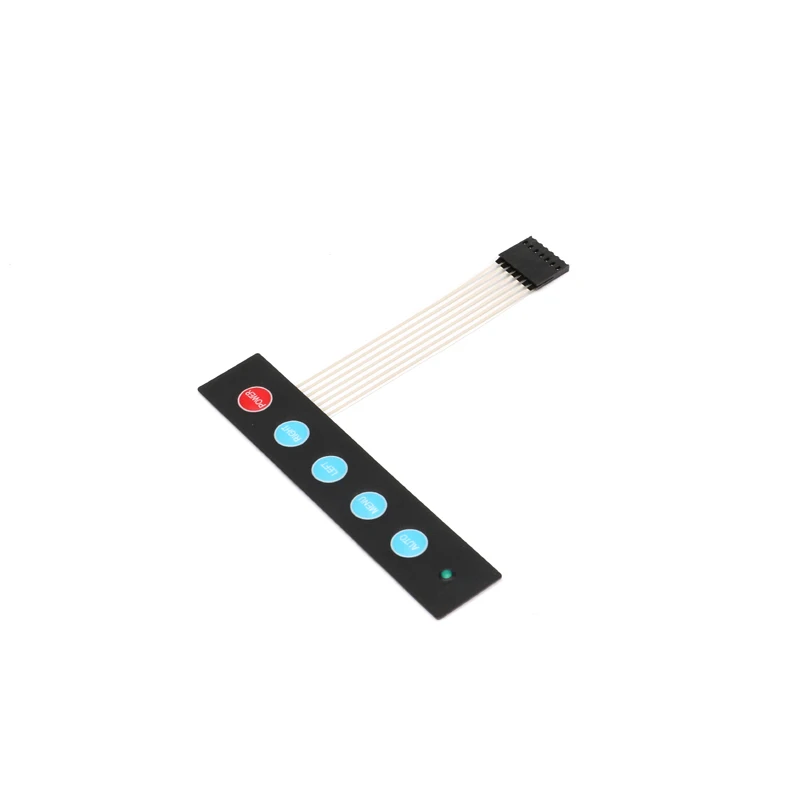

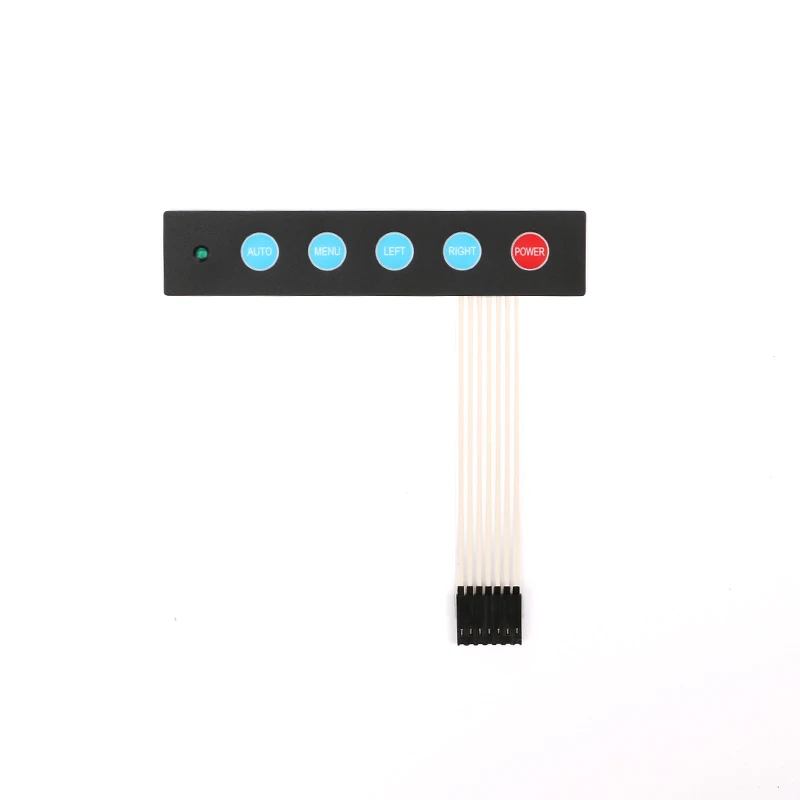

Custom 1x5 Matrix Array 5 Key Membrane Switch Keypad Keyboard Menu Auto For Arduino with LED
Why Choose Us
@ Low MOQ accepted 100 or 1000， it's the same for us ,don't hesitate beause of the quanity ! | ||||||||
@ Free design service No drawing available ? Feel free to start with us ,our design team can provide design service. | ||||||||
@ Strict quality control Certificated by ISO system and SGS party and with ISO 9001 ,ISO 14001 certification. | ||||||||
@ Quick response: 7X24 online response service, qutoation within 30 minutes , production within one week! | ||||||||
@ Goog communication skills: 10 years experiences in trading with US and latino america , good at english end spanlish, whatsapp ,skype ,wechat ,email， whatever way you want! | ||||||||
Product Description

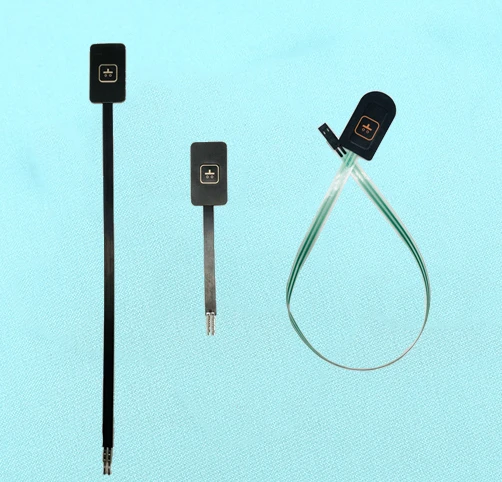

This one-button membrane switch is in stock. The picture is taken in kind, other technical requirements can be negotiated to meet your requirements!
The panel can be designed according to your requirements, matte / backlit / matte / logo / pattern / add LED, everything is available
Custom button
Metal dome of various specifications can be custom for your product needs

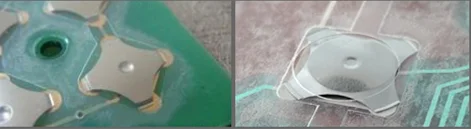

Metal dome function | ||||||||
1. With the help of metal conductivity, the two-pole contacts of the switch are turned on | ||||||||
2. With the rebound of the shrapnel, provide tactile feedback to the operator | ||||||||
3.Available specifications are 8.4, 10, 12, 14, 16mm.Generally, the size of 10-12mm shrapnel is recommended | ||||||||
Silver paste convex
Another type of membrane switch button, through the "embossing" process, the silver paste disc of the button on the circuit is pressed into a predetermined spherical crown with a mold, so that it has a guiding effect on the button position of the entire switch.
The convex size of the silver paste can be designed to be 5mm-11mm, and the size of 8-10mm is recommended. The size of the button will be more suitable for finger pressing.
Panel button embossing A variety of embossing styles make the buttons feel better, and at the same time make the product more design and three-dimensional.

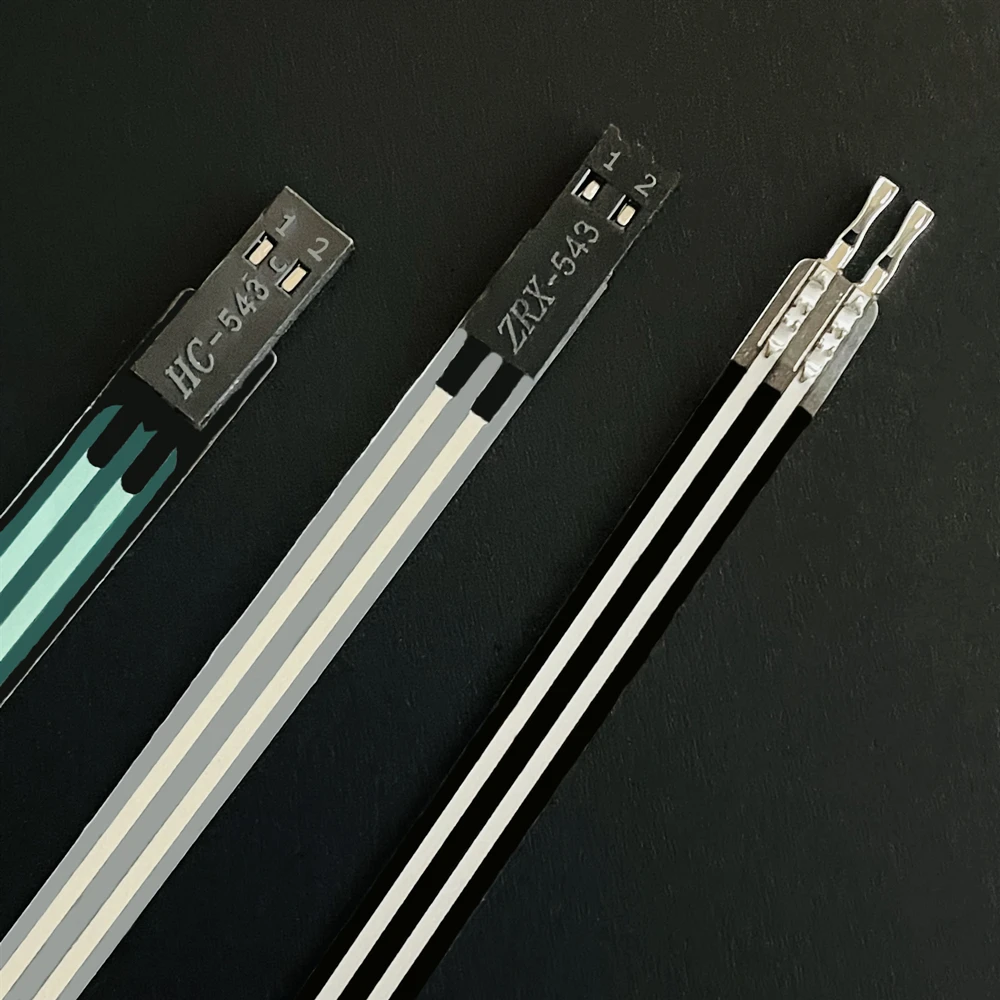

Custom connectors

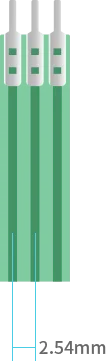

① 2.54 female connector
With terminal shell (female pin)
With terminal shell (female pin)

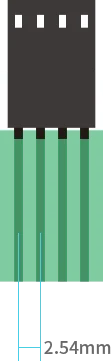

② 2.54 male/male
(Without terminal shell)
(Without terminal shell)

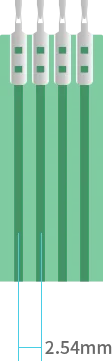

③ 2.54 female injection
(Without terminal shell)
(Without terminal shell)

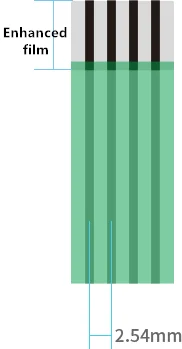

④ 2.54 without pin

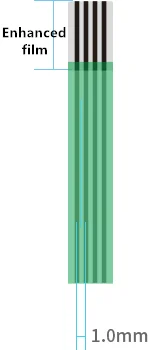

⑤ 1.0 pitch

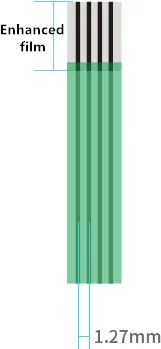

⑥ 1.27 No pins

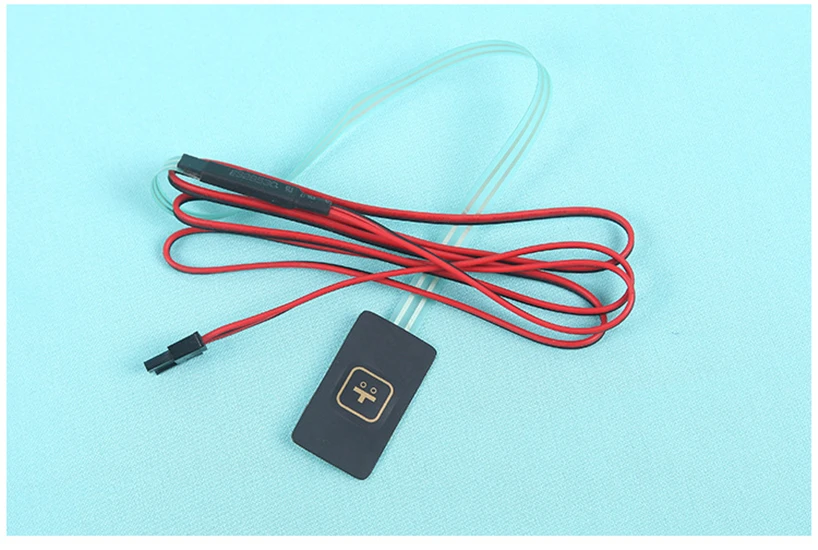

Various specifications of cable length：70mm~350mm 90CM wiring harness can be added
Our Company
Business Cooperation
Certifications
FAQ
• Sample available?
Yes, we have top-peaks Membrane Switch Demo as free sample for customers.
It takes about 15 working days for us to make a customized sample.
• What payment term?
T/T 100% in advance.
• How to make an order?
Please let us know your requirements on materials,logic circuit principle chart, application environment, size and design. And
better send us the design drawing or samples together.with other detailed data, then we’ll customize the membrane switch upon your
requests.
• How long will my order take?
This depends on the size and complexity of your order. A delivery date will be provided upon placement of your order.For small
size order ( less than 1000 pcs ), it usually takes about 10~15 working days after sample approval.
• What art formats are suitable?
Files which can be read by Autocad, Coredraw and Adobe Illustrator are acceptable.
• How does Top-Peaks ship my goods ?
By FedEx, DHL, UPS, TNT or other ways specified.
• How to guarantee the after sales service ?
All the products are inspected and tested 100% before delivery.
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly.
If any problem happened, we will provide the best solution for you.
Yes, we have top-peaks Membrane Switch Demo as free sample for customers.
It takes about 15 working days for us to make a customized sample.
• What payment term?
T/T 100% in advance.
• How to make an order?
Please let us know your requirements on materials,logic circuit principle chart, application environment, size and design. And
better send us the design drawing or samples together.with other detailed data, then we’ll customize the membrane switch upon your
requests.
• How long will my order take?
This depends on the size and complexity of your order. A delivery date will be provided upon placement of your order.For small
size order ( less than 1000 pcs ), it usually takes about 10~15 working days after sample approval.
• What art formats are suitable?
Files which can be read by Autocad, Coredraw and Adobe Illustrator are acceptable.
• How does Top-Peaks ship my goods ?
By FedEx, DHL, UPS, TNT or other ways specified.
• How to guarantee the after sales service ?
All the products are inspected and tested 100% before delivery.
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly.
If any problem happened, we will provide the best solution for you.
Contact Person: Kelvin Chen
(Sales Manager)
E-Mail:Kelvin@top-peaks.com
Tel:86-18980844812
Wechat:18980844812
QQ:1091084656
