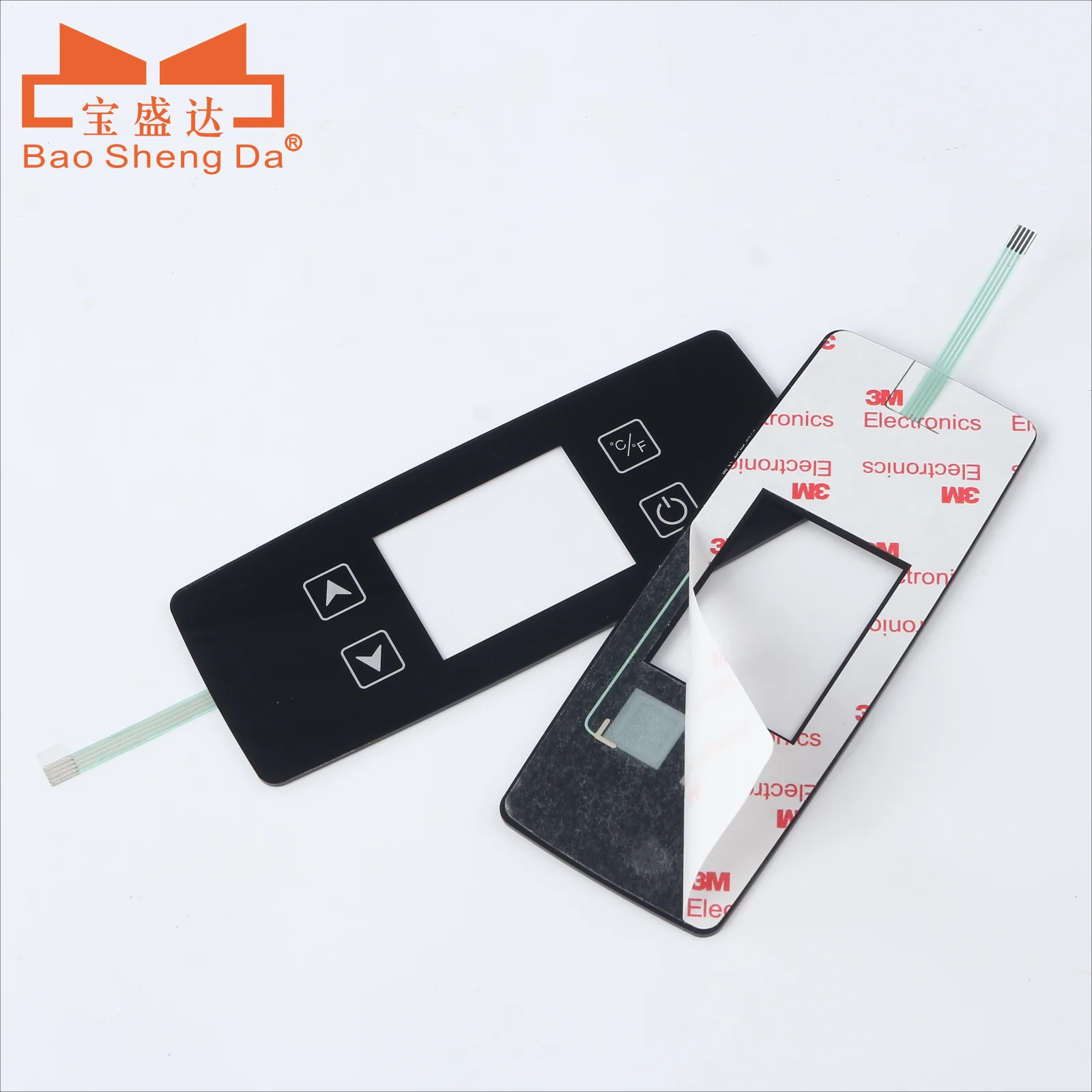

Индивидуальная емкостная сенсорная клавиатура PEDOT ITO Touch sensor
- Категории: Keypads & Keyboards >>>
- Поставщик: Shenzhen,Baoshengda,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Introduction
The product is beautiful and novel, overall: dustproof, and waterproof.
The operation panel is strong and wear-resistant.
The surface pattern of the product can be designed according to needs.
Button touch sensitivity, response speed, anti-interference ability, and anti-pressure ability can be designed.
According to different buttons, different light sources are provided to improve the technological sense of the product.
The operation panel is strong and wear-resistant.
The surface pattern of the product can be designed according to needs.
Button touch sensitivity, response speed, anti-interference ability, and anti-pressure ability can be designed.
According to different buttons, different light sources are provided to improve the technological sense of the product.
Product name: | Touch Keypad Switch |
Item No: | BSD-TS-02 |
Size: | 150*10MM |
Place of origin: | Guang Dong , China |
Material: | Acrylic，Glass , PC , Pedot, Circuit , 3M468, OCA |
OEM/ODM order: | ≥100 Pieces |
Packing: | Carton packing for each 10 piece Keypad (or custom-made) |
Usage: | Wherever you need to press the button |

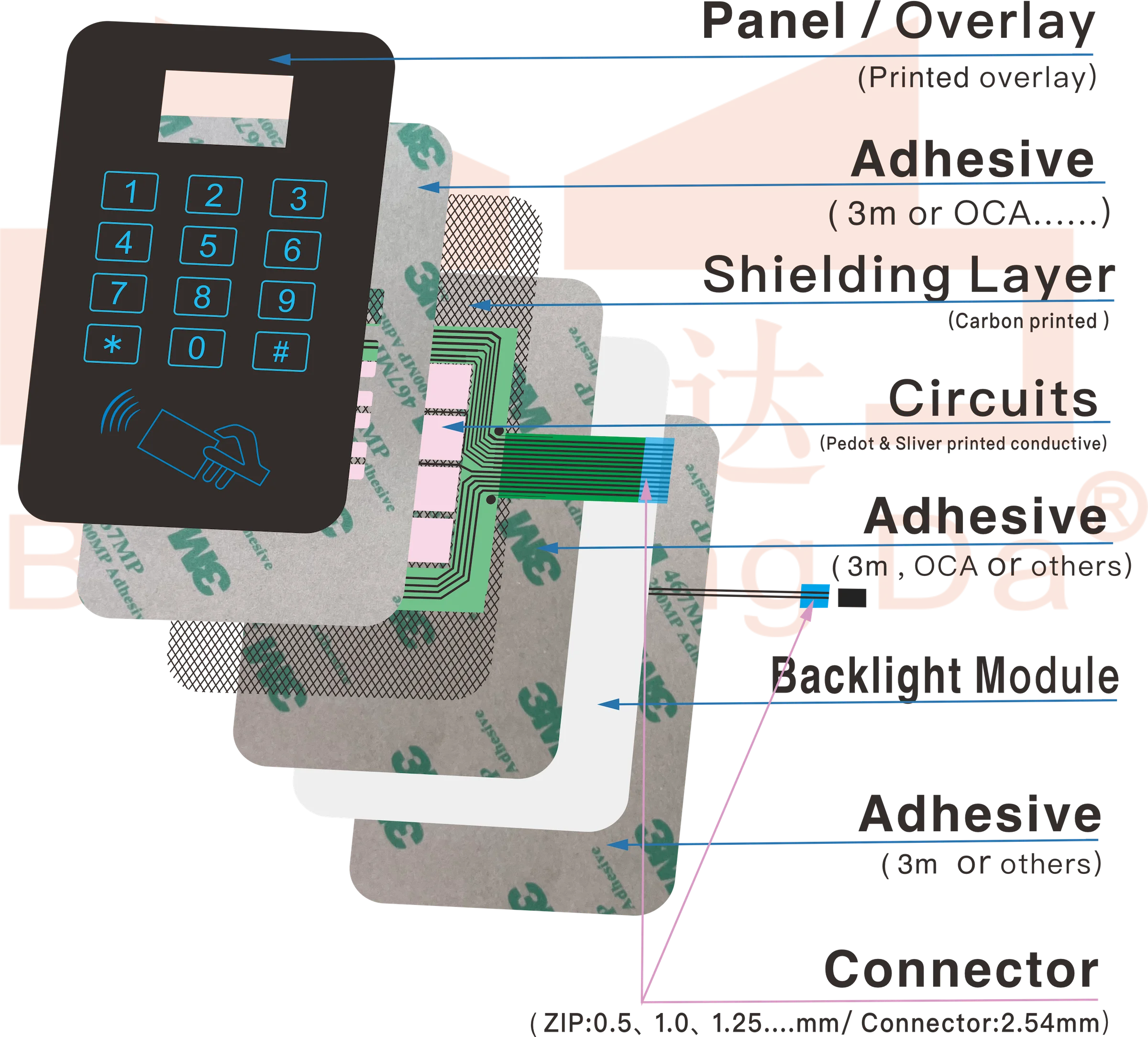

Surface Layer
Materials can be customized:
acrylic, glass, PC, and plastic materials...
Panel effects can be customized:
Panel effects can be customized:
glossy, sandy, and other textures.
The product can be customized with different colors of buttons.
Button service life ≥ 5 million times.
Colors and patterns can be customized.
The surface of the product can resist outdoor UV for 500 hours and is antibacterial, corrosion-resistant, and scratch-resistant.
The product can be customized with different colors of buttons.
Button service life ≥ 5 million times.
Colors and patterns can be customized.
The surface of the product can resist outdoor UV for 500 hours and is antibacterial, corrosion-resistant, and scratch-resistant.
Circuit Layer
The materials can be customized:
PET, FPC and PCB;
The circuit can be integrated:
The circuit can be integrated:
LED, resistor-capacitor and touch chip, etc;
The circuit can be designed with shielding layer and insulating layer; the circuit diagram can be designed according to your pin definitions; Connector: GBA dual-in-line, contact-pin shell and others;
The circuit can be designed with shielding layer and insulating layer; the circuit diagram can be designed according to your pin definitions; Connector: GBA dual-in-line, contact-pin shell and others;

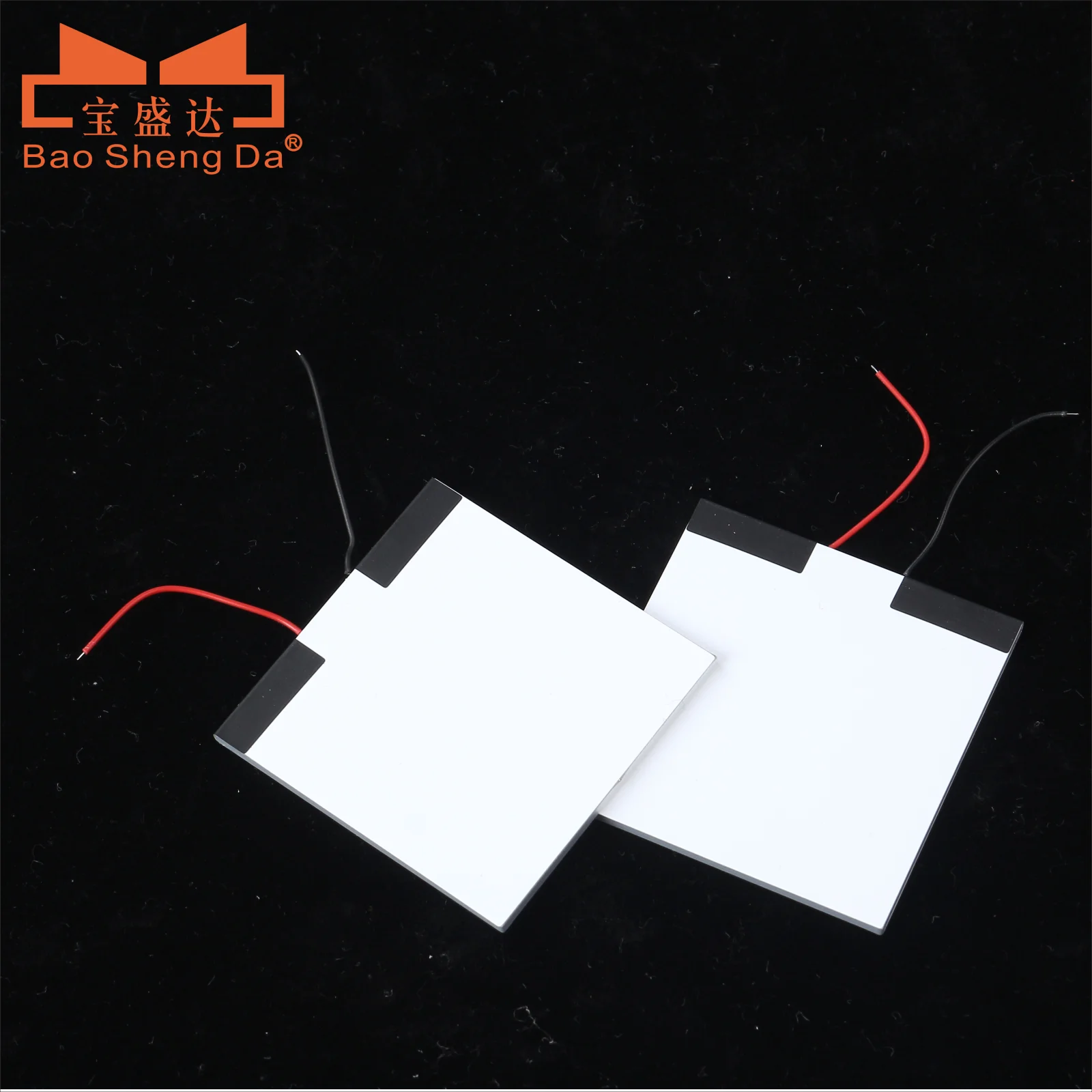

Backlight Module
Material can be customized:
LED, EL, CCFL...
The circuit can be integrated:
The circuit can be integrated:
LED, resistor-capacitor...
The lighting position and the color of the white light source can be designed according to the requirements.
Connector: golden finger in-line type, contact pin and contact casing, others.
The lighting position and the color of the white light source can be designed according to the requirements.
Connector: golden finger in-line type, contact pin and contact casing, others.
Adhesive Layer
The material model can be customized: OCA,3M, gelatin sponge and other adhesives
The materials can be customized according to different use environments,
For example: dustproof, waterproof and high-low temperature......
The materials can be customized according to different thickness requirements; The adhesive layer can be customized according to the materials pasted on the product;
The materials can be customized according to different use environments,
For example: dustproof, waterproof and high-low temperature......
The materials can be customized according to different thickness requirements; The adhesive layer can be customized according to the materials pasted on the product;
Mechanical data.
Reliability service life: ≥500 thousand times; Closed displacement: 0.1~0.4mm
Connector spacing: 0.5, 1.0, 1.25, 2.54… ...
The wire lead in PET material is bent by ±90° repeatedly for 50 times, no crack, no conductor stripping, and resistance value of loop line up to custom-made standards
Connector spacing: 0.5, 1.0, 1.25, 2.54… ...
The wire lead in PET material is bent by ±90° repeatedly for 50 times, no crack, no conductor stripping, and resistance value of loop line up to custom-made standards
Electronic data.
Operating voltage: 5VDC; Operating current: 100mA;
Contact resistance: 0.5~10Ω
Insulation resistance: 100MΩ
Base material withstand voltage: 2kVDC; Response time: 5ms; Loop resistance: ≤100Ω,
Insulation resistance: 100MΩ
Base material withstand voltage: 2kVDC; Response time: 5ms; Loop resistance: ≤100Ω,
line length: ≤150cm (or custom-made)
Insulation ink withstand voltage: 220VDC
Insulation ink withstand voltage: 220VDC
Environmental suitability.
Operating temperature: -25°C~+75°C
Storage temperature: -40°C~+85°C
Relative humidity: 45%~75% (customizable)
Atmospheric pressure: 86kPa~106kPa
Storage temperature: -40°C~+85°C
Relative humidity: 45%~75% (customizable)
Atmospheric pressure: 86kPa~106kPa
Keypad dome life tester
Salt spray tester
High & low temperature tester
Circuit function tester
Light transmittance tester
Projector
Q:l don't have sample or STP drawing ,how can I custom a silicon Keypad?
A: You can send a enclosure & PCB to us, then our engineer can design the drawing for you.
Q:l don't know the silicon hardness shore and actuation force of the keypad should be?
Q: Could you make Plastic cap + Silicon button?
Q: What's terms of payment for custom a new item?
Q: Where is your factory, can I visit?
A: We located in Shenzhen, China. And welcome to visit any time.
A: You can send a enclosure & PCB to us, then our engineer can design the drawing for you.
Q:l don't know the silicon hardness shore and actuation force of the keypad should be?
A:ln normal, the hardness of keypad & button is 50-60A, and the actuation force is 200 +- 50
Q: Could you make Plastic cap + Silicon button?
A: Yes,we made this model a lot, we have a brother factory can supply the plastic item for us
Q: What's terms of payment for custom a new item?
A: The mold cost should pay 100% in advanceThe bulk order we can accept 50% deposit，50% before shippingAnd pay through Alibaba assurance order ,T/T
Q: Where is your factory, can I visit?
A: We located in Shenzhen, China. And welcome to visit any time.
According to different product, several inner boxes put into a standard carton box.
Packaging can be customized: foam box, carton size, etc.
Each carton with the weight is not more than 30kg.
Packaging: Generally, 10~20 products are packed in a plastic bag. The product packaging shall avoid inserting shell, and shall be protected with foam and put into a small box. According to different sizes of products, the small box shall be uniformly packed into a standard carton.
The packaging box can be customized your company Logo as you need.
Shipping: By Air, by Sea, Express UPS、FedEx、DHL, etc.
