Low price Custom high quality Thin Film Pressure Sensor Force Sensing Resistor FSR
♦ What is Force Sensing Resistor (FSR)?
Force sensing resistor or we call force sensor, can be defined as a special type of resistor which exhibits a decrease in
resistance with an increase in the force applied to the active sensing surface. The force sensing resistor is generally supplied
as a polymer sheet or ink which is applied as screen printing. Both the electrically conducting and non-conducting particles are
present on this sensing film. If force is applied to a surface of sensing film, then the particles touches the conducting
electrodes and thus resistance of the film changes. There are several resistive based sensors but force sensing resistors operate
satisfactorily in difficult environments and also requires a simple interface compared to other resistive based sensors.
Even though there are various types of force sensors, the force sensing resistors are having several advantages such as thin size
(less than 0.5mm), very low cost and also good shock resistance. The only disadvantage of FSR sensors is low precision, there will
be approximately 10% or more difference in measurement results. So it can’t be used as weighing equipment. It acts as a reaction
of force rather than as an accurate reading of pressure.
♦Applications of Force Sensing Resistor
There are numerous applications for force sensing resistors in various fields such as motion analysis systems, automobiles like
car sensors, resistive touch-pads, musical instruments, Medical bed, Measurement of bite force of teeth, die pressure
measurement,and so on. It may be used wherever pressure measurements and data collection are required.
♦ What is Force Sensing Resistor (FSR)?
Force sensing resistor or we call force sensor, can be defined as a special type of resistor which exhibits a decrease in
resistance with an increase in the force applied to the active sensing surface. The force sensing resistor is generally supplied
as a polymer sheet or ink which is applied as screen printing. Both the electrically conducting and non-conducting particles are
present on this sensing film. If force is applied to a surface of sensing film, then the particles touches the conducting
electrodes and thus resistance of the film changes. There are several resistive based sensors but force sensing resistors operate
satisfactorily in difficult environments and also requires a simple interface compared to other resistive based sensors.
Even though there are various types of force sensors, the force sensing resistors are having several advantages such as thin size
(less than 0.5mm), very low cost and also good shock resistance. The only disadvantage of FSR sensors is low precision, there will
be approximately 10% or more difference in measurement results. So it can’t be used as weighing equipment. It acts as a reaction
of force rather than as an accurate reading of pressure.
♦Applications of Force Sensing Resistor
There are numerous applications for force sensing resistors in various fields such as motion analysis systems, automobiles like
car sensors, resistive touch-pads, musical instruments, Medical bed, Measurement of bite force of teeth, die pressure
measurement,and so on. It may be used wherever pressure measurements and data collection are required.
Why Choose Us
@ Low MOQ accepted 10 or 1000， it's the same for us ,don't hesitate beause of the quanity ! | ||||||||
@ Free design service No drawing available ? Feel free to start with us ,our design team can provide design service. | ||||||||
@ Strict quality control Certificated by ISO system and SGS party and with ISO 9001 ,ISO 14001 certification. | ||||||||
@ Quick response 7X24 online response service, qutoation within 30 minutes , production within one week! | ||||||||
Product Details
►Relevant Parameter
Dimensions: customizable, preferably within 400*600mm.
Resistance value range (maximum) : without pressure, resistance > 2 MΩ
Range (single point) : 20g~2KG, 50 g ~ 5 kg, 100 g ~ 10 kg
Response time: 10ms
Test voltage: DC3.3V/DC 5V
Working temperature: - 20 to 60 ℃
►Structure diagram
Dimensions: customizable, preferably within 400*600mm.
Resistance value range (maximum) : without pressure, resistance > 2 MΩ
Range (single point) : 20g~2KG, 50 g ~ 5 kg, 100 g ~ 10 kg
Response time: 10ms
Test voltage: DC3.3V/DC 5V
Working temperature: - 20 to 60 ℃

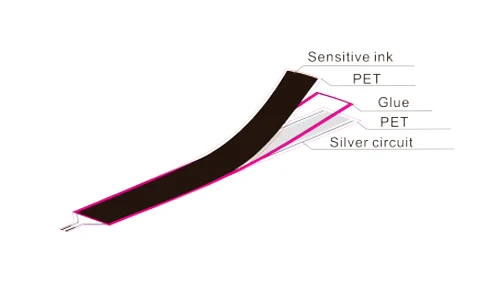

►Structure diagram
This FSR is specifically designed to test the degree of bending of the sensor, the degree of bending, and the
size of the contact area has a great impact on the resistance change. Generally used for medical mattresses, seat cushions, game
gloves and other aspects.
size of the contact area has a great impact on the resistance change. Generally used for medical mattresses, seat cushions, game
gloves and other aspects.

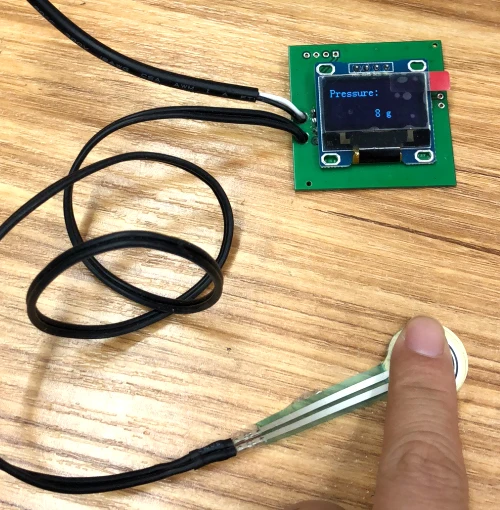

Testing a FSR

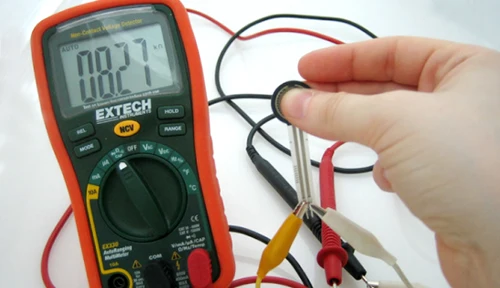

The easiest way to determine how your FSR works is to connect a multimeter in resistance-measurement mode to the two tabs on your sensor and see how the resistance changes. Because the resistance changes a lot, a auto-ranging meter works well here. Otherwise,just make sure you try different ranges, between 1 Mohm and 100 ohm before giving up.

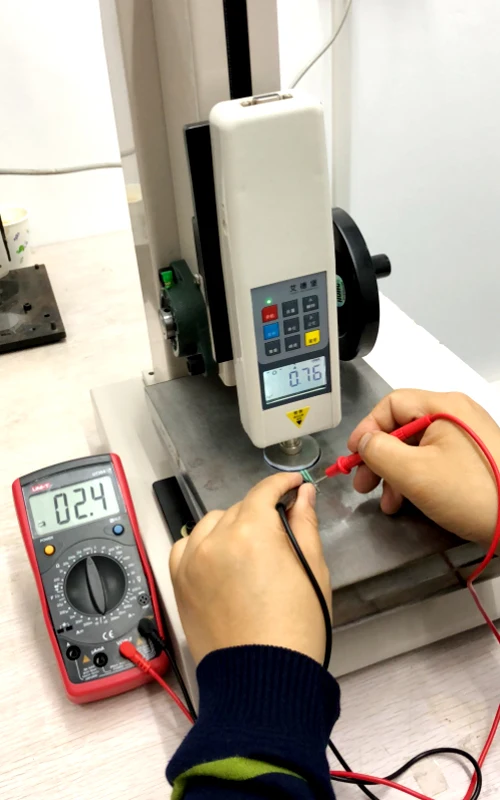

If you have force applied equipment, that is better, like below
How to connect FSR
FSRs are often a polyester with conductive material silk-screened on. That means they're plastic and the connection tab is crimped

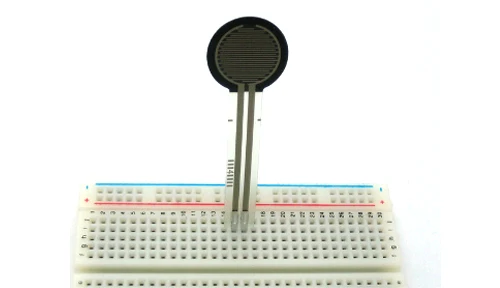

on base polyester material. The best way to connect to these is to simply plug them into a breadboard.
on base polyester material. The best way to connect to these is to simply plug them into a breadboard.
use a clamp-style connector like alligator clips, or a female header.
a terminal block such as Phoenix #1881448
How to use FSR
Analog Voltage Reading Method
The easiest way to measure a resistive sensor is to connect one end to Power and the other to a pull-down resistor to ground. Then
the point between the fixed pulldown resistor and the variable FSR resistor is connected to the analog input of a microcontroller
The easiest way to measure a resistive sensor is to connect one end to Power and the other to a pull-down resistor to ground. Then
the point between the fixed pulldown resistor and the variable FSR resistor is connected to the analog input of a microcontroller
The harder you press on the FSR, the brighter the LED will be! Remember, the LED must be connected to the PWM pin to work
Our Company
Cooperation & Certificate
FAQ
•Sample available?
Yes, we have top-peaks Membrane Switch Demo as free sample for customers.It takes about 7 working days for us to make a customized sample.
• How to make an order?
Please let us know your requirements on materials,logic circuit principle chart, application environment, size and design. And
better send us the design drawing or samples together.with other detailed data, then we’ll customize the membrane switch upon your
requests.
• How long will my order take?
This depends on the size and complexity of your order. A delivery date will be provided upon placement of your order.For small
size order ( less than 1000 pcs ), it usually takes about 7 working days after sample approval.
• What art formats are suitable?
Files which can be read by Autocad, Coredraw and Adobe Illustrator are acceptable.
• How does Top-Peaks ship my goods ?
By FedEx, DHL, UPS, TNT or other ways specified.
• How to guarantee the after sales service ?
All the products are inspected and tested 100% before delivery.
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly.
If any problem happened, we will provide the best solution for you.
