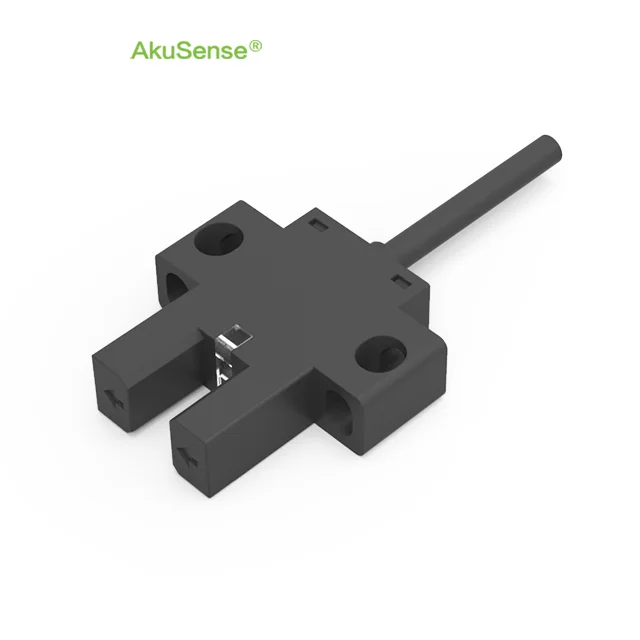

Фото micro Датчик omron фотомикродатчик ee-sx670 Замена для
- Категории: Sensors >>>
- Поставщик: Shenzhen,Akusense,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Shape | F-shape | T-shape | R-shape | L-shape | K-shape | Y-shape | |||||||
Sensing distance | 5mm(Slot width) | ||||||||||||
Standard detection objects | Opaque(Size:>1.8*0.8mm) | ||||||||||||
Reapeat accuracy | <0.03mm | ||||||||||||
Outout type | NPN or PNP open-collector | ||||||||||||
Switch type | Selectable L.on,D.on | ||||||||||||
Indicator | Red LED | ||||||||||||
Response frequency | 3KHz | ||||||||||||
Responese time | ≤0.3ms | ||||||||||||
Light source | Infrared LED (940nm) | ||||||||||||
Operating voltage | 5~24V DC | ||||||||||||
Voltge drop | <1V(Load current 50mA ,2m cable length) | ||||||||||||
No-load supply current | <20mA | ||||||||||||
Protective circuit | Surge protecttion,Reverse polarity protection | ||||||||||||
Ambient illuminance | Incandecent lamp≤1000lux | ||||||||||||
Ambient temperature | -25℃~+70℃,no no freezing | ||||||||||||
Ambient humidity | 35%~95% RH,no condensation | ||||||||||||
Degree of protection | IP50 | ||||||||||||
Material | PC | ||||||||||||
Connection | 2 M 4core cable | ||||||||||||
NPN | Light on when objects are detected | SF-302N | ST-303N | SR-304N | SL-305N | SK-306N | SY-307N | ||||||
Light off when objects are detected | SF-302NA | ST-303NA | SR-304NA | SL-305NA | SK-306NA | SY-307NA | |||||||
PNP | Light on when objects are detected | SF-302P | ST-303P | SR-304P | SL-305P | SK-306P | SY-307P | ||||||
Light off when objects are detected | SF-302PA | ST-303PA | SR-304PA | SL-305PA | SK-306PA | SY-307PA | |||||||
