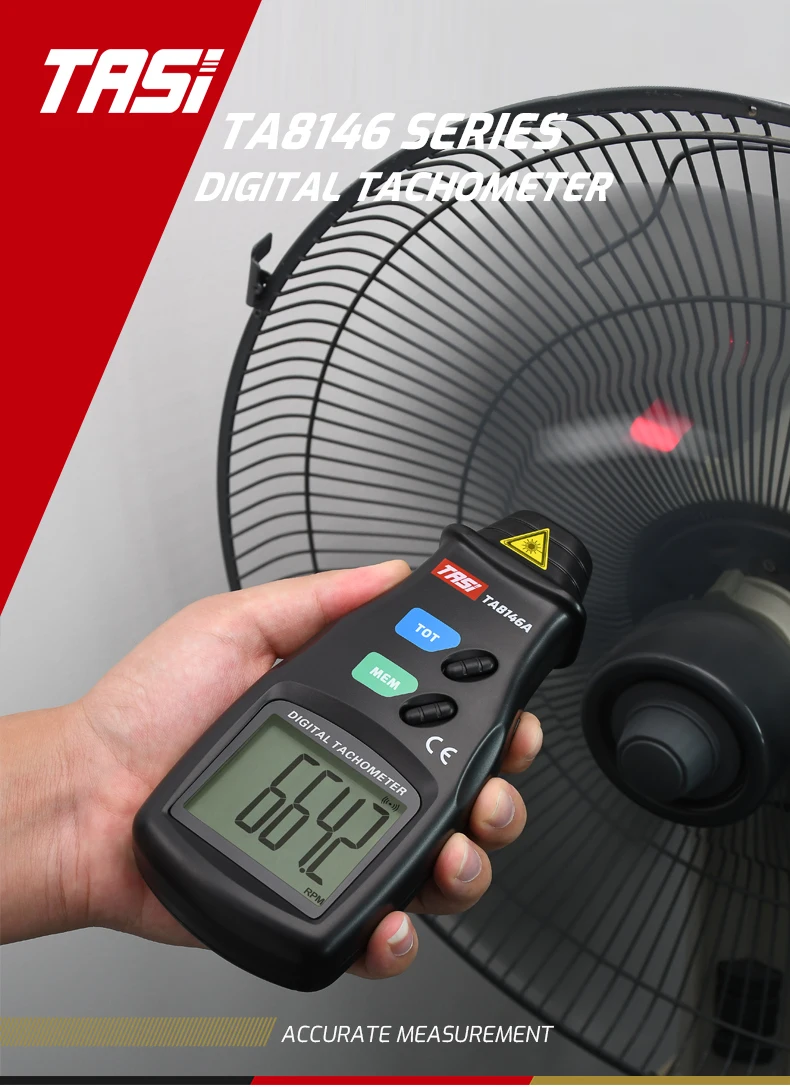

TASI TA8146B Tachometer Contact LCD Speed Meter 0.5-19 999 RPM
- Категории: Speed Measuring Instruments >>>
- Поставщик: Suzhou,TASI,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

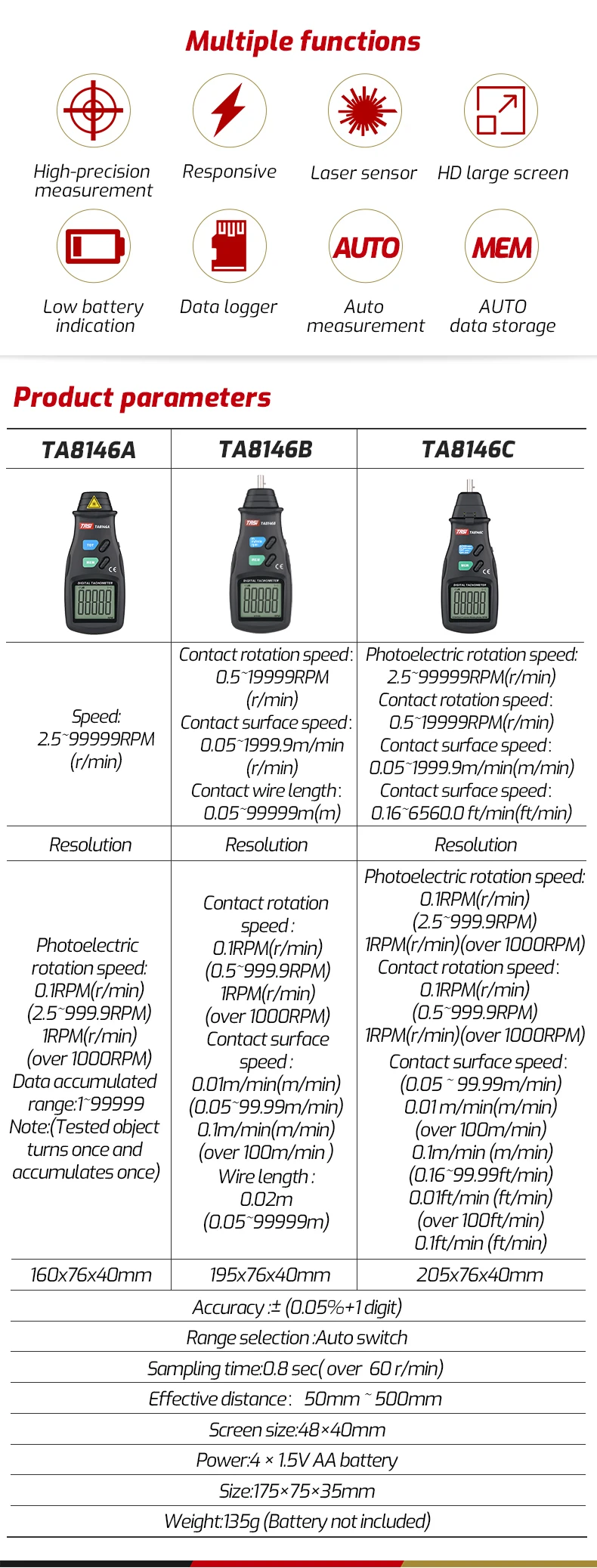

| Product model | TA8146A | TA8146B | TA8146C |

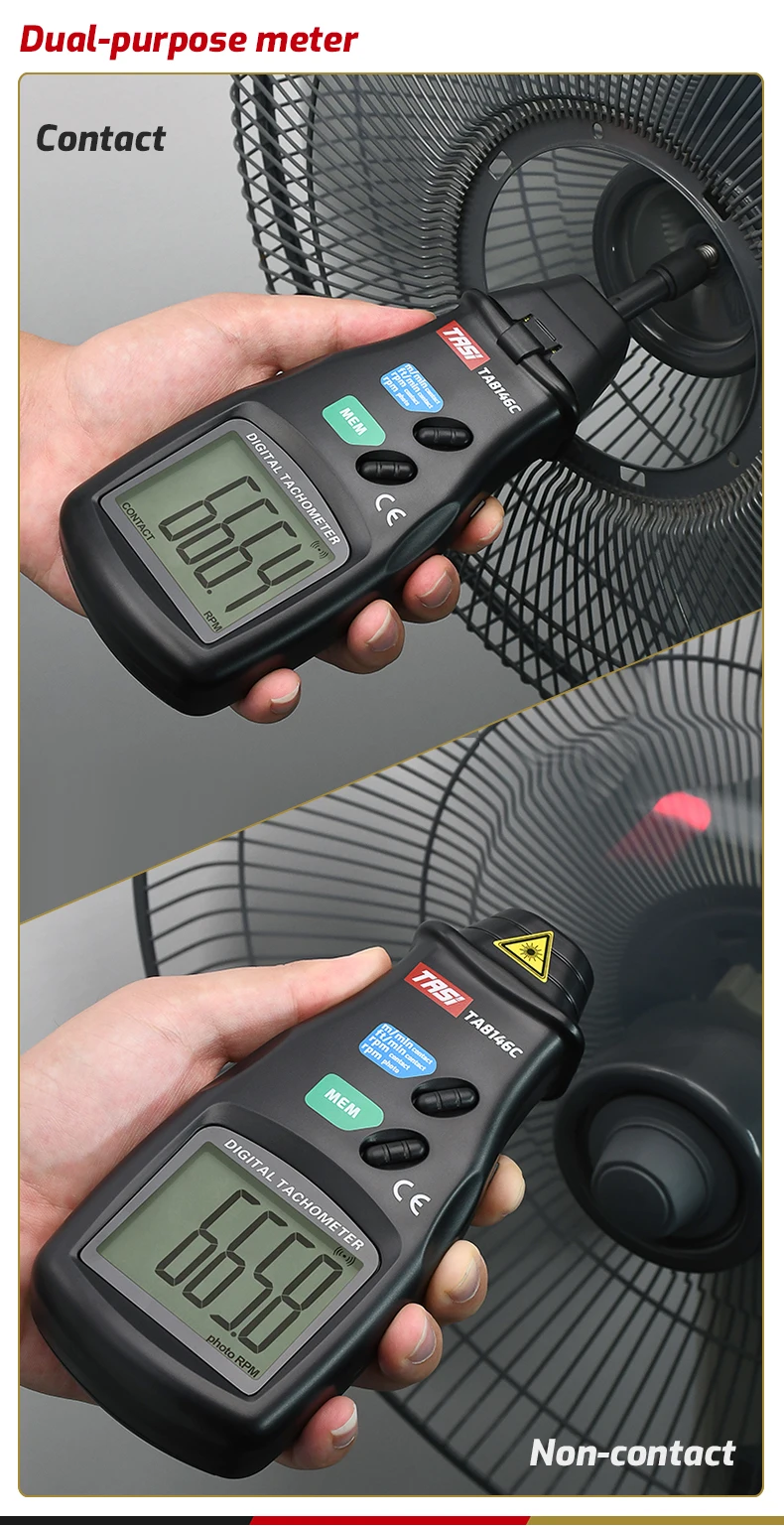

| Measurement method | Non contact | Contact type | Contact / non contact dual purpose |
| Measuring range | Speed
| Contact speed | Photoelectric speed |
| 0.5~19999RPM | 2.5~99999RPM | ||
| Contact wire speed | Contact speed | ||
| 0.05~1999.9M/min | 0.5~19999RPM | ||
| 2.5~99999RPM | Contact wire length | Contact wire speed | |
| 0.05~99999m(Meter) | 0.05~1999.9M/min | ||
| Contact wire speed | |||
| 0.16~6560.0ft/min (FT / min) | |||
| Resolution ratio | Photoelectric speed | Contact speed | Photoelectric speed |
| 0.1RPM(2.5~999.9RPM) | 0.1RPM(0.5~999.9RPM) | 0.1RPM (2.5~999.9RPM) | |
| 1RPM (More than 1000RPM) | 1RPM (More than 1000RPM) | 1RPM (More than 1000RPM) | |
| Data accumulation range: | Contact wire speed | Contact speed | |
| Note: (The measured object can be accumulated once while turn a circle) | 0.01m/min | 0.1RPM (0.5~999.9RPM) | |
| (0.05~99.99m/min) | 1RPM (More than 1000RPM) | ||
| 0.1M/min | Contact wire speed | ||
| (More than 100m/min) | (0.05 ~ 99.99m/min) | ||
| Wire length | 0.01 M/min | ||
| 0.02m(0.05~99999m) 0.02m(0.05~99999m) | More than 100m/min | ||
| 0.1M/min | |||
| (0.16~99.99ft/min) | |||
| 0.01FT/min | |||
| More than 100ft/min | |||
| 0.1FT/min | |||

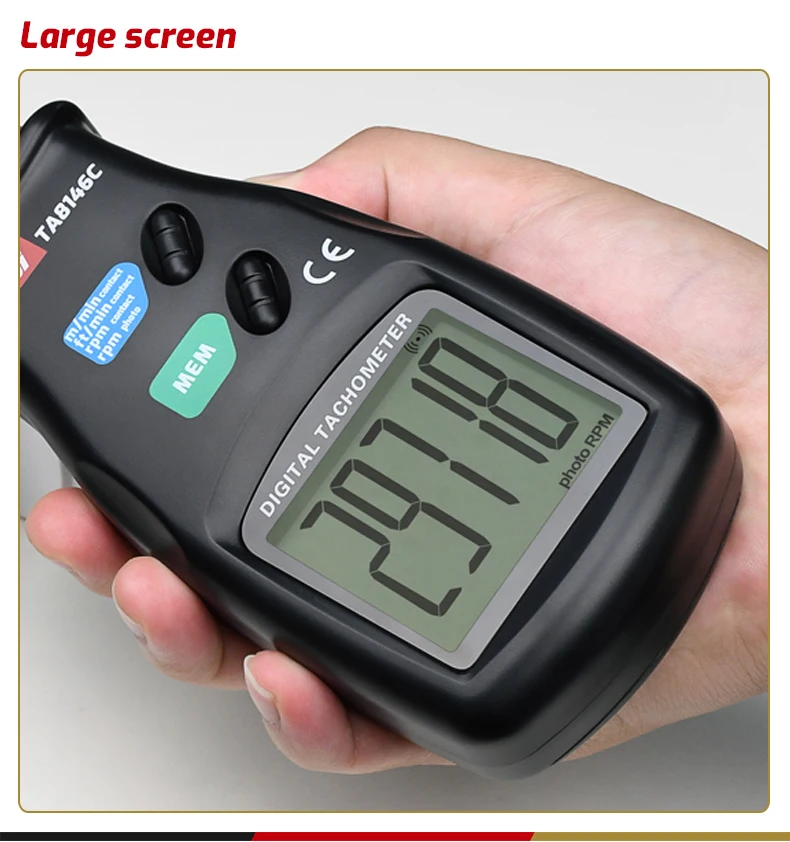

| General technical parameters | Display: 5-bit 31 mm word high LCD with backlight | ||
| Measurement accuracy: ± (0.05% + 1 word) | |||
| Range selection: automatic switching | |||
| Sampling time: 0.8 seconds (more than 60 rpm) | |||
| Time base: 6MHz quartz crystal oscillator | |||
| Photoelectric effective measurement distance: 50mm ~ 500mm | |||
| Working environment temperature | 0 ℃ to 50 ℃ | ||
| Working environment humidity | 10 ~ 95% RH - non condensing | ||
| Storage temperature | -20 ℃ to 60 ℃ (excluding battery) | ||

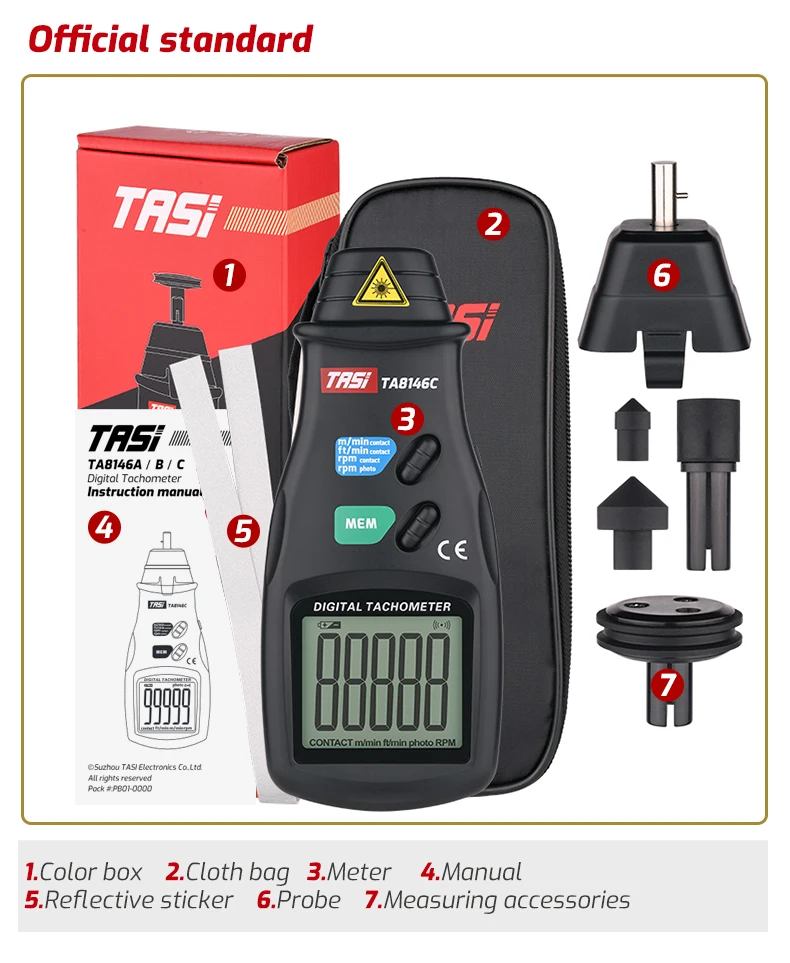

| Standard accessories | Cloth bag, instruction manual, reflective stickers (TA8146B does not have), probe accessories (TA8146A does not have) | ||

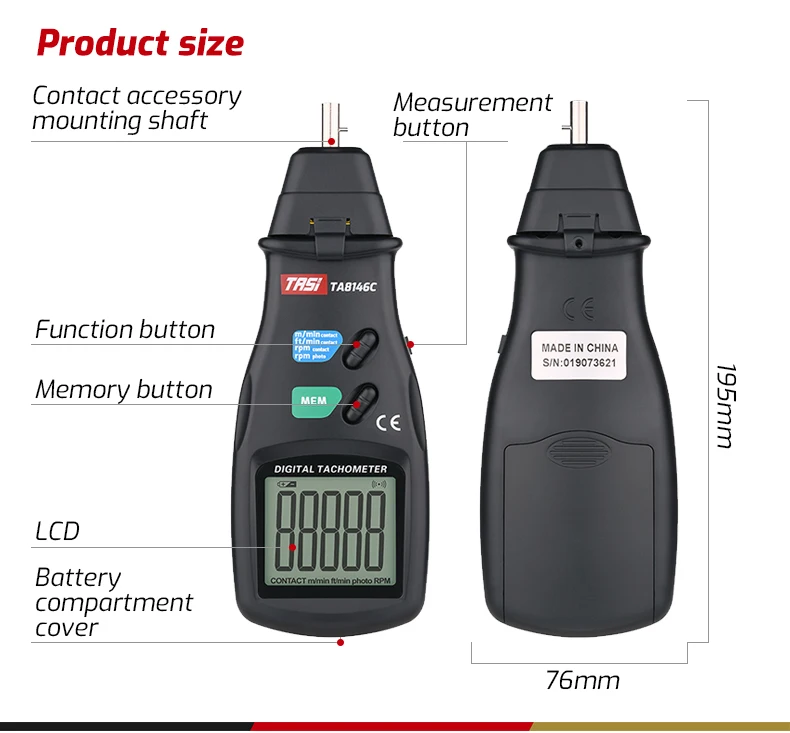

| Package size | 160x76x40mm | 195x76x40mm | 205x76x40mm |
| Package method | Color box+Cloth bag | ||
| Product weight | About 0.28kg | ||
| Individual package size | 249x95x55mm | ||
| Individual package weight | 0.34kg | ||
| Package size | 51x29x40CM | ||
| Packing quantity | 40PCS | ||
| Standard packing weight | 17kg | 17.3kg | 17.8kg |
Packaging
Quantity: 40PCS/Carton
Carton size: 51*29*40CM
Net weight: 15KGS
Gross weight: 17.3KGS
