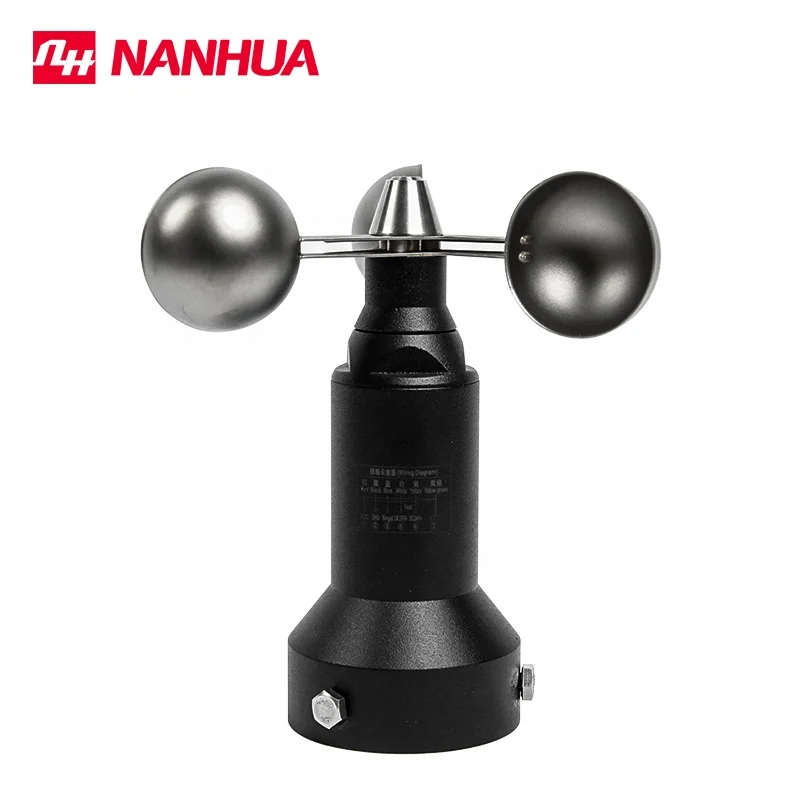

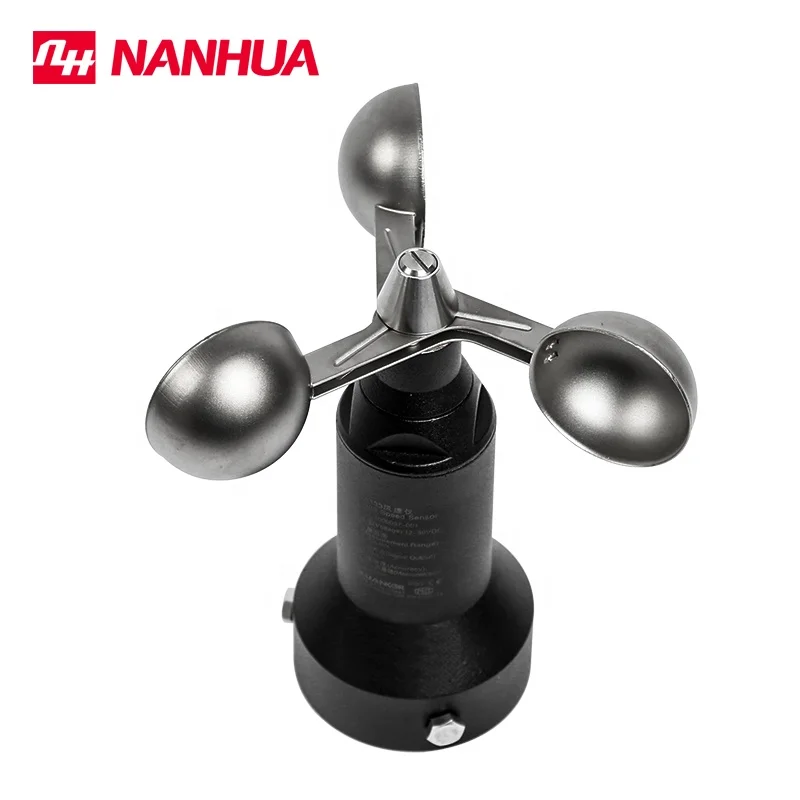

Высокоточный анемометр с автоматическим подогревом датчик скорости потока воздуха цена производителя

Features

l  Adopt non-contact magnetic measuring technology.

l  High accuracy, high reliability

l  Wide wind measuring range, low starting threshold.

l  Metal housing, excellent corrosion resistant design, stainless steel wind cup, high anti-wind level.

l  Wind cups use stainless steel, suit for harsh environment application.

l  Compact design, include wind speed measuring and heating, ease to mount and maintain on site.

l  Fault tolerant design, product not damage in wrong wiring connection.

l  Multistage lightning surge design.

l  Wide voltage design.

Electrical

Mechanical

Rated voltage

DC12V~30V

Housing material

Aluminum alloy+Polyester coating

Operating current

Max. 50mA

Wind cup

SS304

Heating voltage

DC12V~30V

Bearing

SS440C

Heating power

≤50W

Humidity

0%~100%RH

Heating type

PTC auto-heating

Operating temperature

Ta -40 °C ~ +70 °C

Lightning surge

IEC61000-4-5 4kV /2kA

IP rate

IEC60529 IP65

IEC61000-4-2 air discharge 16kV

Wiring

Aviation socket

IEC61000-4-2 contact discharge 8kV

Housing color

Black RAL9005

Weight

0.6 kg

Meteorological

Starting threshold

≤0.5m/s Vu=20 °C

Anti-wind level

>70m/s

Range

0.5~50m/s

Accuracy

±0.5m/s(V_L<5m/s)

±3% (V_L>5m/s)

Resolution

0.1m/s
