Timber grab Xuvol 50P log with 360 hydraulic rotation mini excavator
- Категории: Grapples >>>
- Поставщик: Guangxi,Xuvol,Construction,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

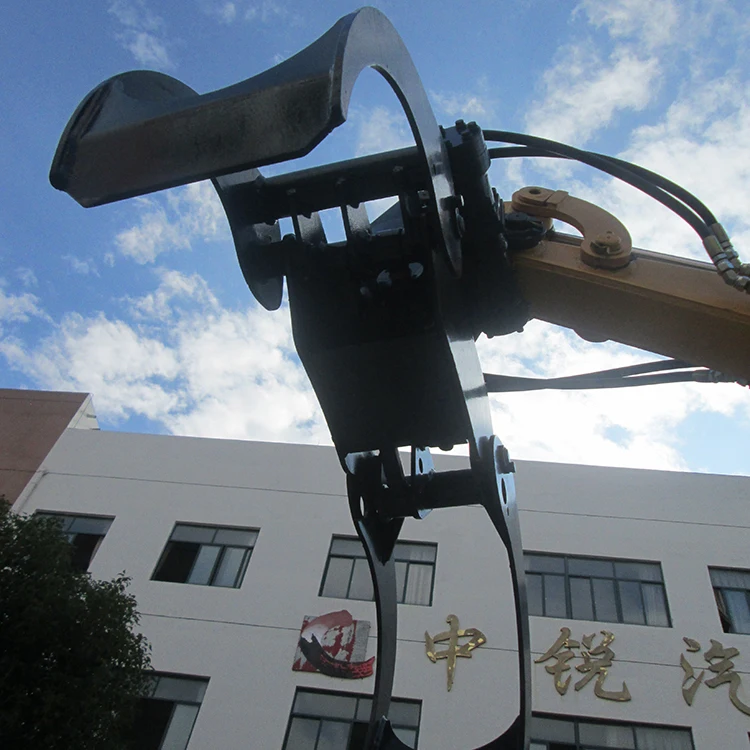

Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini
excavator grapple
Details Images
WYJ-50-P

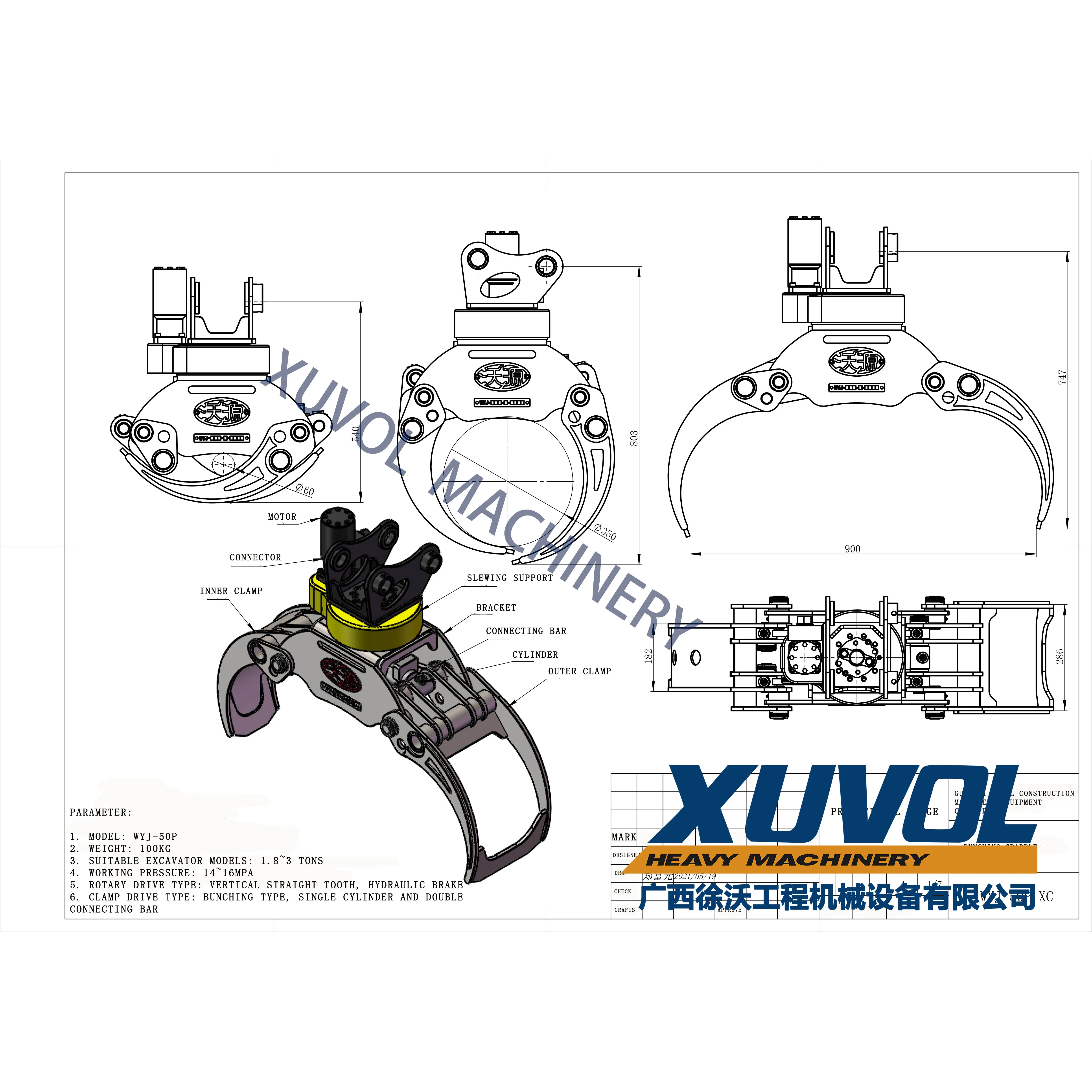

1. Model: WYJ-50P log grapple
2. Weight: 100kg
3. Suitable excavator models: 1.8~3 tons
4. Working pressure: 14~16MPa
5. Rotary drive type: vertical straight tooth, hydraulic brake log grapple
6. Clamp drive type: Bunching type, single cylinder and double connecting bar
7. Suitable for large-scale port timber handling construction, eucalyptus handling, bamboo handling, sugarcane handling and other construction occasions, The holding structure will highly improve the operation efficiency.
8. Other name: grabs, excavator grapple, excavator grabs, log grab, excavator attachment, log grab, grapple,skid steer log grapple
Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini excavator grapple

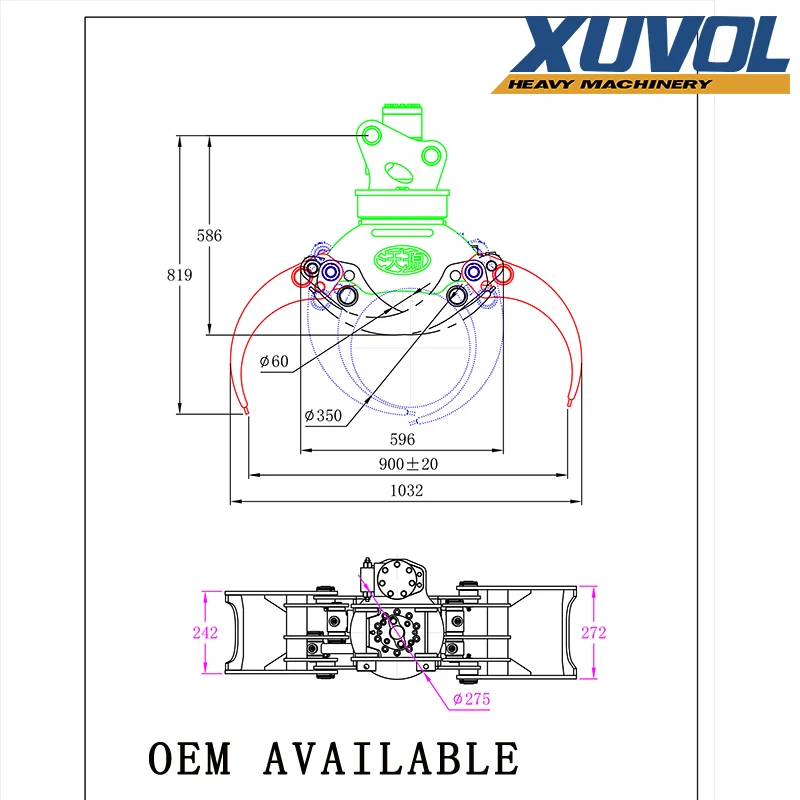

Grapple Paramenters
Xuvol Grapple Specifications | WYJ-50P | ||
Whole Grapple | Grapple Type | single cylinder/bunching grapple/doubble link | |
Steel material | Q355B | ||
Optional electric control | × | ||
Height when clamped(mm) | 600 | ||
Height when opened(mm) | 820 | ||
Width of inner/outer clamp(mm) log grapple | 242/272 | ||
Open Width Max(mm) | 920±20 | ||
Minimum holding circle(mm) | ≦φ60 | ||
Maximum holding circle(mm) | φ350 | ||
Weight (excluding rotation)kg | 100 | ||
Suitable Excavator(Ton) | 1.8~3 | ||
Rotation method(grapple) | External meshing vertical rotation | ||
Module / raceway diameter | M4/160 | ||
Motor type | Cycloid motor | ||
Pressure(Mpa) | 16 | ||
Rod diameter/bore size | 30/50 | ||
Pressure(Mpa) | 14 | ||
Products Description
Advantages of the grapple:
2.The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which can control the rotation speed

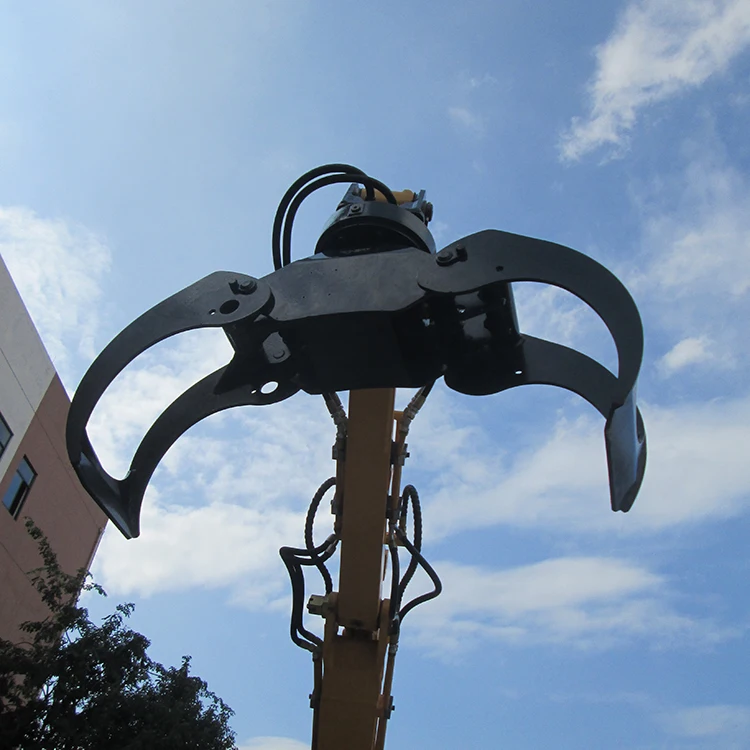

3.The WYJ-50P can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;
4.It can be stalled on 2t-30t excavator, use for loading and unloading wood, sugarcane and other materials. Greatly improving work efficiency and greatly saving labor costs.
Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini excavator grapple

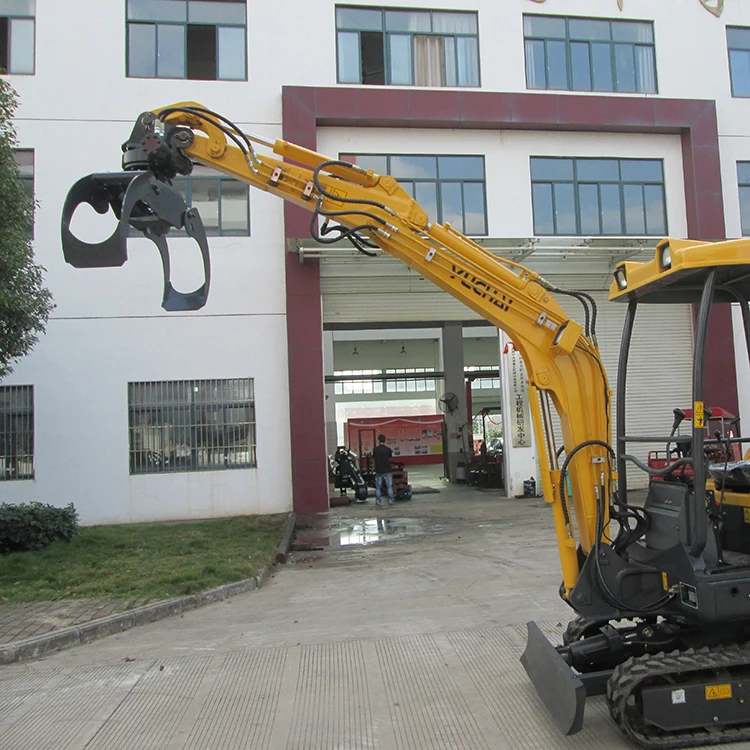

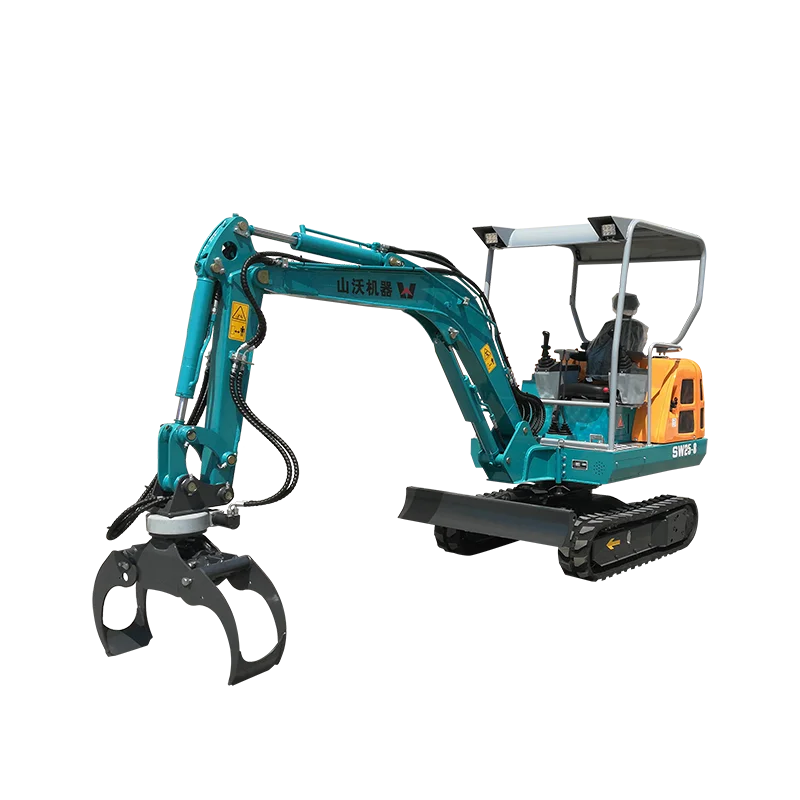

The WYJ-50P grapple could be installed on our SANWO mini excavator
1.More advanced electro-hydraulic ratio technology log grapple
OWN Pattents
Obtained: 2 utility model patents
5 design patents
Being accepted:
Being accepted:
2 patents
Human-machine Exchange
The Human-machine exchange interface of the fixture set by our company has independent intellectual property rights and can adjust various parameters of the wood clamp
Electro-hydraulic proportional solenoid valve
The electro-hydraulic proportional solenoid valve has strong versatility and can be applied to all excavators on the market
2.Compare with other Brand
Other Brand Grapple | Xuvol Grapple |
Proportional control is not available, and the action has a big damage to the object | Electro-hydraulic proportional control can be control to realize the integration of electro-hydraulic, soft and flexible action |
Rely on manual control the pressure of the grapple, Poor Personal skills will easily cause damage to the gripping objects | It can be clamped automatically, and the clamping time (0.1~1 second) and clamping pressure are adjustable, which can effectively protect the clamped object |
Unable to weigh | It can weigh the gripped objects and store the data |
Unable to send data | Data could be sent to the operator timely, ensure manage the material in time |
Company Profile
Guangxi Xuvol Construction Machinery Equipment Co.,Ltd
Xuvol specialized in R&D, manufacturing multi-functional excavator attachments for over 15 years. Products range include grapples, mini excavator, timber harvester head, suitable for different model excavators. OEM Service is available. We can design and produce the most suitable excavator attachments by different working condition requirements.Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini excavator grapple

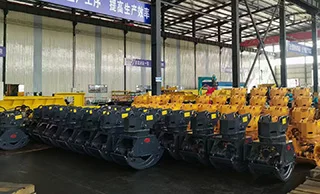

Workshop
Plasma cutting machine
Welding Robots
Shot blasting machine
Vertical Machining Center
Longmen machining center
Laser Cutter

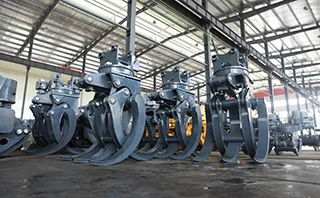

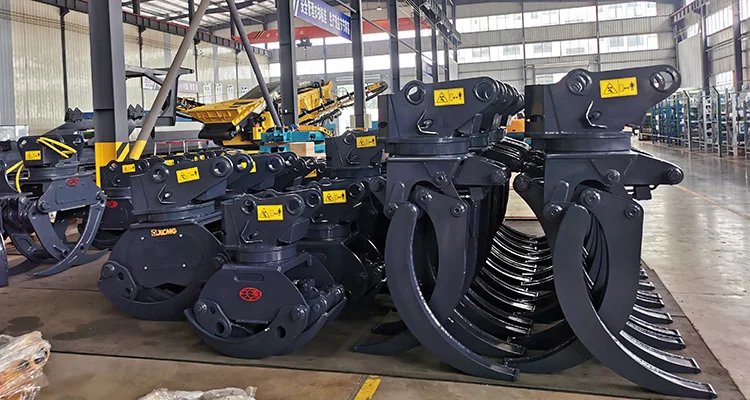

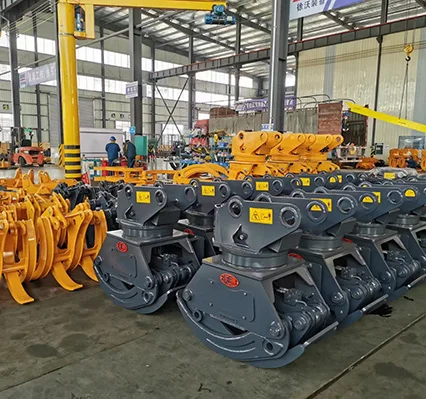

Production Line
Xuvol is the leading manufacturer of grapples in China. Over 1,000 sets are produced and sold annually, and the market share is about 40%!
Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini excavator grapple
Product packaging
Grapple Package with stretch film and Wooden box
The standard package is wrap with stretch film and tied on wooden pallets. We will do special package by your requirements if you need.
Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini excavator grapple
Certifications
CE, ISO Certificate
Xuvol excavator grapple meets the most global standard , we gain CE and ISO grapple Certificate. And offer other Certifications by customer requirements.
Timber grab Xuvol 50P log grab with 360 hydraulic rotation mini excavator grapple
Welcome to our Factory!
333
1. Q:Are you manufacturer?
A:Yes, We are one of the leading excavator attachments manufacturer in China. With 15767m² factory area and 5 production lines.
2. Q:Do you offer OEM service?
A: Yes, We have a professional R&D team which ensure to make your idea turn into reality.
3. Q:How do you make sure the quality?
A:We pass CE and ISO Certificate, grapple products widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.
