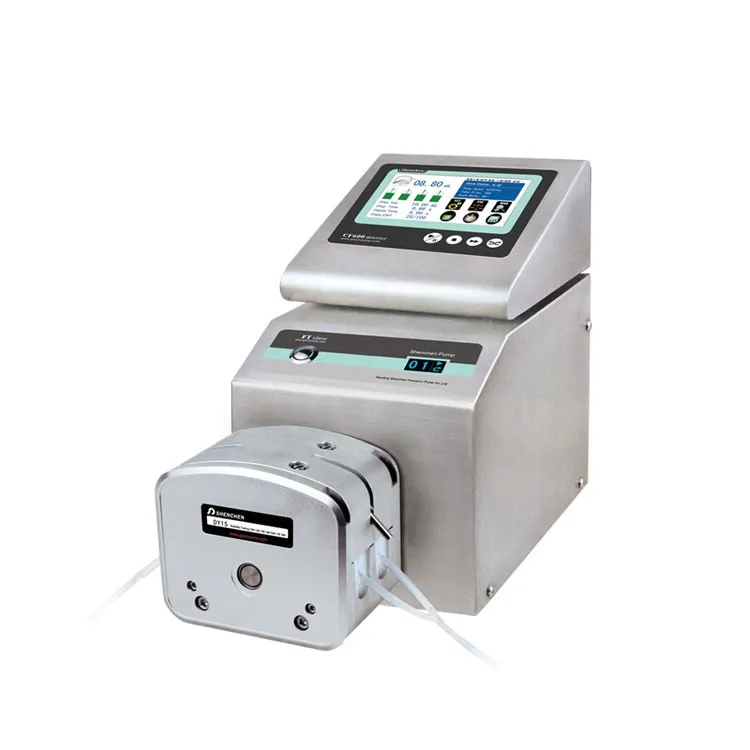

Product Description
● Flow Rate: 0.1-4340mL/min; Speed: 1-350rpm;
● Split type design, space-saving, easy installation;
● The filling system can store 60 commonly used filling modes;
● Use low pulsation pump head to reduce the pulsation of the fluid effectively;
● Suitable for micro volume filling, and support Pharmaceutical machine, filling machine.
Technical Parameters | ||
Flow rate | 0.1-4340mL/min | |
Speed range | 1-350rpm | |
Dispensing volume range | 0.01-9999.99 mL | |
Dispensing time | 0.5-9999.99 s | |
Pause time | 0.5-9999.99 s | |
Dispensing volume resolution | 0.01mL | |
Time resolution | 0.01s | |
Copy numbers | 1-9999 times, setting '0' means unlimited | |
Back suction angle | 0-360° | |
Dispensing accuracy | <±0.5% | |
Motor type | Servo motor | |
Circuit system | shenchen-DF-CIR | |
Control system | shenchen-DF-EMB | |
Display | 4.3 inch industrial grade-true color LCD screen | |
Control method | Touch screen and mechanical keypad | |
Start/stop, direction signal | Passive switch signal, such as foot pedal switch, Active switch signal: 5V, 12V and 24V for option | |
Output interface | Output motor working status(Open-Collector output) | |
Output pressure | 0.8-1.0mm wall thickness tubing: 0.1Mpa; 1.6-2.4mm wall thickness tubing: 0.1-0.27Mpa | |
Power supply | AC 220V±10% 50Hz/60Hz(Standard); AC 110V±10% 50Hz/60Hz(Optional) | |
Drive dimension(LxWxH) | 283x192x196mm | |
Drive weight | 7.8kg | |
Power consumption | Each filling unit<180W | |
Environment temperature | 0-40℃ | |
Relative humidity | <80% | |
IP rate | IP31 | |
Product Composition and Flow Rate | ||||||||||||
Drive | Pump Head | Pump Head Material | Tube Clamp Material | Tubing | Flow Rate(mL/min) | |||||||
Tubing Size | IDxWall Thickness | |||||||||||

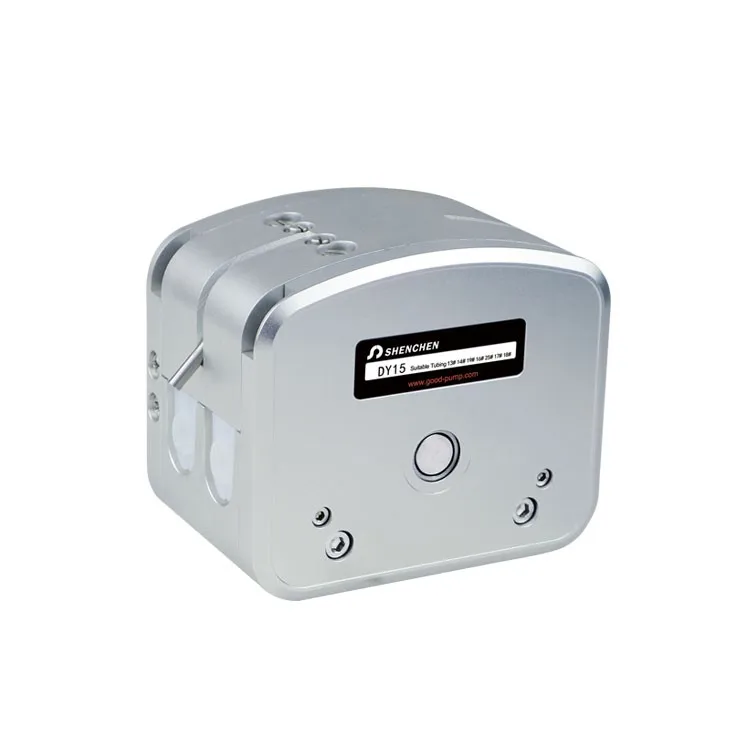

DY15 | Aluminum Alloy | PP | 13# | 0.8x1.6(mm) | 0.1-48 | |||||||
14# | 1.6x1.6(mm) | 0.6-223 | ||||||||||
19# | 2.4x1.6(mm) | 1.3-448 | ||||||||||
16# | 3.1x1.6(mm) | 2-723 | ||||||||||
25# | 4.8x1.6(mm) | 4.7-1626 | ||||||||||
17# | 6.4x1.6(mm) | 6.4-2230 | ||||||||||
18# | 7.9x1.6(mm) | 9.5-3337 | ||||||||||

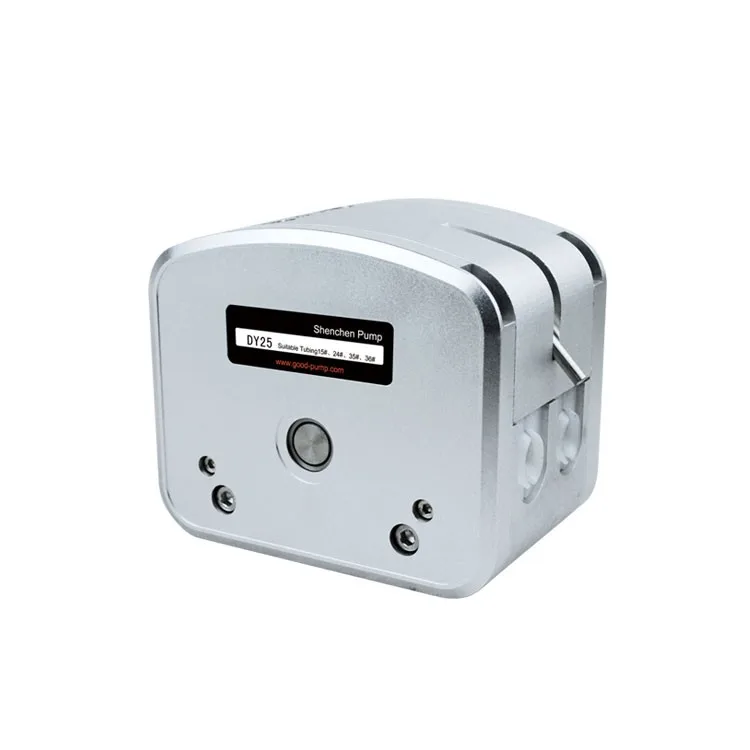

DY25 | Aluminum Alloy | PP | 15# | 4.8x1.6(mm) | 4.2-1480 | |||||||
24# | 6.4x2.4(mm) | 7.6-2670 | ||||||||||
35# | 7.9x2.4(mm) | 10-3600 | ||||||||||
36# | 9.6x2.4(mm) | 12.4-4340 | ||||||||||
Filling Volume Reference(Media is water) | ||||||||||||||
Drive | Pump Head | Tubing | Filling Volume(mL) | Filling Time(s) | Accuracy (±%) | Output (pcs/min) | Motor Speed(rpm) | |||||||
DY15 | 14# | 0.5 | 0.5 | 0.3 | 60 | 94.1915 | ||||||||
14# | 1 | 1 | 0.4 | 30 | 94.1915 | |||||||||
14# | 2 | 1 | 0.6 | 30 | 188.383 | |||||||||
19# | 3 | 1 | 0.3 | 30 | 140.625 | |||||||||
16# | 5 | 1 | 0.5 | 30 | 145.278 | |||||||||
25# | 10 | 1 | 0.3 | 30 | 129.143 | |||||||||
25# | 15 | 1 | 0.4 | 30 | 193.715 | |||||||||
17# | 30 | 1 | 0.4 | 30 | 282.530 | |||||||||
18# | 100 | 2.5 | 0.3 | 17 | 251.730 | |||||||||
DY25 | 15# | 10 | 1 | 0.3 | 30 | 141.911 | ||||||||
26# | 30 | 1 | 0.5 | 30 | 235.972 | |||||||||
35# | 70 | 1.2 | 0.4 | 27 | 340.466 | |||||||||
36# | 100 | 2 | 0.2 | 20 | 241.935 | |||||||||
Related Products
Peristaltic Pump IF3
Flowrate:0.1-4340mL/min
Peristaltic Pump CF600
Flowrate:0.07-2280mL/min
Peristaltic Pump DF600
Flowrate:0.07-2280mL/min
Peristaltic Pump LabF1
Flowrate:0.00166-570mL/min
Peristaltic Pump LabF3
Flowrate:0.00166-1330mL/min
Peristaltic Pump LabF6
Flowrate:0.00166-2280mL/min

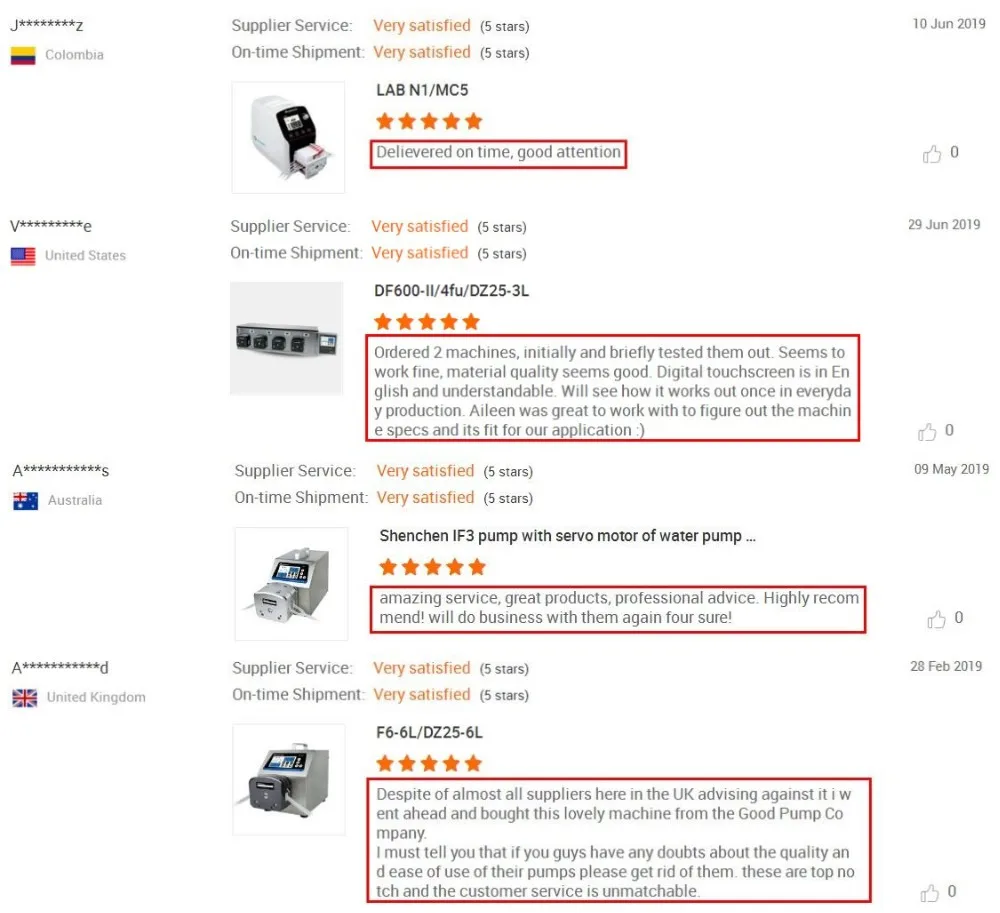

\t\t\t\t\t\t\t\t\tCustomer Reviews \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Packing: 1 set/carton.
Delivery Time: within 3 days after payment.
Courier: DHL, TNT, UPS, Fedex, delivery door to door.

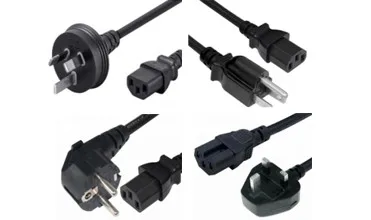

Power Plug: GB, European standard, American standard, British standard.
Order Guide
In order to recommend suitable peristaltic pumps to you, please confirm below details, thanks.
1. What's the application of the pump? Bottle filling or constant transfer?
2. What kind of liquid you will transfer? Is it corrosive?
3. For constant transfer, what's your flow rate requirement?
4. If for bottle filling, what's filling volume for one bottle? How many bottles you will fill in one minute.
Please kindly tell us your detail requirement and we will recommend you suitable pumps and tubing size.
Best regards!
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Baoding Shenchen Precision Pump Co., Ltd. was founded in 2006, which is a enterprise integrating design, R&D, manufacturing, marketing and service. We manufacture and supply different flow range of peristaltic pump, syringe pump, gear pump and other fluid transferring equipment.
Shenchen Team is a young and innovative team, with research engineer, application engineer, sales and service team.
