Product Description

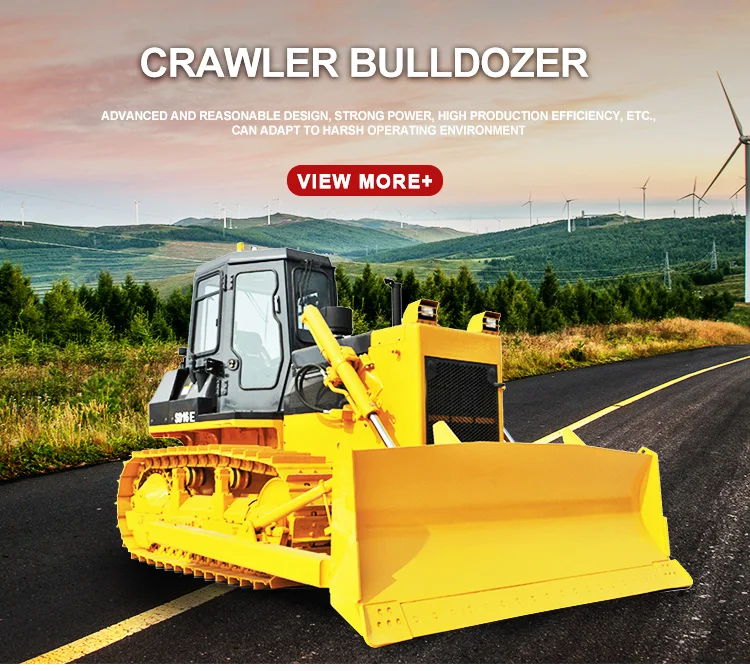

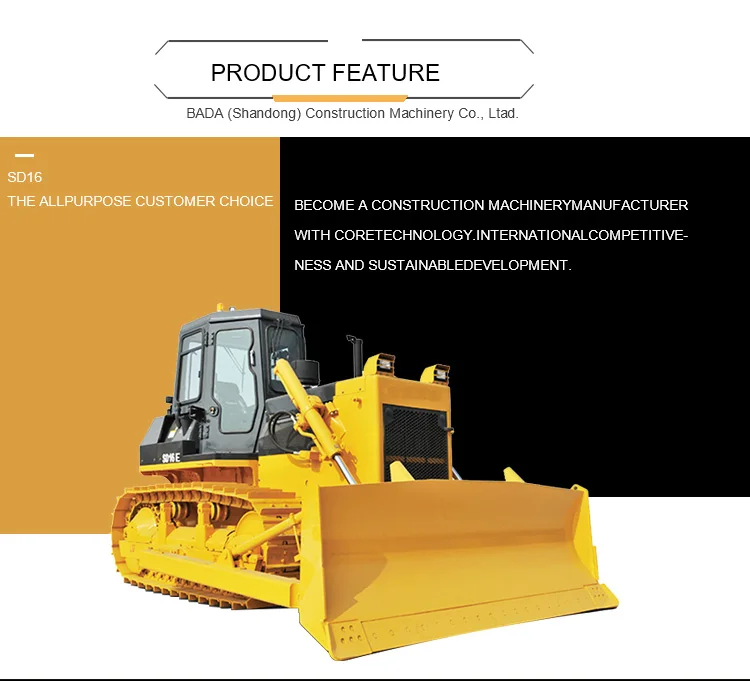

china new Construction Machinery SD16 17 ton 148 hp hydraulic technology Crawler Bull Dozer

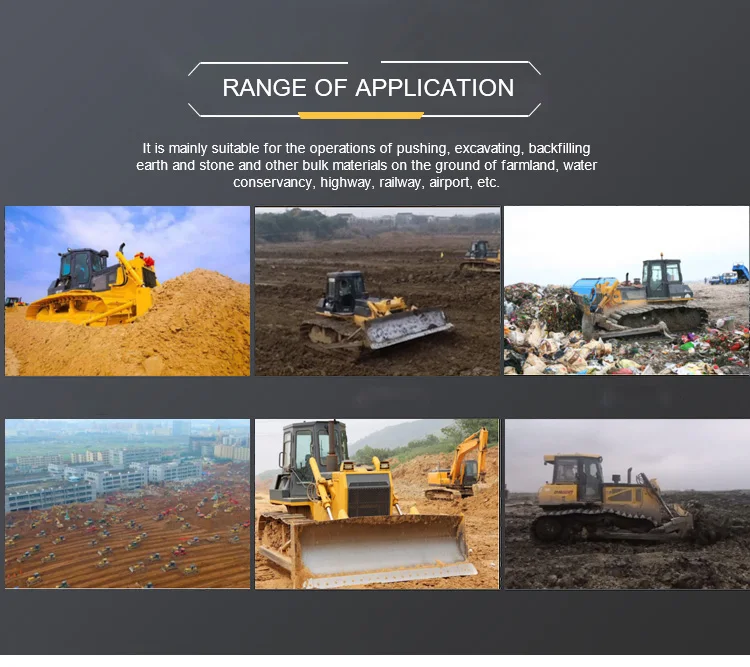

this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g: desert, swamp, forest, high altitude, etc.The SD16 provides high performance with strong reliability
Main Performance Parameters | Lift height of blade | mm | 1095 | |||||
Operating weight (Ripper not included) | T | 17 | Ripper type | Three-shank ripper | ||||
Dozing capacity | m³ | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 | Ripping depth of ripper | mm | 572 | |||
Max. grade ability | ° | 30 | Lifting height of ripper | mm | 592 | |||
Pitch | mm | 203.2 | Number of carriers (each side) | 2 | ||||
Ground length and ground pressure | mm/MPa | 2430-0.067 | Number of track rollers (each side) | 6 | ||||

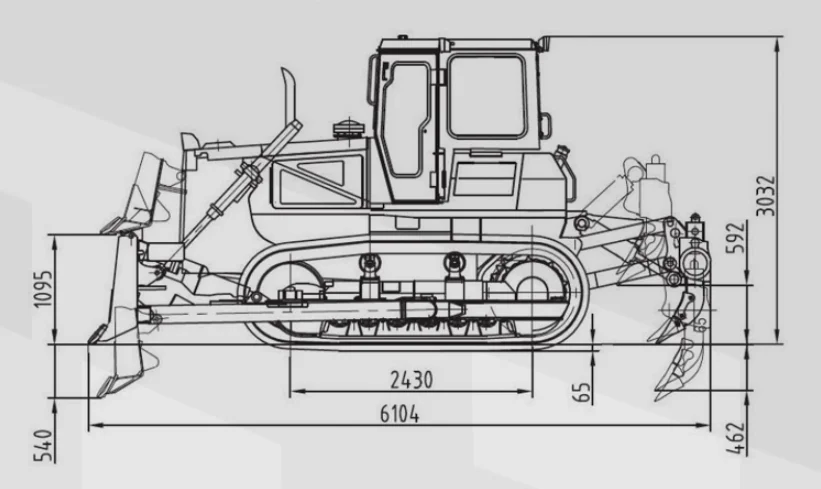

L×W×H (Ripper not included) | mm | 5140×3388×3032 | Number of track shoes (each side) | 37 | ||||
Engine Parameters | Width of track shoe | mm | 510 | |||||

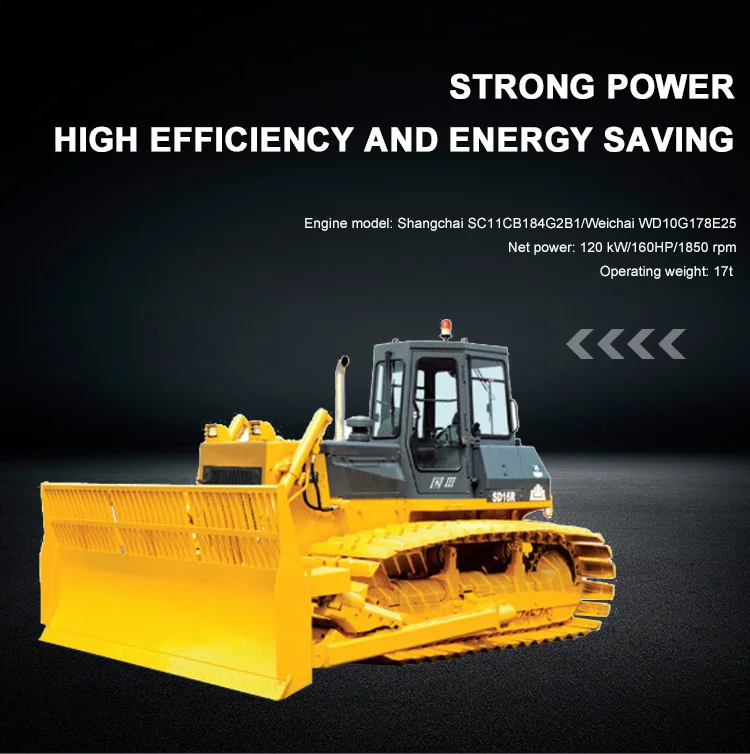

Engine type | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 | Track gauge | mm | 1880 | ||||
Rated power | kW/rpm | 120/1850 | Travel speed | |||||
Net Engine Output at Rated RPM | HP/KW | 148 /110.5 | Forward speed | km/h | 0-3.29 | |||
Main Parts Performance Parameters | 0-5.82 | |||||||
Blade type | Straight tilt blade U blade Angle blade | 0-9.63 | ||||||
Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 | Revise speed | km/h | 0-4.28 | |||
Max drop below ground of blade | mm | 540 | 0-7.59 | |||||
0-12.53 | ||||||||
Blade | Blade Type | Straight-tilt | Angle | U- Blade | ||
Dozing capacity | 4.5 m 3 | 4.4 m 3 | 5.0 m 3 | |||
Efficiency (Theoretical value 40 m) | 225 m 3 /h | 225 m 3 /h | 250 m 3 /h | |||
Blade width | 3388 mm | 3970 mm | 3556 mm | |||
Blade height | 1149 mm | 1040 mm | 1120 mm | |||
Maximum drop below ground | 540 mm | 530 mm | 540 mm | |||
Lifting height of blade | 1095 mm | 1110 mm | 1095 mm | |||
Riipper (Optional) | Maximum digging depth of 3-shank ripper | 572 mm | ||||
Maximum lift above ground | 592 mm | |||||
Weight of 3-shank ripper | 1667 kg | |||||

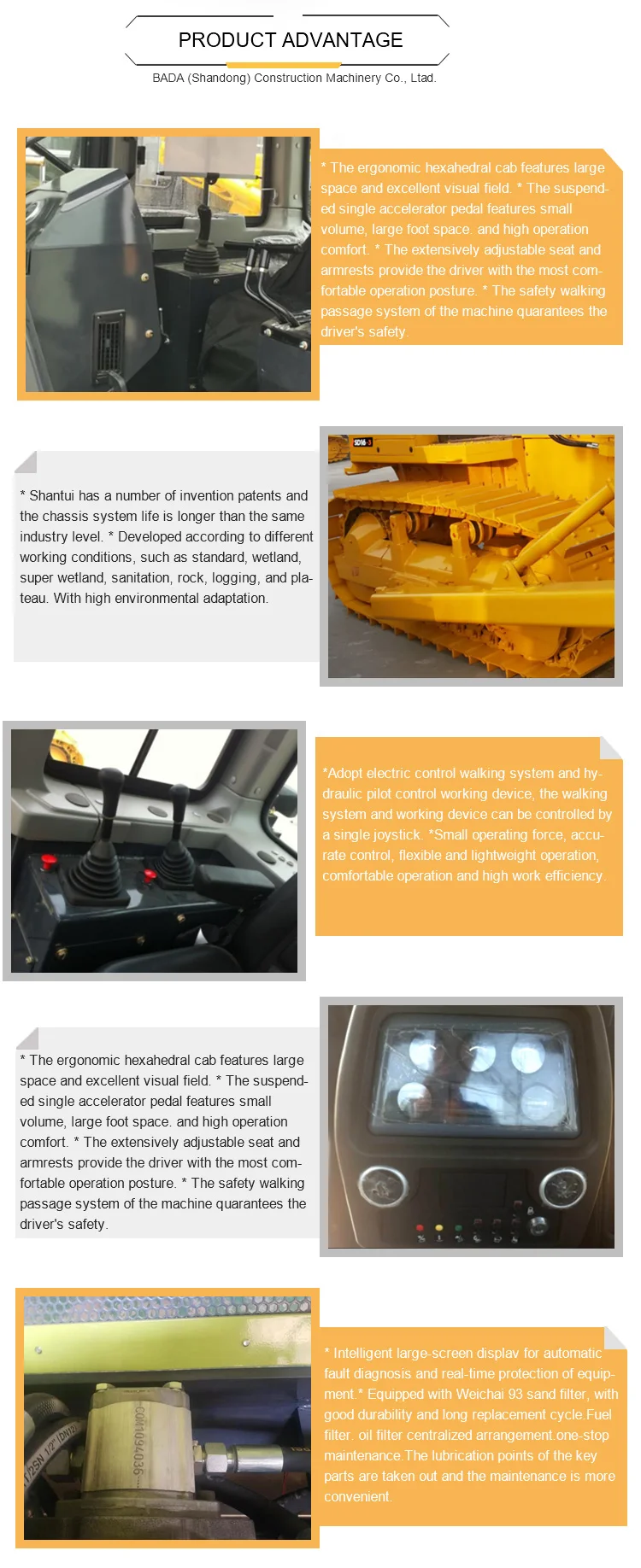

Product Details
