Product Overview
7.5 inch e-ink screen 3s/frame electronic paper display, GDEY075T7
This 7.5 inch e-ink display GDEY075T7 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
We could provide Touch screen, Front light and other accessories for you.
Related datasheet and documents will be offered after you getting your products.
♦800x480 resolution
♦Fast refresh, 3s/frame
♦Support 4 Grayscale
♦Fast refresh, 3s/frame
♦Support 4 Grayscale
♦I2C Signal Master Interface to read external temperature sensor.
Front elevation
Side elevation
Back elevation
PRODUCT SPECIFICATIONS
PART NUMBER | GDEY075T7 |
TYPE | Dot Matrix |
IC | UC8179 |
RESOLUTION | 800x480 |
OUTLINE SIZE(mm) | 170.2x111.2x1.25 |
ACTIVE SIZE(mm) | 163.2x97.72 |
PIXEL PITCH(mm) | 0.204x0.204 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH(s) | 3 |
POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
STANDBY POWER CONSUMPTION (mW) | 0.0165 |
TOUCH SCREEN / FRONT LIGHT | Optional |

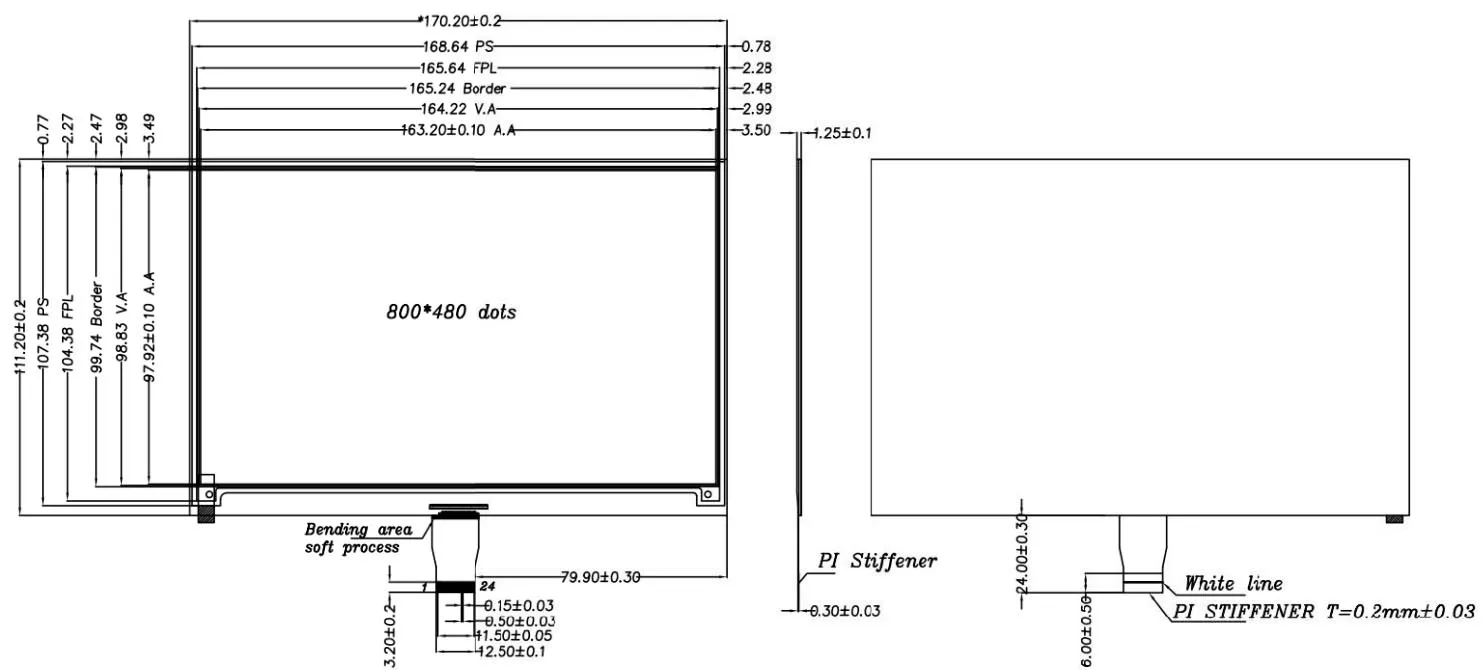

Drawing / Structure
PRODUCT CONFIGURATION
7.5 inch e-paper display GDEY075Z08 * 1
24 Pin FPC * 1
