Гибочный станок Shijiazhuang Hebei Cnc
US $9600-$22000
32mm reinforcing steel bar CNC rebar bender vertical double head used in construction road bridge stirrup bending
- Категории: Rebar Bending Machine >>>
- Поставщик: Shandong,Rayman,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
2021 CNC steel bar vertical double bender construction bridge stirrup bending center hot sale in Saudi Arabia
Products Description

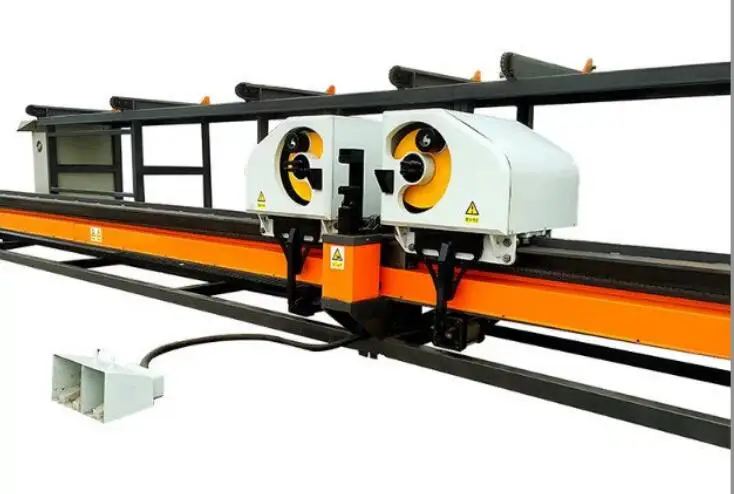

Double head bending center G2L32
Detailed specifications
1, imported PLC and CNC control system controller with touchscreen interface,
could save hundreds graphics.
2, easy to operate, could bend more angles within one rebar loop.
3, locking reinforcement bar flexible,to make sure bending precision.
4, bending panel is wear-resisting,by heat treatment, have longer working life.
5, bending spindle controlled by servo system, will provide high bending accuracy.
6, this machine could set bending length easily by moving bending spindle.
7, whole machine is integrated, high quality moving track.
8, retractable bending axle realize both-way bending.
9, Use heavy loading auto-feeding shelf for large batch materials.
10, high working efficiency, could bending many bars at same time.
11, could process 5500pcs steel bars at one day, working efficiency is 10times compare with traditional equipment.could instead of
12 workers.
12, bending reinforcement bars φ10mm to φ32mm; with high precision, low labor cost.
1, imported PLC and CNC control system controller with touchscreen interface,
could save hundreds graphics.
2, easy to operate, could bend more angles within one rebar loop.
3, locking reinforcement bar flexible,to make sure bending precision.
4, bending panel is wear-resisting,by heat treatment, have longer working life.
5, bending spindle controlled by servo system, will provide high bending accuracy.
6, this machine could set bending length easily by moving bending spindle.
7, whole machine is integrated, high quality moving track.
8, retractable bending axle realize both-way bending.
9, Use heavy loading auto-feeding shelf for large batch materials.
10, high working efficiency, could bending many bars at same time.
11, could process 5500pcs steel bars at one day, working efficiency is 10times compare with traditional equipment.could instead of
12 workers.
12, bending reinforcement bars φ10mm to φ32mm; with high precision, low labor cost.
Product Paramenters
No | Item | Data | ||
1 | Machine dimension | 12500mm(L)*1600mm(W)*1600mm(H) | ||
2 | Max. bending angle(°) | Up bending angle(°) | 180 | |
Down bending angle(°) | -120 | |||
3 | Max. Length scope of the stirrup side | 10000mm | ||
4 | Min. Length scope of the stirrup side | 90mm | ||
5 | Min. Space between stirrup side | (φ10),(520mm) | ||
(φ32),(580mm) | ||||
6 | Length precision | ±2mm | ||
7 | Angle precision | ±0.5mm | ||
8 | Method to change bending speed | Control by international brand CNC servo motor | ||
9 | Total power rating | 14kw | ||
10 | Voltage | 380V-3phase /50hz | ||
11 | Moving speed of bending head | 0.5-1(m/s) | ||
12 | Air route pressure | 0.6 Mpa | ||
13 | Total weight | 5500kg | ||

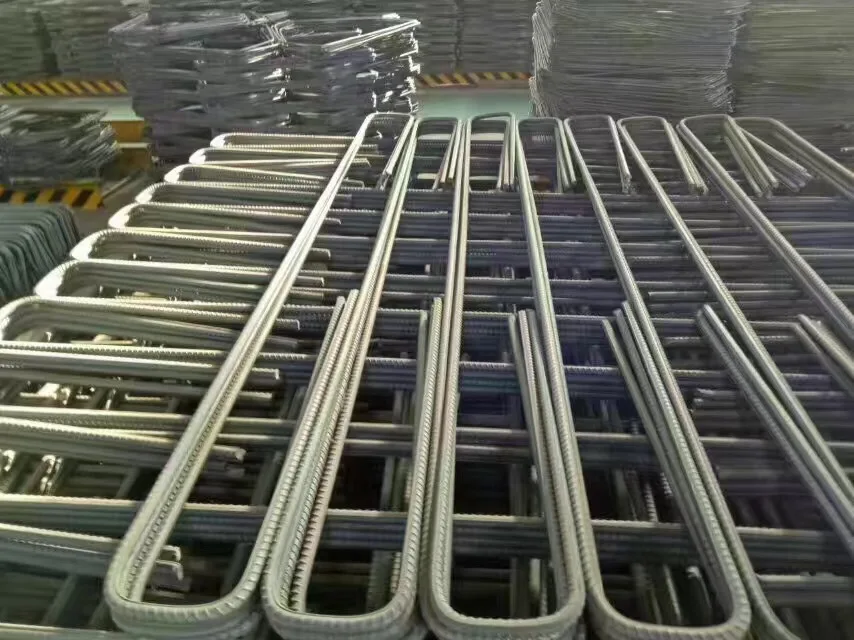

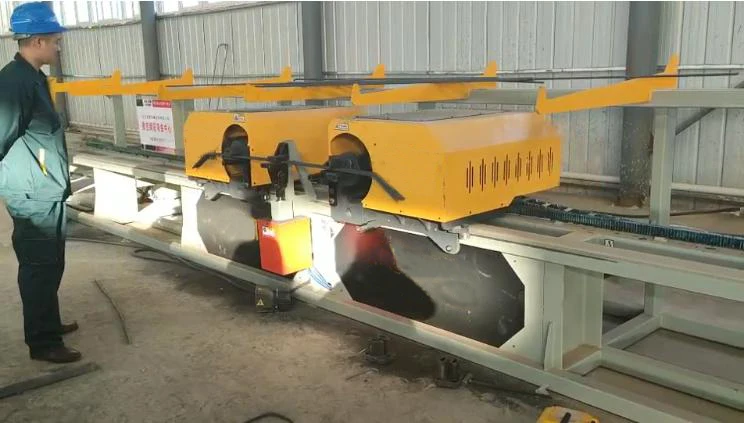

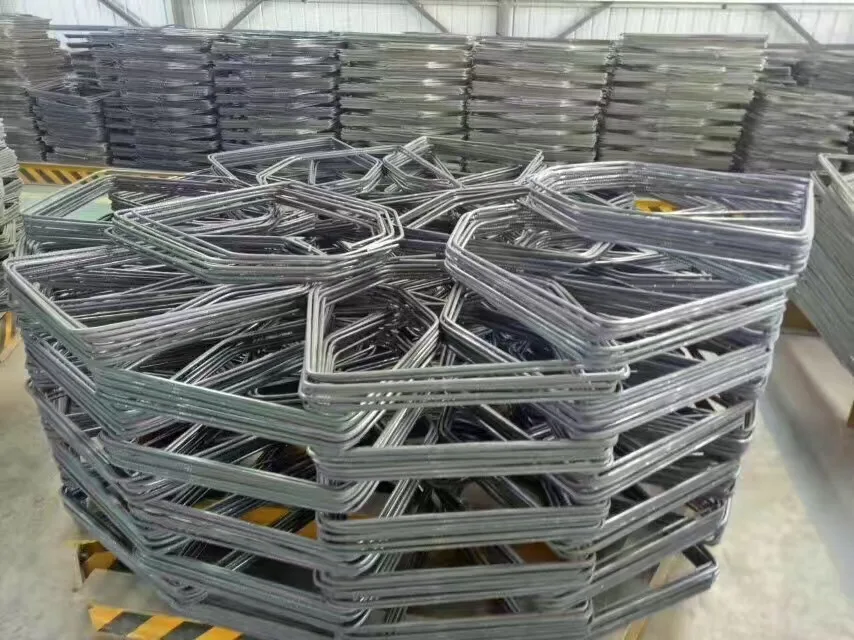

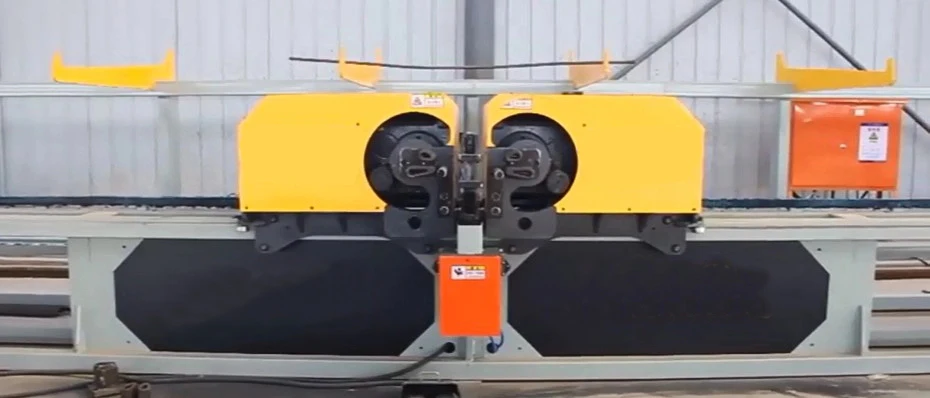

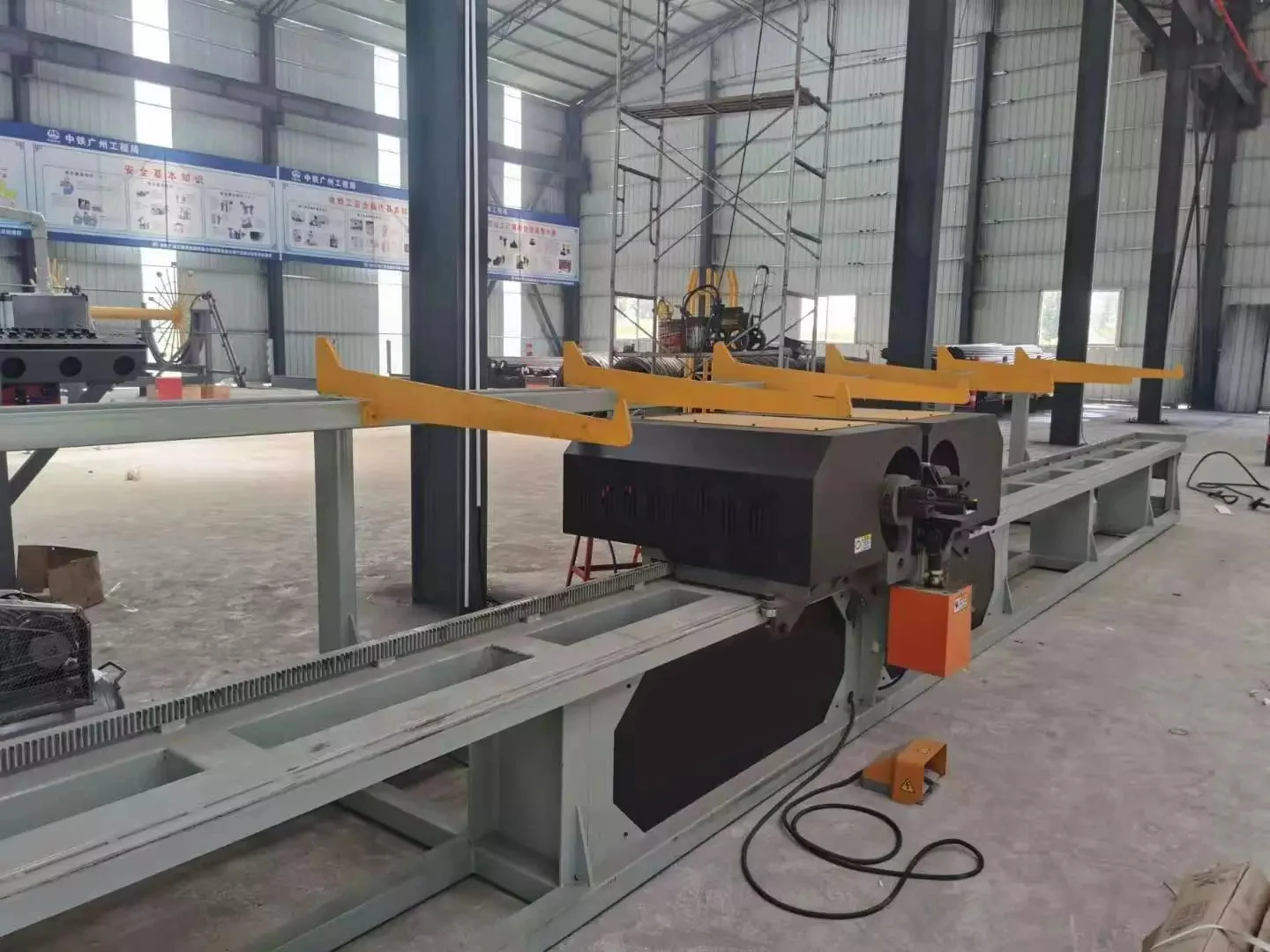

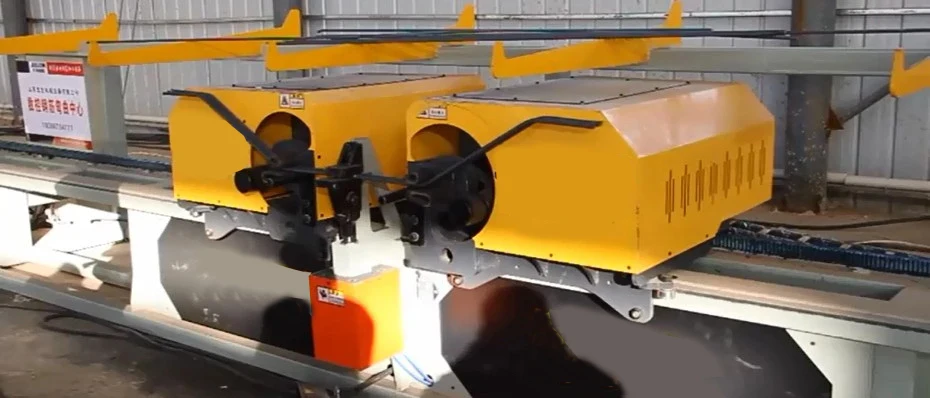

Details Images

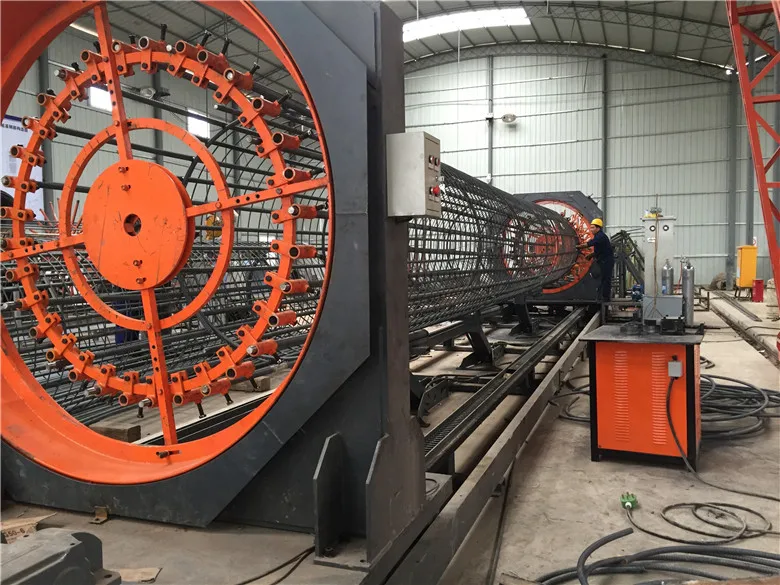

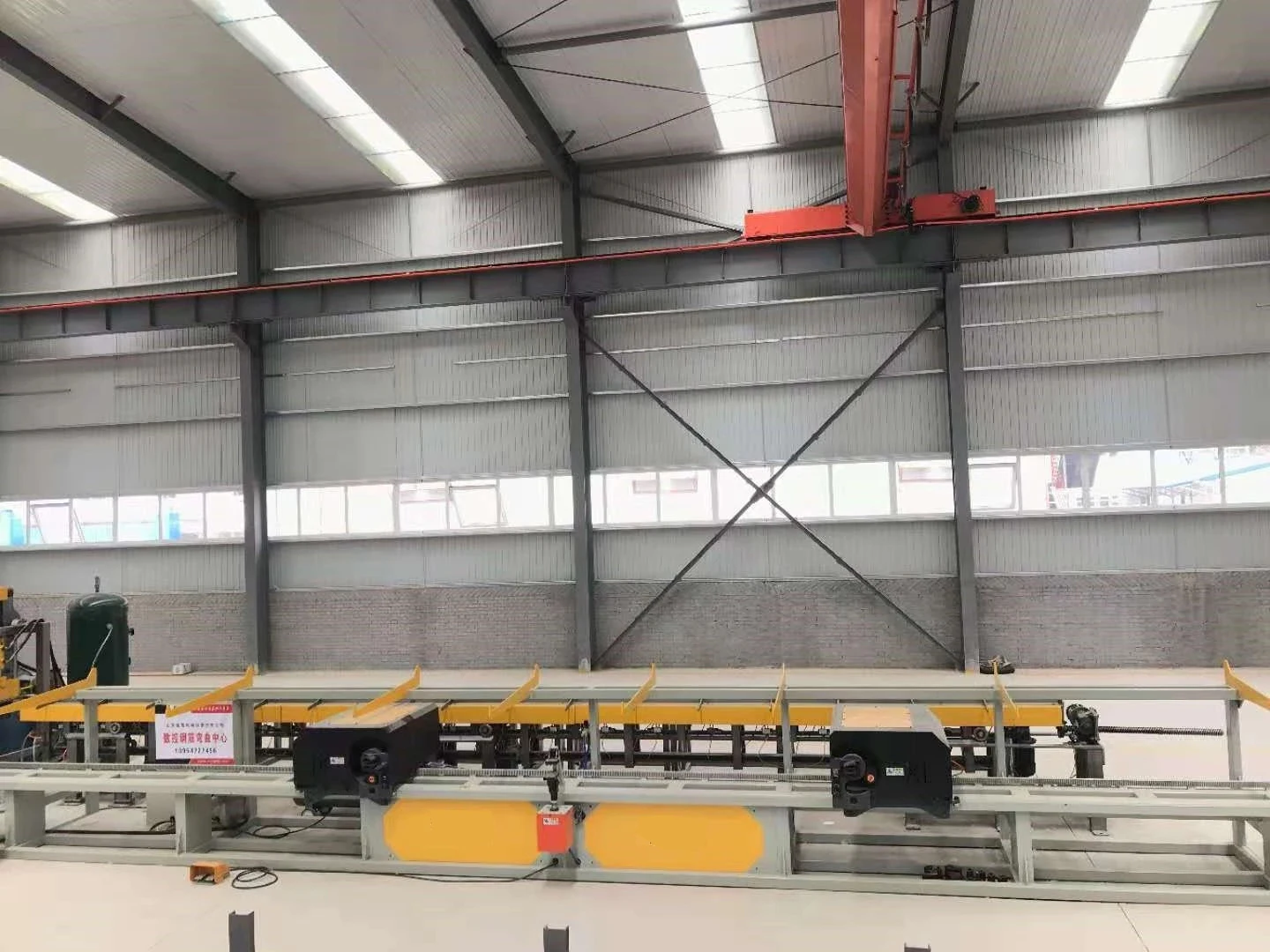

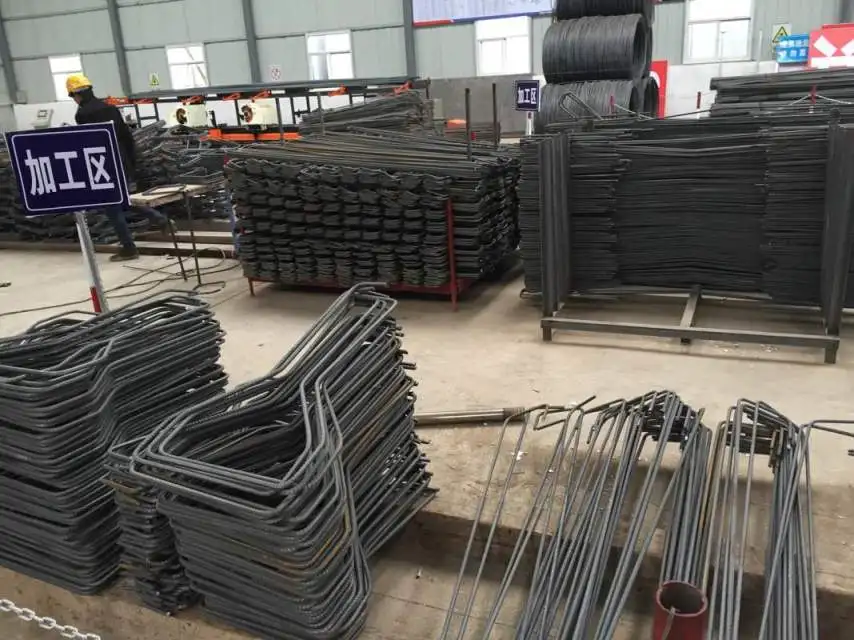

Production site
Recommend Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.Q：Can you do OEM?
A:Yes,we can do OEM products.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our
clients, from home or abroad, are warmly welcome to visit us!
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.Q：Can you do OEM?
A:Yes,we can do OEM products.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our
clients, from home or abroad, are warmly welcome to visit us!
