Product Description


SC Construction lift is a vertical transporting equipment driven by Rack&pinion, it is ideal for construction of high buildings,bridges, cooling towers, power stations and large chimneys. It is installed and dismounted conveniently, and can grow as the building grow in height. It has reliable electrical and mechanical safety device such as speed governor, overload limiter, various limits and interlock protector etc. It is efficient and safety vertical transporting equipment.


SC General Hoist

Model
Rated Loading
Lifting Speed
Motor Power
Double cages
SC200/200
2x2000kg
33m/min
(3x11kw)x2
SC150/150
2x1500kg
33m/min
(2x13kw)x2
SC100/100
2x1000kg
33m/min
(2x11kw)x2
Single cage
SC200
2000kg
33m/min
3x11kw
SC150
1500kg
33m/min
2x13kw
SC100
1000kg
33m/min
2x11kw


SC VFD Hoist
Model
Rated Loading
Lifting Speed
Motor Power
Double cages
Low speed
SC200/200D
2x2000kg
0-40m/min
(3x11kw)x2
SC100/100D
2x1000kg
0-40m/min
(2x11kw)x2
Mid speed
SC200/200Z
2x2000kg
0-60m/min
(2x23kw)x2
SC100/100Z
2x1000kg
0-60m/min
(2x15kw)x2
Single cage
Low speed
SC200D
2000kg
0-40m/min
3x11kw
SC100D
1000kg
0-40m/min
2x13kw
Mid speed
SC200Z
2000kg
0-60m/min
2x23kw
SC100Z
1000kg
0-60m/min
2x15kw


Detailed Images

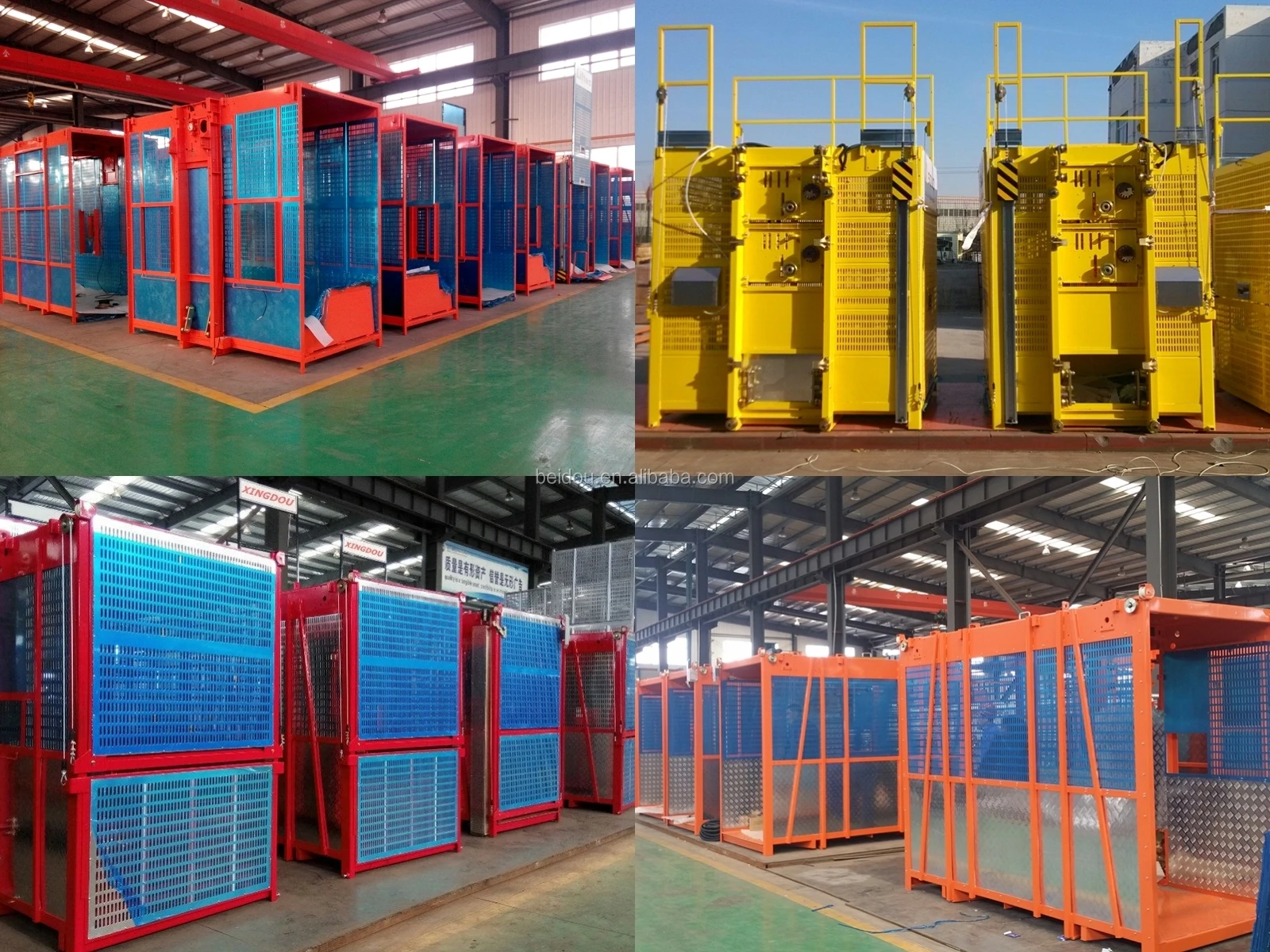

A: Cage Details.
The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also available.
The size can be arranged to your requirement:
( Optional Size:3x1.5x2.1m, 3x1.3x2.1m, 3.2x1.5x2.1m, 3.2x1.3x2.1m, 3x1.5x2.4m, 3x1.3x2.4m, 3.2x1.5x2.4m, 3.2x1.3x2.4m)

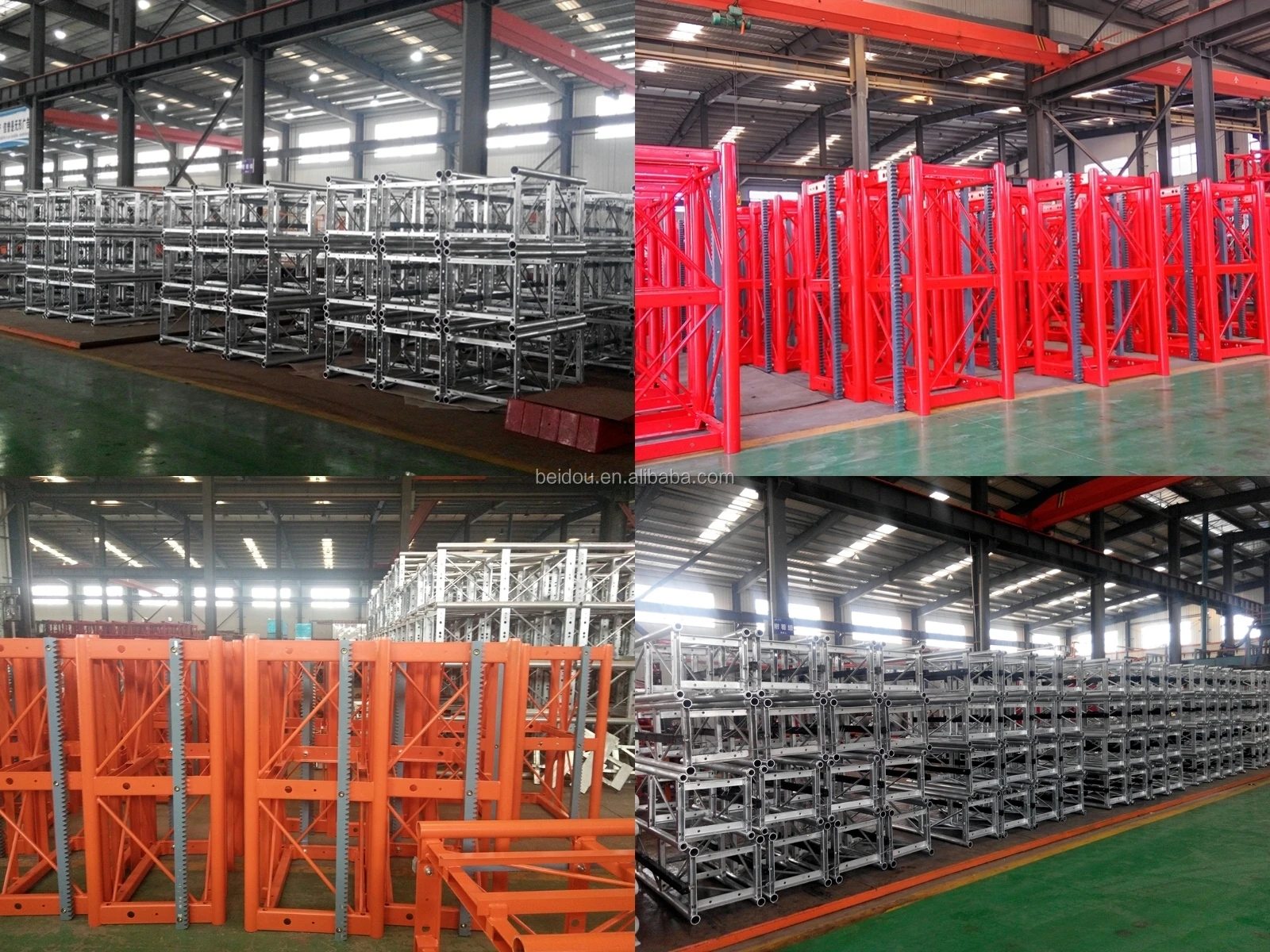

B:Mast Section.
650*650*1508mm is the most common size fit for clients.
The mast section(color is variable) is made of HF welding pipe and seamless pipe. (The high quality seamless steel pipe is good
vertically, anti-pressure, anti-aging, thickness and so on), it offer a well rail for cage climbs on.
Other model of mast section can choose:
450*450*1508mm, 650*900*1508mm,800*800*1508mm

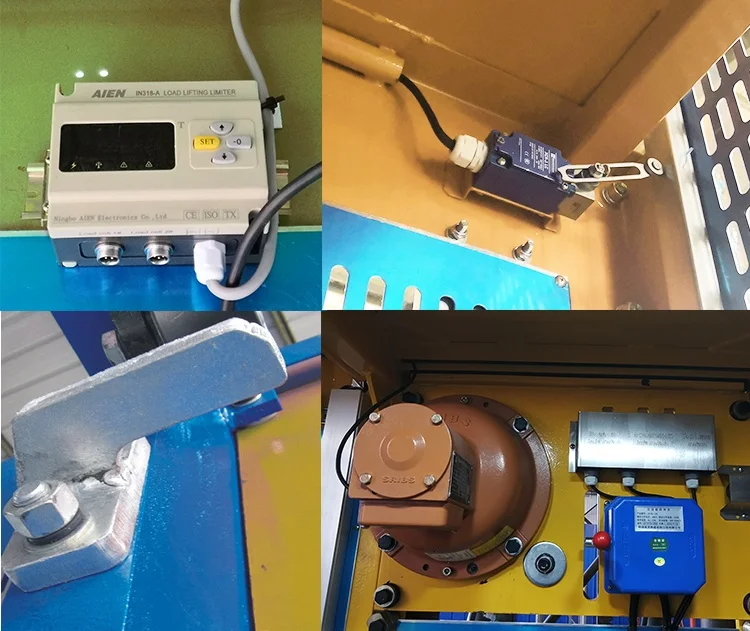

C: Safety Measures.
1. Equipping with Anti-falling governor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit switches, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Level Calling system and auto leveling device to be choose.
8. Ramp door for (Ex.door of cage).

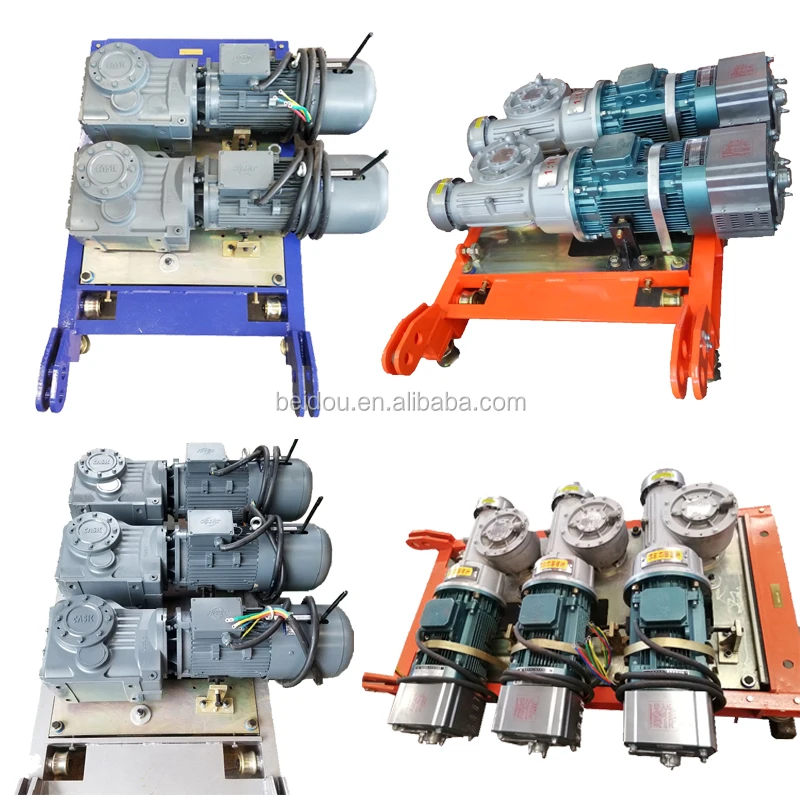

D.Driven Machinery System
High efficient&energy saving models:
1. 2000kg load per cage can choose motor: 3x8.5kw, 2x11kw, 2x13kw with energy saving characters. 3x11kw with common character.
(With gearbox more than 90% energy usage rate) low speed type
2. 1000kg load per cage can choose motor: 2x8.5kw, 2x11kw with gearbox more than 90% energy usage rate.) low speed type
3. 1500kg load per cage can choose motor: 2x13kw, 2x15kw with gearbox or worm reducers. Low speed type
4. 2000kg load with mid-speed: 3x15kw,2x23kw and 2x26kw with high efficient gearbox.


Product packaging


We pay much attention not only quality, but also other details like packages.We make a perfect packages for our product .

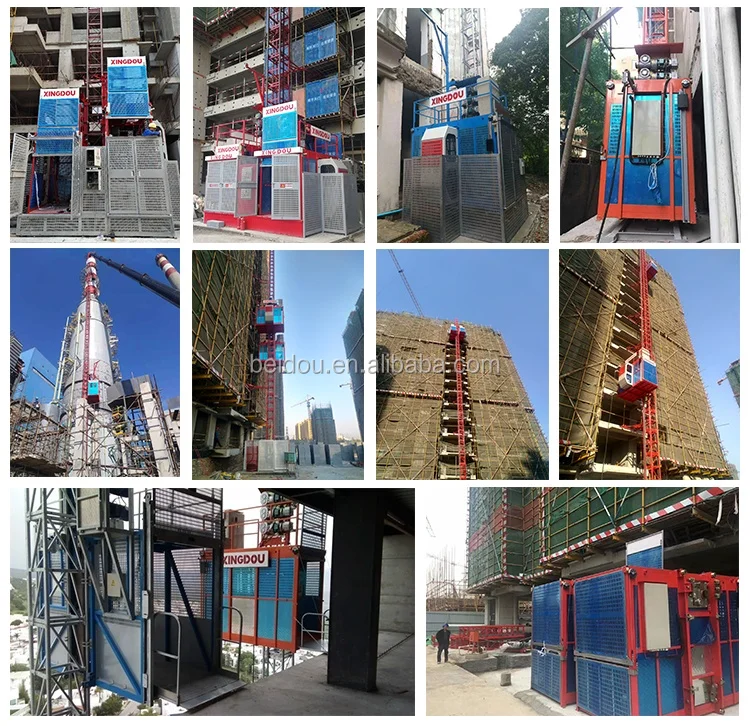

Successful Case




After Service


1.We have a professional service team,all the service engineers have been good trained and have well experiences which are competent for their job. We can provide installation and commissioning if needed

.
2.The warranty period is within half a year since the installation and adjustment has been finished. All components are in warranty extend except electrical components.


3.We provide the service covered the whole useful life of our product, which including maintenance, repair, technical upgrade, managed service and so on.


4.We will regularly follow-up the visit on our clients since they ordered our product. Your suggestion is very important for us!



Our Advantages


Certifications
We own International Certificate and standard CE, ISO9001, SGS, EAC,BV of construction hoist.




Customer Photos
After nearly 15 years of development, Xingdou already has a sound production and marketing system. Our customers not only radiated to China, but also opened up our markets in the Middle East, Central Asia, South America, Southeast Asia and other regions. Every year, customers from all over the world came to visit and sign orders. Our products have been well received by customers.




Enterprise Scale

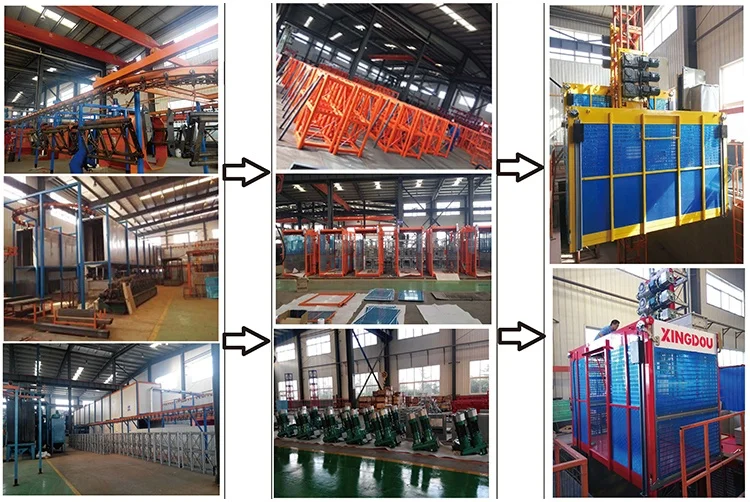

We have CNC plasma cutting machine, Punching machine, Large plate bending machine, Electrophoresis Paint production line, Cold forming machine processing line, Robert Welding , etc. Advanced machinery guarantees our production.

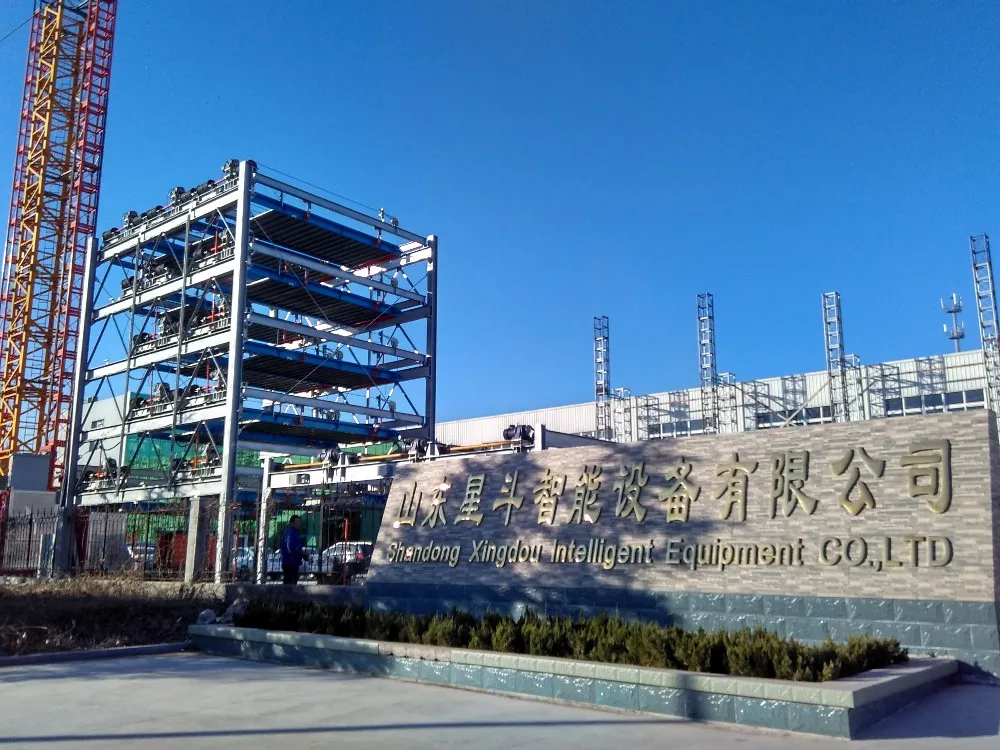

Company Profile


Shandong Xingdou Intelligent Equipment Co., Ltd is a professional manufacturer and exporter for construction hoist. We have 15 years of manufacturing experience. We pay all our attention for the product design and manufacturing. We can design and supply product as you requirement.
1.15 years more manufacturing experience and 10 years explore foreign market standard.
2. Good price offered with special discount to develop oversea market, high quality you can enjoy.
3. High speed response with sales and after-sale service.
4. Welcome agent or distributor all over the world with most attractive profit and long last cooperation partnership.




\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


We are professional construction hoist manufacturer.We pay our all attention to the double cages building site elevator sc200200 construction hoist.

You can get high quality products and professional service from us.
Any question from you is welcome and will get reply within 24 hours
.
