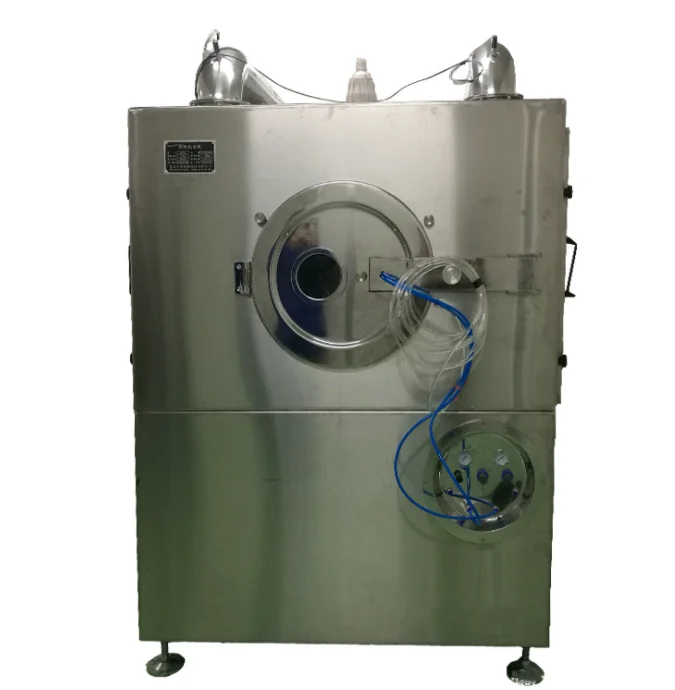

Tablets Coating Machine | ||||||
Model | BG-5 | BG-10 | BG-20 | |||
Dia. of coating roller | 300/380/480mm | 520/580/680mm | 680/750/930mm | |||
capacity of coating roller | 1-5KG | 5-10KG | 10-20KG | |||
Rotational Speed | 0-30r/min | 1-25r/min | 1-30r/min | |||
Power of motor of air exhaust cabinet | 1.1KW | 2.2kw | 3kw | |||
Flow capacity of exhaust fan | 2500m³/h | 3517m³/h | 5268m³/h | |||
Flow capacity of hot air machine | 504 m³/h | 1200 m³/h | 1685 m³/h | |||
Temperature adjustment scope of hot air | ~80℃ | ~80℃ | ~80℃ | |||
Power of motor of host machine | 0.37KW | 0.75KW | 1.1KW | |||
Outline dimension of host machine | 1250X900X1700mm | 1050x960x1800mm | 1300x1315x2000mm | |||
Weight of host machine | 583KG | 625+235KG | 800+450+550KG |
