12.3 inch SD Card Storage electronic interior bus coach rear view side mirror camera system
Product Description
FEATURES:
12.3 inches mirror monitor systems, featuring high resolution image, wide dynamic range (WDR), high light compensation (HLC), super lolux, rainproof film technology, intelligent heating function, etc., is designed for replacing the traditional rearview mirror, which can perfectly solve blind spot problems, especially A-pillar blind spot in various driving situations, such as turning, reversing, parking, etc. and greatly improve the driver’s visibility.
- WDR for capturing clear and balanced images/videos

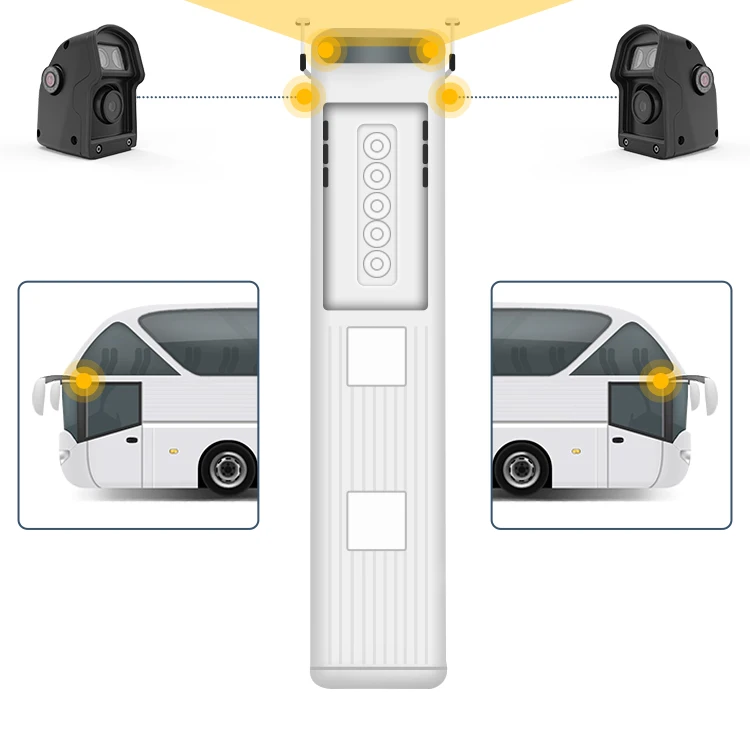

- Class II and Class IV view to increase driver visibility

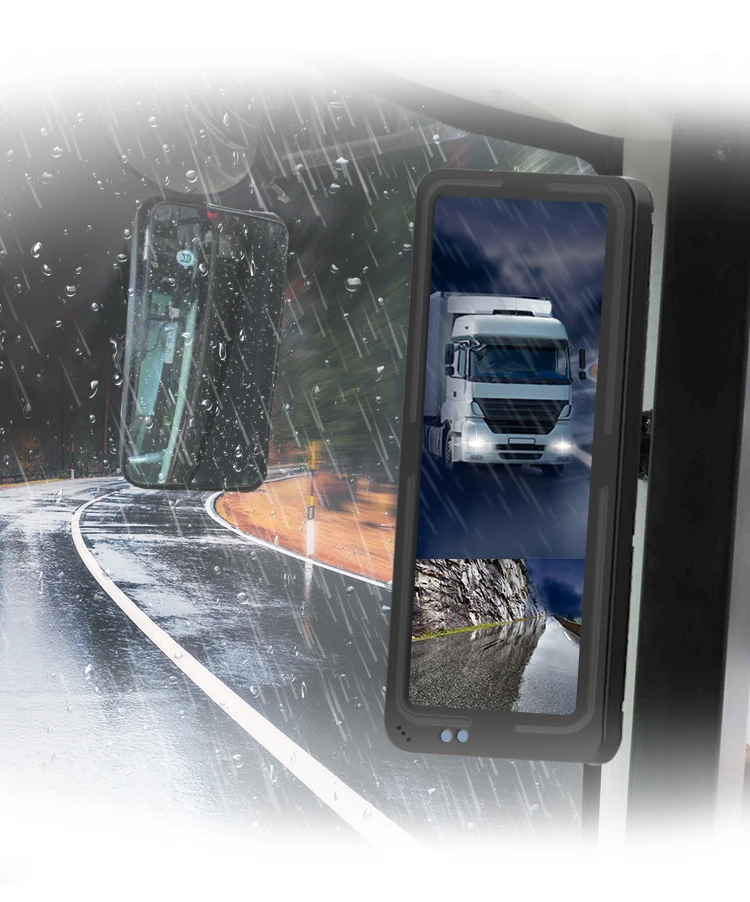

- Hydrophobic coating to repel water droplets
- Glare reduction to lower eye strain
- Automatic heating system to prevent icing
- BSD system for road users detection
- Support SD card storage (max. 256GB) to retain video evidence

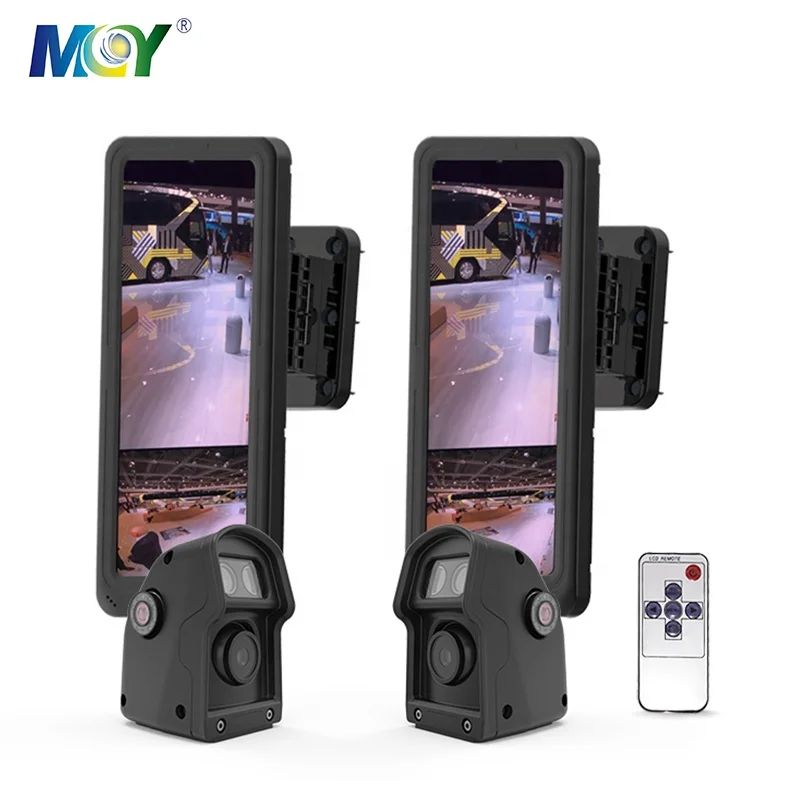

1: 12.3inch Electronic Rearview Mirror Monitor
| Screen Size | 12.3 inch (8:3) IPS |
| Resolution | 1920 * 3 (RGB) * 720 Pixel |
| View Angle | L: 85° / R: 85° / U: 85° / D:85° |
| Active Area | 292.32 (H) * 109.62 (V) [mm] |
| TV System | PAL&NTSC (Auto) |
| Brightness | 750cd/m2 |
| Contrast | 41.66736111 |
| Operation Method | Remote Control |
| Language | Simplified Chinese/ English |
| Power Supply | DC10V-32V |
| Power Consumption | MAX 25W |
| Working Temperature | -40℃~75℃ |
| Storage Temperature | -40℃~75℃ |

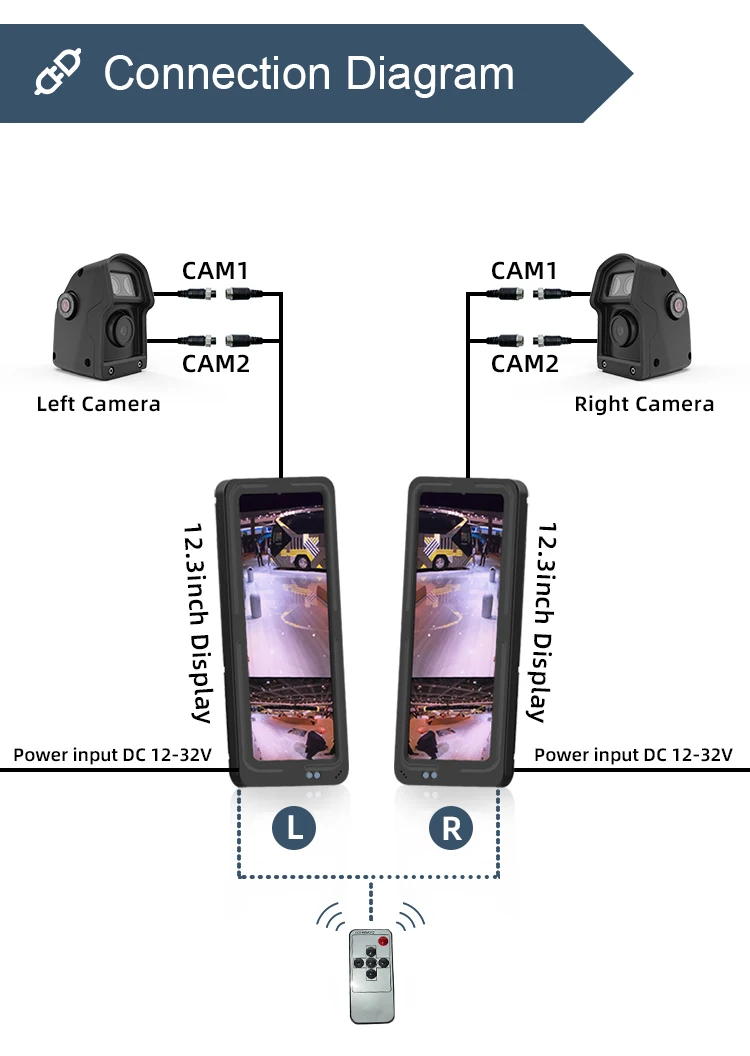

| Signal Interface | 4pin Din Aviation Male Connector (1. +12V; 2. GND; 3. NC; 4. VIDEO) |
| Video Input | 2ch Video Input (AHD 720P/1080P) |
| Outer Dimension | 343mm*160mm*31.5mm(L*W*H) |
| Net Weight | 1035g |
2:Dual Lens Side View Camera
| Model | MSV20-13JM-25-M&13JM-36-M | |
| TV System | PAL/NTSC (optional) | PAL/NTSC (optional) |
| Picture Elements | 1280 (H) x 960 (V) | 1280 (H) x 960 (V) |
| Sensitivity | 0 Lux (IR LED On) | 0 Lux (IR LED On) |
| Scanning System | Progressive scan RGB CMOS | Progressive scan RGB CMOS |
| Synchronization | Internal | Internal |
| S/N Ratio | More than 46dB (AGC Off) | More than 46dB (AGC Off) |
| Auto Gain Control (AGC) | Auto | Auto |
| Electronic Shutter | Auto | Auto |
| BLC | Auto | Auto |
| Infrared Spectrum | 850nm | 850nm |
| Infrared LED | 8 LEDs | 2 LEDs(Array Leds) |
| Video Output | 1 Vp-p, 75Ω,AHD | 1 Vp-p, 75Ω,AHD |
| Audio | N/A | N/A |
| Mirror | Available | Available |
| ICR | N/A | N/A |
| Noise Reduction | 3D | 3D |
| Dynamic range | 120 dB | 120 dB |
| Lens | f2.5mm Megapixel | f3.6mm Megapixel |
| Power Supply | 12V DC±10% | 12V DC±10% |
| Power Consumption | 160mA(Max) | 300mA(Max) |
| Dimensions | 144 x 88 x 119 mm | |
| Weatherproof/Water Proof | IP67 | |
| Operating Temperature | -30° C ~ +70 ° C | |
Company Information
Certifications
FAQ
Q1. What is your terms of packing?
A: Packing goods in neutral white boxes and brown cartons. If you have OEM package, please let us know.
Q2. How about your lead time?
A: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
A: We offer samples, with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
A: T/T(Bank transfer), PayPal, Western Union.
Q5. Do you test all your goods before delivery?
A: Yes, please don't worry. we have 100% test before delivery.
