Product Description

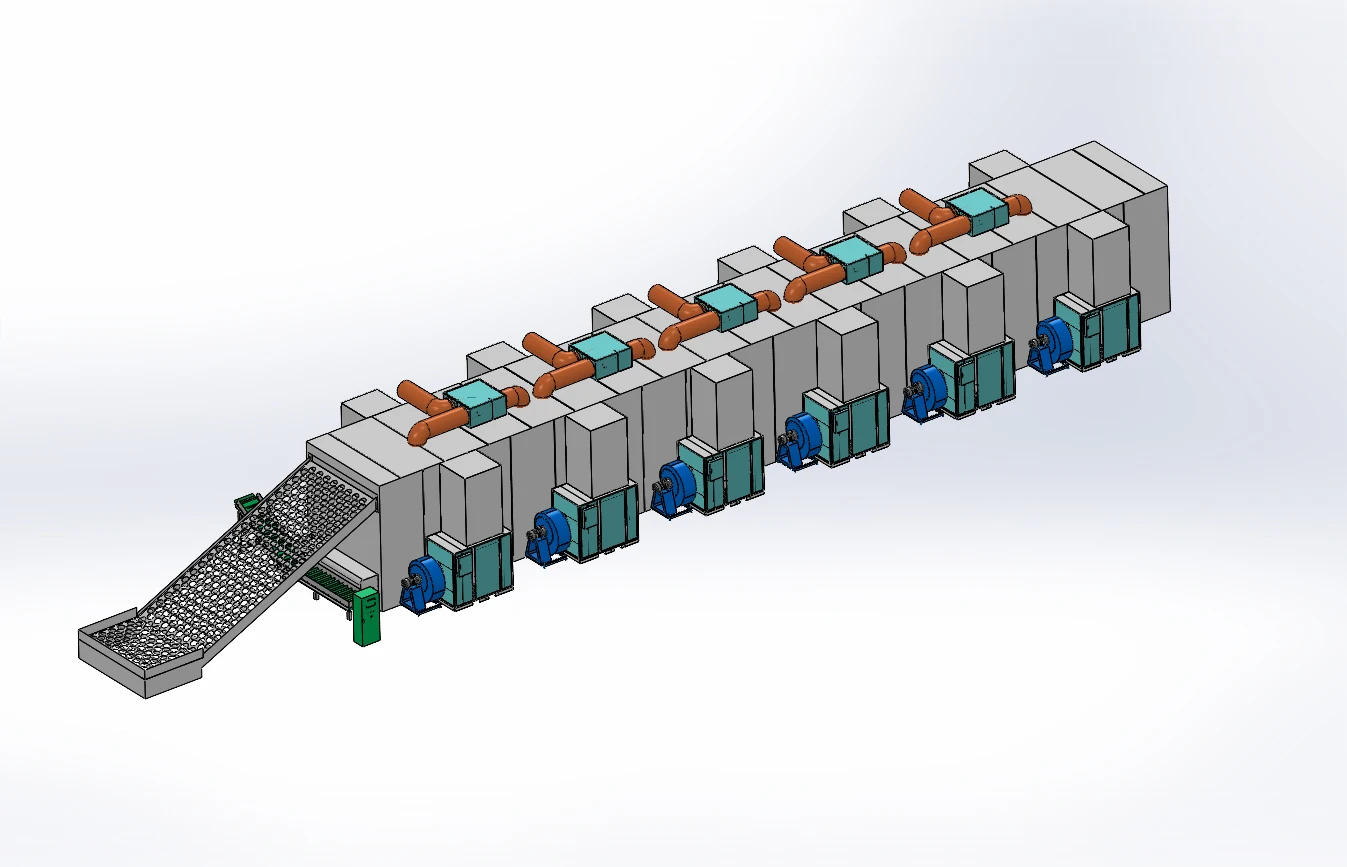

Automatic Continuous Mesh belt Heat pump Drying Machine/Dryer system
This equipment is a belt type multi-layer dryer. The main parts are made of high quality carbon steel or SUS. The stainless
steel mesh belt is made of SUS304, it runs smoothly, easy to maintain and has a long service life. The whole machine running speed and drying temperature can according to production needs set. It’s has a high degree of automation, saving much labor and improving production efficiency，large capacity with best drying effect.
steel mesh belt is made of SUS304, it runs smoothly, easy to maintain and has a long service life. The whole machine running speed and drying temperature can according to production needs set. It’s has a high degree of automation, saving much labor and improving production efficiency，large capacity with best drying effect.
The heating method can be : heat pump,LPG,diesel oil and steam or natural gas
Application :Rose flower herbs ,konjac,parsley,ginger,garlic chips,onion,chili,hemp ,vegetable and other raw material with high moisture.
we can provide the complete solutions for you according to your requirements.
Drying principle
The working principle is that the air heated by the heat source in the hot air stove ,is blown by circulation fans into the inside of the drying main body, then the moisture of the stuff is evaporated under the heat. the inner moist air is discharged to the outside of the device with the exhaust pipe. The machine can continuously feed and make the material run smoothly. During the material conveying process,the mesh belt can realize the turnover of the material and reach the homogeneity of the heated wind on all surfaces. It can connect with other equipment to achieve continuous operation.
Specification
No. | Description | Specification | QTY/sets | Price/set FOB Qingdao | Options | ||||
1 | Feeding conveyor | 4200*2200*3500mm | 1 | $4500 | / | ||||
2 | Continuous dryer main body | 10000*3200*3700mm 5layers | 1 | $38000~115000 | UL motors 8sets, plus 500usd/set*8. | ||||
3 | Hot air stove | 4000*2000*1800mm | 1 | $12000 | / | ||||
4 | Gas burner | RIELLO brand Power:400000kcal/h | 1 | $2000 | / | ||||
5 | Electricity Distribution Controller | SUS304, including Electrical components | 1 | $1500 | If Siemens touch screen controller is needed, add 3000us | ||||
6 | Discharge conveyor | 4000*800*1800mm Power:0.55kw | 1 | $2500 | /UL motors 1set,500usd | ||||
Total weight | 13000kg | ||||||||
Total price (FOB Qingdao) Container:2*40HQ | 7 | $60500~2000000 USD | $65000USD | ||||||
Details Images
Customized different capacity dryer
We can customize different capacity dryers and different heating methods according to the characteristics of drying materials and the different capacityof the clients’ requirements。
Type:8m-3layers.8m-5layers.10m-5layers.15m-3layers.20m-5layers.30m-5layers.
Capacity:300kg/h~3000kg/h ,depending on the moistuure and drying temperature.
Type:8m-3layers.8m-5layers.10m-5layers.15m-3layers.20m-5layers.30m-5layers.
Capacity:300kg/h~3000kg/h ,depending on the moistuure and drying temperature.
Heating method:Electricty or gas or steam or heat pump.
Main components
1. Circulation fan: The circulating fan can blow the hot air generated by the hot stove into the dryer chamber.
2. Air volume controller: When the air temperature in the hot blast stove is too high, the valve is properly opened, which can replenish fresh air and regulate the temperature inside the dryer.(only steam-heated dryer needed)
3. Dehumidifier fan: It can discharge the damp air.
4. Moisture control valve: When the air temperature rises, the valve can be enlarged a little. It can accelerate the removing of moisture.
2. Air volume controller: When the air temperature in the hot blast stove is too high, the valve is properly opened, which can replenish fresh air and regulate the temperature inside the dryer.(only steam-heated dryer needed)
3. Dehumidifier fan: It can discharge the damp air.
4. Moisture control valve: When the air temperature rises, the valve can be enlarged a little. It can accelerate the removing of moisture.
Contact me for more detail
Manager Dou: Whatsapp/wechat:+8617616753851
Email:sales@lijiefoodmachinery.com
Email:sales@lijiefoodmachinery.com
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhucheng Lijie Food Machinery Co., Ltd is located in Zhucheng City, Shandong Province. Our products mainly sold to the United States, Singapore, Russia, kazakhstan, United Kingdom and so on.The company has 12000 square meters of factory buildings and 1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them to provide the best service and solutions for our clients.
Our company's main products include complete solutions,automatic large-scale hot air drying machine,heat pump drying machine and grinding machine line, potato chips frying (frozen) processing equipment, fruit & vegetable washing machine, pasteurizer ,and cooking equipment, etc.
Welcome to Lijie machinery!
Our company's main products include complete solutions,automatic large-scale hot air drying machine,heat pump drying machine and grinding machine line, potato chips frying (frozen) processing equipment, fruit & vegetable washing machine, pasteurizer ,and cooking equipment, etc.
Welcome to Lijie machinery!
Sincerely hope we can cooperate with you!
FAQ
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food machinery.Especially for vegetable and fruit drying and snack food
processing production line.
processing production line.
2.What's the price of your machines? You can inquiry to us directly and negotiate furtherly.
3.What is your payment terms? T/T
or L/C; by T/T 40% as down payment, 60% by T/T before delivery, L/C at sight.
or L/C; by T/T 40% as down payment, 60% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .And help customer to produce good quality food .
contact us
Manager Dou:
Whatsapp/wechat:+8617616753851
Email:sales@lijiefoodmachinery.com
Email:sales@lijiefoodmachinery.com
Thank you for your inquiry and Sincerely hope we can cooperate with you!
