Water table included CNC plasma cutter for cast iron aluminum table CNC plasma cutting machine with tube

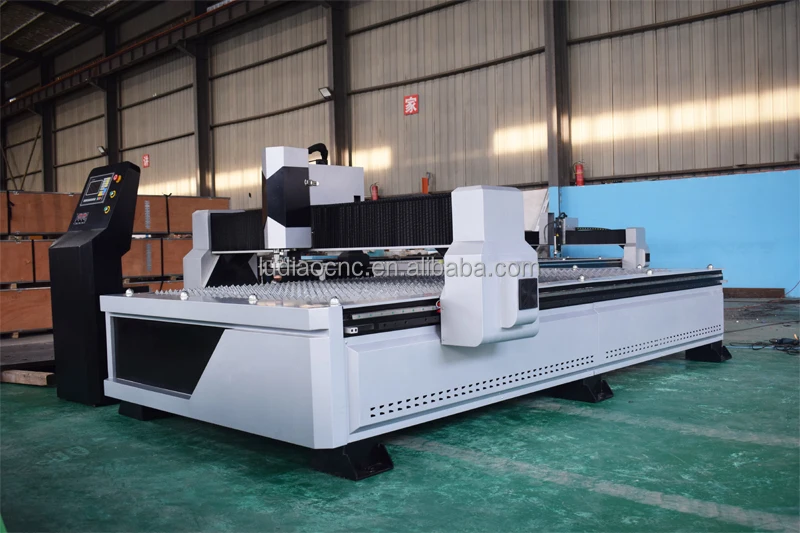

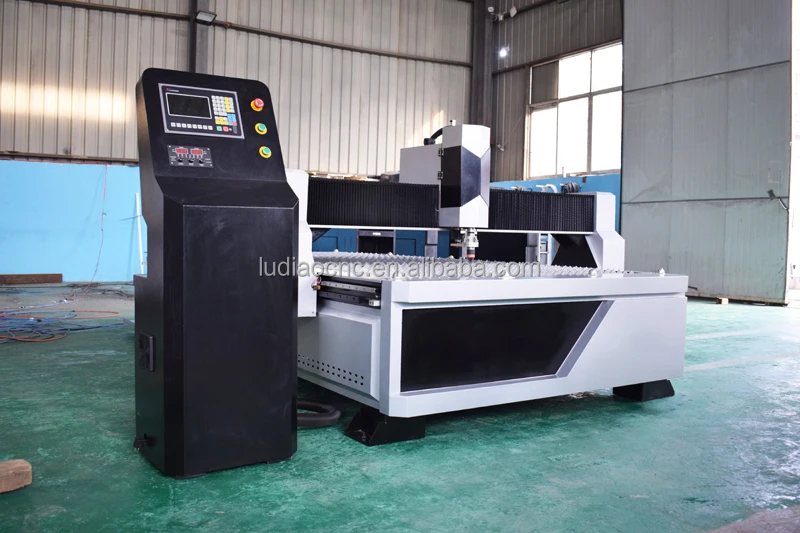

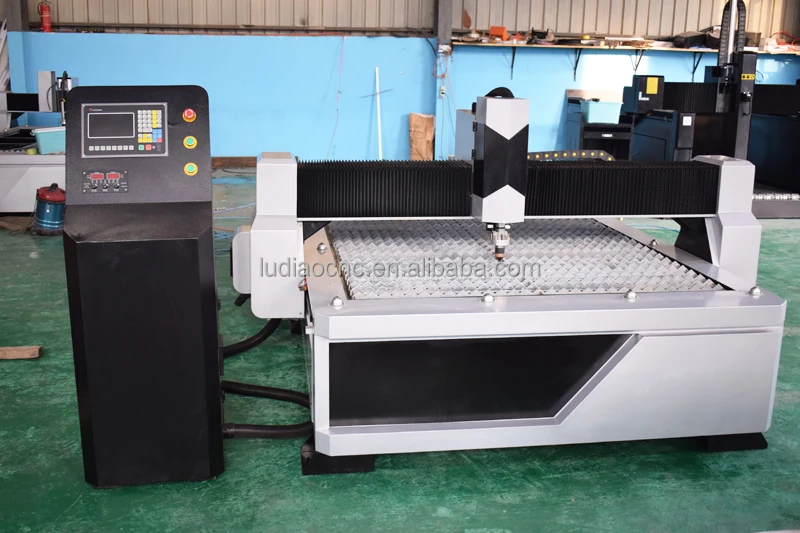

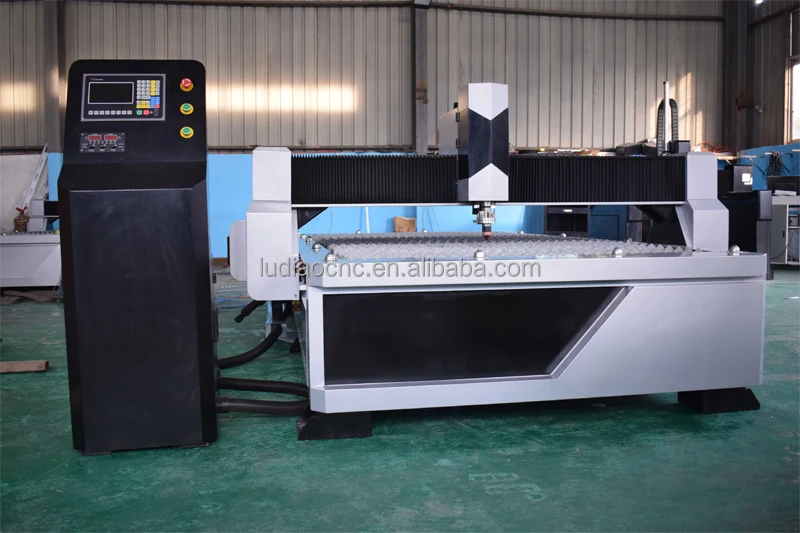

Detailed Product Description for CNC plasma cutting machine

CNC Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut with a plasma torch include steel, stainless steel, aluminum, brass and copper, although other conductive metals may be cut as well. Plasma cutting is often used in fabrication shops, automotive repair and restoration, industrial construction, and salvage and scrapping operations. Due to the high speed and precision cuts combined with low cost, plasma cutting sees widespread use from large-scale industrial CNC applications down to small hobbyist shops.

Some CNC plasma cutter manufacturers build CNC cutting tables, and some have the cutter built into the table. CNC tables allow a computer to control the torch head producing clean sharp cuts. Modern CNC plasma equipment is capable of multi-axis cutting of thick material, allowing opportunities for complex welding seams that are not possible otherwise. For thinner material, plasma cutting is being progressively replaced by laser cutting, due mainly to the laser cutter's superior hole-cutting abilities.
A specialized use of CNC Plasma Cutters has been in the HVAC industry. Software processes information on ductwork and creates flat patterns to be cut on the cutting table by the plasma torch. This technology has enormously increased productivity within the industry since its introduction in the early 1980s.

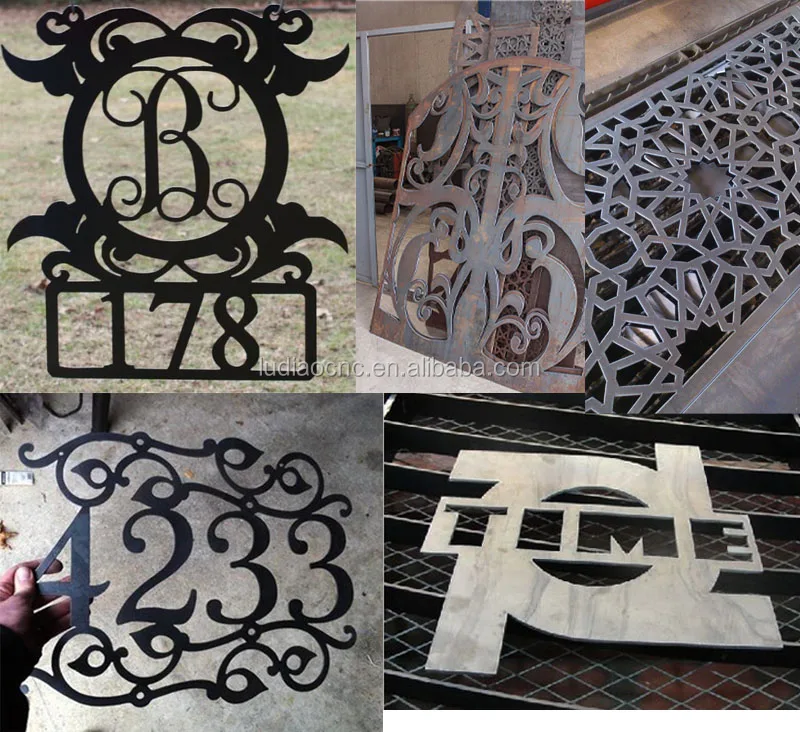

CNC Plasma Cutters are also used in many workshops to create decorative metalwork. For instance, commercial and residential signage, wall art, address signs, and outdoor garden art.
In recent years there has been even more development. Traditionally the machines' cutting tables were horizontal, but now vertical CNC plasma cutting machines are available, providing for a smaller footprint, increased flexibility, optimum safety and faster operation.

CNC Plasma Machine,Industrial plasma cutting machine,Hypertherm powersupply,high accuracy,smooth cut.





Scope of application:

CNC plasma engraving machine is an automatic and high efficiency engraving equipment. It is widely used in all kinds of metal sheet cutting.



Features of carbon steel cutting CNC plasma cutting machine:



The beam uses light structural design with good rigidity structure, light deadweight and small movement inertia.

The gantry structure, Y axis used dual-motor dual-driven system, X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

Tidy cutting avoids a second dressing processing.

The numerical control system disposes high, the automatic striking arc, the performance is stable.

Support UCANCAM V8, Astronautics Haier, ARTCAM software, Type3. Produce standard G code, also can change software to read AUTOCAD, to produce DXF data. USB interface, easy to operate.



1 Heavy-duty structure, multi-pillar support, structural distribution of mechanical science

2 High-sensitivity arc voltage (make sure the cuuting performance more accurate and easier to use)

3 STARFIR Control System

4 High-precision square linear rail

5 High Accuracy 1.25 gear distance Helical rack and gear can let the cutting accuracy more higher Higher

6 China most famous government company Chuangwei stepper motor

7 Origional Leadshine driver

8 startcam nesting software

9 20mm thick welding-free integrated treatment of the gantry holder

10 independent control cabinet

11 multifunctional toolbox

12  8G flash disk

13  5 sets of consumables parts (nozzle and electrode )

14China top brand Huayuan 120A plasma

15 all the body  do the anti-rust treatment

16 anti-wear limit switch

17 Cow Eye Wheel feeding system

18 Smoke exhaust system

19 Warranty 2 years

20 Work Area: 1300*2500MM







The Technical parameter for metal cutting CnC plasma

1	Model	LD1325
2	Processing material	Iron plate, carbon steel,stainless steel, aluminum,etc other metals
3	Effective cutting range(mm)	1300*2500mm
4	Z working area	150mm
5	Cutting mode	Plasma cut only
6	Plasma Power source	Hauyuan 120A plasma source
7	Cutting thickness(mm)	High quality cutting thickness , 15mm thickness Max carbon sheet cutting thickness at 25mm
8	Cutting speed(mm/min)	8000mm/min
9	Cutting system	Microstep STARFIRE
10	Torch Height Control(THC) mode	Automatic High sensitive THC
11	Software	StarCAM
12	Motors	Stepper motor
13	Emergency stop	Standard equip
14	LCD Display Dimension	7.0Inches
15	Move precision	±0.1mm/m
16	Input Voltage	380V three phase
17	Power	8.5kw
18	Type of gas needed	Air
19	Gas pressure	Max.0.8Mpa
20	Working temperature	-10°C-60°C. Relative Humidity, 0-95%.
21	Host weight(KG)	1450KG
22	Total weight(KG)	1650KG
23	Packing size	2200mm*3900mm*1650mm
