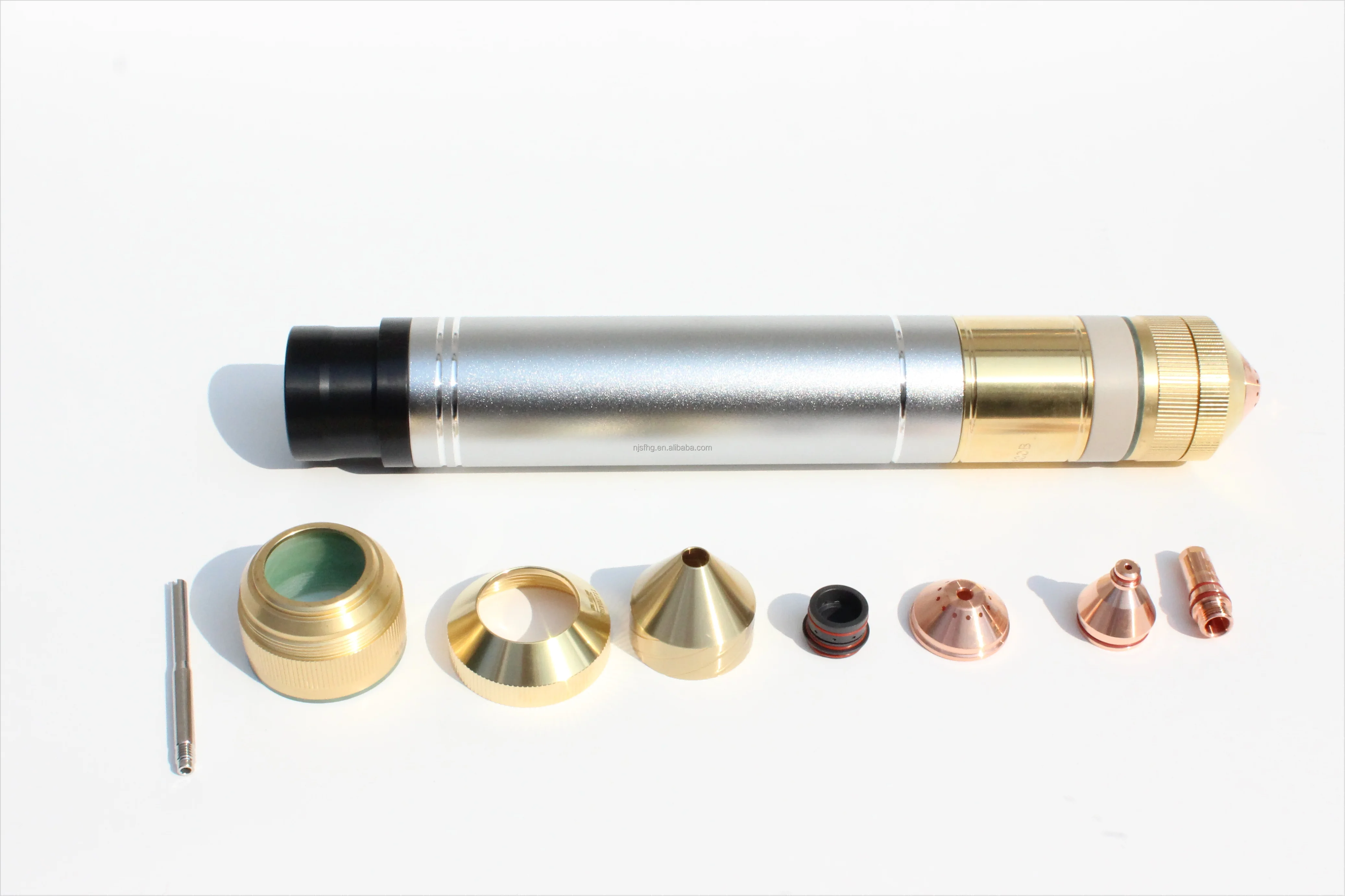

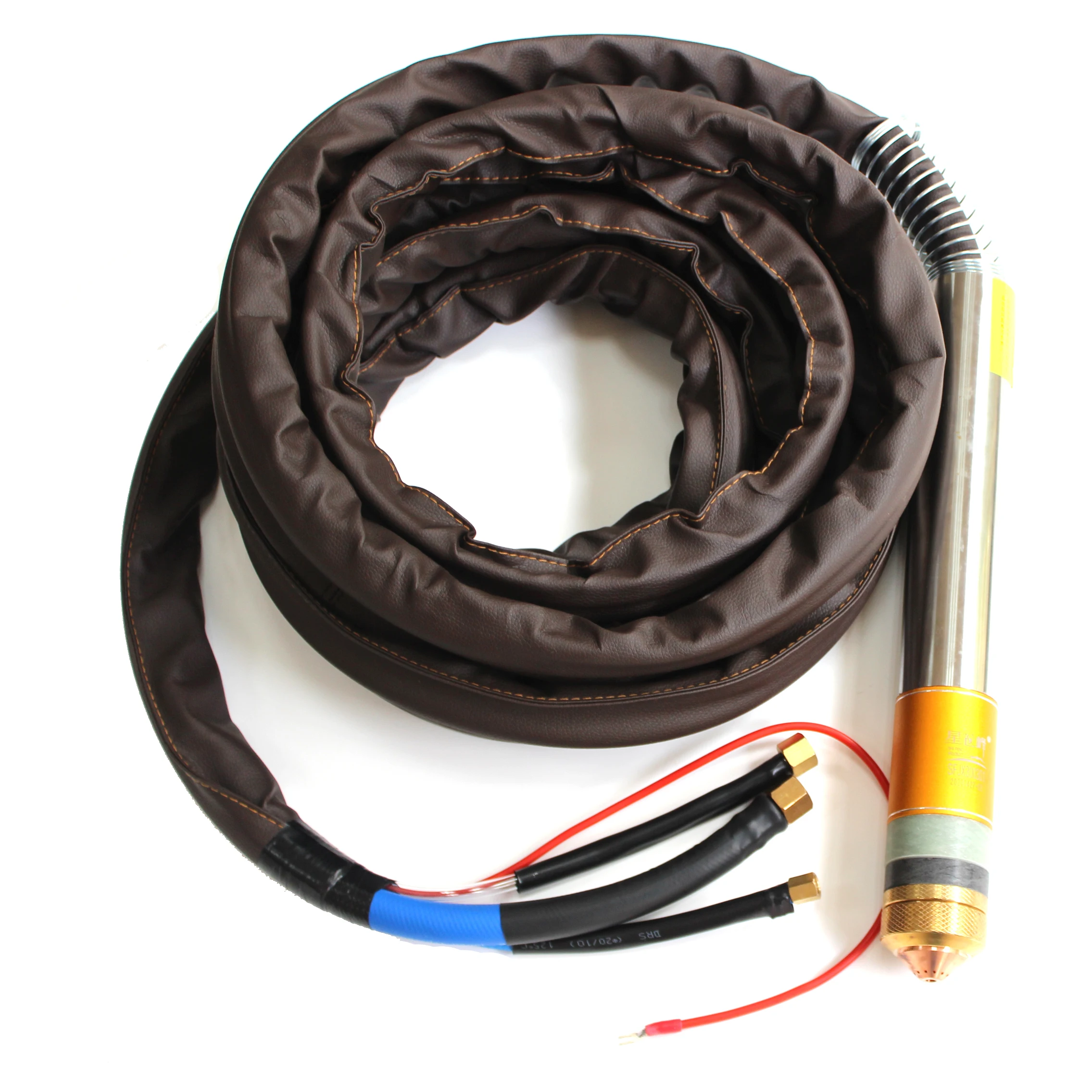

LGK-400 плазменная горелка SFHY300B

   Plasma cutting parameters SFHY-300B series

Cutting plate thickness    mm

Cutting current   A

Atmospheric pressure(Mpa)

Punch height       mm

Cutting tip distance from workpiece cutting height(mm)

Nozzle aperture        mm

Reference arc voltage value

Cutting speed

mm/min

4

100A

0.5

4

2

1.7

140

4400

6

100A

4

2

1.7

145

3100

8

100A

6

3

1.7

150

2200

10

100A

6

3

1.7

155

1800

12

160A

0.55

6

3

1.9

155

2300

16

160A

7

3.5

1.9

160

1500

20

200A

0.6

8

4

2.3

152

1600

25

200A

11

5.5

2.3

162

1100

30

260A

13

5.5

2.5

166

950

32

260A

13

6

2.5

168

850

35

260A

15

7

2.5

172

750

40

300A

edge

7

2.8

172

450

50

300A

8

2.8

175

300

1: Do not touch high-temperature parts such as the cutting tip and protective cover when cutting.

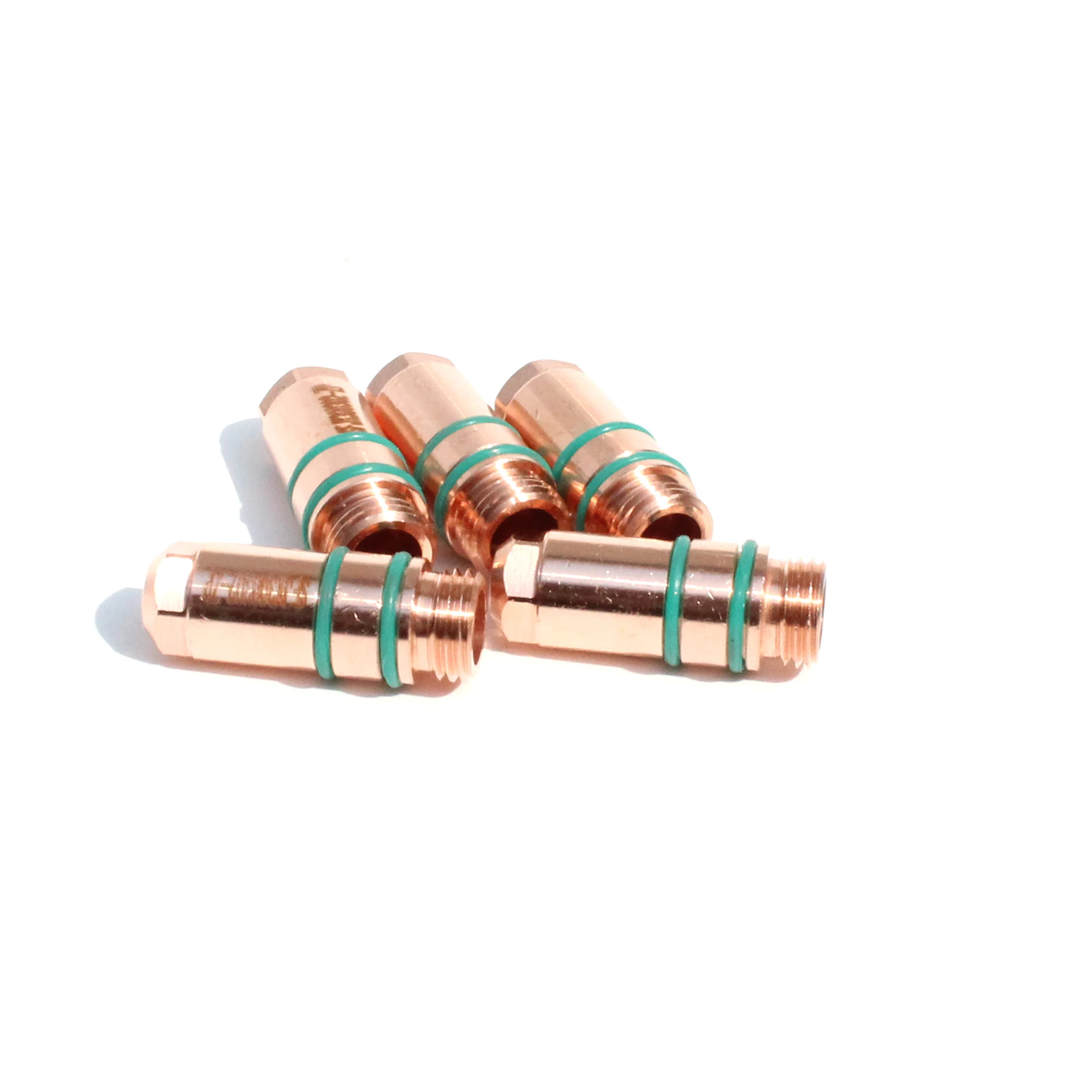

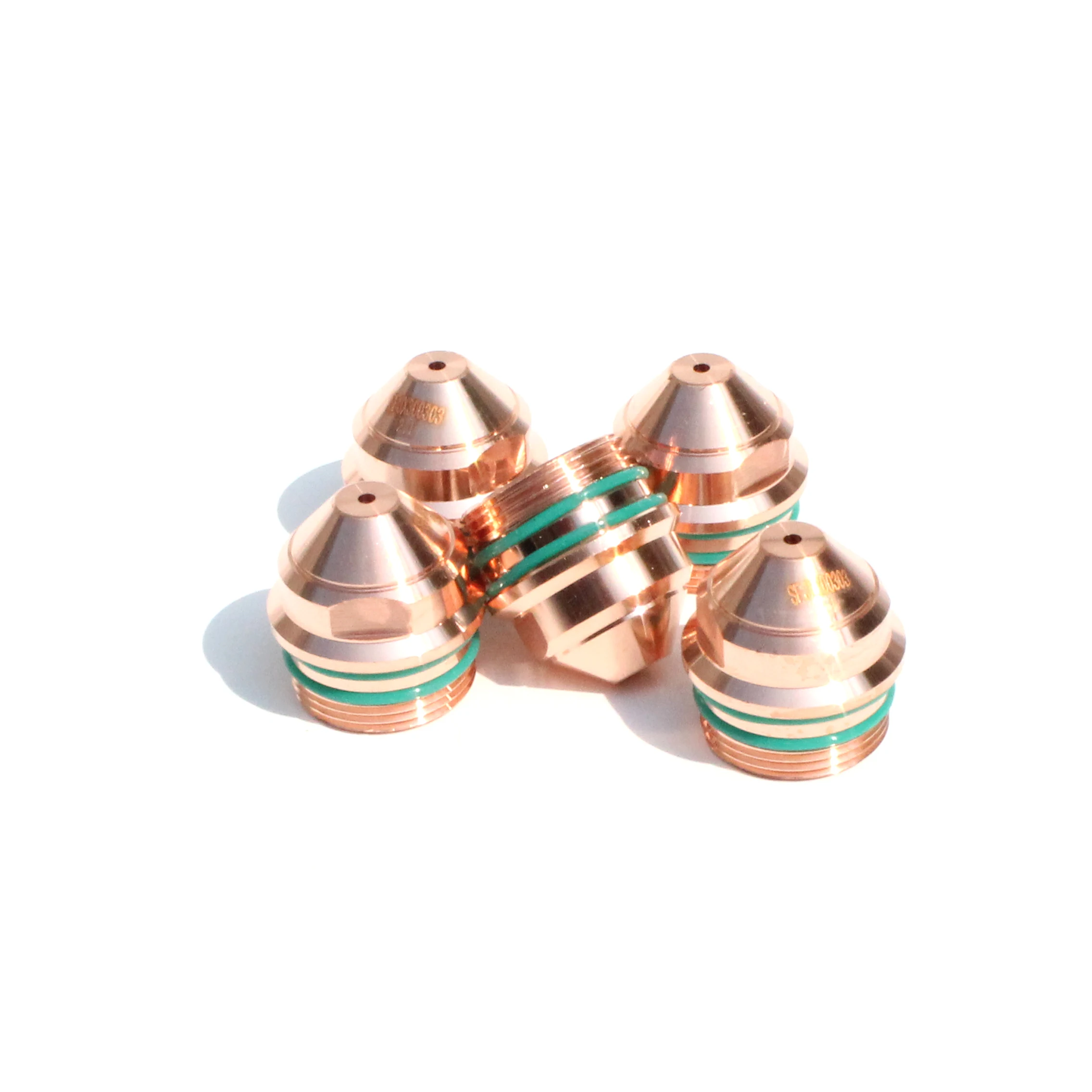

2: Turn off the power before replacing the torch parts

3: In order to ensure safety and cutting quality, please replace the new parts in time.

4: When replacing the cutting nozzle electrode, please install it firmly with special tools to avoid burning the cutting torch

Replace the electrode nozzle when the following conditions occur

1: The cutting slit becomes larger    2: the arc cannot be started      3: the cutting speed is sharply slowed    4: the nozzle hole is deformed    5: the cutting slope changes      6 electrode burning
