Product Description
Industrial Round Lifting Electromagnet For Iron Steel Scraps
Lifting electromagnetic chuck also known as lifting electromagnet, the product by computer optimization design, magnetic circuit more scientific and reasonable, air gap magnetic density, magnetic penetration depth deep.The circular lifting electromagnets recommended for: loading and unloading trucks and railroad cars; cleaning worksites, roads or railways; eliminating bulky ferrous materials or industrial remnants; steel and cast iron foundries.
Options
* Electric connectors
* Electric feeding cabinet
* Special voltage
* Protective circling
* High hardness refill for supporting surfaces
* Independent chains for stabilization
* Knob for crane clutch
* Sealed version
* Special series for handling hot products
* Other tailored dimensions.
* Electric connectors
* Electric feeding cabinet
* Special voltage
* Protective circling
* High hardness refill for supporting surfaces
* Independent chains for stabilization
* Knob for crane clutch
* Sealed version
* Special series for handling hot products
* Other tailored dimensions.

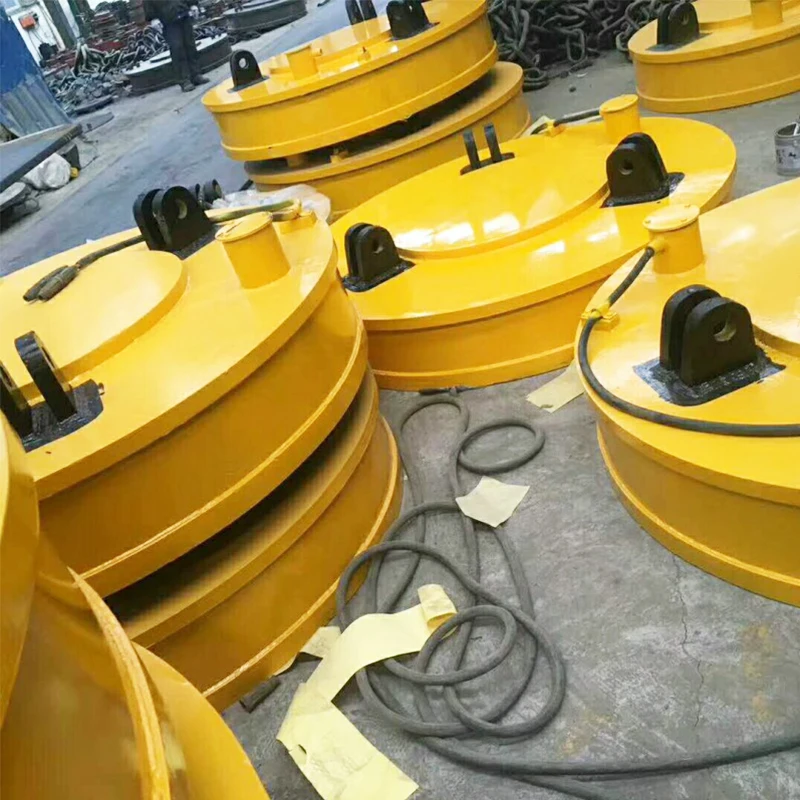

Detailed Images
Feature
1. The use of fully sealed structure, good moisture-proof performance.
2. Through the computer optimization design, reasonable structure, lightweight, large suction, low energy consumption.
3. The special process of the excitation coil, improves the electrical and mechanical properties of the coil, the insulation grade of grade C, the overall insulation of the chuck up to grade H, long service life.
1. The use of fully sealed structure, good moisture-proof performance.
2. Through the computer optimization design, reasonable structure, lightweight, large suction, low energy consumption.
3. The special process of the excitation coil, improves the electrical and mechanical properties of the coil, the insulation grade of grade C, the overall insulation of the chuck up to grade H, long service life.
MAGNET BODY | fabricated from high permeability low carbon steel for minimum leakage and maximum magnetic lifting and holding efficiency with utmost toughness |
CENTRE POLE | casted from high permeability low carbon steel for minimum leakage and maximum lifting capacity. |
SCRAP LIFTING MAGNET BUMPING PLATE | A strong ribbed manganese steel casting forms the bumping plate and is locked with square bar surrounded to centre core. It surround the centre pole which provide most effective magnetic circuit, bywhich entire bottom face of magnet becomes effective for lifting. |
COIL PACK | made from double fiber glass covered high conductivity Copper / Aluminium stripes with “H” class insulation and so designed to withstand high temperature during operation. |
TERMINAL BOX | cast integral with magnet shell and is designed to prevent the internal connections From mechanical damage. |

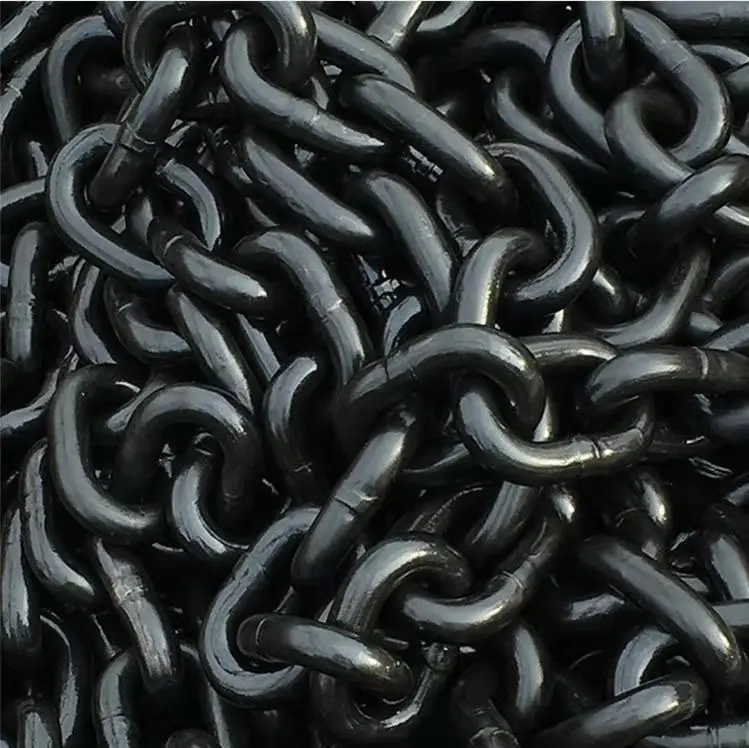

LIFTING CHAINS | specially designed to suit all normal duty loads as well as for extra heavy lifting such as slap handling is provided. |

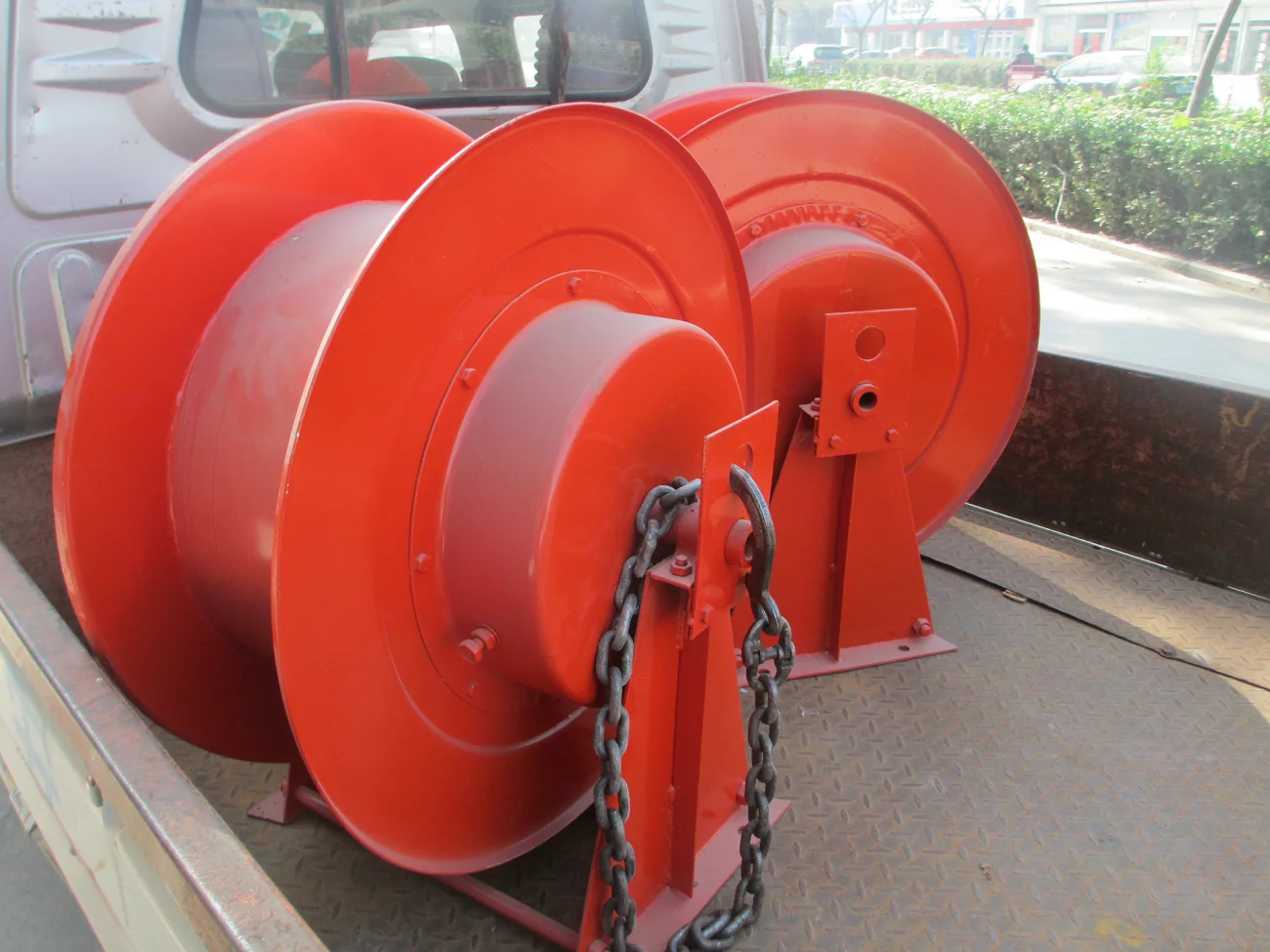

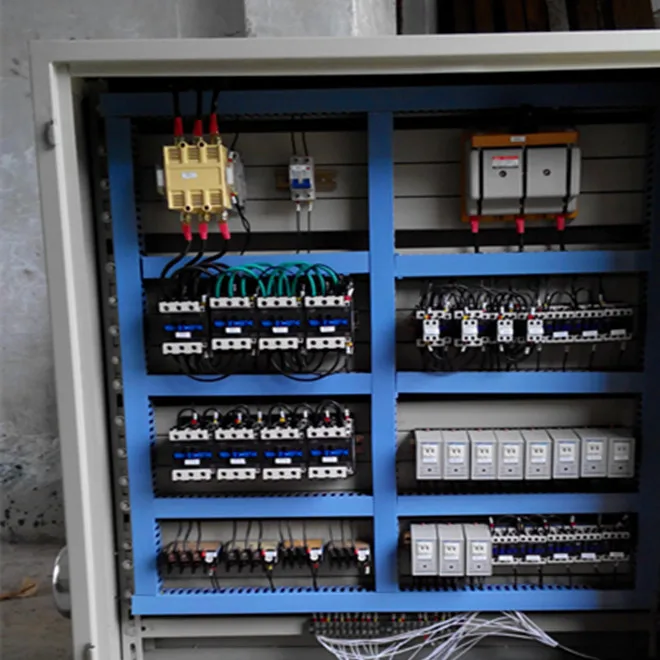

ACCESSORIES | Control panel, Master Control, Cable Reeling Drum |

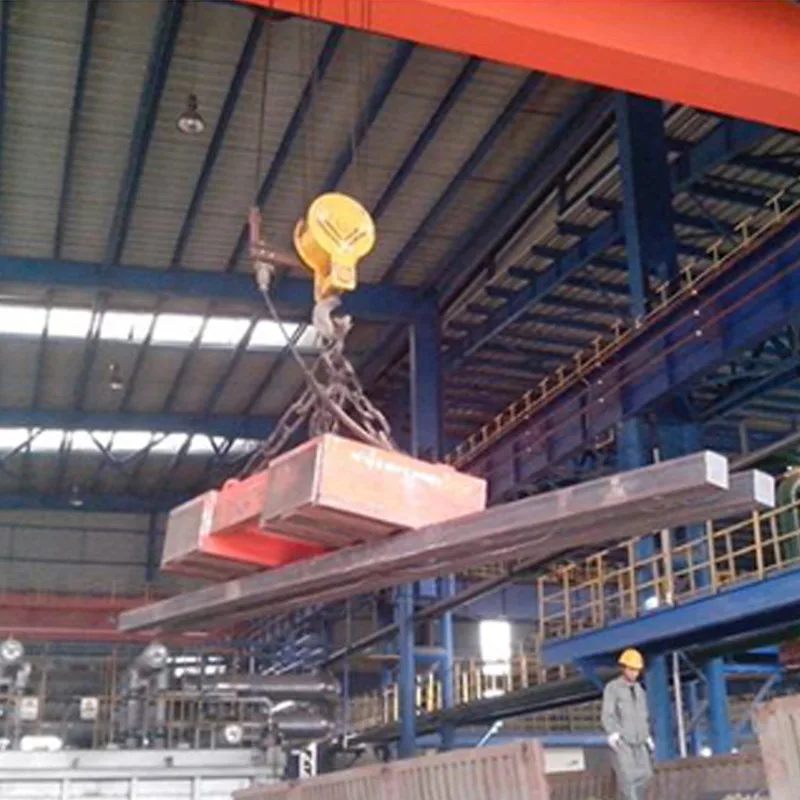

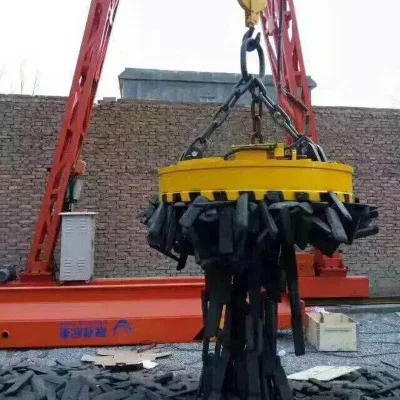

Application Scenarios
Related Products
Roll Lifter---C-Hooks & Turning Hooks
Lifting Balance Beam Adjustable
Coil Lifter---Single Arm C hook
Padded Pipe Lifting Clamps
Scissor Grab Lifting Clamps
J Hook Ladle Lifter / Beam
Company Introduction
Factory Details
Since 1992
Factory area： 45000 m²
Number of employees： More than 200
Number of engineers： More than 20
Monthly production: More than 600 sets
Why Choose Us
Manufacturing License
People's Republic of China special equipment manufacturing license（Left）
Safety production standardization certificate（Right）
Products Quality and Company Strength Certificate
CE Quality Certificate(Left)
BV audit certificate(Right)
Horizontal Inspection Platform
Ensures the horizontal performance of the product, and makes sure that the product works steadily.
Machine Test
Ensure that every machine meets the industry standard for construction elevators.
Spraying Process
Improve product corrosion resistance, improve the durability of products.
Advanced Production Equipment
Ensure the precision of the product, shorten the production span, increase productivity
Packing&Shipping
