Products Description

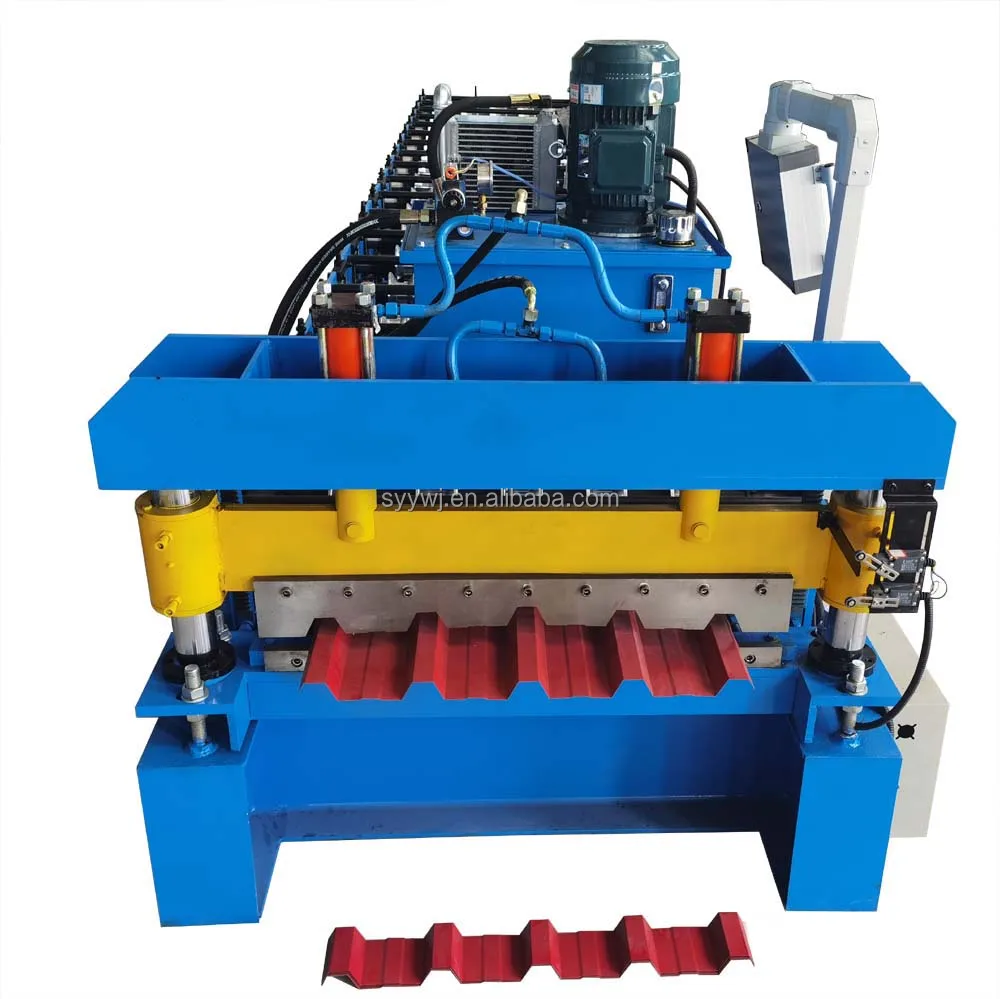

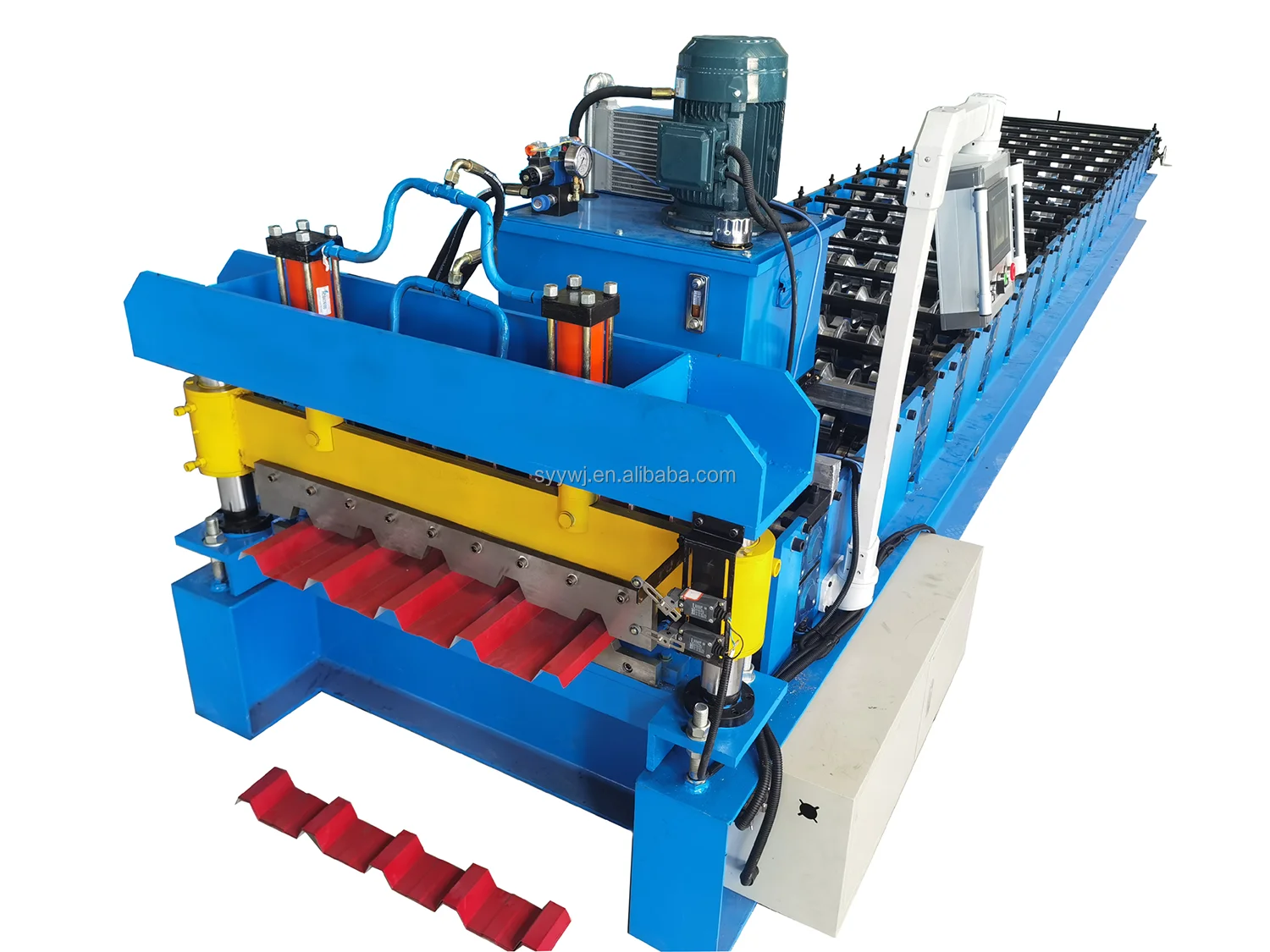

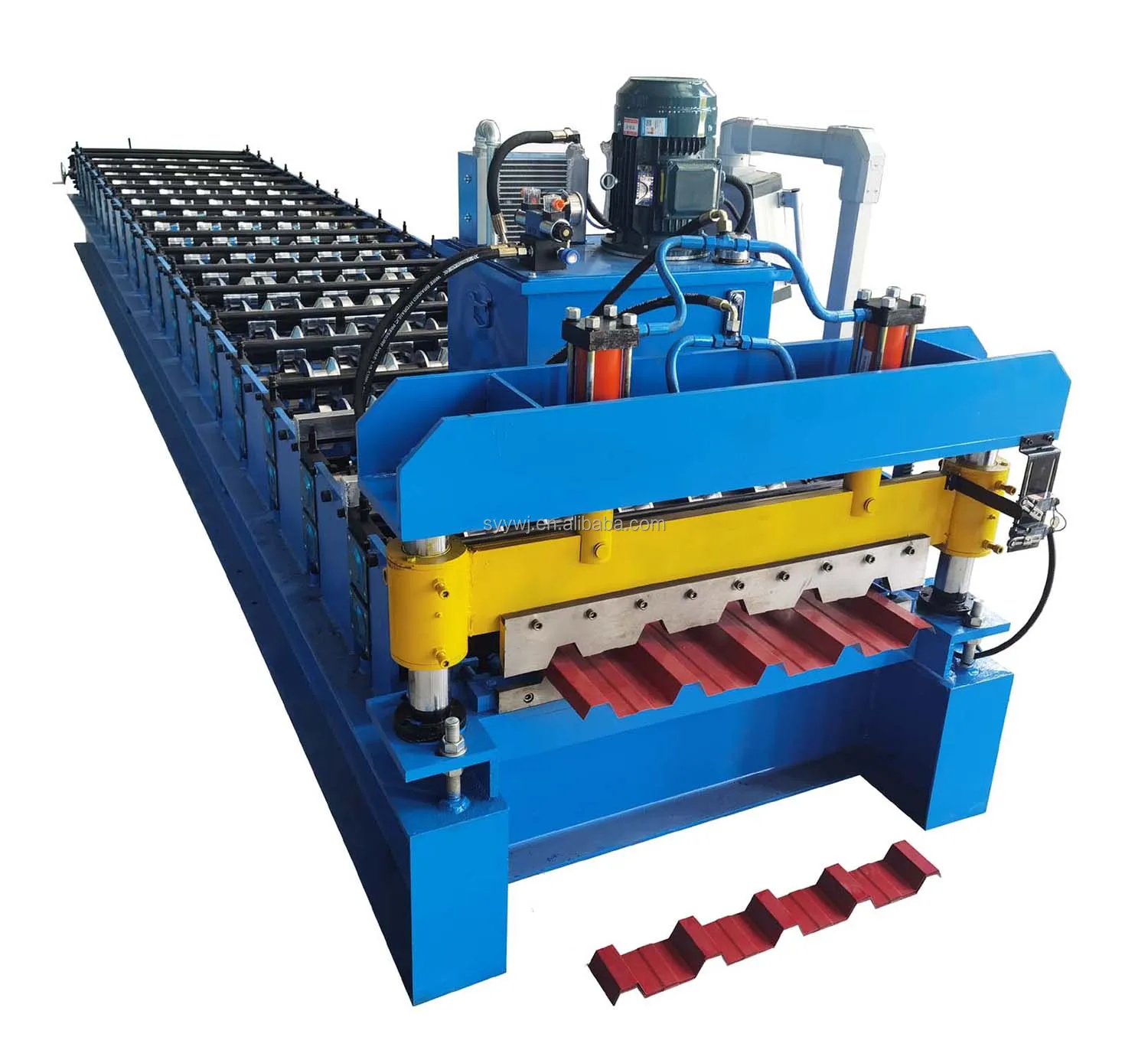

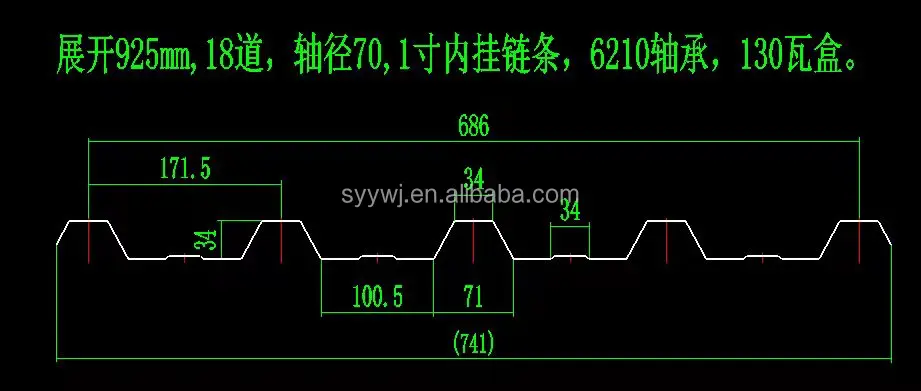

686 Trapezoidal Roofing Sheet Roll Forming Machine
We can make machine as your requirement.this machine is easy operation



Main parameter


No
Item
Specification

 Material
Raw material
GI or PPGI
Material thickness
0.25-0.6MM






Machine body
Roller material
High grade 45# steel with Cr12 quenched
Shaft material
High grade 45# steel with Cr12 quenched
Shaft diameter
70mm
Roller stations
18
Middle plate thickness
16mm
Machine size
7100*1200*1200mm
Productivity
12-15m/min

Cutter
Material
GCR12
Method
Hydraulic cutting



Power
Driving way

Chain 1 inch
Motor
5.5KW
Hydraulic oil pump
5.5KW
Voltage
380V,50HZ ,3 phase or customized as your need


Control system
PLC ,invertor
Delta from Taiwan
Screen
Delta ,touch screen
Encoder
Omron from Japan
Language
Chinese & English or as your request

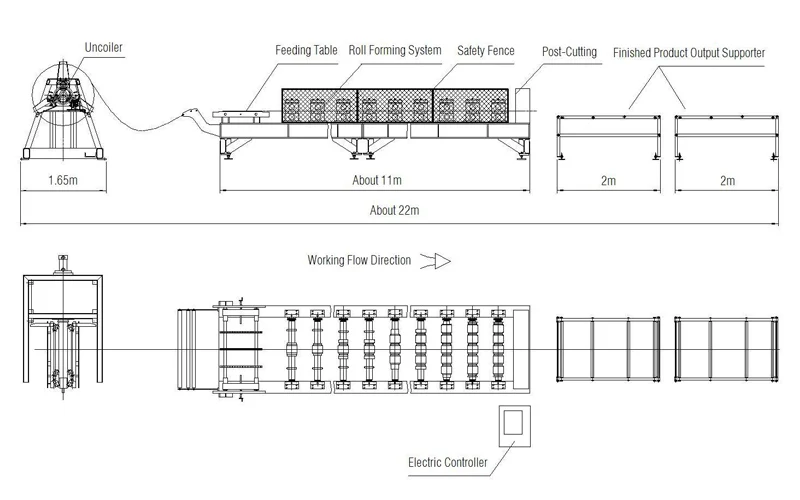

Working flow


Working flow
Uncoiler --Feeding table --Roll forming system --Hydraulic cutting --Finished product--Receiving table


Details Images






If you want more machine pics and videos ,pls contact




Other related machines for you to choose

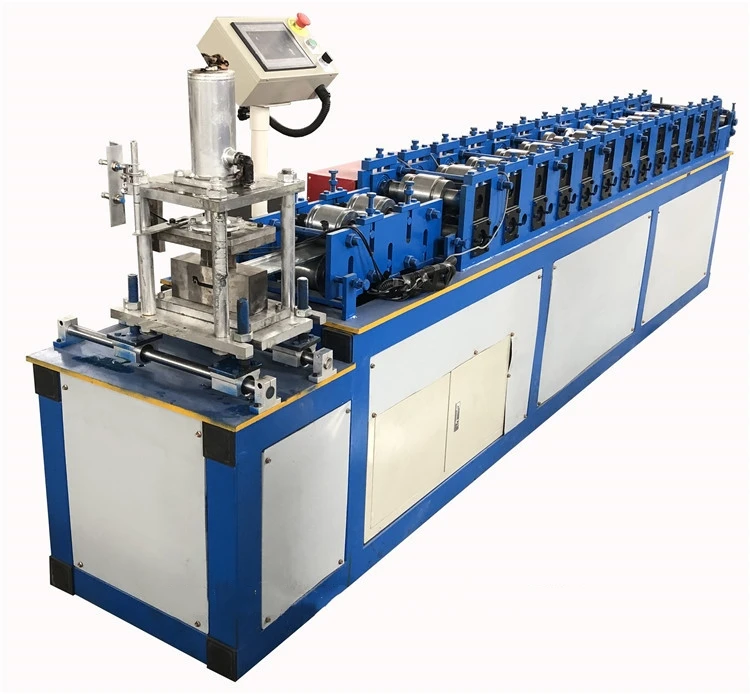

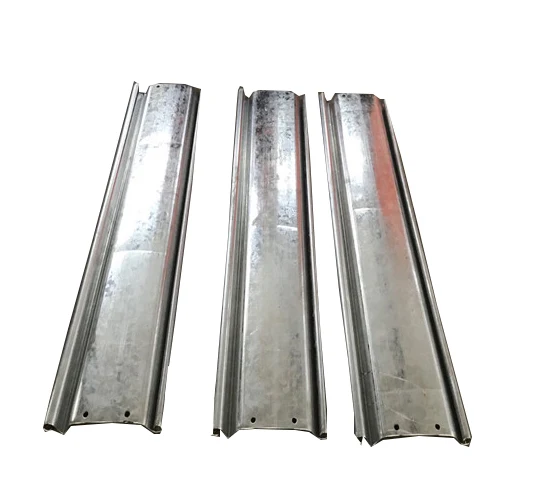

1. Shutter Door Roll Forming Machine

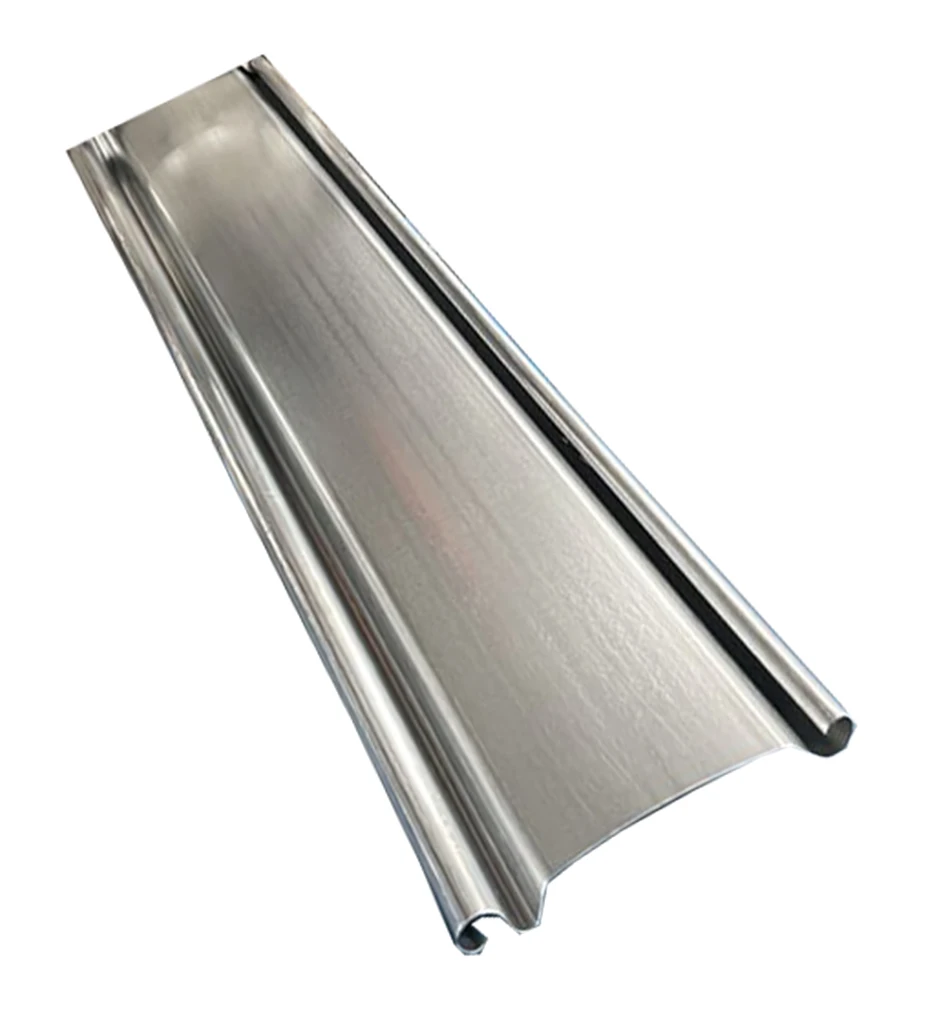

Slat shutter door machine is the most common style ,it is used fro making flat shutter door panels ,simple but strong and cost effective ,many custoners choose this style

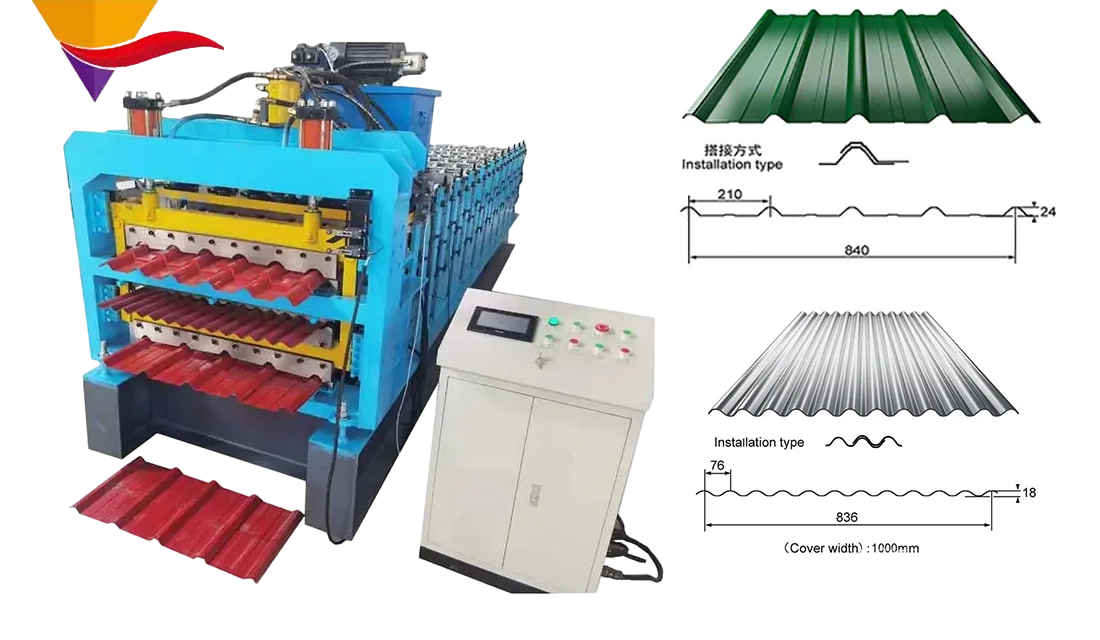

2. Three Layer Roofing Sheet Roll Forming Machine




Nowdays ,more and more customers prefer to choose one machine can make more profiles ,as the styles make the view very beautiful and attract more and more customers for them

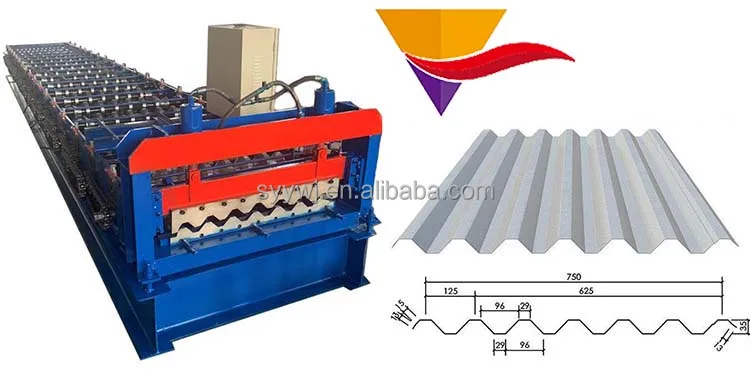

3. 750 Wall panel Roll Forming Machine


1) Machine with 2 round holes




If you prefer the panel with two round holes ,then a online punching mould is enough ,if you want it with many holes on the surface ,then need a 25T punching machine ,with a servo feeding motor ,which can higher the speed and enlarge the production


4. Metal Stud Roll Forming Machine

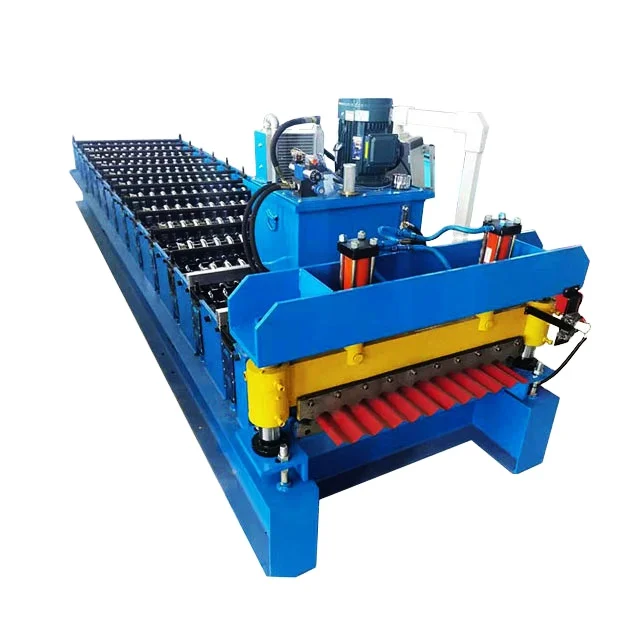

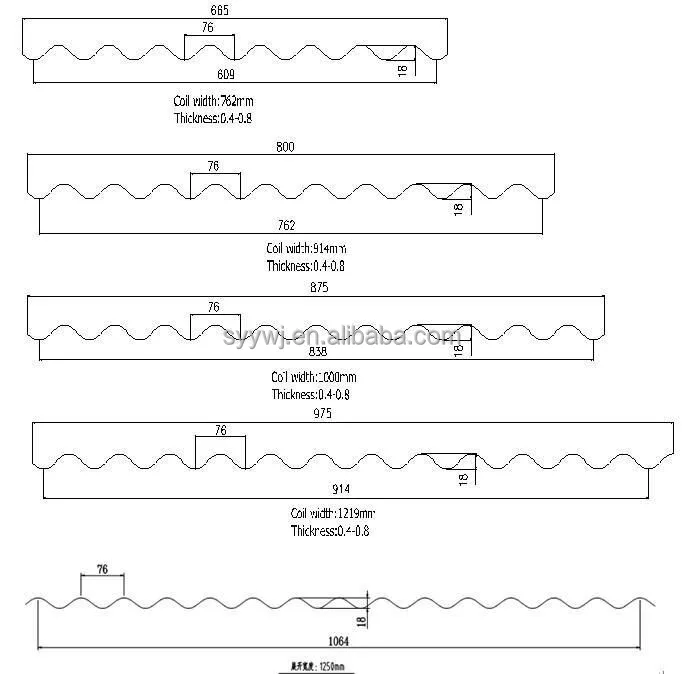

5. Corrugated Roofing Sheet Roll Forming Machine

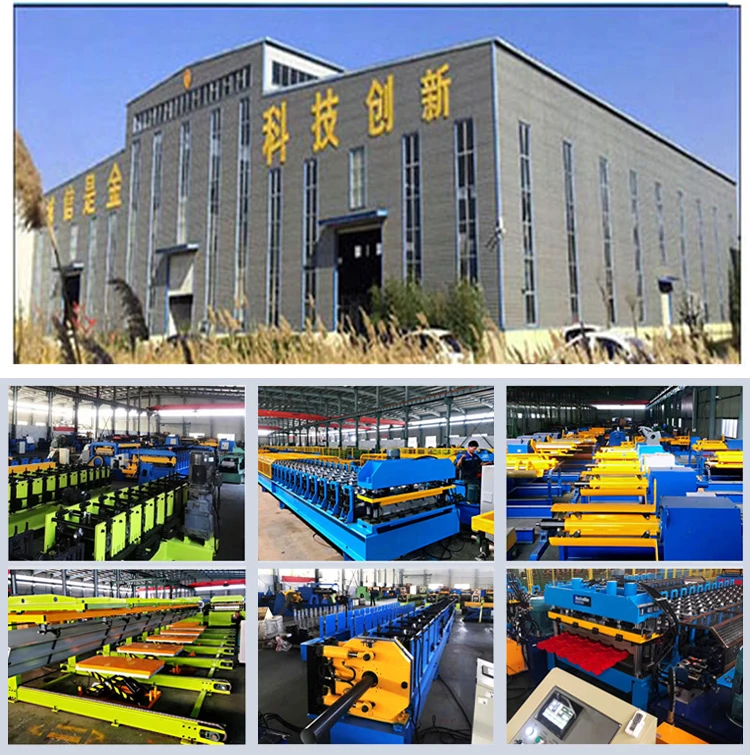

Company Profile



SANYANGTONGTAI MACHINERY CO.,LTD
Botou Sanyangtongtai Machinery Co.,ltd is a leading manufacturer for steel plate coiling
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped steelplates,expresswayrailings,colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.

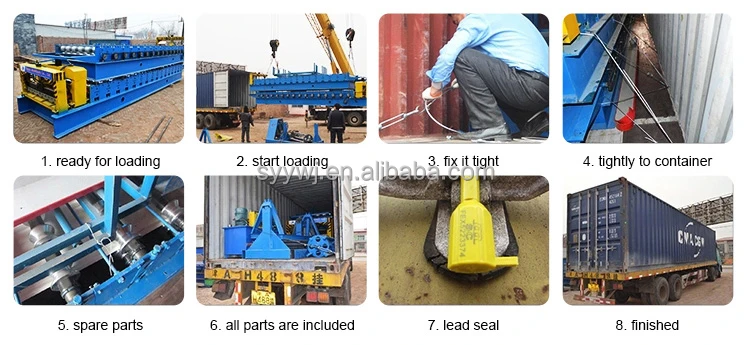

Product packaging
