Алюминиевый профиль промышленного

Описание и отзывы

Характеристики

Aluminum Profile For Vaporizer

Production Capacity: 100, 000 Tons/ Year

Payment Terms: T/T,  L/C, Western Union, Paypal

Certification: ISO9001, RoHS,

Shape: As per customized drawing

Material available: Aluminum alloy 1000-8000series

Machinery in Process: Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery



Model  & Capacity of the extruded Equipment

Model	Qty.	Function	Size of extrusion barrel(mm)	Outlet size of compression machine(mm)	Size of extruded rod(mm)	Weight of Aluminum bar
630T	2	Forward single action extrusion	95*500	130*150	90*450	6.8KGS
1000T	1	Forward single action extrusion	132*600	150*180	127*550	17.8KGS
1350T	1	Forward & reverse double -acting extrusion	155*650	180*200	150*600	26KGS
2500T	1	Forward & reverse double -acting extrusion	236*950	310*370	229*900	93KGS
3600T	1	Forward double -acting extrusion	320*1200	400*520	310*(550-1100), 280*(550-1100)	112KGS-224KGS
Auxiliary equipment: 1 set 7m aging furnace and 1 set 14m aging furnace

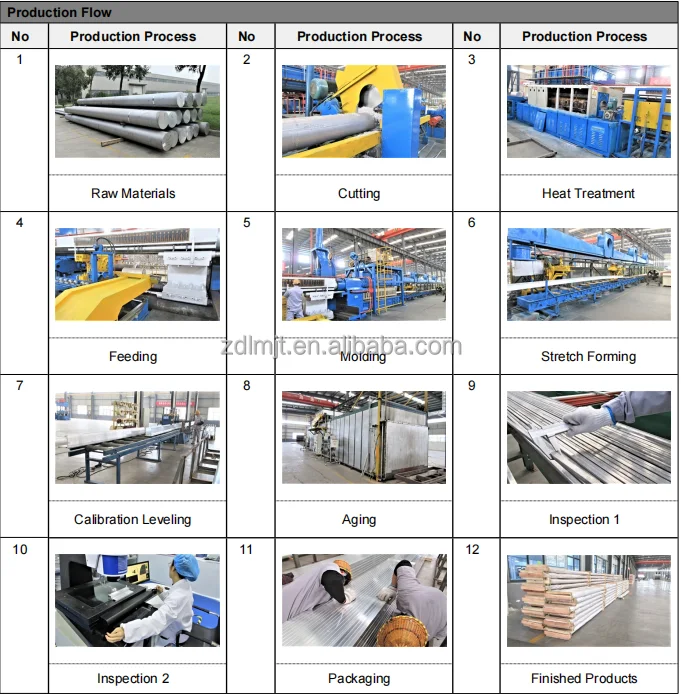

Production Flow

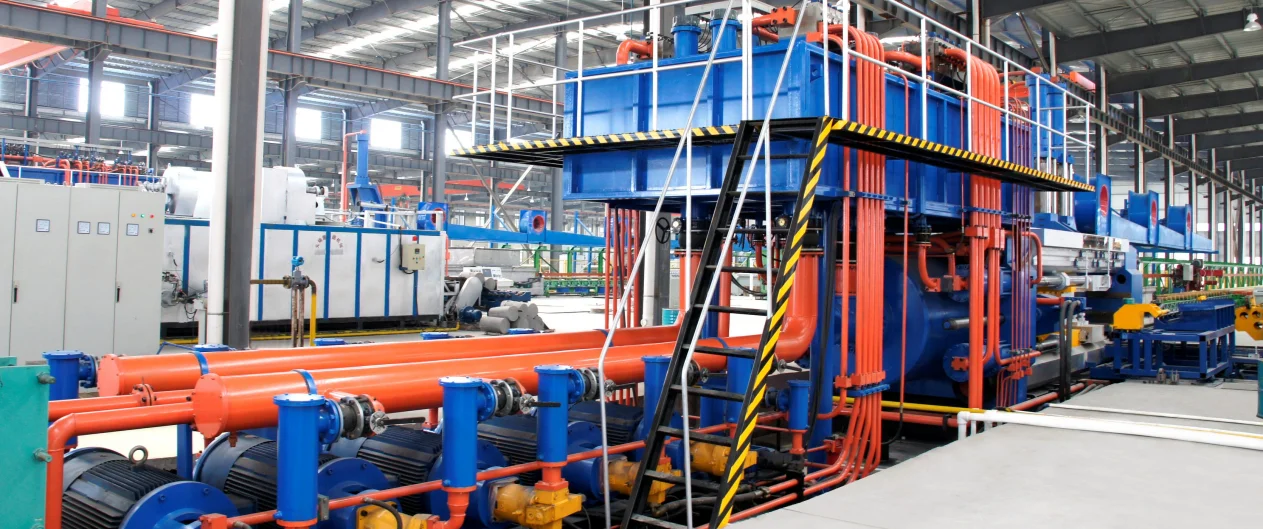

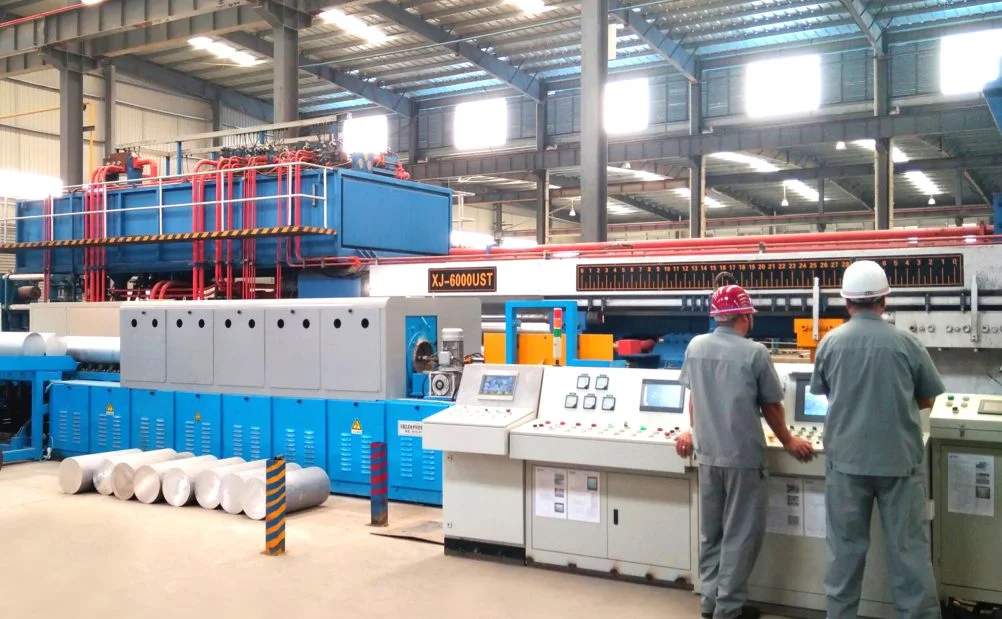

Our Workshop

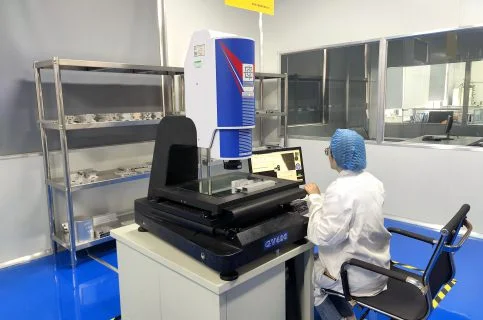

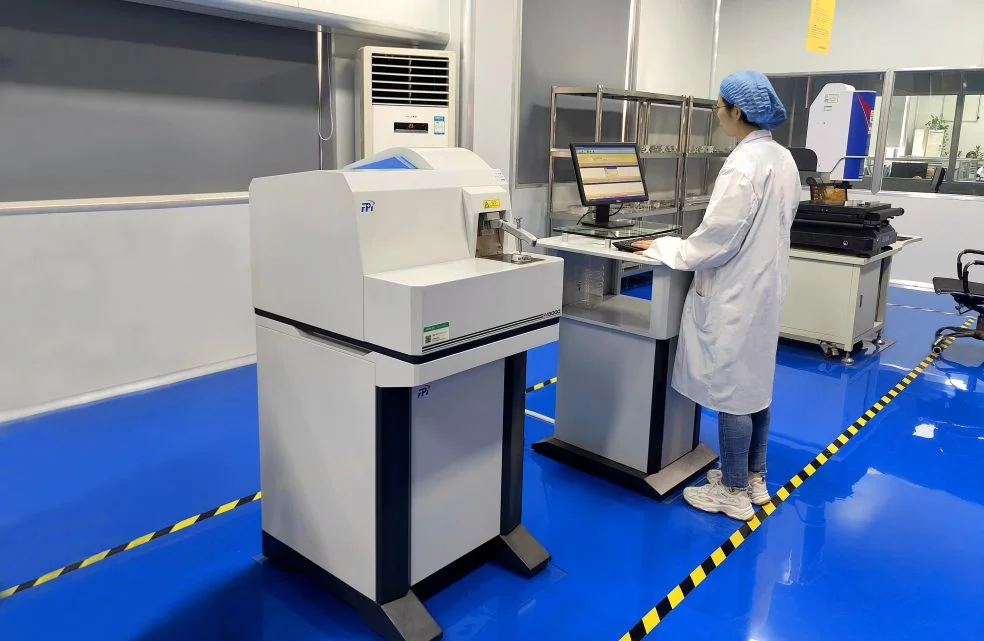

Research Center

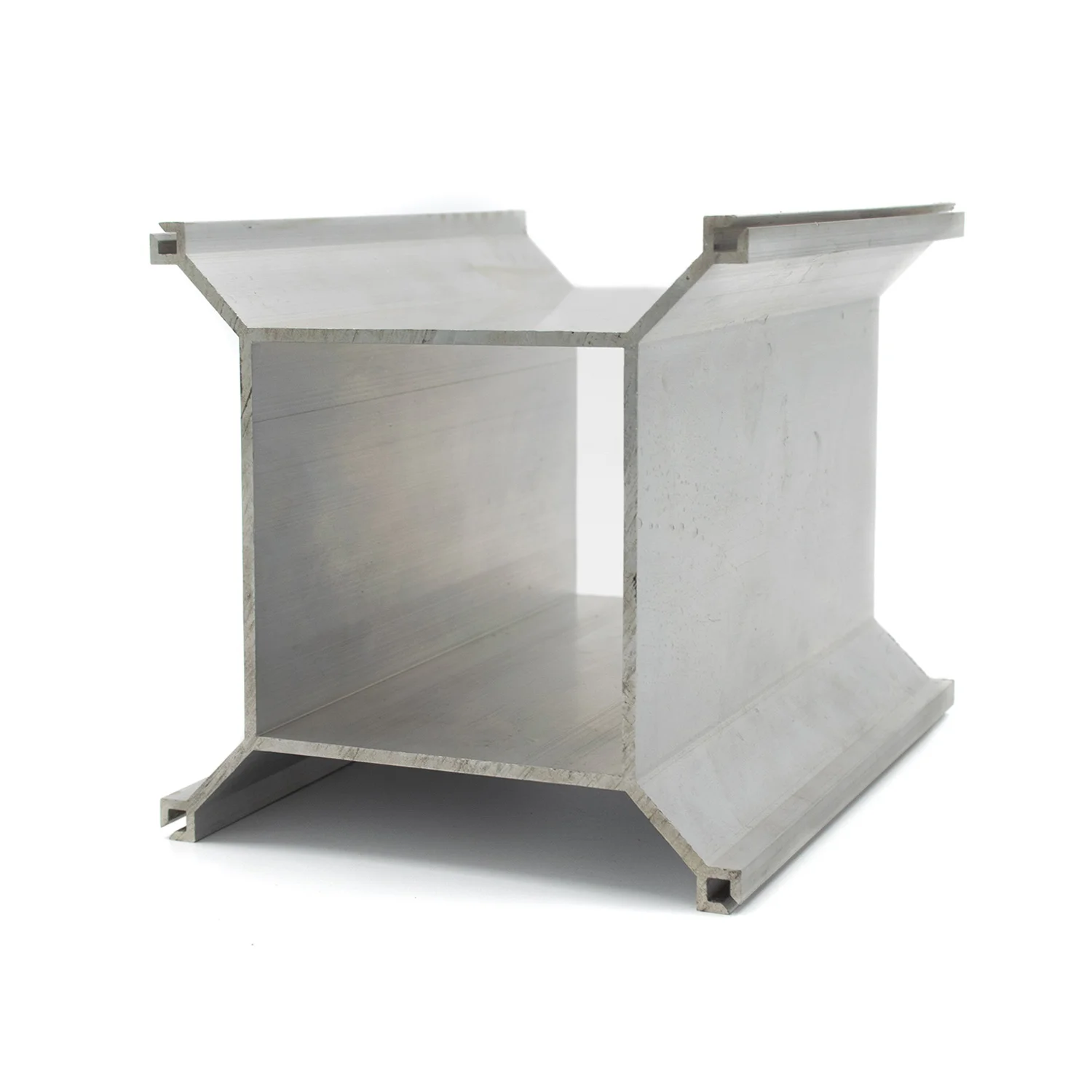

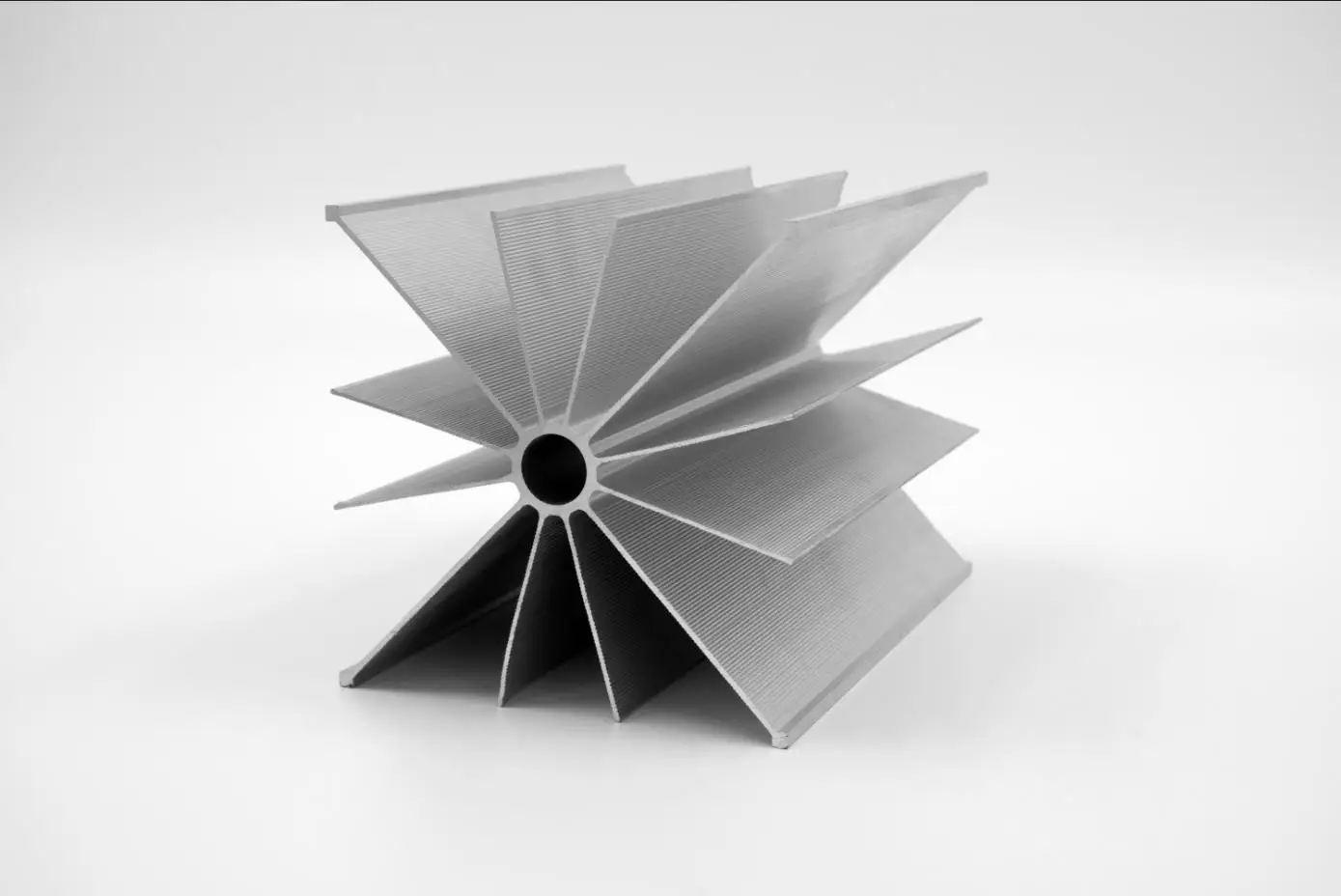

Finished Products





Packing



What is Aluminum Extrusion?
Aluminum extrusion is the introduction of a heated aluminum ingot into a container and forcing it at high pressure through the profiled opening of a die which corresponds to the cross-section of the extrusion.



Why is Aluminum Extrusion?
More and more people are realizing the benefits that aluminium extrusion can offer:  The unique properties of aluminium in combination with the virtually unlimited opportunities the aluminium extrusion process gives to adapt product shape to innovate, reduce cost and maximize efficiency. From automotive to architecture, furniture to facades, lifts to lighting, the use of aluminium extrusions is extensive and new applications are being discovered every day.
Besides, the cost of aluminium extrusion is significantly lower than other processes, such as casting or forming and other extrusion processes such as plastic.  Costs vary depending on the size, type, and complexity of extrusion.
In addition, the low density of aluminium results in a lightweight profile compared to other materials, which is easy to handle down the supply chain, as well as being cheaper and more environmentally friendly to transport.



Our advantages:
1. Technician team: over 30 years of experience in Aluminium extrusion for industrial application.
2. Rich source of Aluminium ingot locally.
3. Export staff embodied with fluent English communication skills, good knowledge in aluminium extrusion industries, and exports. Stable and reliable to help to sort out all problems.
4. Wide range of Aluminium alloy materials available.
