Construction hoist anti-fall safety devices,Anti Falling Safety Device SAJ40-1.2 pinion and cone progressive safety device is the most important safety device in the pinion and rack builder's hoist, which can prevent the cage running over speed, and effectively reduce the cage dropping accident.

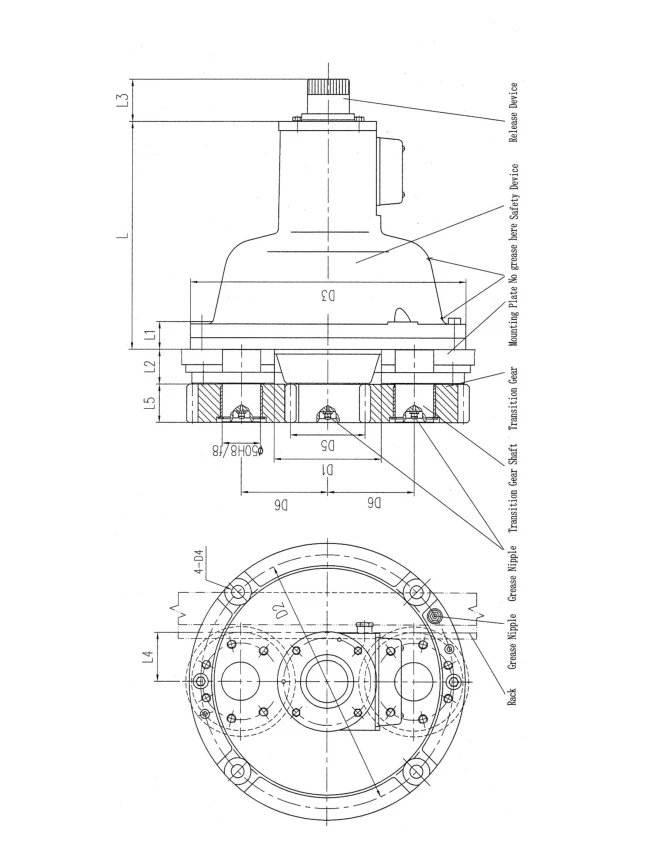

Construction hoist anti-fall safety devices,Anti Falling Safety Device SAJ40-1.2 is one typical model of building hoist gear cone drum progressive anti-falling safety device, and is designed for prevent building hoist cages or counterweight from falling. It is made up of gear, centrifugal speed limiter device, cone drum and brake device.construction hoist safety devices,anti-fall safety device,elevator safety devices.
Passenger Hoist Safety Device Parts SAJ40-1.2 | |
Brand | SRIBS,GJJ |
Application | Construction hoist, passenger&materical hoist |
Model | SAJ40-1.2 |
Rated tripping speed | 1.2m/s |
Tripping speed | 0.95m/s, or could be required by customer |
Braking load | 40KN |
Weight | 50kg |
Size | 410*410*510mm |

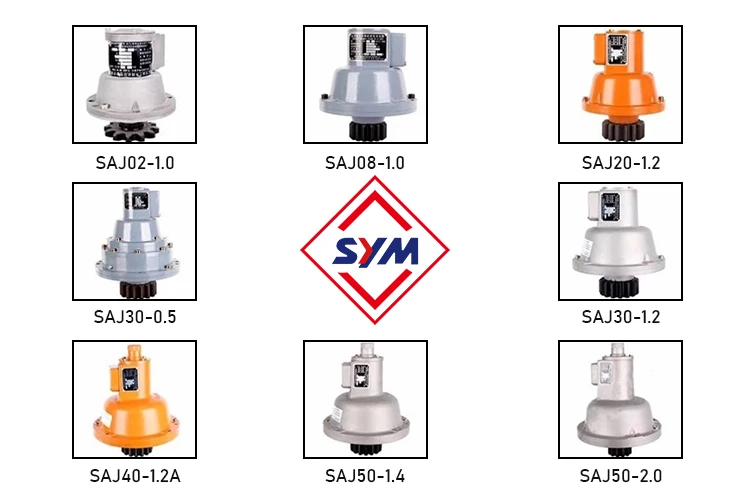

Other model of SAJ safety device | ||||||
Model | Braking load | Rated tripping speed | Tripping speed | Weight | Z | M |
SAJ02-1.2 | 2 | 1.2 | Could be required by customer | 4.6 | 17 | 4 |
SAJ08-1.2 | 8 | 11.5 | 15 | 5 | ||
SAJ30-0.5 | 30 | 0.5 | 44 | 8 | ||
SAJ30-1.2 | 1.2 | 35 | ||||
SAJ30-1.2A | ||||||
SAJ30-1.4 | 1.4 | |||||
SAJ30-1.6 | 1.6 | 50 | ||||
SAJ40-1.2A | 40 | 1.2 | ||||
SAJ40-1.4 | 1.4 | |||||
SAJ40-2.0 | 2 | 56 | 12 | |||
SAJ50-1.2A | 50 | 1.2 | 50 | 15 | ||
SAJ50-2.0 | 2 | 56 | 12 | |||
SAJ60-1.2 | 60 | 1.2 | ||||
SAJ60-2.0 | 2 | |||||
SAJ70-1.4 | 70 | 1.4 |
SAJ serials safety device is the most important apparatus in the pinion and rack builders’ hoist, which can prevent the cage running over speed, and reduce the cage from dropping accident effectively. After the improvement and development, SAJ serials safety device has been developed for the full range of products to adapt to all kinds of construction hoist such as gear rack type material hoist and working platform. Our company can develop various non-standard safety protection devices and equipment according to the user's needs, and provide various safety technical consultation and solutions.
FAQ
Q1: Are you a trading company or a factory?
A1: We are factory.
Q2: How about the installation?
A2: Engineer could be sent to your site for installing and inspection.
Q3: How long is your delivery time?
A3:Generally 3-5 days after advance payment.
Q4: Do you provide test report for it?
A4: Yes, every safety device we will do the test before leaving the factory, we will provide the
report with the shipment.
Q5: Is it convenient to see visit your factory ?
A5: Yes,we welcome every customer to visit our company. We also supply to visit our factory by live stream.
Q6: What certificates do you have?
A6: CE, TUV, ISO9001
Q7: What info should I provide with the inquiry?
A7: Safety device model and nameplate.
Q8: Which model of safety device have transition teeth?
A8: SAJ40-2.0, SAJ50-2.0,SASJ60-1.2,SAJ60-2.0,SAJ70-1.4
