Сверхпрочная подставка для труб опускания роликов соответствует

Features:

• The Rollers ride easily over weld seams and do not hang up. The use of high quality materials throughout the design ensures maximum performance.


• The special damping characteristics of the rollers result in an excellent dynamic load-bearing ability and offer outstanding performance.


• Disassembling the Pipe Roller Cradle reduces the volume to a convenient storage and transit size.

DL4860

Applicable range:48-60 inch(1219mm~1524mm)

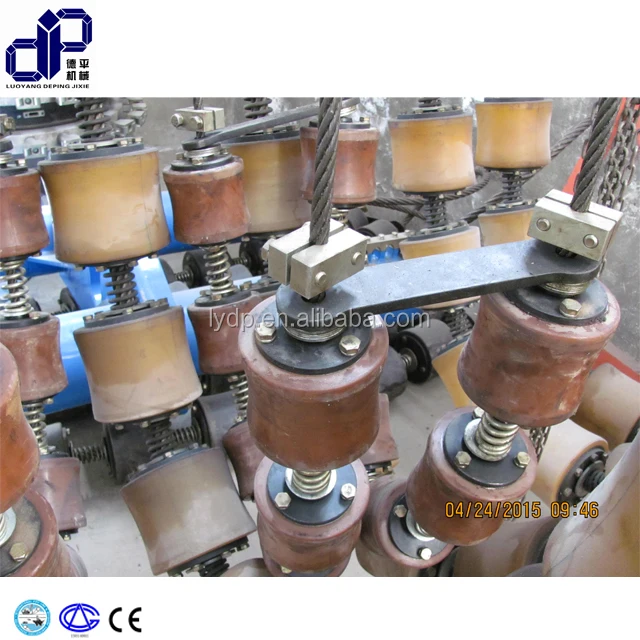

Roller number: 4 x 11 sets

Working load: 48,100Kg

Weight: about 3,100 Kg

Supper strong elastomer material in the world: Vulkollan from Bayer (German), high load-bearing capacity, strong abrasive resistance

Temperature range: -40℃~+100℃,material performance remain unchanged in so high temperature range

Example: wheel of roller coaster

Polyurethane material:

High elastomer material, good load-bearing capacity

Temperature range: -10℃~ +50℃

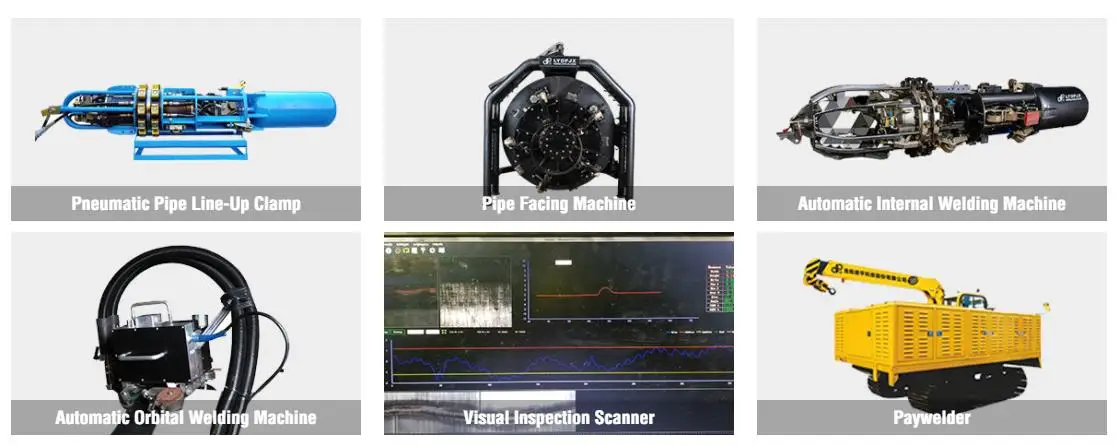

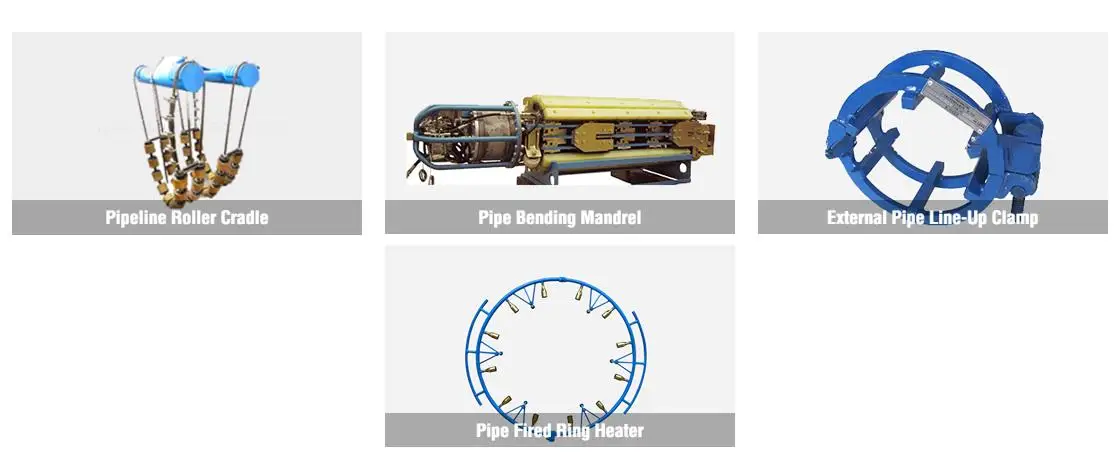

1.Domestic and oversea after-sales service available for full line of pipeline equipments including pipe line-up clamp, pipe facing machine, paywelder, roller cradle, pipe bending mandrel, internal welding machine and automatic welding system etc.

2.Around 20 years experience in pipeline industry including onshore & offshore;

3.Over 35 countries selling record, and non delay project schedule;

4.10~30 days short delivery;

5.CE certificate from SGS

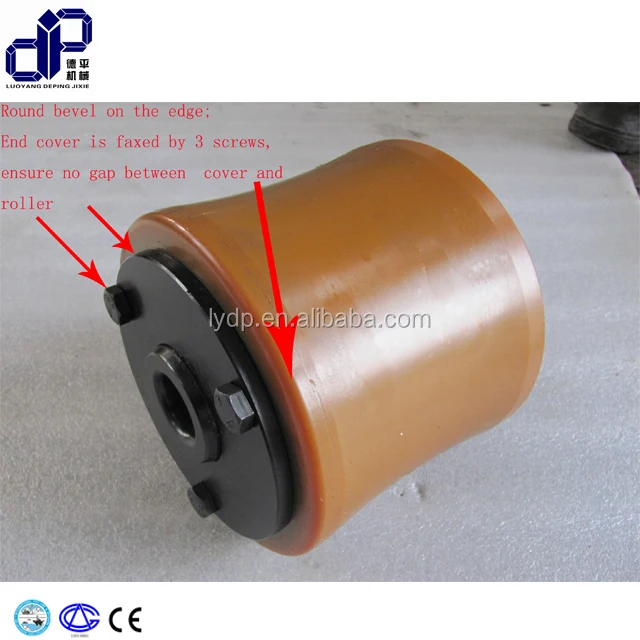

Roller Process Control

roller coating material: polyurethane

Process of roller producing:

Roller material ready— Rough turning as per drawing— Finish turning arrive to above Ra3.2 for surface of roller— Grind arrive to Ra 0.8 for surface of roller— Process coating— Fix shape after coating

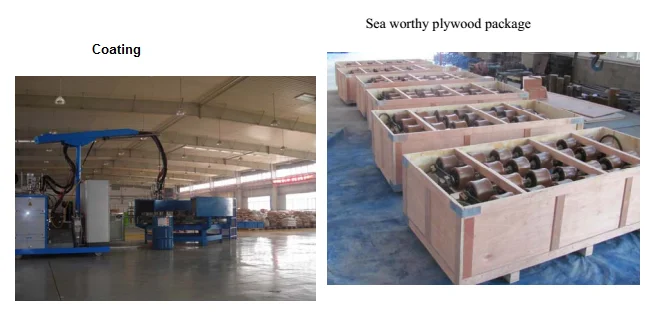

Major coating process including: metal roller polishing, sand blasting, 2 times of ultrasonic cleaning, drying, applying glue, heating treatment in oven, keep dry and metal roller at constant high temperature for coating, coating, vulcanization for 24hours etc.

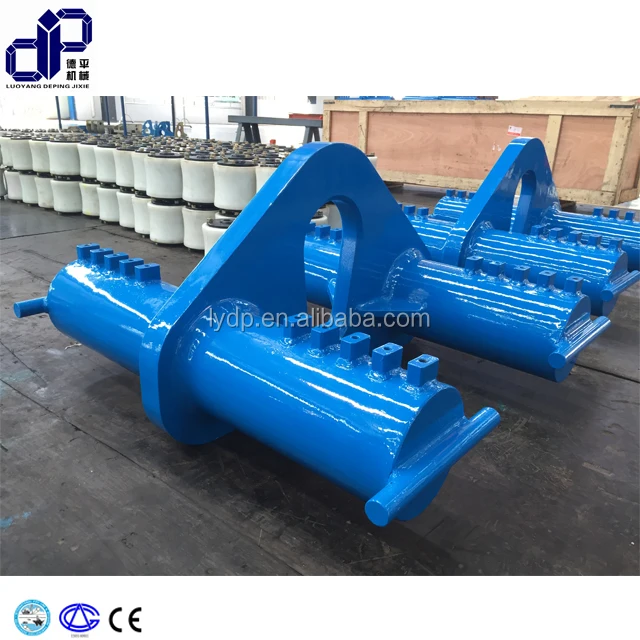

 Deping Tecnology's Pipe Roller Cradle are used in line travel operations. The use of Polyurethane also eliminates the risk of damage to the pipe coating that can be caused during the use of regular metal wheel cradles. DP Pipe Roller Cradle provide the comfort of smooth operation. Disassembling the Lowering Cradle is easy and the volume can be reduced to a convenient size for storage and transport. DP Pipe Roller Cradle comply with all applicable standards.
