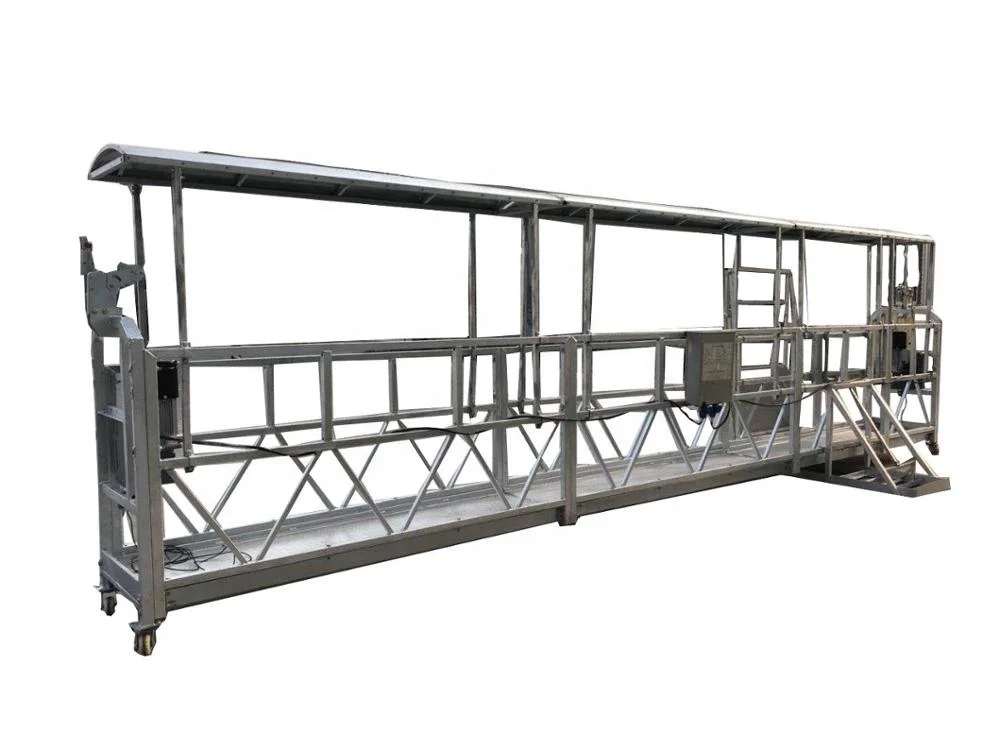

Лидер продаж подъемник строительной платформы ZLP800 алюминиевая
- Категории: Work Platforms >>>
- Поставщик: Shandong,Haoke,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Parameter:
Property Model No. | ZLP630 | ZLP800 | ZLP1000 | |
Rated load(kg) | 630 | 800 | 1000 | |
Lifting speed(m/min) | 9~11 | 8~10 | 8~10 | |
Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
Brake torque(Km) | 16 | 16 | 16 | |
Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | |
Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | |
Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | |
Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack |
| Nr.Of platform | 3 | 3 | 3 |
| L×W×H(mm) | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 |
| Weight(kg) | 375 Kg | 410 Kg | 455kg |
Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
Counterweight(kg) optional | 25×36pcs | 25×40pcs | 25×44pcs | |
Diameter of steel rope(mm) | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
Max Lifting height(m) | 300 | 300 | 300 | |
Motor rotation speed(r/min) | 1420 | 1420 | 1420 | |
Voltage(v) 3PHASES | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
The Height of the platform can be adjusted within 1150-1800mm with arm which can be stretched out and drawn back.It can be widely used parapet and complicated building in different height.And we can also supply customized platform to meet different requirement from the customers .

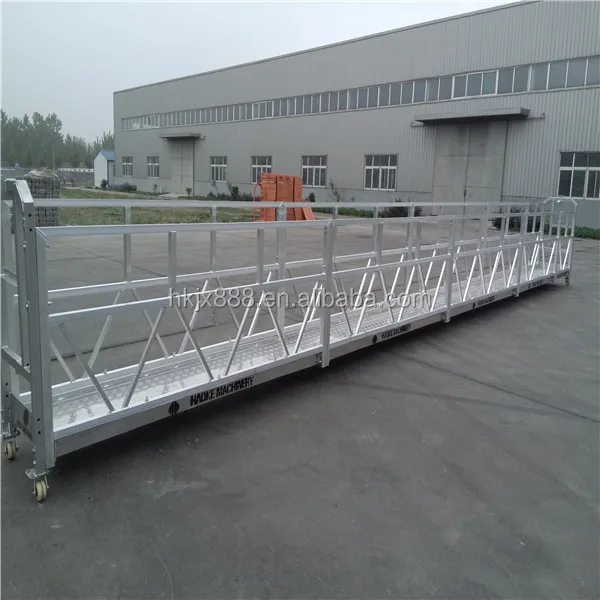

Detailed Images

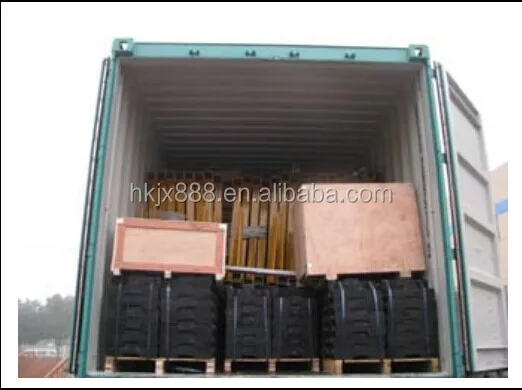

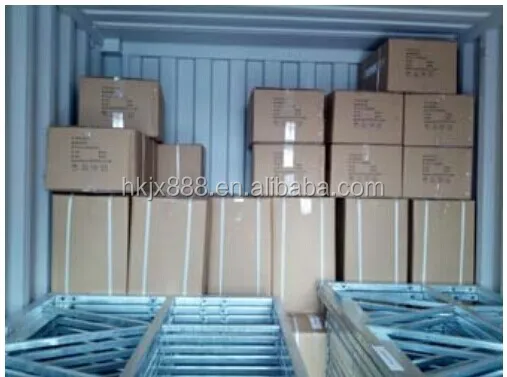

Packaging
Hoist: wooden case
Safety lock: paper box
Electrical control system: paper box
Platform & suspension mechanism: film (binding on both ends)
Counterweight: pallet
Steel wire rope, cable and safety rope: rolling with film outside
20 foot container: 10 sets of ZLP500 & ZLP630; 9 sets of ZLP800
40 foot container: 14 sets of ZLP500 & ZL630; 13 sets of ZLP800

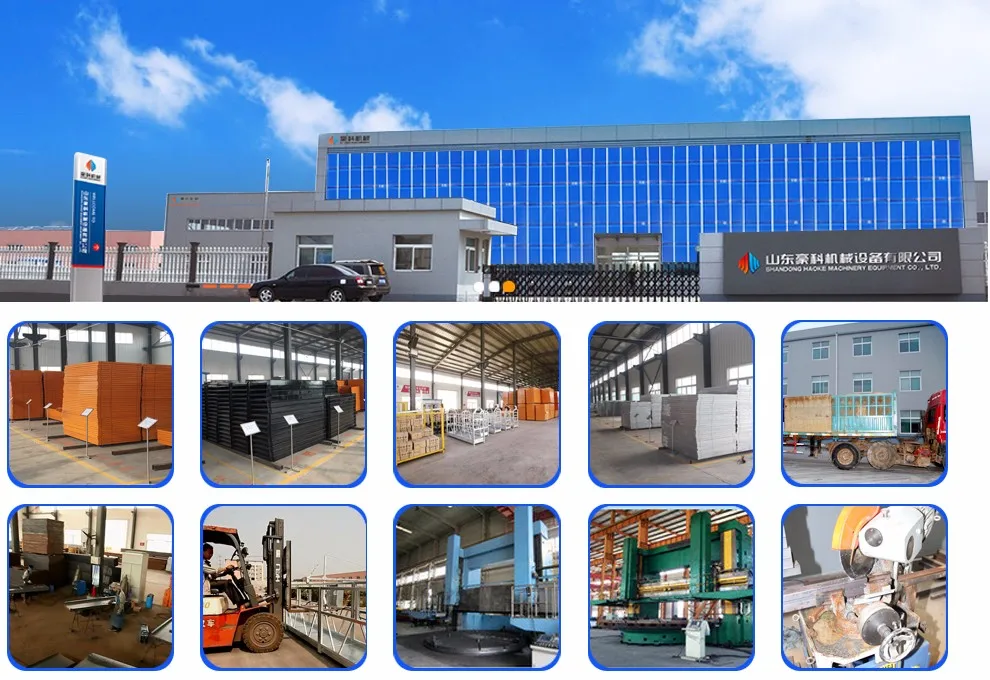

Company Information
Shandong Haoke Machinery Equipment Co., Ltd. is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspensed working platform and other various kinds of construction equipments. We are located in Shandong Gaotang county of China that is a famous hometown of painting and calligraphy, which with very convenient transportation and logistics between South and North of China . Our main products include ZLP series of temporarily installed suspended access equipment as well as the supporting facility such as hoist, safety lock, switch box, suspension mechanism, working platform and other components.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* One year warranty
* Any questions contact with me i'm always here to help you. Adding me Whatsapp:+86 15206649412
FAQ
1).Q: Can I buy only 1 set?
A: Yes, MOQ is 1 set.More quantity, more discount.
2).Q: How to pay?
A: T/T, West Union, Paypal is availible.30% for deposit,70% for balance.
3.Q: How to delivery?
A: By sea, by air or by express also as your request.
4).Q: How long is the delivery time?
A: About 7 days on receipt of your payment.
5).Q: I have some design, can you make it for me?
A: Customized service is available, including length, shape, color, design, depends on your idea
.
Any questions contact with me i'm always here to help you. Adding me Whatsapp:+86 15206649412.
