Product Description

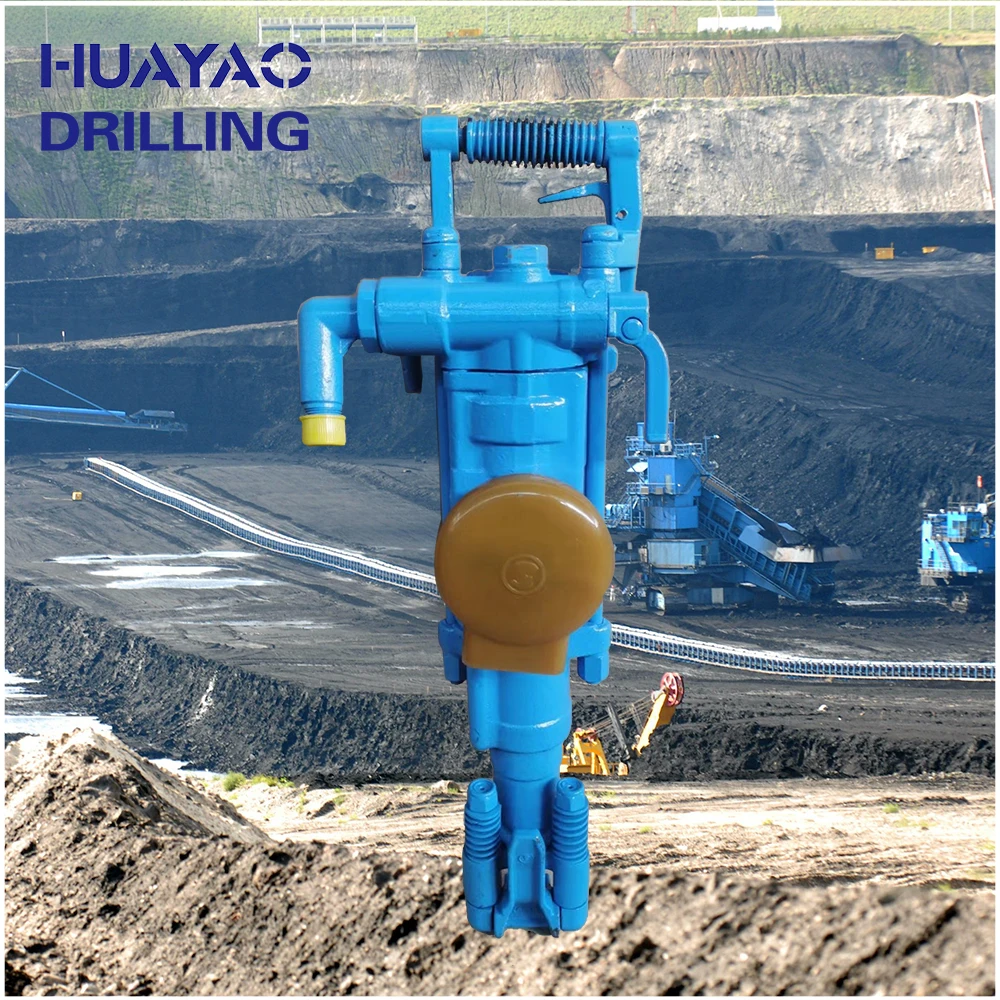

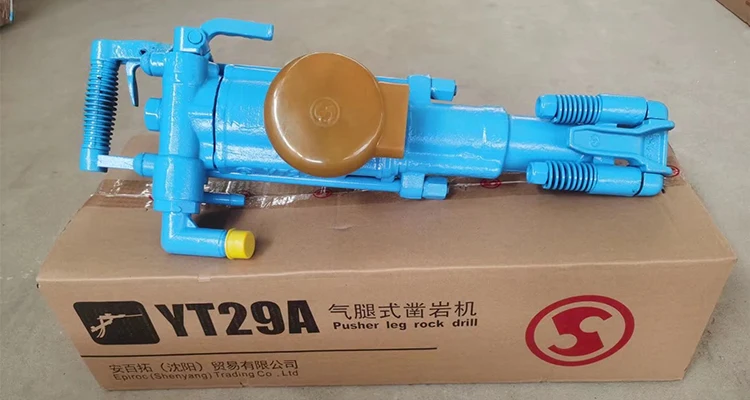

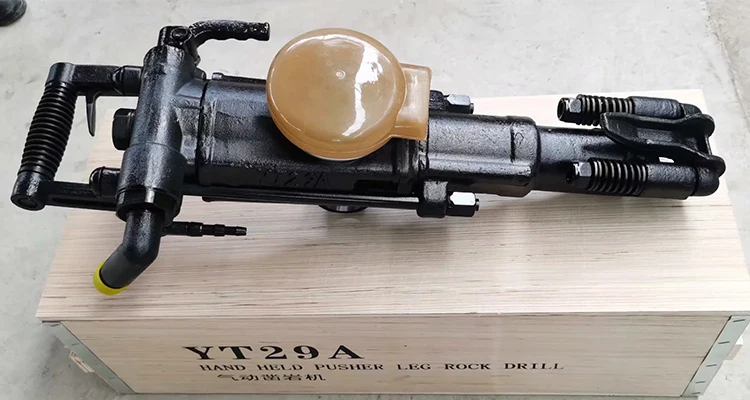

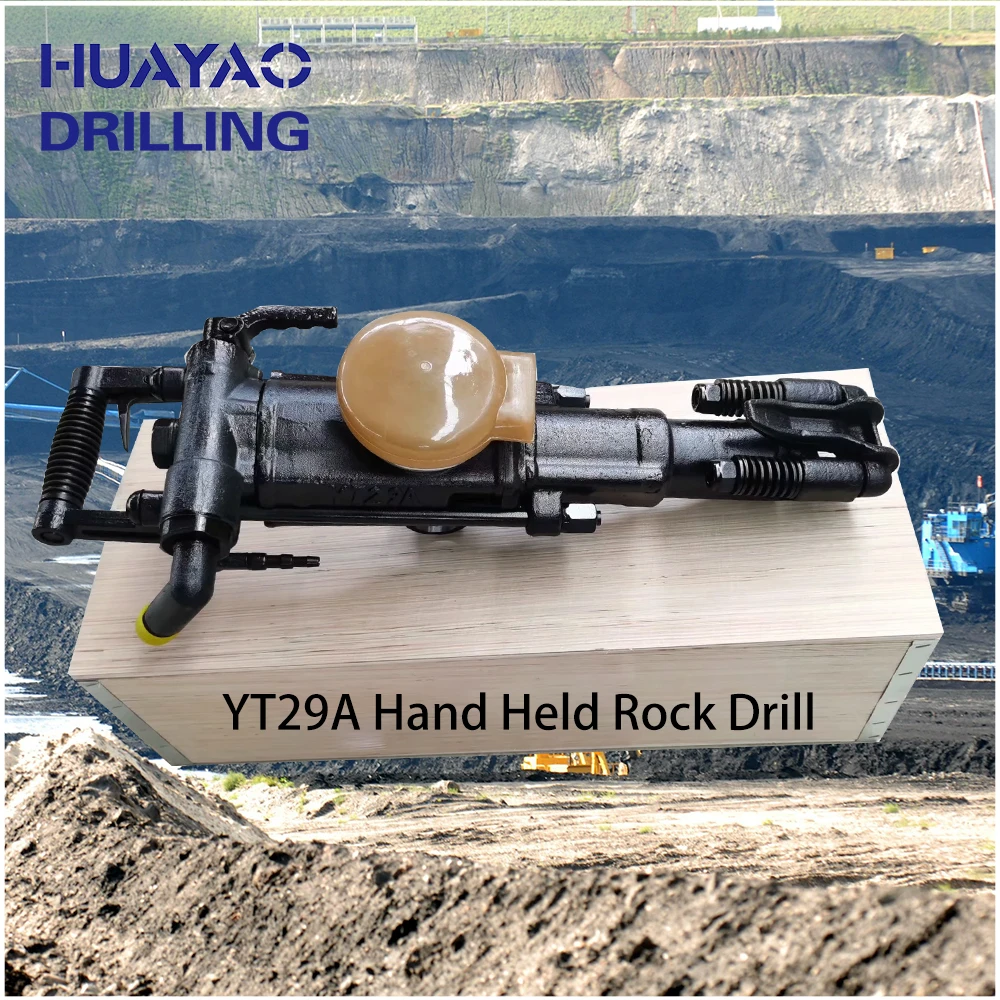

YT29A Hand Held Pusher Rock Drill
The YT29A air-leg rock drill is a heavy-duty air-leg rock drill with the characteristics of high efficiency and low consumption. It is especially suitable for use in the construction of railways, highways, hydropower, etc., and is also used for mining tunnels and various rock drilling operations in metallurgy, coal, etc. Replacement products.
YT29A air-leg rock drill is suitable for drilling horizontal holes and inclined holes on medium-hard and hard (f=8~18) rocks. It can also drill bolt holes upwards. The diameter of the blasthole is generally 34~45mm, which is effective and economical. The drilling depth is 5 meters. According to the size of the roadway section and operating conditions, it can be equipped with FT160A air legs, FT160C long air legs, FT160B short air legs, and metal mines can also be equipped with FT170 air legs, and can also be matched with drill rigs or drill stands for dry and wet rock drilling.
YT29A air-leg rock drill is suitable for drilling horizontal holes and inclined holes on medium-hard and hard (f=8~18) rocks. It can also drill bolt holes upwards. The diameter of the blasthole is generally 34~45mm, which is effective and economical. The drilling depth is 5 meters. According to the size of the roadway section and operating conditions, it can be equipped with FT160A air legs, FT160C long air legs, FT160B short air legs, and metal mines can also be equipped with FT170 air legs, and can also be matched with drill rigs or drill stands for dry and wet rock drilling.
Specification
YT29A Hand Held Pneumatic Rock Drill | ||||||||
Weight | 27 | kg | ||||||
Dimension | 659X248X205 | mm | ||||||
Diameter of Cylinder | 80 | mm | ||||||
Piston stroke | 60 | mm | ||||||
Working air pressure | 0.4-0.63 | Mpa | ||||||
Acceptance of air pressure | 0.63 | 0.5 | 0.4 | Mpa | ||||
Impact energy | ≥78 | ≥69 | ≥50 | J | ||||
Air Consumption | ≤88 | ≤65 | ≤52 | L/s | ||||
Impact Frequency | ≥39 | ≥37 | ≥36 | Hz | ||||
Torque | ≥20 | ≥17 | ≥15 | N・m | ||||
Working Water Pressure | 0 | Mpa | ||||||
Air Tube Inner Diameter | 25 | mm | ||||||
Water Tube Inner Diameter | 13 | mm | ||||||
Suitable Drilling Diameter | 34-45 | mm | ||||||
Suitable for Maximum Drilling Depth | 5 | m | ||||||
Working Temperature | -30 ~ 45 | °C | ||||||
Shank Specifications | H22x 108±1 | mm | ||||||
FY250 Lubricator | ||||||||
Weight | 1.2 | kg | ||||||
Oil tank capacity | 0.25 | L | ||||||
Air Leg | ||||||||
FT160A | FT160B | FT160C | FT170 | |||||
Overall Length | 1668mm | 1428mm | 1820mm | 1668mm | ||||
Feeding stroke | 1338mm | 1098mm | 1490mm | 1338mm | ||||
Cylinder blow-by | 65mm | 65mm | 65mm | 67mm | ||||
Weight | 17KG | 15KG | 18KG | 18KG | ||||

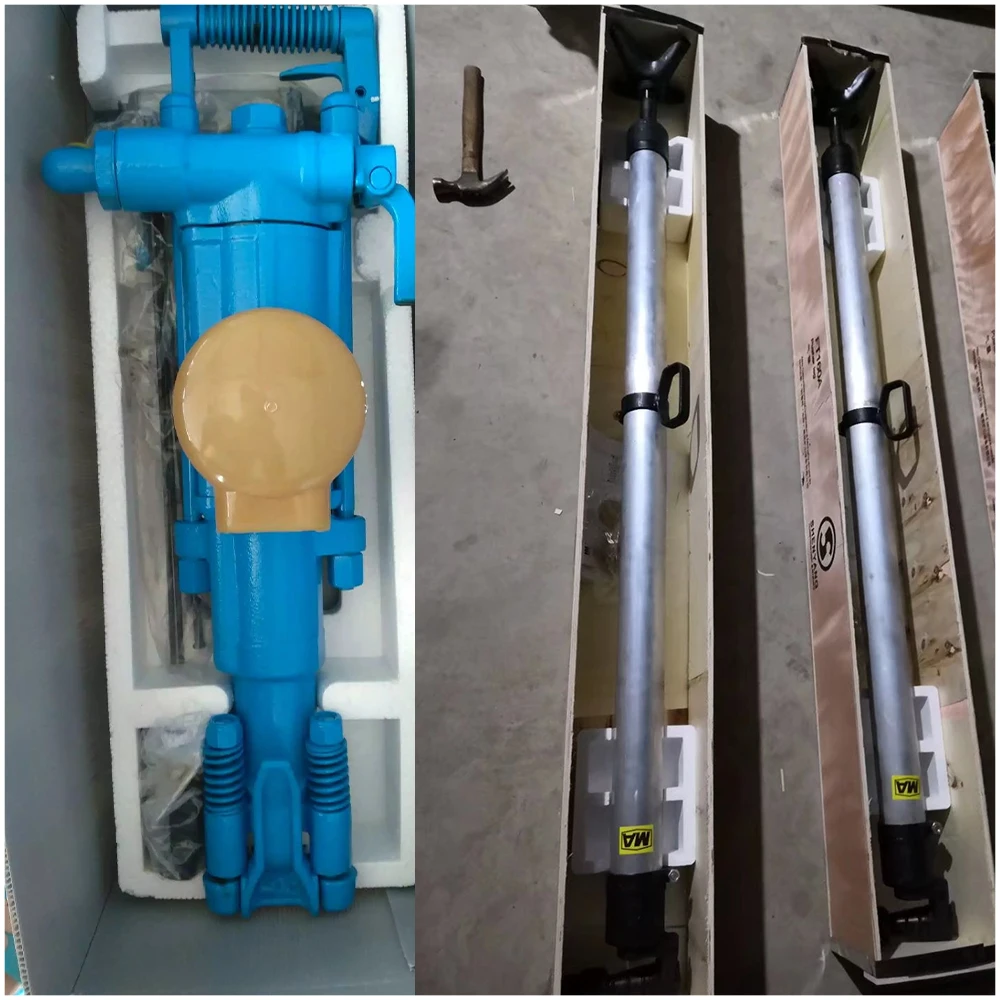

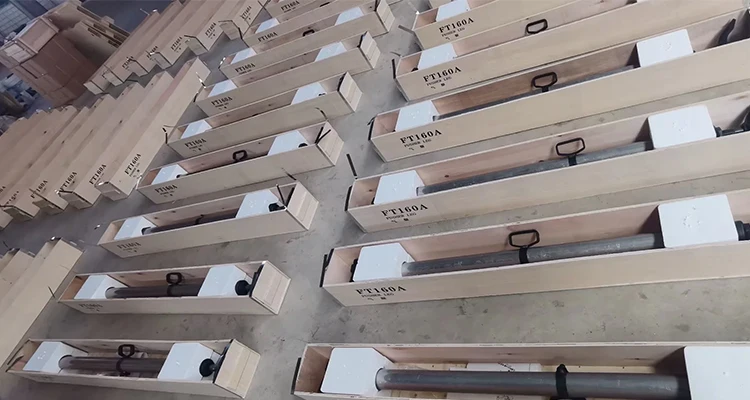

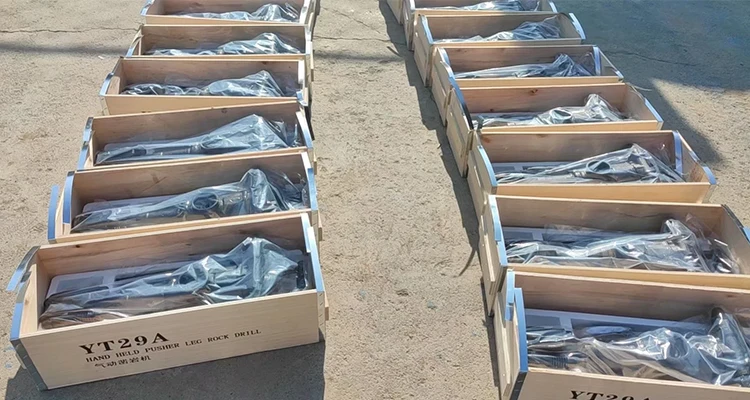

Packing & Delivery
Standard export wooden box packaging can provide customers with personalized packaging customization.
