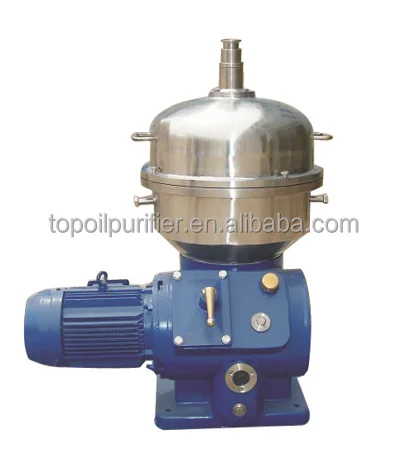

TP203-A Butterfly-type Centrifuge







In essence, the dish separator is the centrifugal process of accelerating sedimentation separation, and it is a kind of sedimentation centrifuge. That is, the use of centrifugal force, thousands of times greater than the gravity acting on the natural sedimentation to accelerate the sedimentation process, is the use of materials in the non-dissoluble component density difference for liquid ● liquid ● solid three phase, liquid ● liquid two phase, liquid ● solid two phase effective centrifugal separation machinery. It is a physical process in the separation of materials, so it will not be like the use of chemical and biochemical methods, easy to leave residues after separation. Because the dish separator has such process characteristics, so it has been widely used in: national defense, shipbuilding, environmental protection, power, metallurgy, petroleum, chemical, biochemical, in medicine, printing and dyeing, food (dairy, beer, fruit juice, beverage) and other industries, it is used to purify, concentrate and clarify low concentration of turbid liquid and suspension.
Motor through the spiral gear drive for high speed rotary drum around the main axis, the material liquid feed pipe flow by the upper center to the bottom of the drum, the disc under the tap hole to drum wall below, under the effect of centrifugal force field, the heavier than liquid solid objects sink to the drum wall formation sediment, lighter fluid flows along the axis of conical disc outer cone to the first division by the lighter fluid to the heart pump, made of light fluid outlet. The heavy liquid moves toward the drum wall along the inner cone of the disc, and then toward. The upper flow through the heavy liquid centripetal pump is discharged from the heavy liquid outlet. The heavy liquid outlet is also equipped with a set of specific gravity rings, which are used to adjust the oil-water interface due to the different oil-water ratio and specific gravity difference of materials, so as to achieve a better separation index. The rotary drum of the equipment is balanced by precise motion, which makes the operation stable, safe and reliable. This machine is artificial slag cleaning type, simple operation, convenient disassembly and assembly.




Capacity
L/H
1500
Drum speed
r/min
8300
Drum diameter
mm
230
Separation ingredients
9630
Slag discharge way
Artificial slag cleaning type
The centripetal pump outputs pressure
Mpa
0.2
Motor power
KW
3KW 380V
Net weight
KG
240
External dimensions of separator
L*W*H
850*720*1000
Gross weight
KG
320

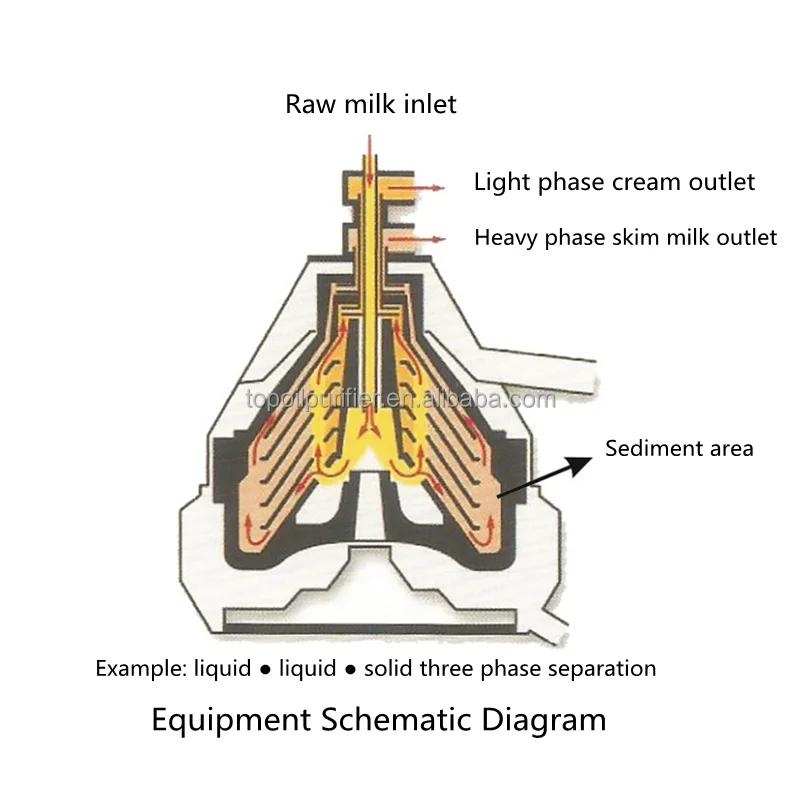

Equipment Schematic Diagram








1.1.Fully Automatic Karl Fischer Water Content Tester
TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800

8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000









MOQ
1 Set
Trade Terms
EXW, FOB, CIF, CFR
Payment Terms
T/T, L/C
Port of Loading
Any Port of China
Packing Method
Internaional Standard Wooden Case
Transportation Method
By Sea, By Land, By Air, By Express
Supply Capability
100 Sets/Month




* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
