KAYAL 7 кВт колонка типа EV Солнечная зарядная станция для электромобилей
US $315.00-$330.00
Промышленная быстрая зарядная станция для электромобилей 30 кВт 40 60 80 120 160 Evse
- Категории: Floor-mounted Charging Stations >>>
- Поставщик: Guangzhou,Kinouwell,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Commercial 40KW 60KW 80KW 120 160 180 240 KW Quick CCS EV DC Charger Station, Evse CCS2 Vehicle DC Fast EV Charging Station
Main features:
Modular design
Parallel modular layout, support hot swap of module components, flexible power combination and convenient maintenance
Extreme heat dissipation
Application of isolation air duct technology to improve the internal heat dissipation efficiency and ensure the stability of operation
Security
With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormality detection, leakage, lightning protection and other active protection functions
Extreme heat dissipation
Application of isolation air duct technology to improve the internal heat dissipation efficiency and ensure the stability of operation
Security
With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormality detection, leakage, lightning protection and other active protection functions
Specification
Model | PEVC3107 | ||||||
Input | 380VAC±20%/50Hz±5Hz | ||||||
Total harmonic distortion rate | ≤5% | ||||||
Power factor | ≥0.99（More than half a load） | ||||||
Overall efficiency | ≥94%（More than half a load） | ||||||
Number of output ports | 1/2 | ||||||
Output voltage range | 200VDC-750VDC / 200VDC-1000VDC | ||||||
Rated current | 200VDC-750VDC：160A 200VDC-1000VDC：120A | 200VDC-750VDC：213A 200VDC-1000VDC：160A | |||||
Output Power | 120KW | 160KW | |||||
Double gun distribution method | Dynamic allocation (dual guns) | ||||||
Lightning protection level | Class C | ||||||
Shell material | Aluminum-zinc clad sheet | ||||||
Installation method | Integrated floor type | ||||||
Mechanical strength | 20J | ||||||
Dimensions (WxDxH) | 700x550x1 800mm | ||||||
Screen | 7 inch touch color LCD screen | ||||||
BMS auxiliary power source | DC12V and DC24V | ||||||
Cable length | 5 meters (custom) | ||||||
Communication interface (reserved) | CAN, RS485 | ||||||
Optional | 4G communication/color customization/background protocol customization | ||||||
Background communication interface | Ethernet | ||||||
Protection level | IP54 | ||||||
Altitude | ≤2000 meters | ||||||
Relative humidity | ≤95%, no condensation | ||||||
Product Description

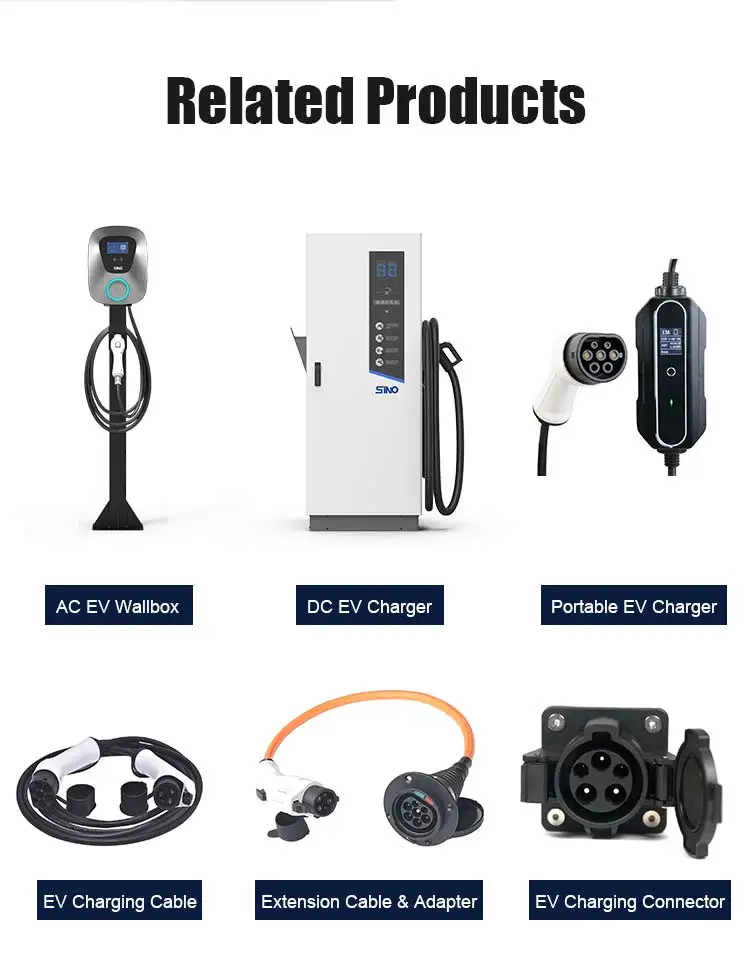

Related Products

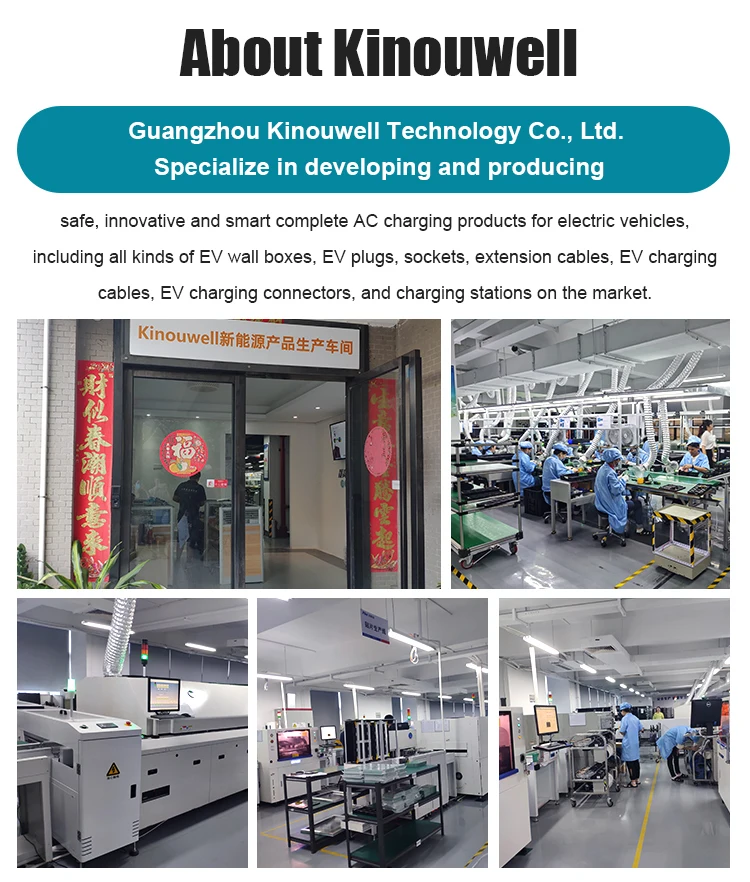

Company Profile
