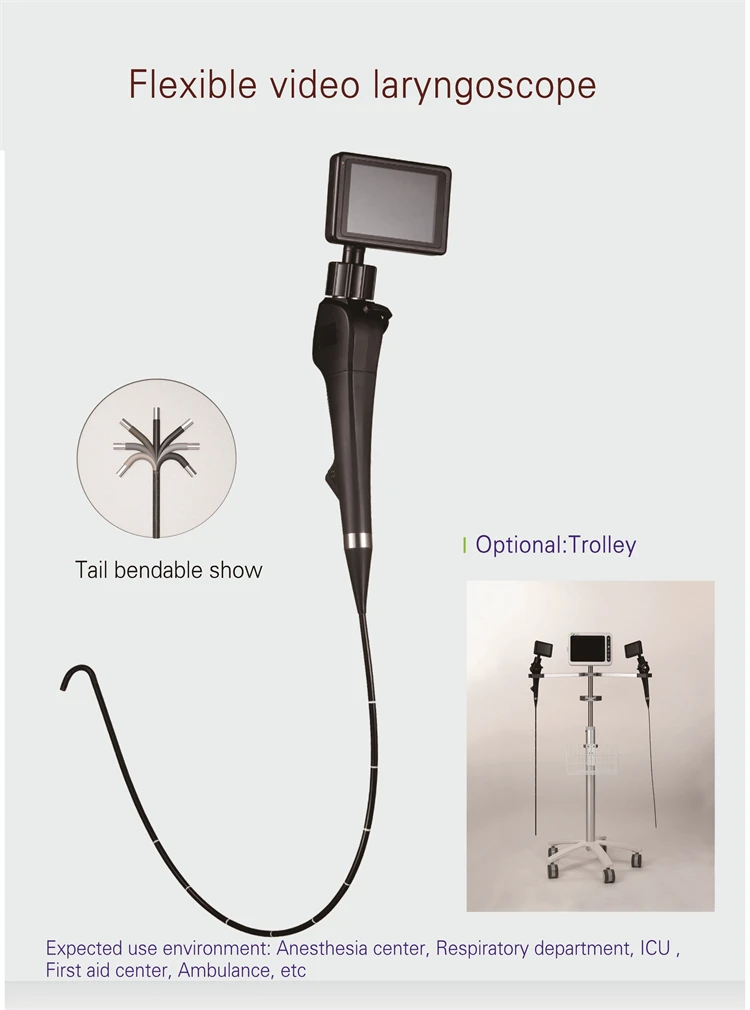

Видео Ларингоскоп светодиодный портативный анестезирующий гибкий
- Категории: >>>
- Поставщик: Jiangsu,Yongle,Medical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product details
| Certificate | CE US |
| OEM | Flexible |
| Length | 650mm |
| Technology | CMOS |
| Model | VL3S |
| Diameter | 2.8mm/3.9mm/5.2mm/5.8mm |
| Degree | 130/160 |
| Light Source | LED 800LUX |
| Optical system | Field of View | 100° |
| Depth of field | 3-100mm | |
| Insertion section | Insertion tube outer diameter | 2.8mm 3.9mm 5.2mm 5.8mm |
| distal end out diameter | ||
| working length | 650mm | |
| Instrument Channel | Channel inner diameter | 1.2mm 2.2mm 2.6mm |
| minmum visible length | 3mm form the dital to end | |
| Bending section | Angulation range | 160 up ,130 down |
| Display | Size | 3.5 inch LCD |
| Resolution ratio | 640*480 RGB | |
| Vedio refresh Rata | 30FPS | |
| Illumination | LED | |
| Data Output | Available | |
| Easy to establish and store files | Available | |
| Image Output | Available | |
| Storage humidity | AP 50hpa to 106hpa | |
| Battery | Type | Rechargeable Lithium battery |
| Voltage | 3.7V | |
| Capacity | 3200mAh | |
| Battery life Cycle | More than 300 times | |
| Charging time | less than 8 hours | |
| Transport/storage condition temperature | -5℃~+50℃ | |
| Humidity | 20~80% |

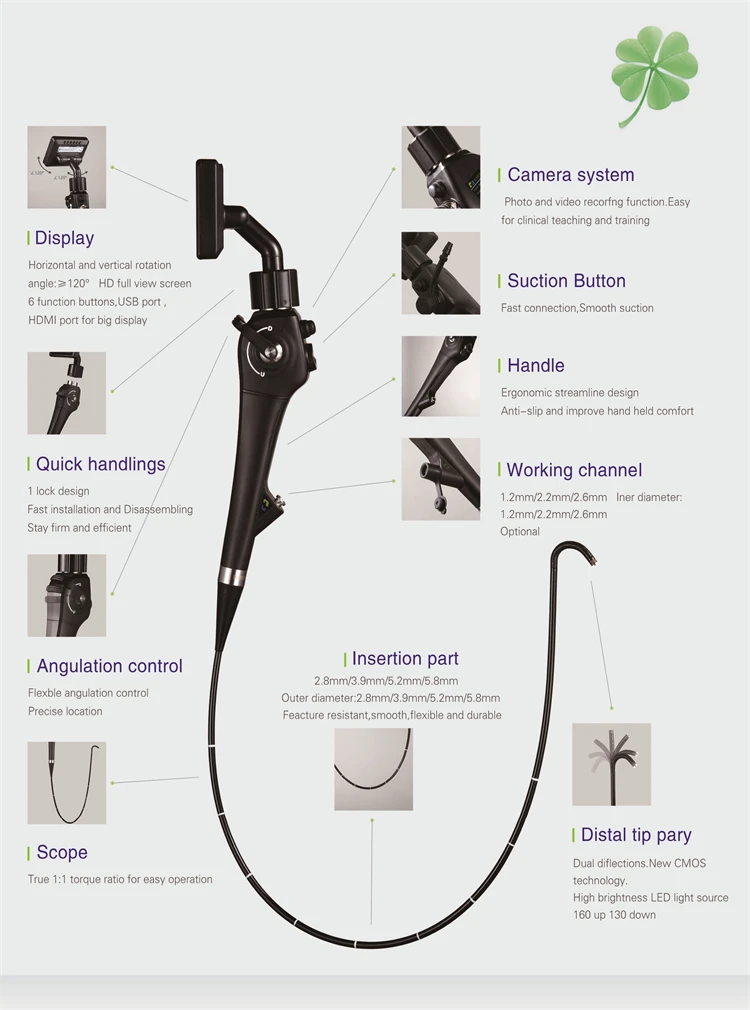

Four size diameter laryngoscope with 3 instrument channel size\t
The YL05 series features 4 size:2.8mm,3.9mm,5.2mm,5.8mm\t
Outer diameter while maintaining 1.2mm,2.2mm,2.6mm channel diameter for instruments\t
Optimal image quality\t
Laryngoscope with high resolution CMOS sensor delivers high-resolution image quality comparable to conventional hybrid
scopes\t\t
Wider angulation range\t
160up,130 down angulation range supports smoother insertion to lobe bronchi and allows more of a bend in the scope when
an endo therapy device is inserted in the endocope's working channel \t\t
Portable monitoring system\t
Friendly HDMI port can connect with big monitor\t
Video,Camera function available\t
180 degree up and down make operation view comfortable\t
1:1 inserted rotation function\t
The inserted rotation can be 1:1 transfer from handle to distal tip.\t
This supports easier operation and smoother\t
Company Information

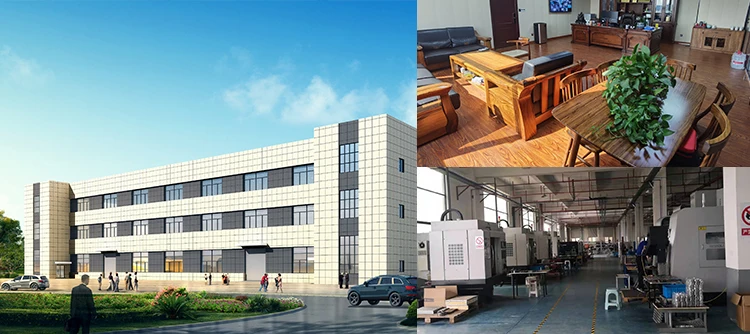

ABOUT US
CUITURE
Jiangsu Yongle Medical Technology Co.,Ltd. (Yongle Medical) aims to become a provider of visual medical overall solutions and supporting equipment and services. It is a high-tech enterprise integrating R & D, manufacturing, sales and service. It is mainly committed to the research and development, production and sales of patented visual medical equipment and disposables. Yongle Medical's products have passed the US registration, German TüV Rhein CE certification, and German TüV Rhein EN ISO13485 quality system certification
\t\t\t
\t\t\t
Our Advantages
Certifications
\t\t
\t\t
Packaging & Shipping
PACKAGE:
Standard export carton packing.
\t\t
\t\t
FAQ
\t\t
\t\t
