Parameters | Unit | Specifications |

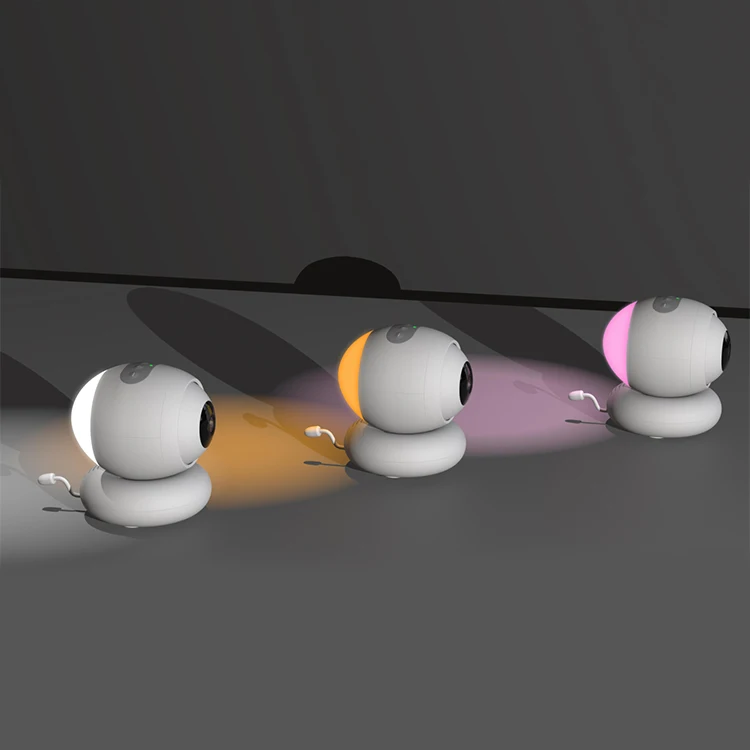

TX Transmitter (camera) | ||
Image Sensor | Inch | 1/7-inch CMOS GC0308 |
Camera resolution | pixels | TX :640X480 |
Field of viewing angle | Degree(°) | 60°(Horizontal ) |
Night Vision | Lux | >5(IR OFF)/<2(IR ON) |
IR Range | m | 5 |
CPU | pcs | SN93361 |
Video Resolution | pixels | 640 x 480P/15fps(max) |
Video Code Rate | bps | 32kbps-4Mbps |
Audio Compression | Frame | PCM |
Audio Transmission | Two-way voice intercom(Half Duplex) | |
Sound Sensitivity | dB/m | -32dBm |
Alarm Mode | Voice detection | |
Wireless Transmission Way | 2.4GHz FHSS | |
Transmission Range | m | 200m in the sight |
Interface | Type-C | |
Power Supply | VDC | 5V 1.5A |
working current | mA | 800(max) |
Size | mm | 87*90*102(mm) |
Weight | g | 210g |

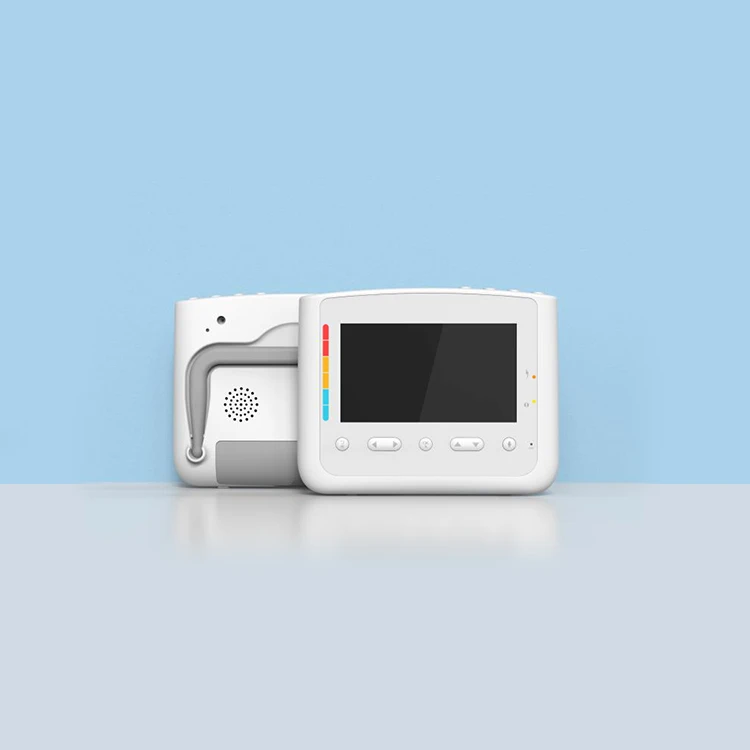

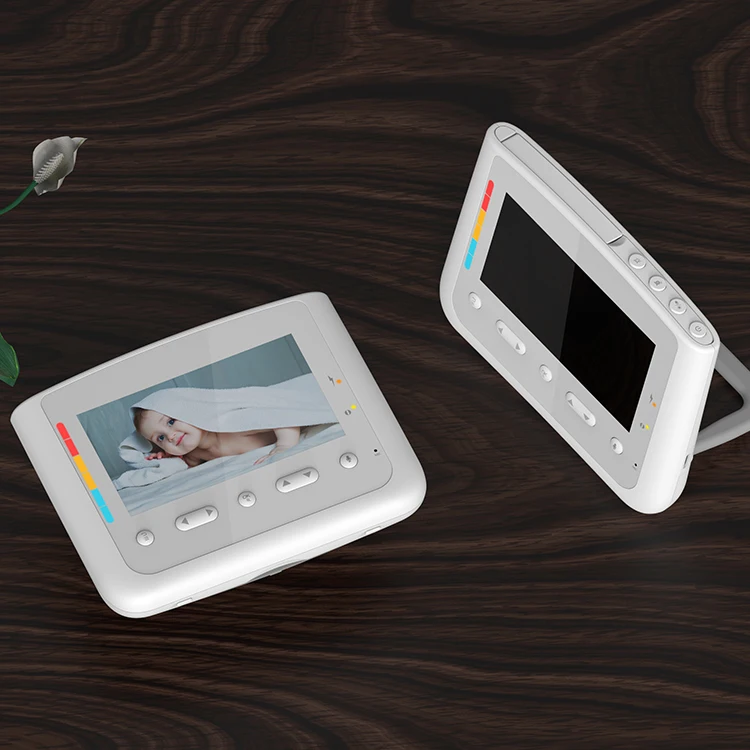

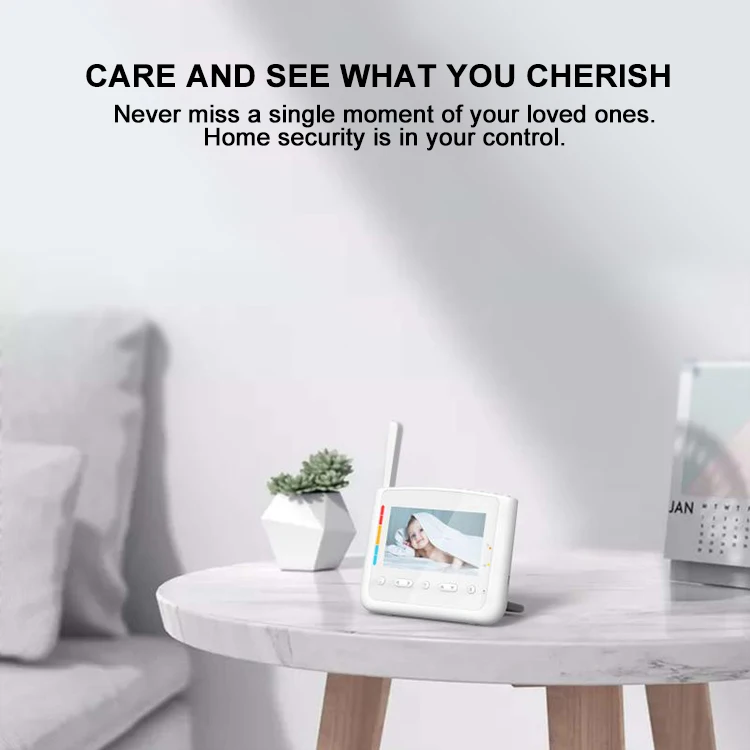

-RX receiver (Monitor) | ||
CPU | pcs | SN93360 |
size | Inch | 4.3 inch |
Screen description | EWV | High-brightness screen, fine picture quality |
Resolution | Pixels | 480*272 |
Video input | Ch | Support one channel |
Audio input | Ch | Built -in microphone |
Interface | pcs | Type-C power interface 1 1 power switch Menu key 1 1 each of the left, right, up and down arrow keys Confirmation key 1 1 shortcut key 1 intercom key 1 split screen key 1 VOX button |
Power Supply | VDC | 5V 1.5A |
working current | mA | 400(max) |
Built in 18650 | pcs | 2600mAh |
