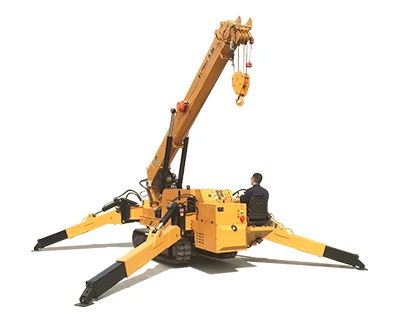

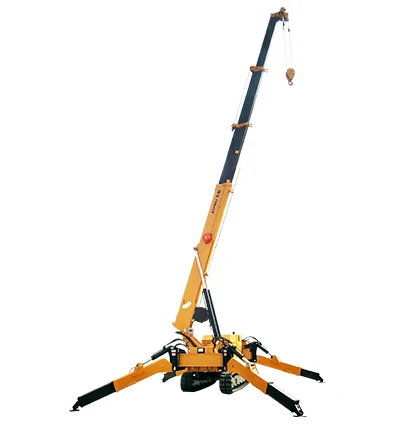

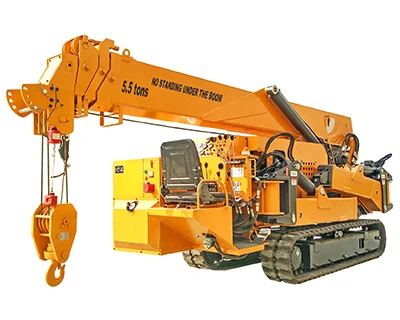

Бета-в Китае (стандарты CE ISO9001 складной 5.5Ton 360 градусов строительных работ гидравлический подъемная мини гусеничный ход козловой
- Категории: >>>
- Поставщик: Xianheng,International,Science&Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Model | HXB 5.5 | ||
Crane capacity | 5.5t×1.8m | ||
Max. lifting height | 16.9m | ||
Max. working radius | 16m | ||
Winch system | Hook speed | 10m/min (4 falls) | |
Hoist wire rope | Ø10×80m | ||
Telescoping system | Type | Fully automatic 5-section(including fly jib) | |
Boom length | 16.6m | ||
Boom telescoping stroke/time | 11.7m/54sec [41sec] | ||
Boom hoist system | Hoist angle / time | 0-80deg/24.5sec [17.0sec] | |
Slew system | Slew angle / time | 360deg/2.1rpm [2.5rpm] | |
Outrigger system | Type | Extended Hydraulic cylinder direct acting Setting up Hydraulic cylinder direct acting | |
Max. extended width | 5170(front)x5807(side)x5423(rear)mm | ||
Traction system | Type | Hydraulic driven, stepless speed changer | |
Travel speed | 0-3Km/h | ||
Gradability | 32% | ||
Crawler length x width | 1,720×320 mm | ||
Ground pressure | 41.3Kpa | ||
Dimension | L×W×H | 4960x1370x1980 mm | |
Crane Weight | Net weight | 5500 kg | |
Engine - Diesel | Brand | YANMAR | |
Model | 4TNV88-BSBKC | ||
Displacement | 1.642L | ||
Maximum output | 21.2KW/2400min-1 | ||
Starting method | Electric starting | ||
Fuel / tank capacity | Diesel / 45L | ||
Battery capacity | 12V, 90Ah | ||
Remote control system | Type | Wireless remote control | |
Effective operation distance | 100m | ||
Response time | 40ms | ||
Voltage, power | DC12V, <12w | ||
IP grade | IP-67 | ||

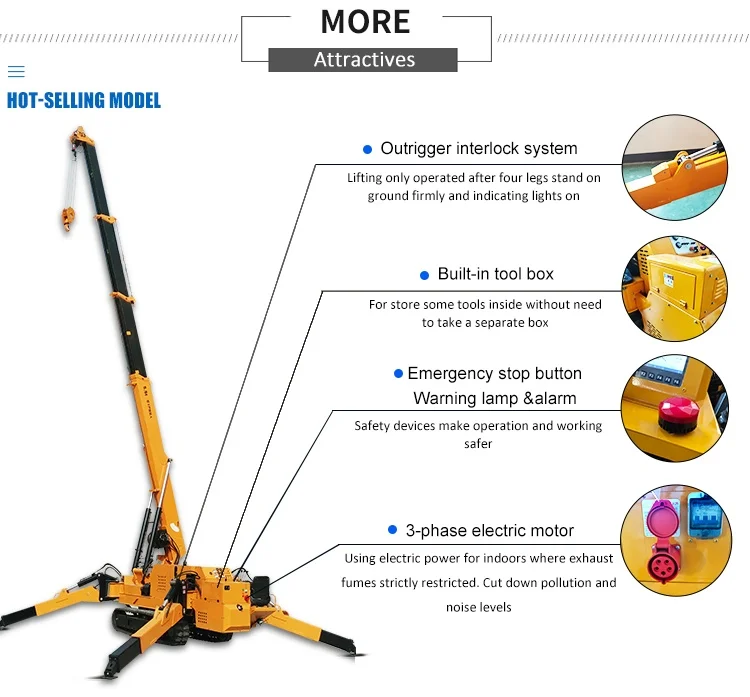

Safety devices | Keep working safe for operator and crane | Overwind protection, Load indicator, Moment limiter, Hydraulic safety valve, Wire rope latch, Air level, Tip alarm, Travel lock lever, Outrigger interlock device, Lights | |
Optional devices | Optional devices ordered separately | Working basket, Fly jib, Glass lifter, White crawlers, Rain cover | |
