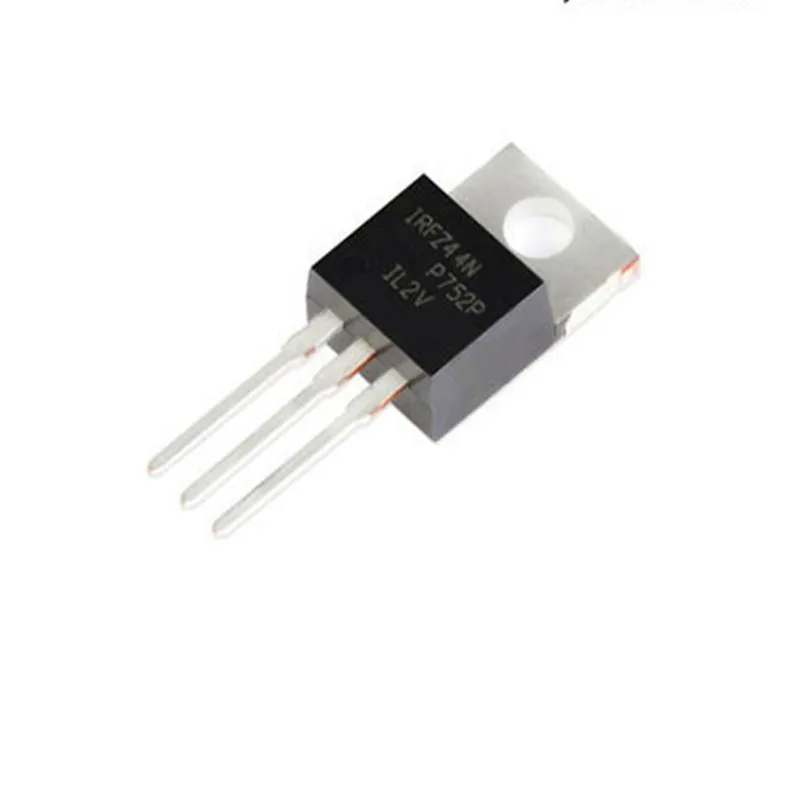

IRFZ44N IRFZ44NPBF in-line TO-220 MOS полевая трубка с эффектом N-channel 55V

Цена:0,18 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Specification

item	value
Model Number	IRFZ44N IRFZ44NPBF
Type	MOSFET
Place of Origin	Afghanistan
Brand Name	IC
D/C	20+
Package Type	Throught Hole
Application	CCD Output Circuits
Supplier Type	Original manufacturer, Other
Brand	MOSFET N-CH 55V 49A TO-220AB
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	230V
Vce Saturation (Max) @ Ib, Ic	3V 800mA, 8A
Current - Collector Cutoff (Max)	5A (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	55 1A, 5V
Power - Max	150W
Frequency - Transition	30MHz
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Resistor - Base (R1)	-
Resistor - Emitter Base (R2)	-
FET Type	N-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	49A (Tc)
Rds On (Max) @ Id, Vgs	17.5mOhm 25A, 10V
Vgs(th) (Max) @ Id	4V 250UA
Gate Charge (Qg) (Max) @ Vgs	63nC 10V
Input Capacitance (Ciss) (Max) @ Vds	1470pF 25V
Frequency	-
Current Rating (Amps)	-
Noise Figure	-
Power - Output	-
Voltage - Rated	-
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs (Max)	±20V
IGBT Type	-
Vce(on) (Max) @ Vge, Ic	-
Input Capacitance (Cies) @ Vce	-
Input	-
NTC Thermistor	-
Current - Drain (Idss) @ Vds (Vgs=0)	-
Current Drain (Id) - Max	-
Voltage - Cutoff (VGS off) @ Id	-
Resistance - RDS(On)	-
Voltage	-
Voltage - Output	-
Voltage - Offset (Vt)	-
Current - Gate to Anode Leakage (Igao)	-
Current - Valley (Iv)	-
Current - Peak	-
Applications	-
