Products Description
ZPG series industrial rotary drum sludge dryer machine

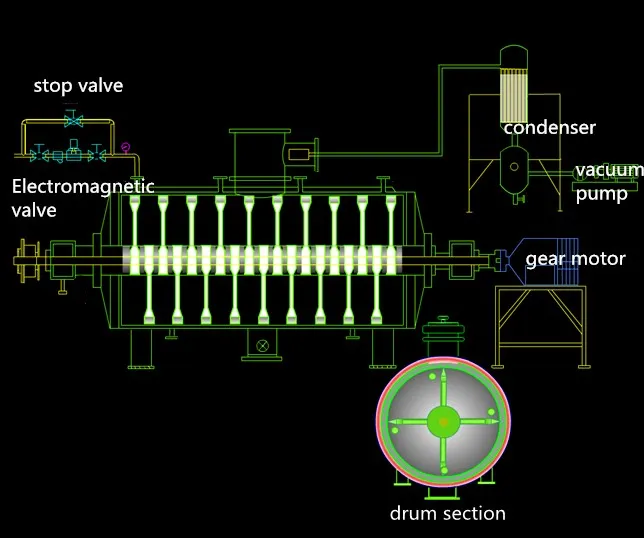

Working principle : The main structure of ZPG vacuum harrow dryer is a horizontal cylindrical container with jacket, which is equipped with a low-speed mixing shaft, and the shaft is equipped with rake teeth arranged in a certain direction. There are two forms of mixing shaft, one is a non heated rake shaft, and the other is a hollow rake shaft that can be filled with hot medium (hot water and hot oil). The jacket is filled with heating medium (hot water, hot oil). The wet material feed into the cylinder, and the rake gear shaft stirs the material to heat evenly. Under the control of the time relay, the rake gear shaft operates according to forward rotation stop reverse rotation stop forward rotation at a certain time interval. The operation cycle is set by the user according to the process operation conditions of the material. Under the regular stirring of the rake gear shaft, the dried materials in the cylinder move to both sides and to the middle, and then again and again until the materials are dried to the process requirements. A vacuum interface is arranged on the upper part of the inner cylinder and connected to the vacuum system to heat and dry the dried materials under negative pressure, which can ensure that the dried materials are heated at low temperature and will not damage the physicochemical properties of the materials. After the materials meet the drying requirements, open the discharge valve at the bottom of the cylinder to allow the materials to move to the middle under the stirring of the rake gear shaft for discharge.
Application:
ZPG series vacuum harrow dryer has been widely used for drying wet cake product after filtration especially sticky heat sensitive paste material. This equipment can be used in drying process of various Pharmaceuticals, Intermediate Compounds, Fine Chemicals, Chemicals, Agro Chemicals, Pesticides, Insecticides, Dyes and Food Products which have the following properties:
ZPG series vacuum harrow dryer has been widely used for drying wet cake product after filtration especially sticky heat sensitive paste material. This equipment can be used in drying process of various Pharmaceuticals, Intermediate Compounds, Fine Chemicals, Chemicals, Agro Chemicals, Pesticides, Insecticides, Dyes and Food Products which have the following properties:
Item | ZPG-500 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 | ||||
Working volume L | 300 | 600 | 900 | 1200 | 1800 | ||||
Stirring speed rpm | 10-15 | 10 | 10 | 8-10 | 8-10 | ||||
Power | 2.2 | 3 | 4 | 4 | 5.5 | ||||
Jacket design pressure Mpa | ≤0.3 | ||||||||
Cylinder inner pressure | -0.09~ -0.096 | ||||||||
Recommend Products

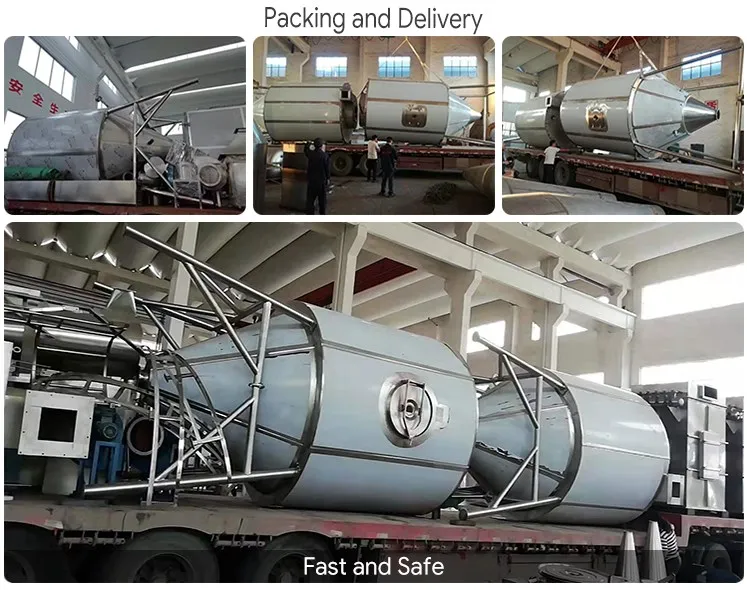

Packing
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
