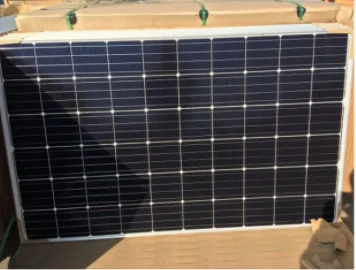

Jinko 440W 450W 460W 475W 540W 550W 580W 600W Mono Perc Solar Half Tiger Pro Solar Panel
Product Description
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature
coefficient.
coefficient.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials
control.
control.
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Specification

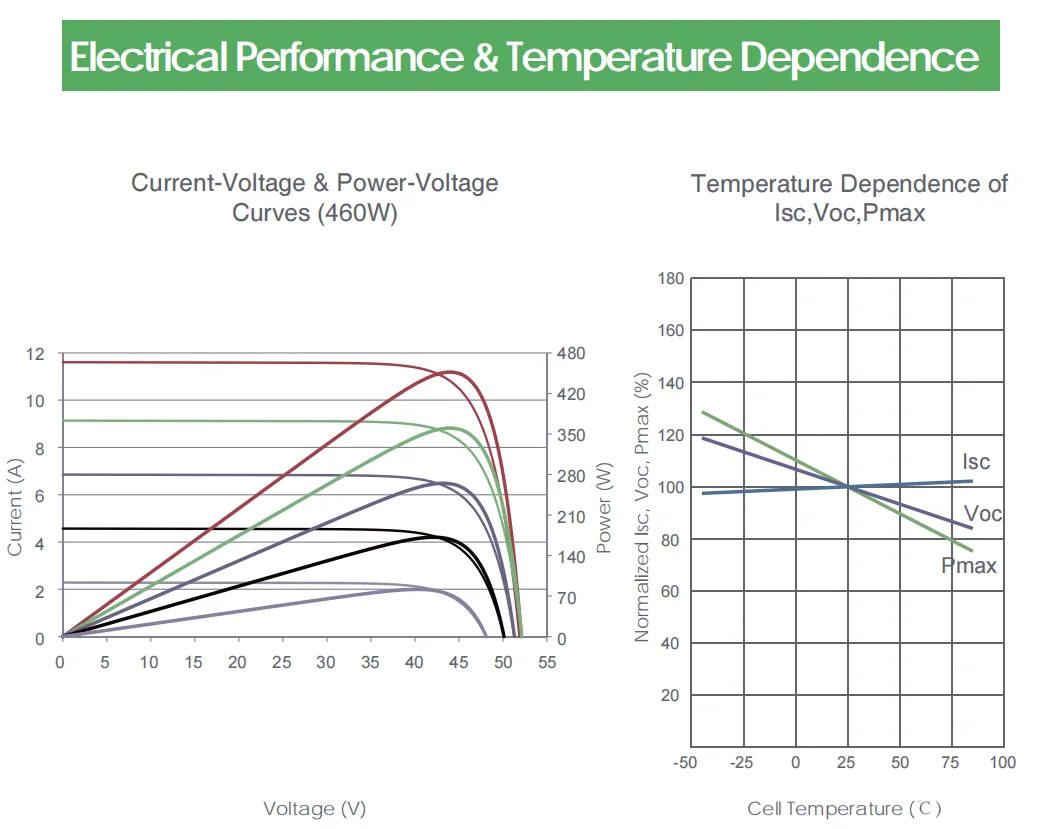

ELECTRICAL PARAMETERS AT STC | ||||||||||||||
Type | JKM460N-7RL3-V | JKM465N-7RL3-V | JKM470N-7RL3-V | JKM475N-7RL3-V | JKM480N-7RL3-V | |||||||||
Rated Maximum Power(Pmax) [W] | 460 | 465 | 470 | 475 | 480 | |||||||||
Open Circuit Voltage(Voc) [V] | 51.70 | 51.92 | 52.14 | 52.24 | 52.34 | |||||||||
Maximum Power Voltage(Vmp) [V] | 43.08 | 43.18 | 43.28 | 43.38 | 43.48 | |||||||||
Short Circuit Current(lsc) [A] | 11.50 | 11.59 | 11.68 | 11.77 | 11.86 | |||||||||
Maximum Power Current(lmp) (A] | 10.68 | 10.77 | 10.86 | 10.95 | 11.04 | |||||||||
Module Efficiency [%] | 20.49 | 20.71 | 20.93 | 21.16 | 21.38 | |||||||||
Power Tolerance | 0~+5W | |||||||||||||
Temperature Coefficient of Isc(ajsc) | +0.048%/°C | |||||||||||||
Temperature Coefficient of Voc(P_Voc) | -0.28%/°C | |||||||||||||
Temperature Coefficient of Pmax(y_Pmp) | -0.350/°C | |||||||||||||
STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||||||||||
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer
Durability
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer
Durability
Solar cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency

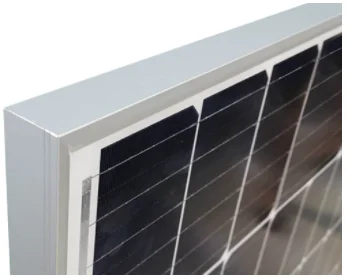

--Conventional frame
--Boost bearing capability and prolong service life
--Serrated-clip design tensile strength
--Seal-lip design glue injection
--Silver or black frames are optional
--Long service life
--Heat dissipation
-- IP68 protection level
--Conventional standalone edition and engineering custom edition

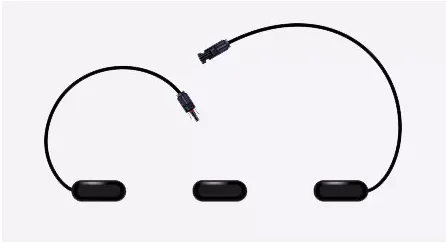

--Quality diode ensures module running safety
Company Profile

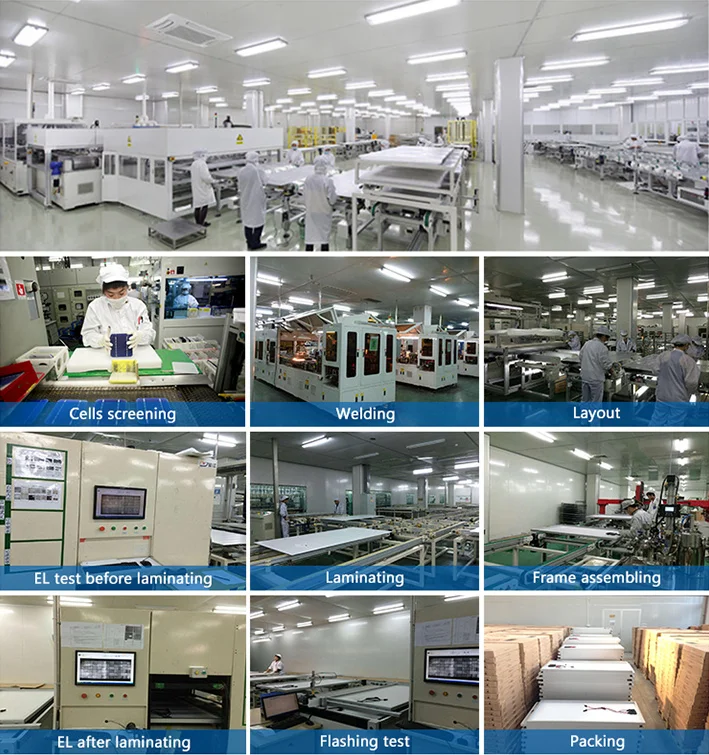

Production process

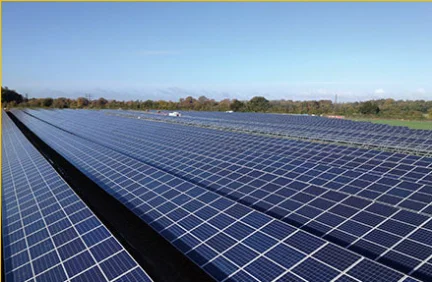

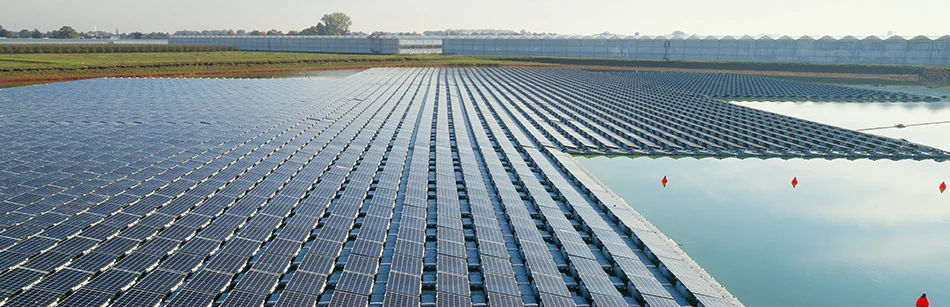

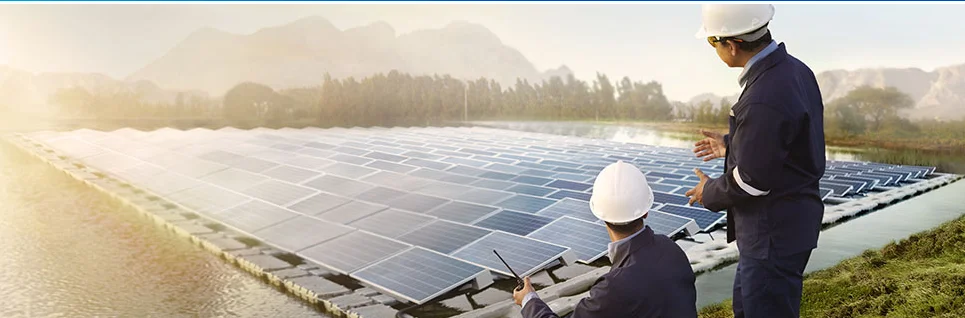

Project Case

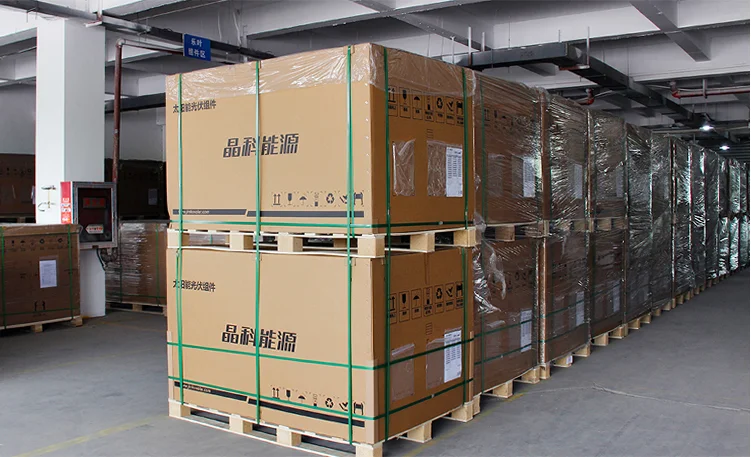

Packing & Delivery
Payment Term | T/T | EXW | 30%T/T in advance,paid the balance before shipment | ||||
FOB | |||||||
L/C | L/C amount above 50,000usd, we can accept L/C at sight | ||||||
Delivery Time | 10~15days after receiving payment for one container | ||||||
