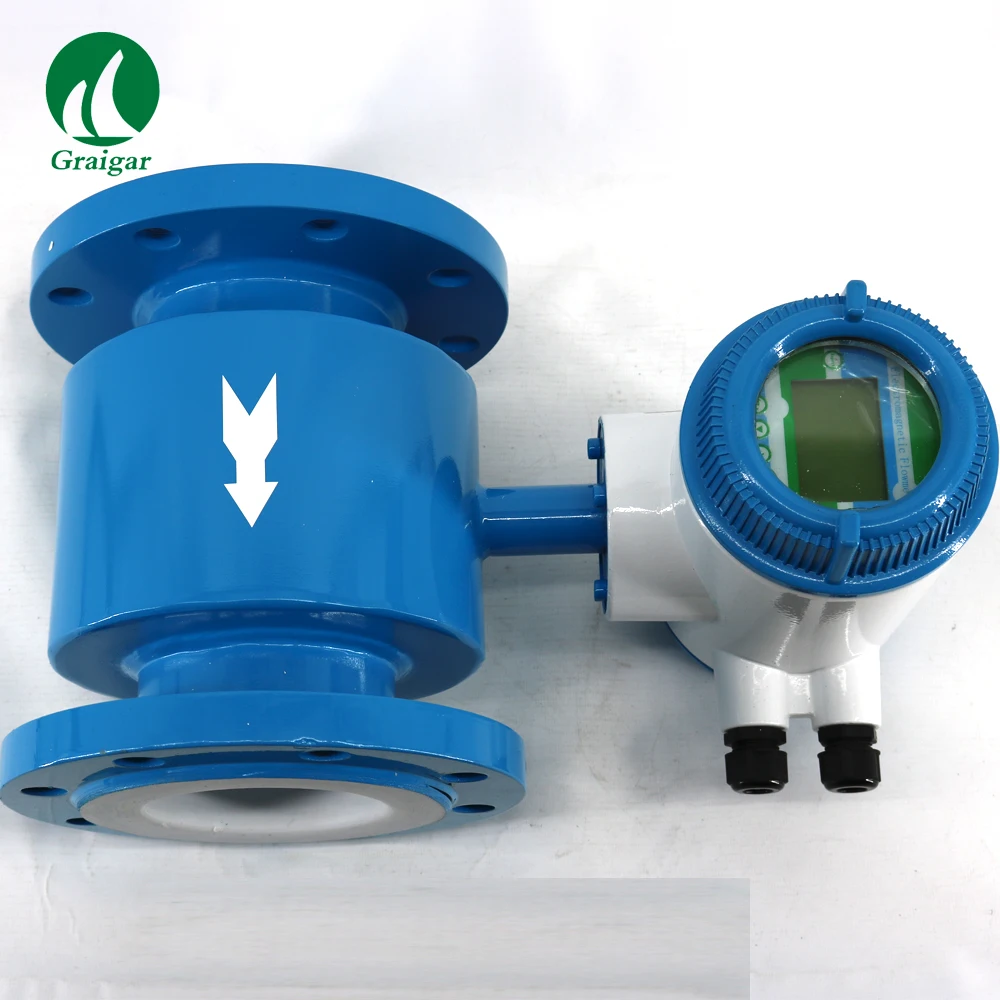

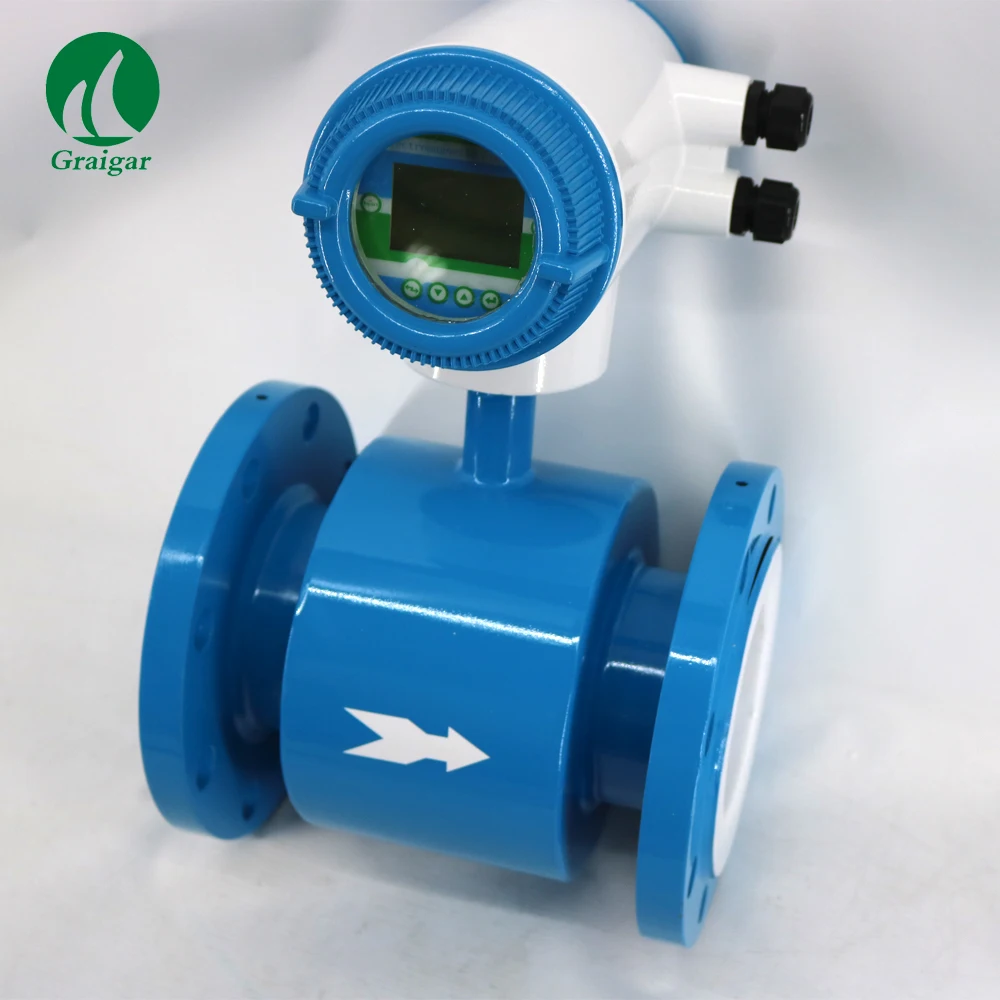

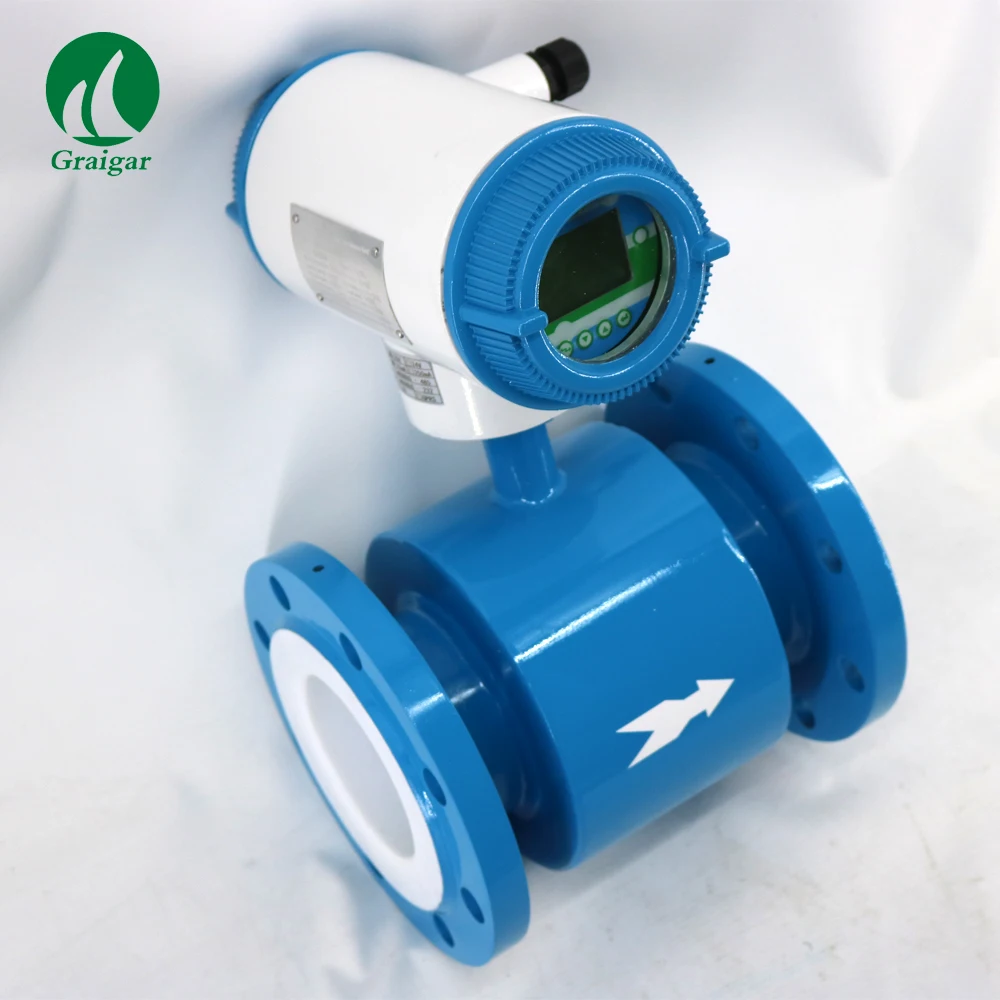

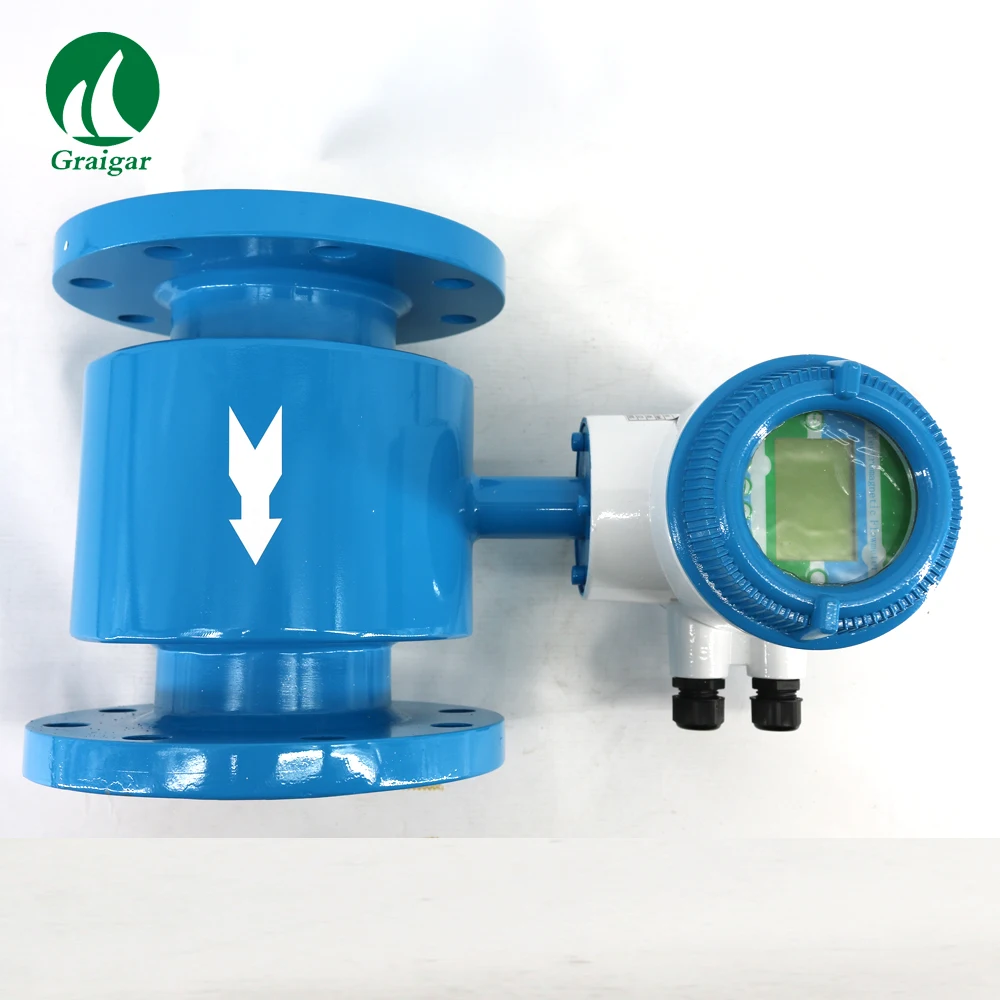

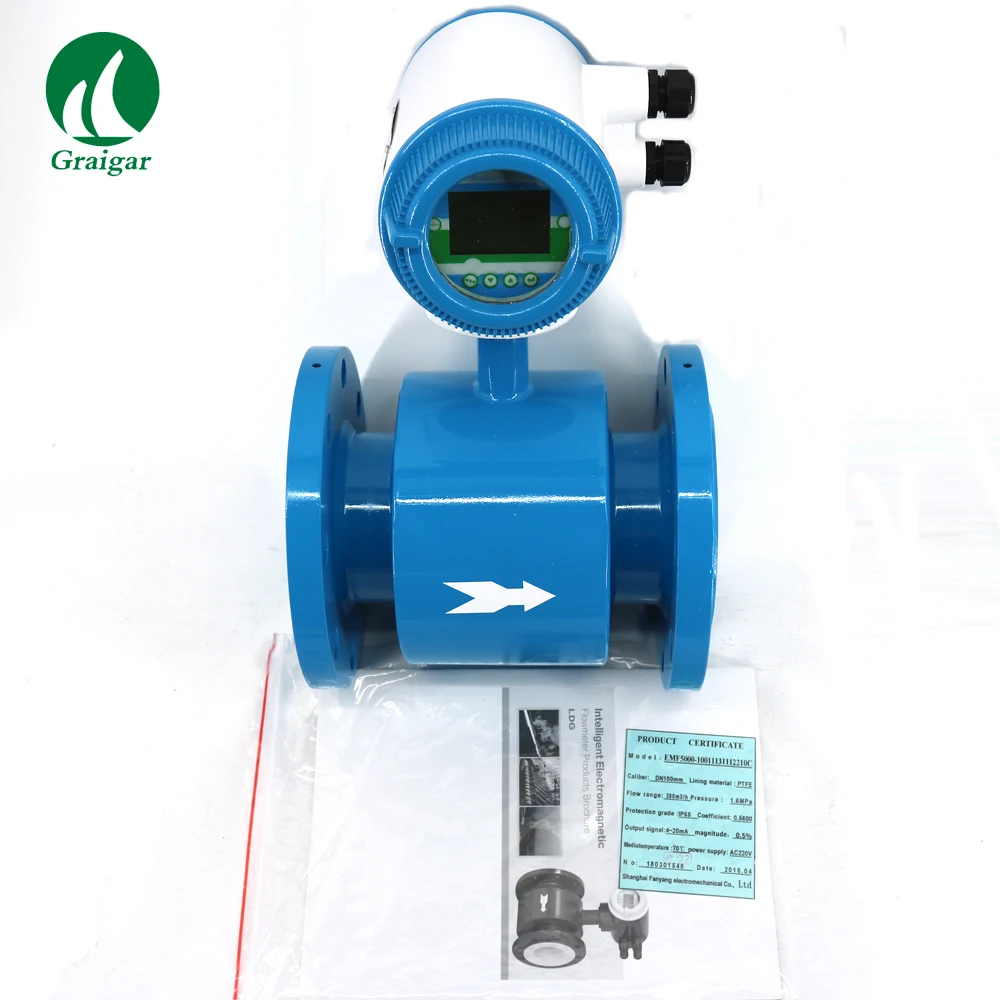

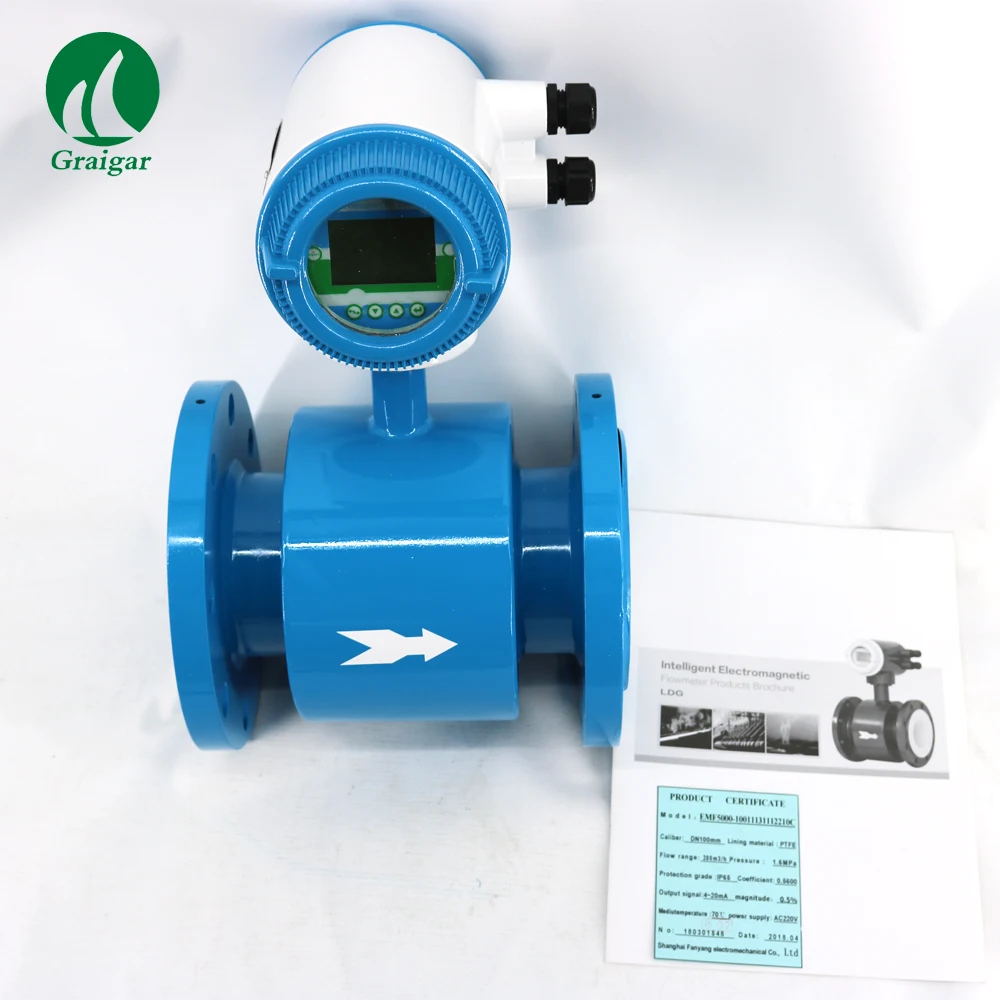

DN100MM Electromagnetic Flow Meter Diameter of Sensor DN10~ DN600

Performance & Characteristics

1.It is suitable for all liquid flow test of conductivity of greater than 5. Conductivity change does not affect the performance of the change.

2.The flow meter has the long-term high accuracy of measurement. It actually is not affected by fluid physical properties. Measurement accuracy can be up to 1, 0.5.

3.The flow meter is with no mechanical and moving parts, usually without maintenance.

4.Convenient operation, the flow meter is set automatically according to the scope of 0 ~ 10 m/s, without change of measuring range.

5.Because of all the parts in contact with the medium under test, have good corrosion resistance and wear resistance, so the applicability is wide.

6.In measuring medium containing oil or to the electrode surface sedimentary cover a layer of conductive material medium, can choose a convertible (scrub) electrode.

7.Use advanced excitation algorithm.

8.Using the world's most excellent integrated circuit to eliminate the influence of excitation switch and using compensation method of excitation current, finally up to the optimal stability of the product.

9.Use high efficiency, high stability and designed the wide input range of multiple sets of the isolating switch power supply.

   (DC: 18-36V;  AC: 85V-265V).

   Have a lot of output interface design, using conveniently:

   A) 4-20 mA current output;

   B) To set the pulse output;

   C) The RS485 interface. Self-check function.

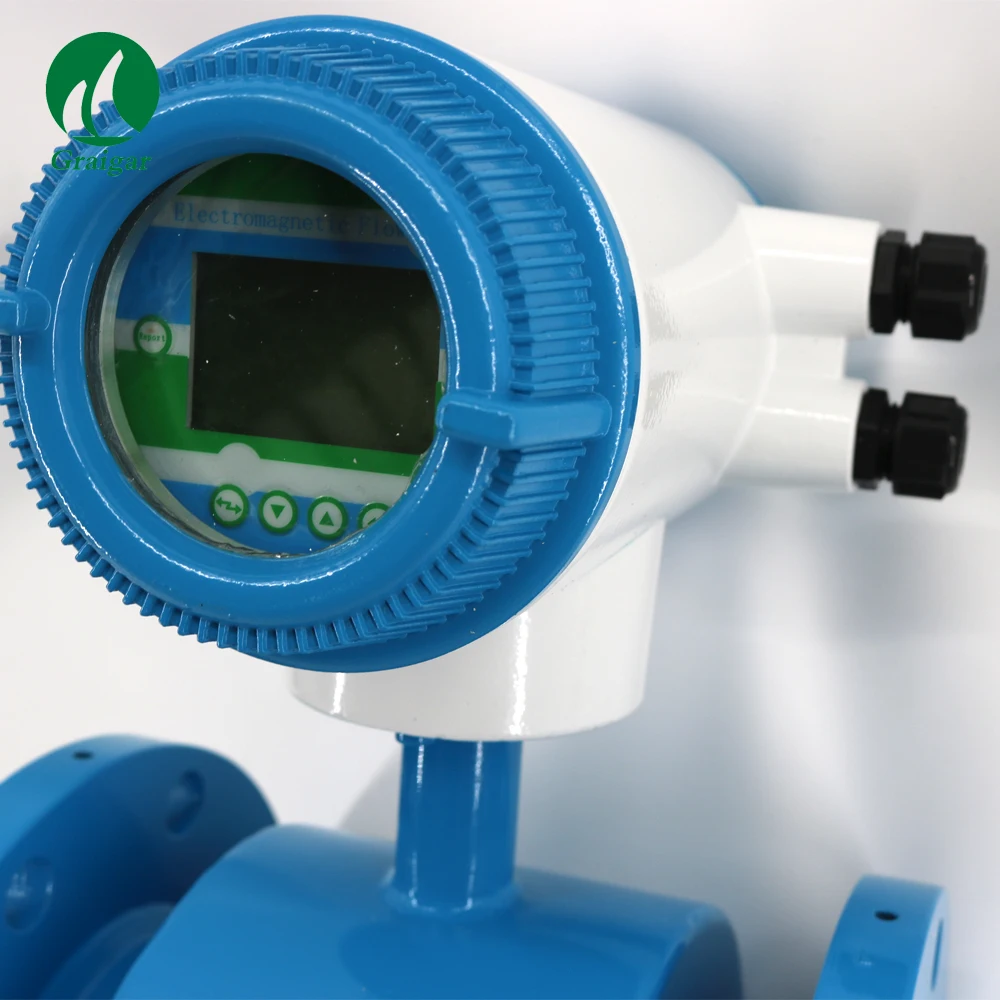

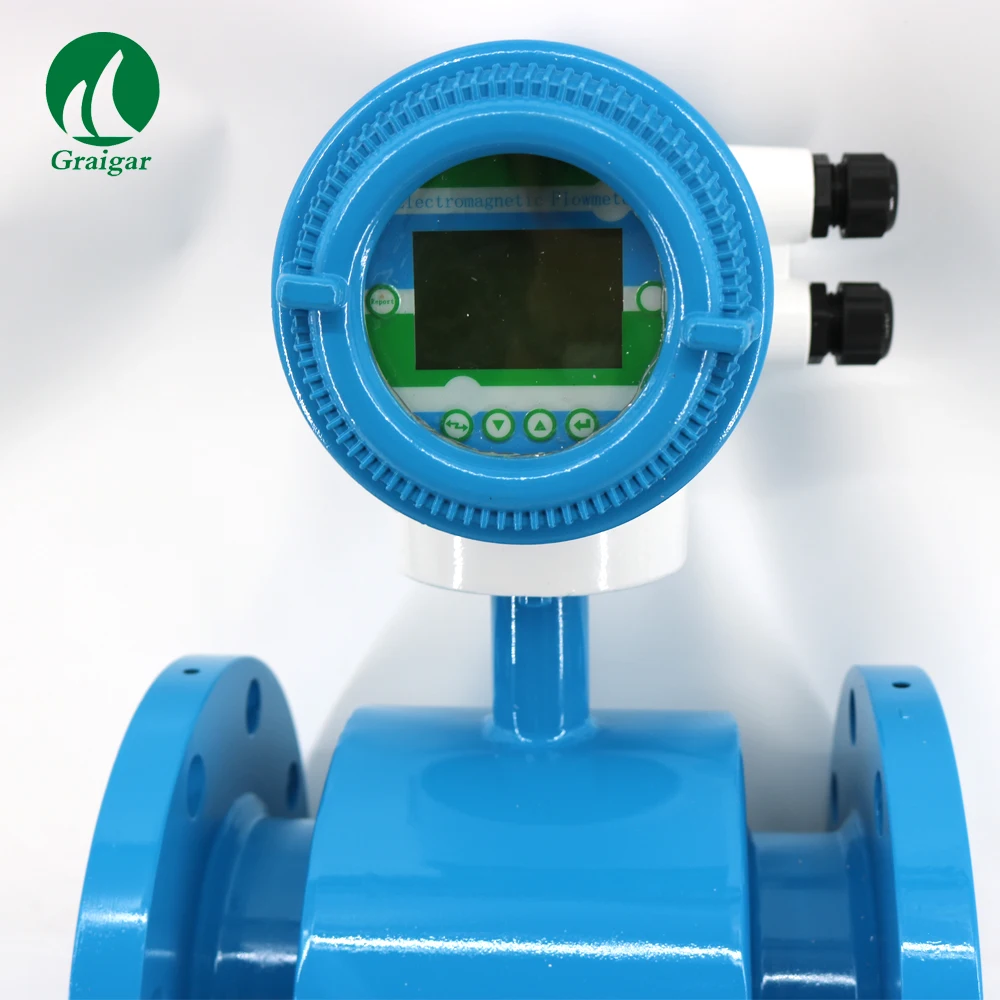

10.High-definition main LCD backlight display in Chinese of four lines on a large screen.

11.When power off, EEPROM can protect set parameters and total value.

12.Provide nonlinear correction function of five sections of sensor

13.With functions of automatic operation for average flow rate, easy to calibration of instrument.



Technical Parameters

Sensor

   Diameter of sensor         DN10~ DN600

   Connection level           Accord with national standard GB/T9119-2000

   The fluid conductivity       >5us/m

   Medium velocity           0-10m/s setting automatically

   Electrode form             standard interpolation

   Electrode material          stainless steel 316L

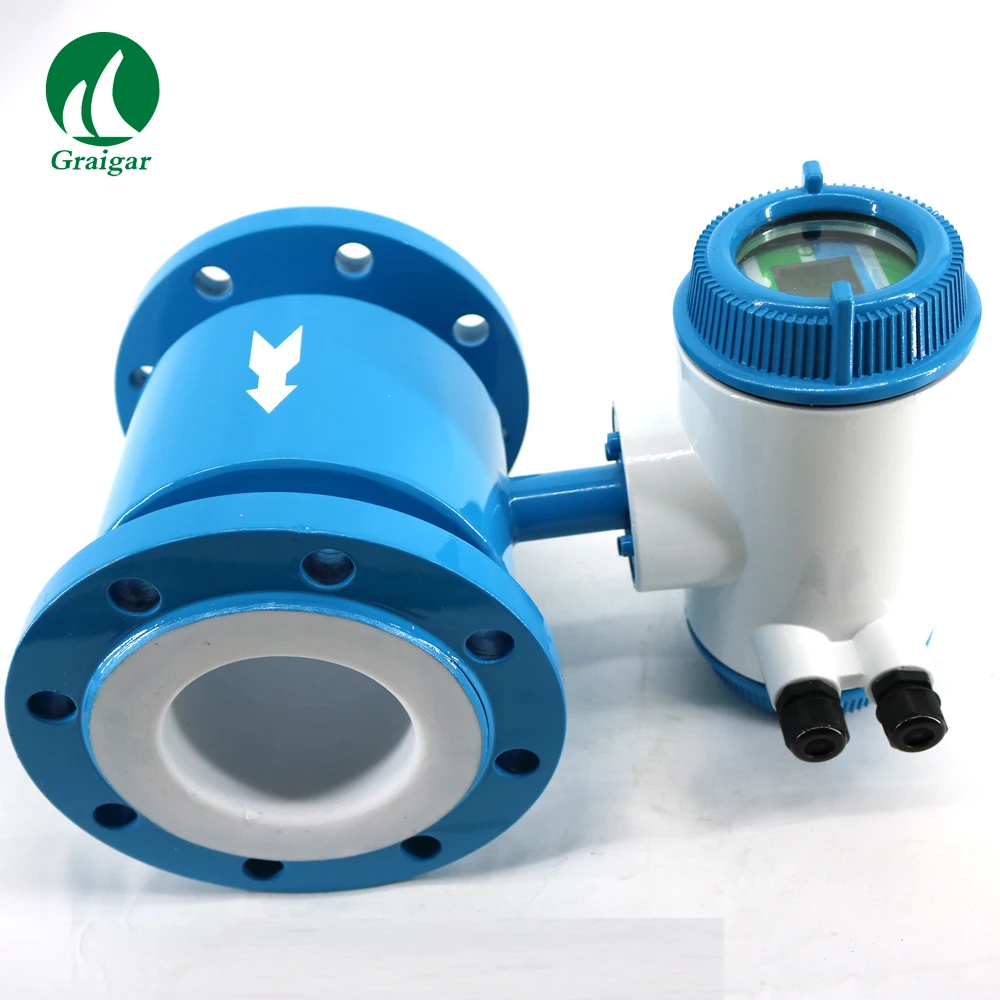

   Lining materials            PTFE

   Measuring temperature      - 20-140 C

   protection grade            Standard IP65



Converter (i.e., secondary instrument)

   Shell material               shell material

   Protection grade             explosion-proof type

   Normal operating temperature  - 10 ~ + 40 C

   Storage temperature           0~ +40 C

   Using the environment temperature      relative humidity 5%-90%

   Power supply               AC220V   -15%~+10%

   The power consumption       <10W

   Load resistance              0-20mA, 250-750 Ohm

  Output signal

A) All isolated output current: 4-20 mA.

   According to the content

A) Instantaneous show for four decimal point can be mobile

B) Cumulative displayed for 8-bit decimal point can be mobile

   Output can be selected by the user, such as output terminal of three way

A) 4 ~ 20 mA

B) The amount of frequency

C) Accuracy of 1.0%

D) Constant current characteristic of 1.0%

E) Power supply:

DC18V-36V   DC

AC85V-265V  AC



Accuracy

Measuring the flow velocity (m/s)	Accuracy
1≤V≤10	±0.5% of the index value    ±0.008m/s
0≤V≤1.0	±0.5% of the index value    ±0.008m/s
