Product Description


SNL522-619 plummer block housing bearing SNL 522-619 + 22222 K + H 322
SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

The plummer block housings, often referred to as “large SNL plummer block housings”, are split housings. They have four holes cast into the base for attachment bolts.

Large SNL plummer block housings are primarily intended for spherical roller bearings
and CARB toroidal roller bearings.

Large SNL plummer block housings as standard are made of grey cast iron EN-GJL-250. Where extra strength is needed, housing made of spheroidal graphite cast iron EN-GJS-400 can be supplied. These housings are identified by the designation prefix D, i.e. SNLD.



bearing name
 SNL522-619 Cast Iron Split Pillow Block Housing
Material :
bearing : chrome steel
housing : cast iron
bearing
 22222K
adapter sleeve
H322
locating  ring
2 x FRB 13.5/300
email
sales1@landlionbearing.com
Tel/ whatsapp
+86-18710180456

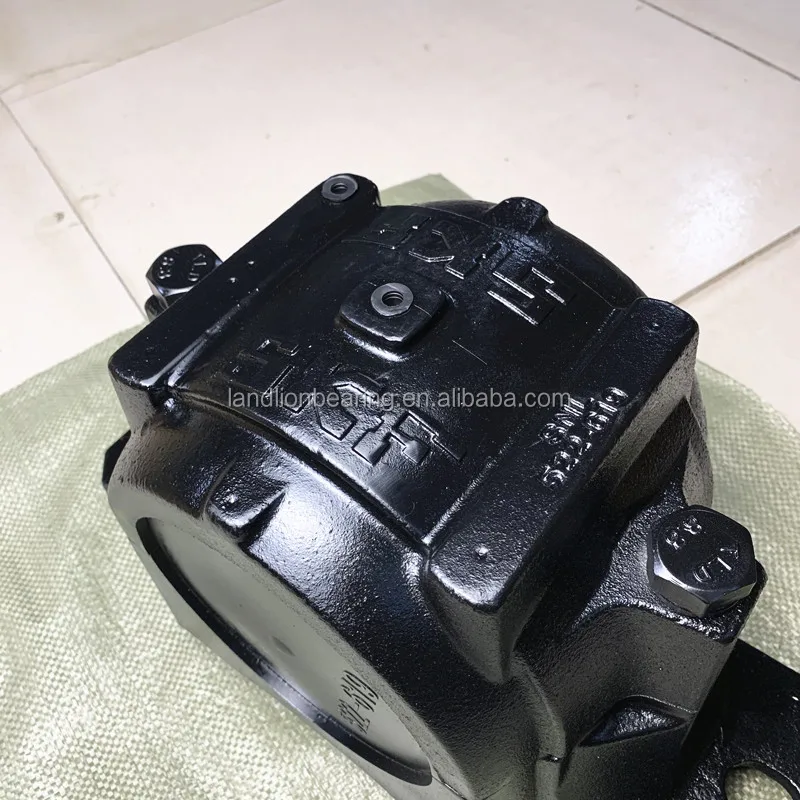

Detailed Images


pillow block ball bearing type :
2  bolt  Flange bearings units
3 bolt Flange bearings units
4-Bolt Flange Bearing Units
Take -up bearings
insert bearings


Related Products




Size Information


Large SNL plummer block housings design




Housing
Shaft
Dimensions(mm)
NO.
dia
A
H
L
N
N1
Weightt
d1(mm)
(kg)
SNL505
20
67
74
165
20
15
1.9
SNL506-605
25
77
89
185
20
15
2.2
SNL507-606
30
82
93
185
20
15
2.4
SNL508-607
35
85
108
205
20
15
3.2
SNL509
40
85
109
205
20
15
3.5
SNL510-608
45
90
113
205
20
15
3.85
SNL511-609
50
95
128
255
24
18
5.4
SNL512-610
55
105
134
255
24
18
6.7
SNL513-611
60
110
149
275
24
18
7.9
SNL515-612
65
115
155
280
24
18
9.7
SNL516-613
70
120
177
315
28
22
11.5
SNL517
75
125
183
320
28
22
12.8
SNL518-615
80
140
194
345
28
22
15.4
SNL519-616
85
145
212
345
28
22
16.4
SNL520-617
90
160
218
380
32
26
20.4
SNL522-619
100
175
242
410
32
26
26.5
SNL524-620
110
185
271
410
32
26
32.2
SNL526
115
190
290
445
35
28
39.8
SNL528
125
205
302
500
42
35
48.8
SNL530
135
220
323
530
42
35
56.5
SNL532
140
235
344
550
42
35
63.5

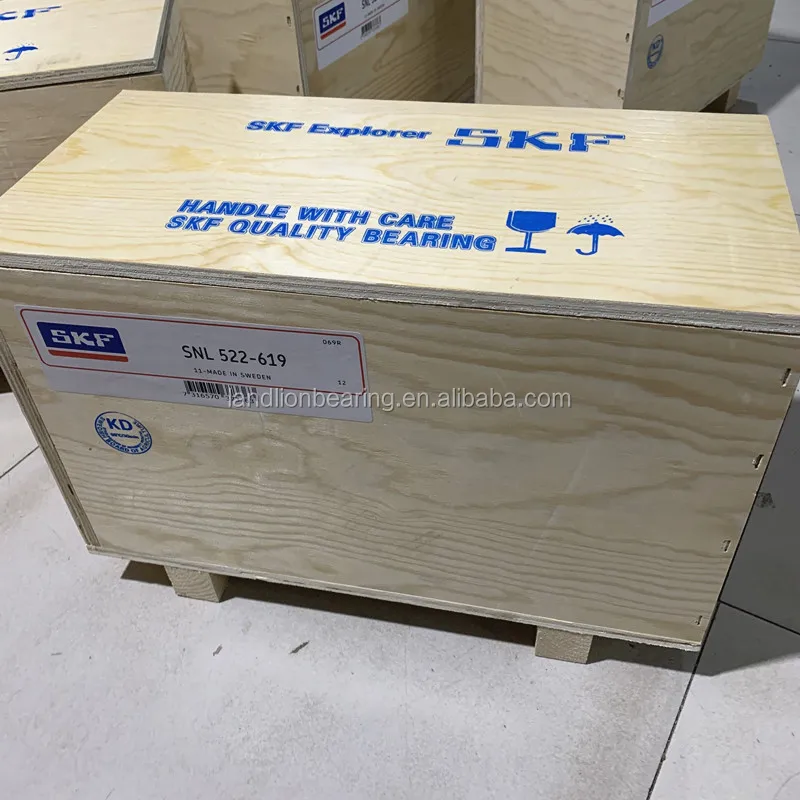

Product packaging


Packing :
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand

Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days

Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment


Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
333
