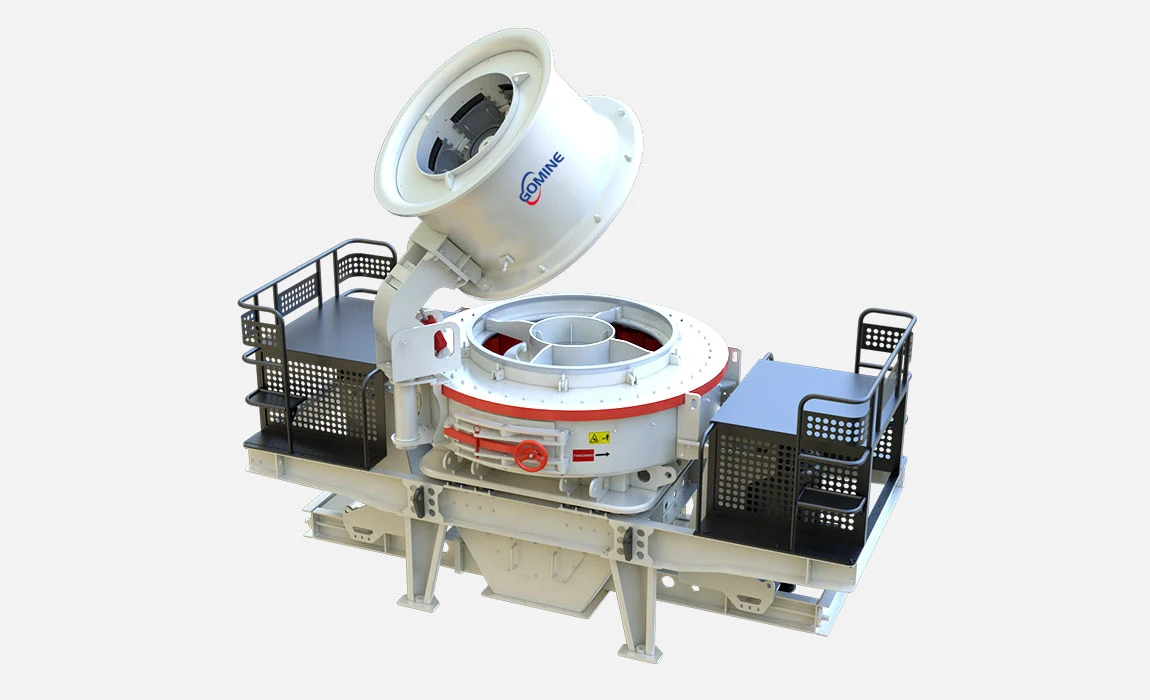

Высокопроизводительная ударная Дробилка 450-520 tph
US $42999-$43200
Дробилка для песка vsi1145 vsi7611 vsi9526 vsi5x8522
- Категории: Sand Making Machinery >>>
- Поставщик: Henan,Gomine,Industrial,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Working principle
The material flows into the vortex crushing cavity from the upper part of the machine. The high-speed rotating impeller crushes the material scattered around the impeller in the form of an umbrella.
After the materials collide with each other, the material layer between the impeller and the casing will form a vortex flow for multiple collisions, friction and crushing, and then be discharged from the lower discharge hopper.
The particle size of the finished product is controlled by the screening plant.
After the materials collide with each other, the material layer between the impeller and the casing will form a vortex flow for multiple collisions, friction and crushing, and then be discharged from the lower discharge hopper.
The particle size of the finished product is controlled by the screening plant.
Specification
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | ||
Capacity (t/h) | Ring and center feeding | 120-180 | 170-260 | 260-340 | 350-480 | |
Center feeding | 60-90 | 100-130 | 150-190 | 180-260 | ||
Feeding size (mm) | Soft material | 35 | 40 | 45 | 50 | |
Hard material | 30 | 35 | 40 | 45 | ||
Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | ||
Power (KW) | 55×2 | 90×2 | 132×2 | 200×2 | ||

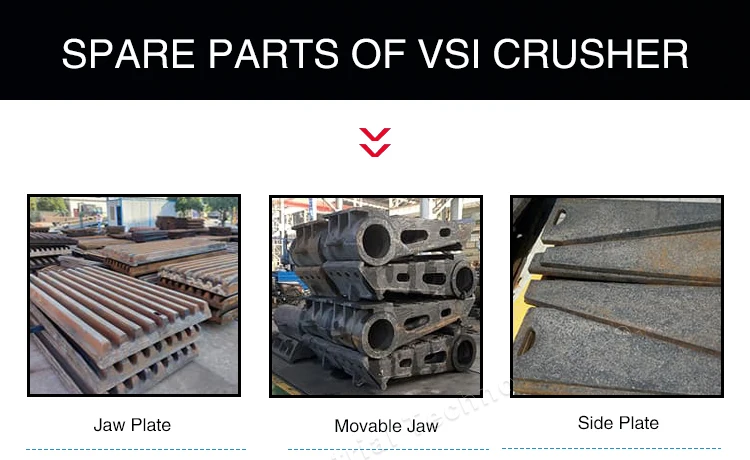

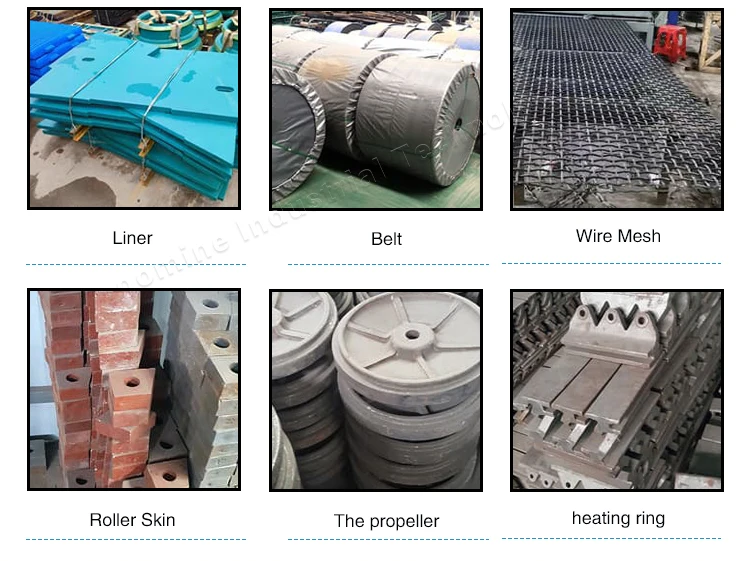

Spare Parts of VSI crusher

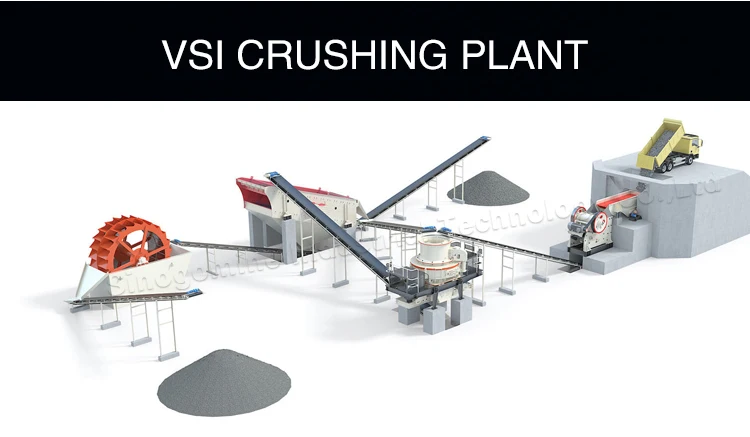

VSI crushing plant

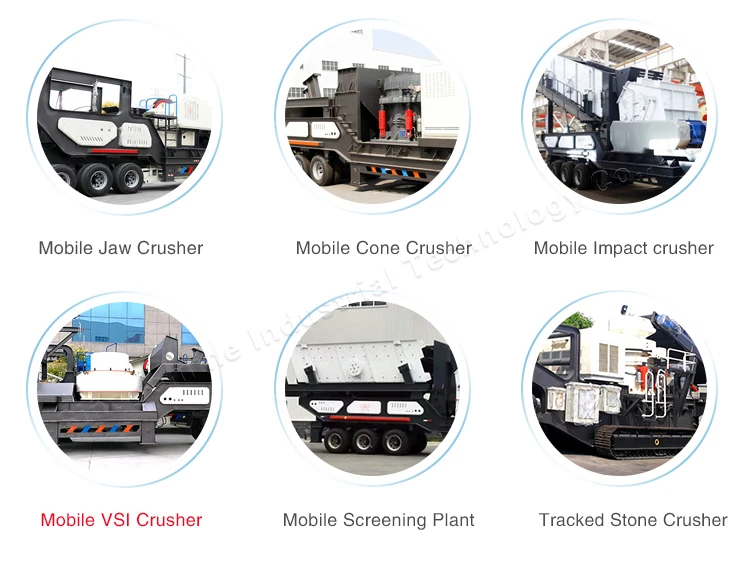

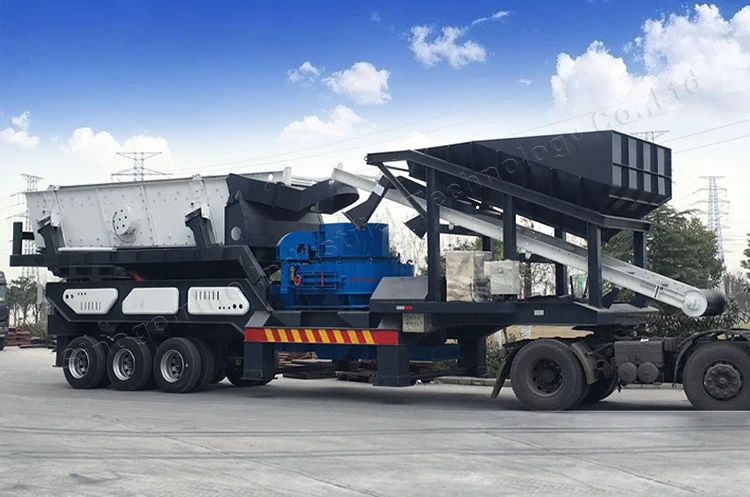

Mobile VSI Crusher
Mobile VSI crushing solutions are also available! You just need to tell our engineer your demand, and we will equip you the right mobile crushers with low energy consumption, low cost, and high efficiency.

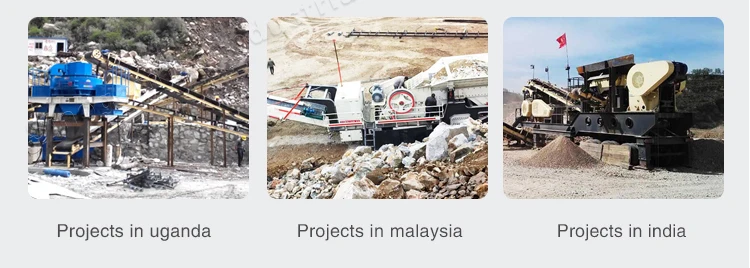

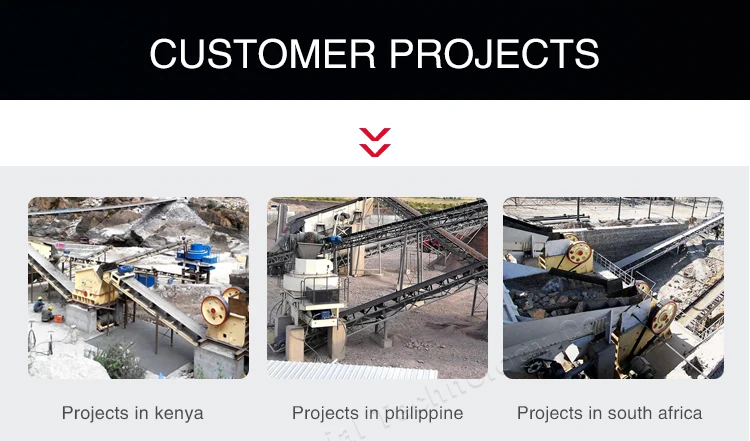

customer projects

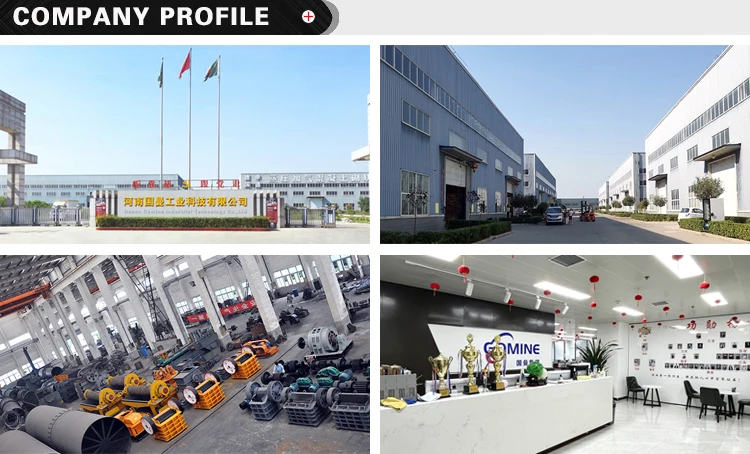

Company Profile
Sinogomine Industrial Technology Co.,Ltd is a famous industrial company in the world, which is focusing on the provision of aggregate, mining, industrial powder, Construction waste processing equipment,technology upgrading and systematic solutions.

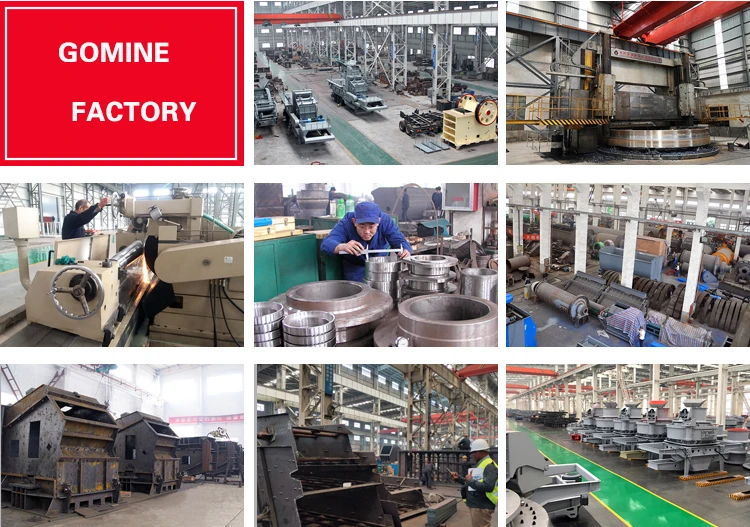

At present,it has production base of an area about 600,000 square meters. It has over 60sets of advanced machining lathes,advanced
skill workers take up 36%, excellent produce technology, complete measuring equipment,complete quality controlled system.
At present,it has production base of an area about 600,000 square meters. It has over 60sets of advanced machining lathes,advanced
skill workers take up 36%, excellent produce technology, complete measuring equipment,complete quality controlled system.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

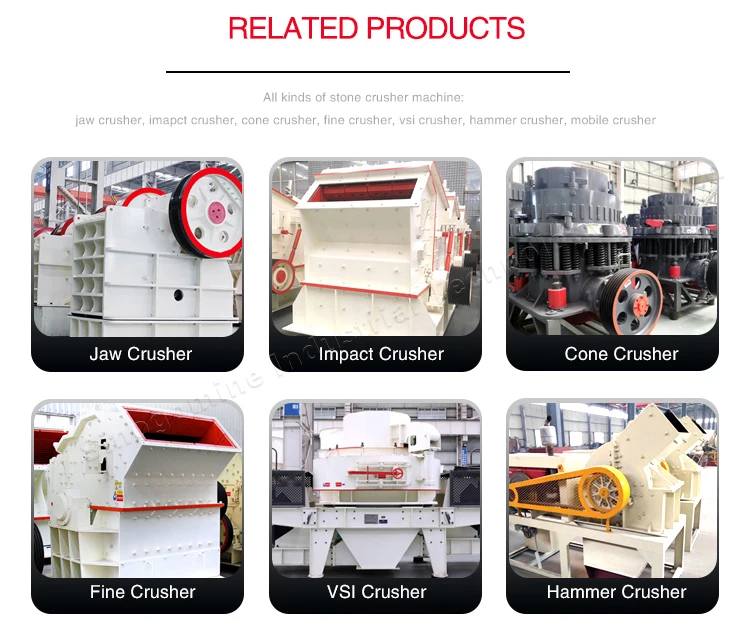

Похожие товары
