Высокопроизводительная ударная Дробилка 450-520 tph
US $42999-$43200
Китай Лидер продаж дробилка для камня молотковая машина
- Категории: Sand Making Machinery >>>
- Поставщик: Jiaozuo,City,Xinhai,Mine,Machinery,Equipment,Plant(General,Partnership)
Поделиться:
Описание и отзывы
Характеристики
Sand Making Machine
Sand Making Machine
Type:Tertiary Crusher
Capacity:60-450 TPH
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
Input Size:30mm--50mm
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Sand Making Machine used to produce artificial sand and plaster sand; sand manufactured by crushing “Grit” , The sand making machine is specially designed for manufacturing artificial sand from the grit. It is a better utilization of the size of rock materials and stones through rock on rock metal machine mechanism roughly.

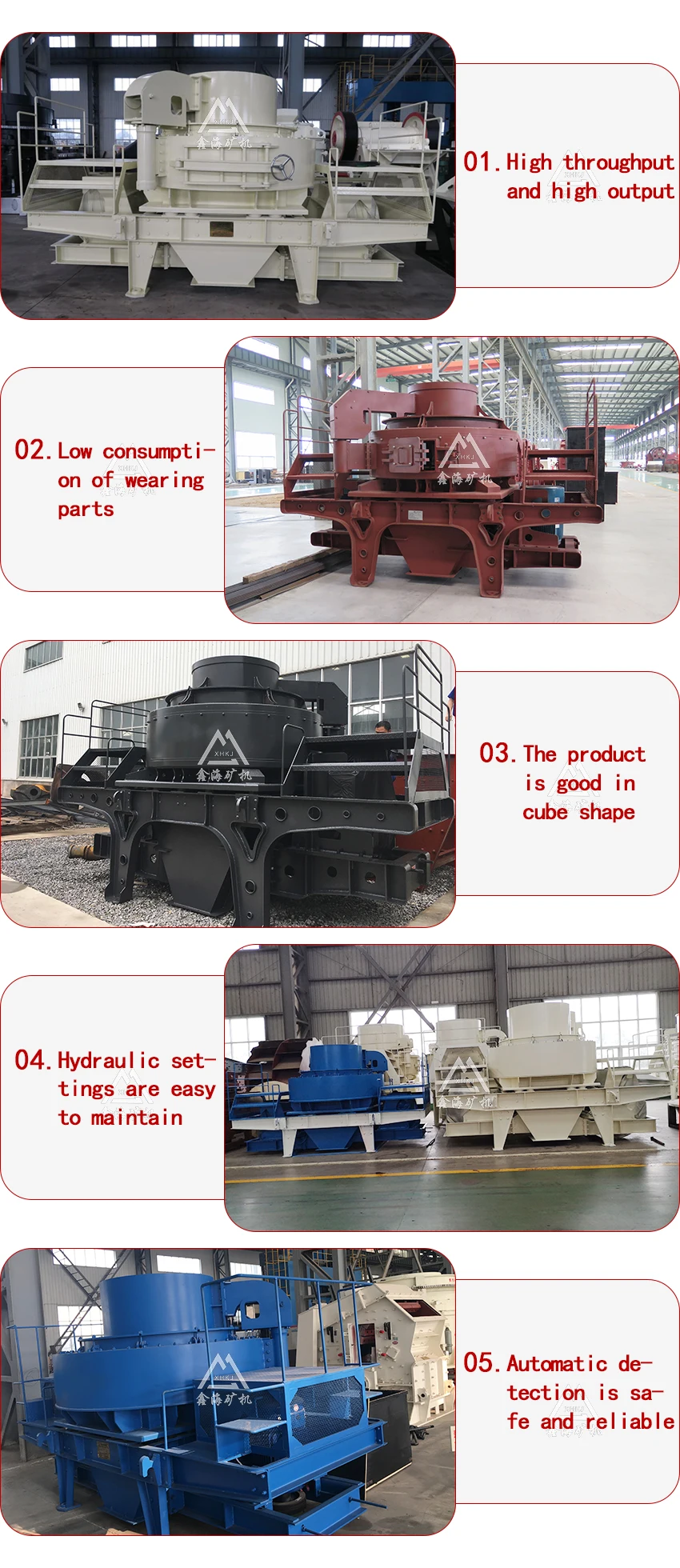

Sand Making Machine Features
Sand making mamchine Working Principle
Sand making machine consist of a rotor which revolves a high speed and throws stone particle at vigorous velocity.
These stone particles collides on anvil or autogenious stone lining in crushing chamber. The stone particles having kinetic energy when it strikes on crushing chamber brakes into small cubical particles. Crushed particles comes out from the outlet at the bottom of the machine.
Sand Making Machine Specification
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | |
| Capacity (T/H) | Surrounding feed and center feed | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
| Full center feed | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
| The max feeding size(mm) | Soft stone | 35 | 40 | 45 | 50 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | 45 | |
| Speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1200-1390 | |
| Double motor power(kW) | 110 | 180 | 264 | 400 | 440 | |
| Dimension L*W*H (MM) | 3700*2150 *2100 | 4140*2280 *2425 | 4560*2447 *2778 | 5000*2700 *3300 | 5100*2790 *3320 | |
| Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | 26 | |
| Lubrication station | Double oil pump motor power(kW) | 2*0.55kW | ||||
| Security | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,Air cooler lowers oil temperature, heater warms up oil temperature in winter. | |||||
| Over Dimension L×W×H(mm) | 1200*790*1120 | |||||
| Tank heater power(kW) | 2 | |||||
Production capacity
Certifications
Twenty years of manufacturing expencice enable our products already have been exrensivly used in metallurgy,beneficiation,city constrction,road constrction,also refractory materral industry.Besides expansion on domestic market,our products have also been exported to Canda,Russia,India,Mongolia,South Afica,Central Asia,Weaten Asia and other cnuntries and regions.
Contact us
Your email address and telephone will not be shared or published!
Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
Of course, free live-chat is available and you can get help immediately.Or you can send me email .
You can get the price list and a Xinhai representative will contact you within one business day.
I hope you can tell me these details,i will give you well quotation ASAP ,thanks. Your satisfaction is our great pursuit, we would like to sincerely for your service! We look forward to your inquiry!
Contact us :
TEL:0086-371-67660555
Whatsapp/Wechat:+86-13676922906
Website:
Chinese website:www.jzzxzg.com España:www.zxcrusher.es
English website:www.zxcrusher.com Russian:www.zxcrusher.ru
Factory Address:Boai Industrial District, Jiaozuo City, Henan Province, China
Marketing Center Address:Room 609,East Tower of Xiyuan International Plaza,Jianshe Road,Zhengzhou,China
