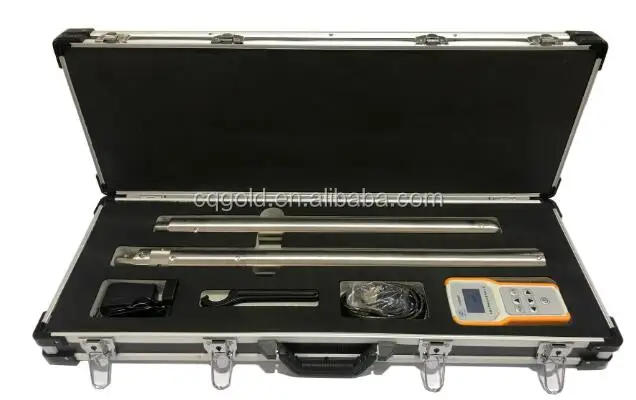

Digital Drilling Inclinometer Borehole Well Deviation Measurement Inclinometer





Application & Features of Digital Drilling Inclinometer Borehole Well Deviation Measurement Inclinometer



     Wireless digital Inclinometer is designed to measure inclination and azimuth of thenonmagnetic borehole, whose diameter is larger than 46mm. Wireless digitalInclinometer intergrades traditional technology with new sensor technology includingwireless communication technology to meet the needs of geological project better.Wireless digital Inclinometer, which is reliable and convenience to use, is an ideal product to substitute the old inclinometer. Also wireless digital Inclinometer provides digital display which guarantees the veracity of the original data.



Main Specifications of Digital Drilling Inclinometer Borehole Well Deviation Measurement Inclinometer



No.	Specifications	Parameter
1	Inclination range	0°~50°    Accuracy : ±0.5°
2	Azimuth range	0°~360°     Accuracy : ±4°(condition of Inclination≥4°)
3	Endurable pressure	15Mpa
4	Dimensions	Dia. 40mm X1230mm  Weight : 6 kg
5	Work temperature	-20°C ~ +85°C
6	Voltage	DC 9V (inside the instrument)
