Describe: |

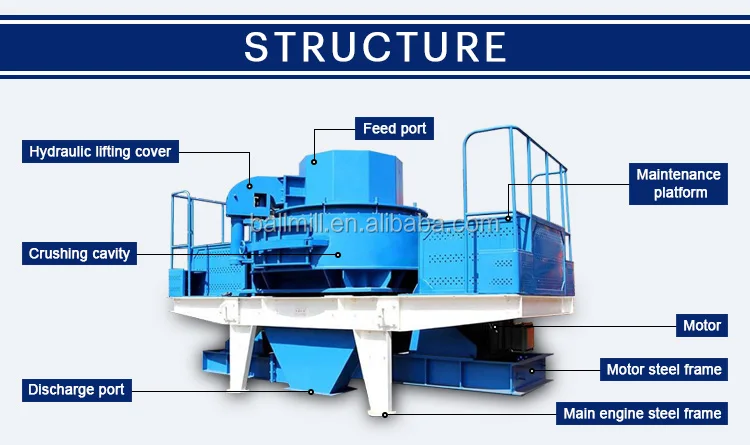

Sand making machine, also known as impact crusher, is the use of the principle and technology of "stone hit stone" crusher to develop a high-efficiency gravel equipment with leading level. |
Advantage: |
1. Novel structure, unique and balanced operation. 2. Low energy consumption, high yield and large crushing ratio. 3. Small size, easy operation, easy installation and maintenance. 4. With shaping function, the product is in cubic shape and has large packing density. 5. In the production process, the stone can form a protective bottom layer, and the machine body has no wear and is durable. 6. A small number of easy-to-wear parts are made of hard and wear-resistant materials, which are small in size, light in weight and easy to replace parts. |
Note: |
It can be used for a variety of hard and brittle materials in the broken, broken (sand), such as cobblestone, granite, iron ore, calcite, basalt, quartz stone, glass sand, concrete aggregate, etc., for construction sand, road sand is particularly suitable. |
Model | Max feed size (mm) | Capacity (t/h) | Motor power (kW) | Main shaft Rpm (r/min) | Dimension (mm) | Weight (t) |
VI-3000 | 45(70) | 30-60 | 55-90 | 1760-2210 | 3080x1757x2126 | 5.6 |
VI-4000 | 55(70) | 50-90 | 110-150 | 1550-1940 | 4100x1930x2166 | 7.0 |
VI-5000 | 65(80) | 80-150 | 150-220 | 1330-1670 | 4300x2215x2427 | 11.6 |
VI-6000 | 70(100) | 120-250 | 220-320 | 1190-1490 | 5300x2728x2773 | 15.1 |
VI-7000 | 70(100) | 180-350 | 264-400 | 1050-1310 | 5300x2728x2863 | 17.1 |
VI-8000 | 70(100) | 250-380 | 250-380 | 1330-1670 | 5500x2565x3178 | 18.5 |
Working principle: |
Feed material into the feed hopper, the center hole into the high-speed rotation of the rotor was full speed and the emission mouth out, first with the rebound after free fall impact part of the material, then hit together around the whirlpool of vortex chamber of on line (or back), bounced into the crushing chamber at the top of the first, after the deflection downward movement, and the material impact emitted from the impeller passage to form a continuous material curtain, finally through the lower part of discharging mouth eduction. |

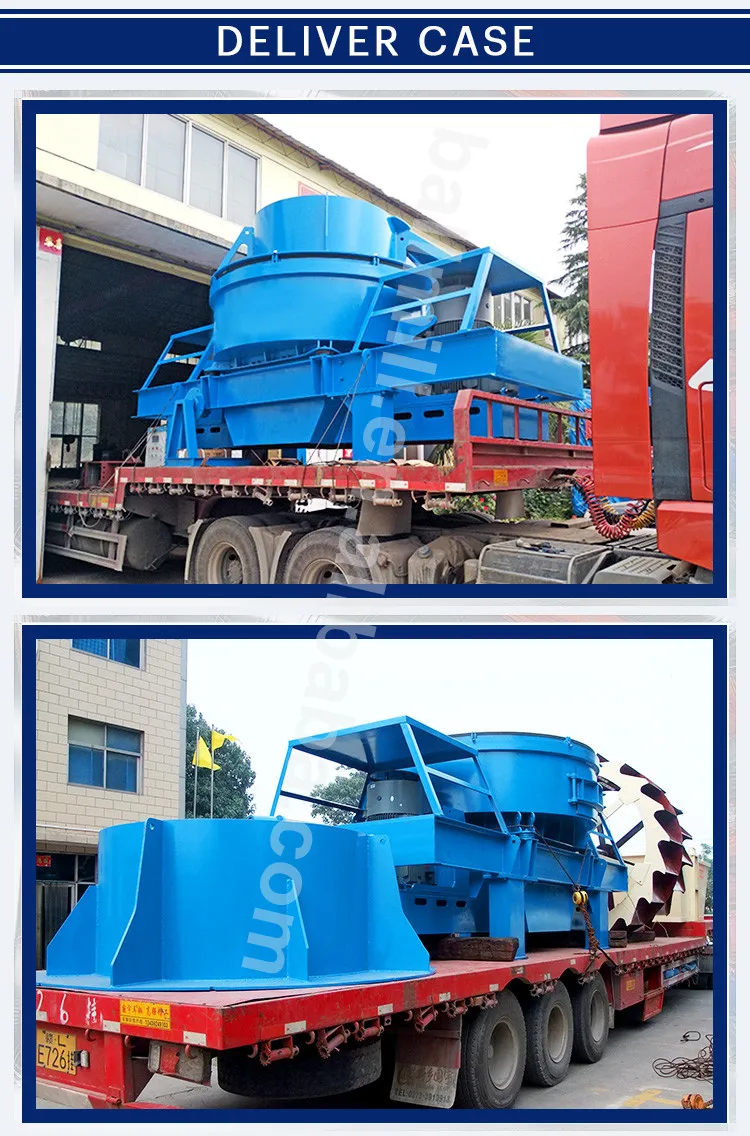

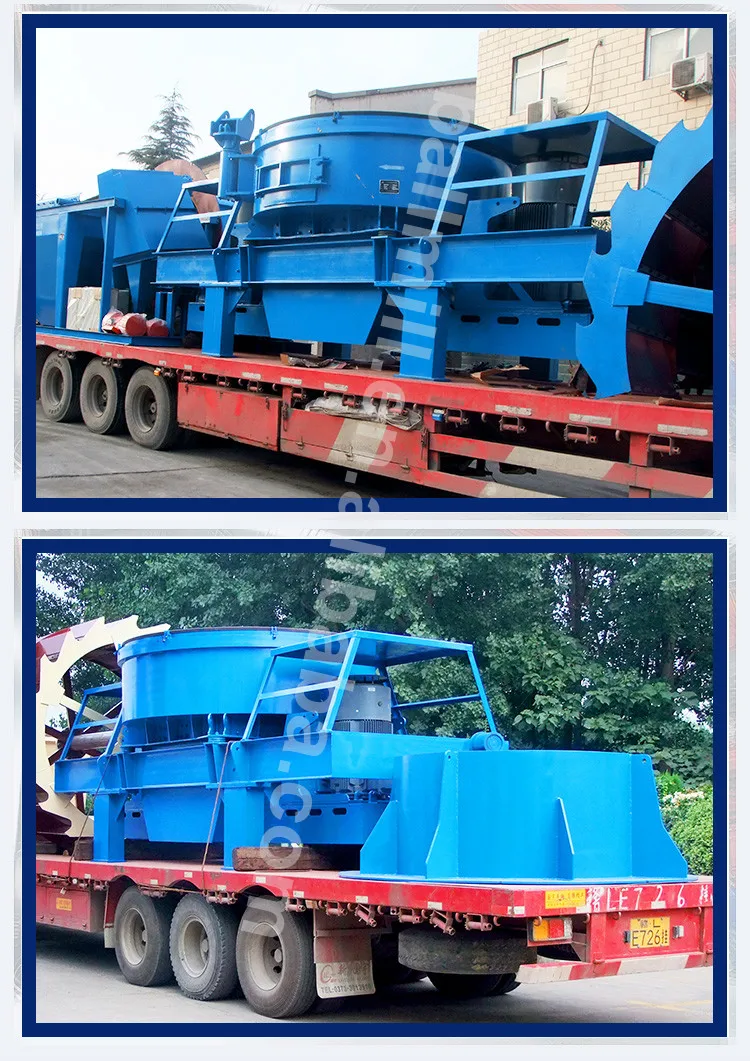

Packaging detail: |
Standard containers, bare main machine, motors and small parts are packed in wooden cases. |
Delivery port: |
Within 45 days Qingdao,Shanghai,Tianjin and other ports. |
