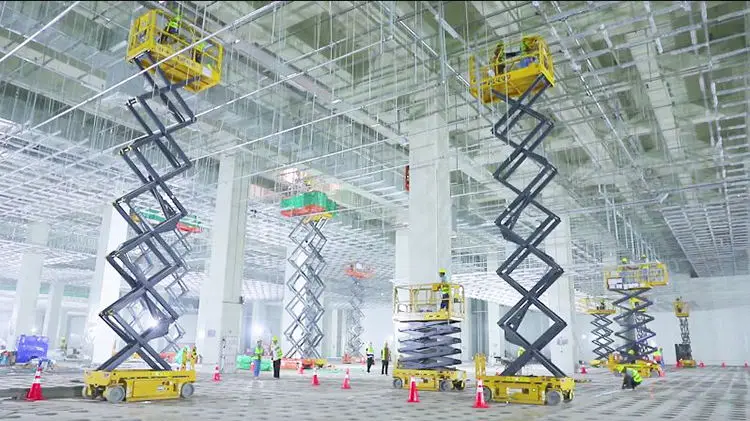

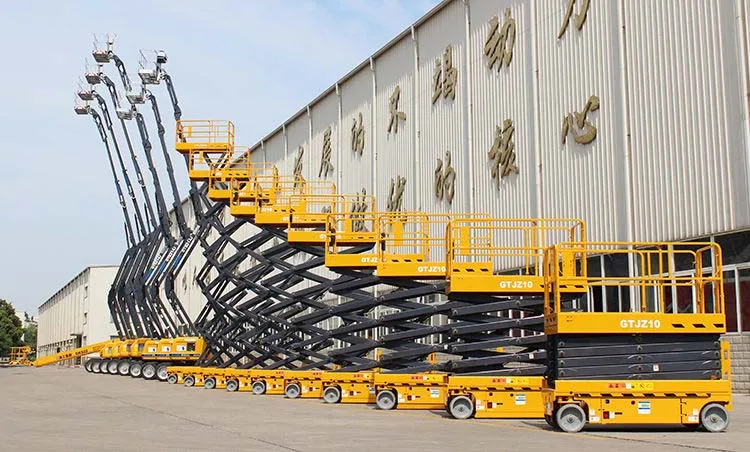

GTJZ0607 5.8m 6m 8m 10m 12m18m 22m 24m 26m 30m 32m 38m Hydraulic Mobile Scissor Lift Platform Man Lifts Aerial Work Platform
The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the
driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system,
safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of
commercial buildings, warehouses, airports and other areas.
driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system,
safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of
commercial buildings, warehouses, airports and other areas.

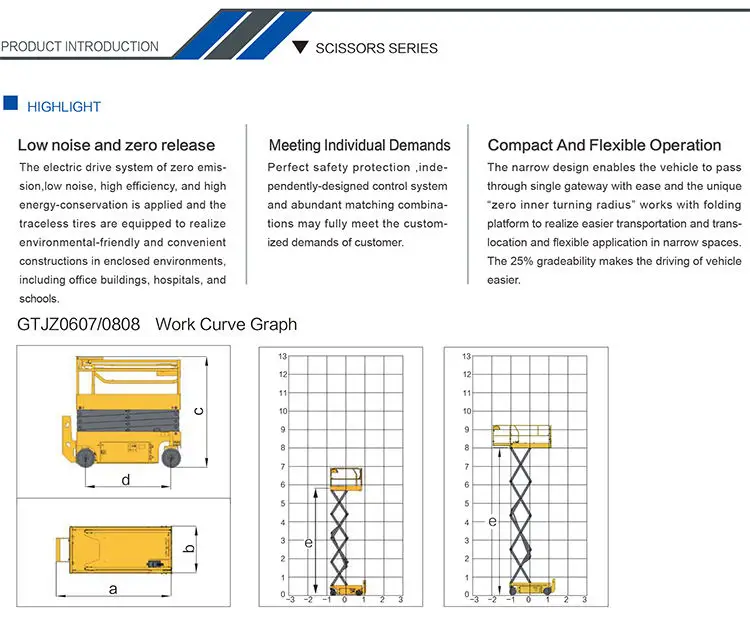

Item | Unit | GTJZ0607 | GTJZ0808 | GTJZ1012 | GTJZ1212 |
a Overall Length | mm | 1882 | 2485 | 2485 | 2485 |
b Overall Width | mm | 760 | 810 | 1170 | 1190 |
c Overall Height (Guardrail folding) | mm | 1771 | 2345 (1965) | 2472 | 2600 |
d Wheel Base | mm | 1360 | 1871 | 1871 | 1871 |
Maximum Working Height | m | 7.8 | ≥10 | ≥10 | 11.8 |
Maximum Platform Height | m | 5.8 | ≥8 | 10 | 11.8 |
Maximum Load Capacity | kg | 230 | 230 | 320 | 320 |
Extension Platform Load | kg | 115 | 115 | 115 | 115 |
Platform Size | mm | 1655×740×1185 | 2276*810*1254 | 2276×1120×1254 | 2276×1120×1254 |
PlatformExtension Length | mm | 900 | 900 | 900 | 900 |
Lifting Speed of Working Platform | s | 16-24 | 0.2-0.24m/s | 56~66 | 61~71 |
Falling Speed of Working Platform | s | 20-28 | 0.17-0.2m/s | 43~58 | 43~58 |
Total Weight | kg | 1490 | 2170 | 3000 | 3150 |
Travel Speed (High Speed) | km/h | 4.0 | ≤3.5 | 3.5 | 3.2 |
Travel Speed (low Speed) | km/h | 0.8 | ≤0.8 | 0.8 | 0.8 |
Max. Travel Platform Height | m | 5.8 | ≥10 | 10 | 11.8 |
Minimum Turning Radius | m | 0 | 0 | 0 | 0 |
Minimum Ground Clearance (Pot Hole Protector Rises/Falls) | mm | 60/20 | 100/20 | 101/20 | 101/20 |
Maximum Grade Ability | % | 25 | ≥25 | 25 | 25 |
Tire Specification | _ | Traceless solid 30.5cm×10.0cm | Traceless solid rubber tire381×127mm | Traceless solid core 38.1cm×12.7cm | Traceless solid core 38.1cm×12.7cm |
Battery | V/(Ah) | 4×6(225) | 4×6/225 | 4×6(240) | 4×12(300) |
Charger | A | 30 | 30 | 30 | 30 |
Warning Angle of Inclination | ° | 1.5 (Both sides) | 1.5 (Both sides) | 1.5 (Both sides) | 1.5 (Both sides) |
° | 3(Front or Rear) | 3(Front or Rear) | 3(Front or Rear) | 3(Front or Rear) |
